基于固体填料床的泵热储能系统热-经济性分析

doi:10.3969/j.issn.1674-1951.2021.07.001

摘要/Abstract

摘要：

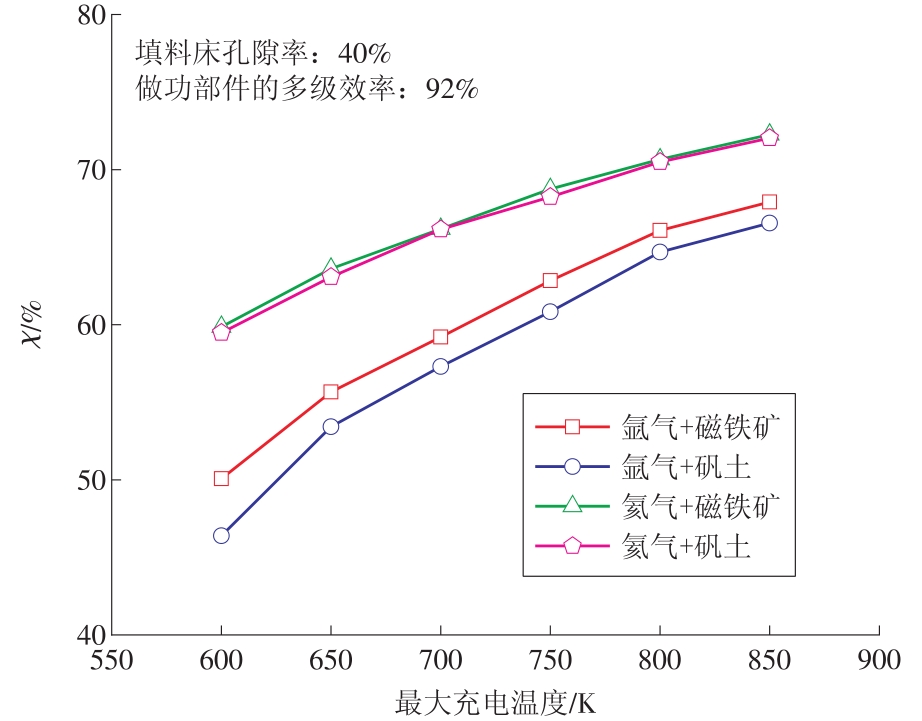

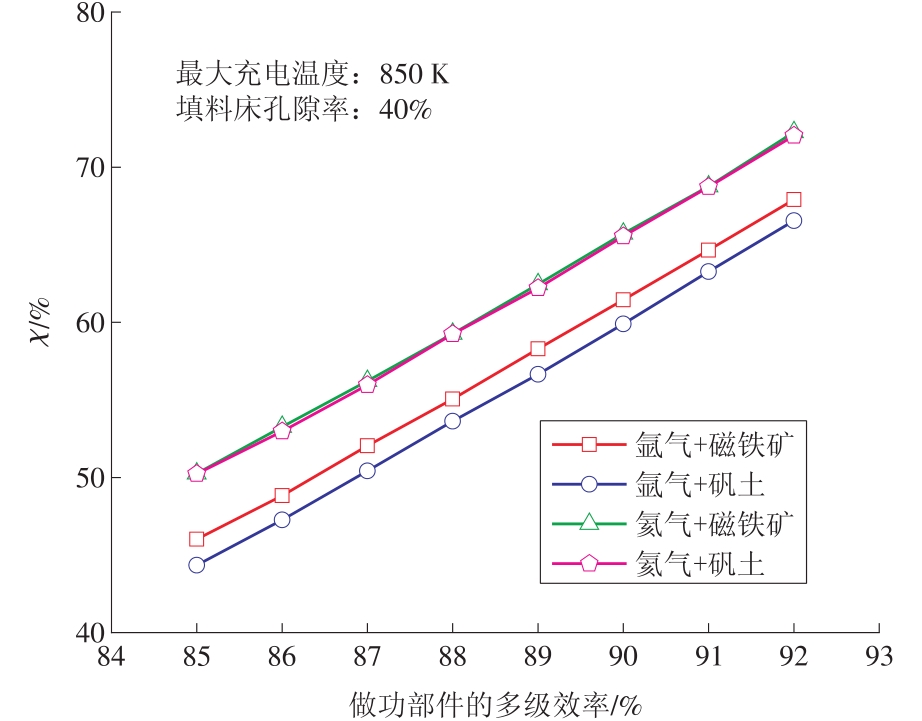

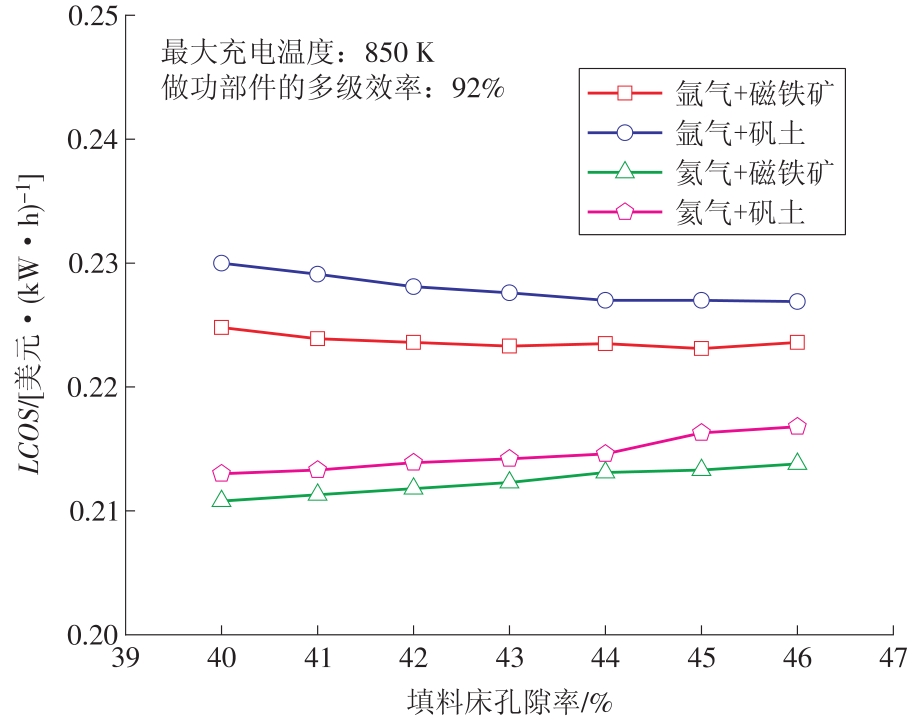

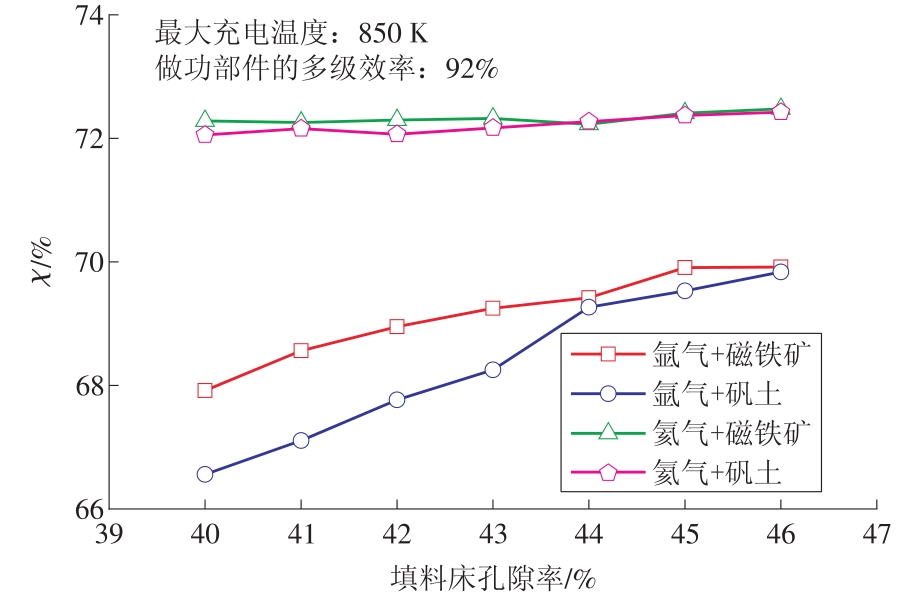

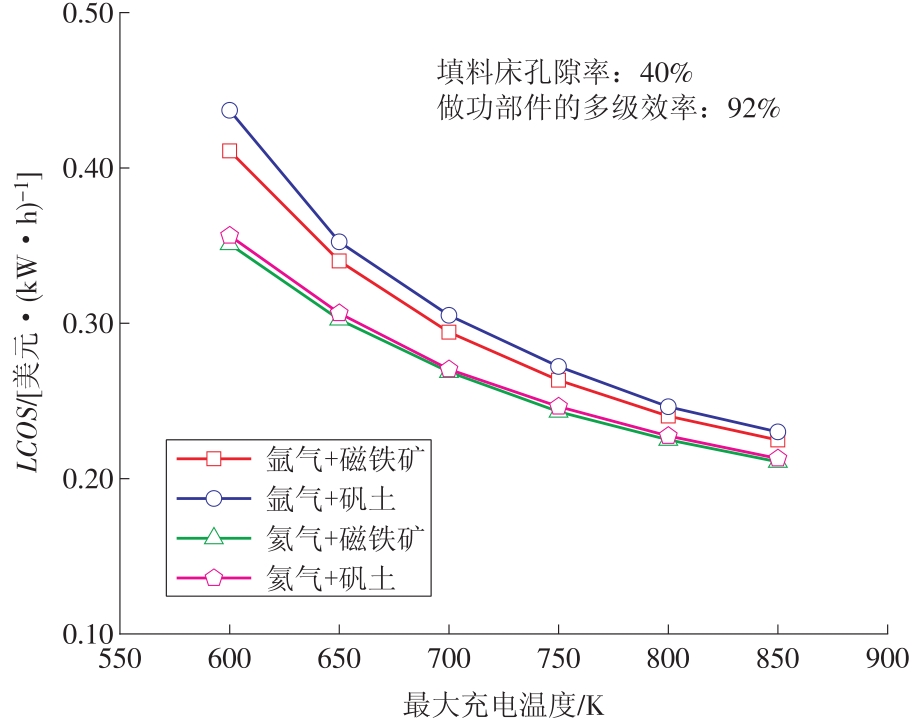

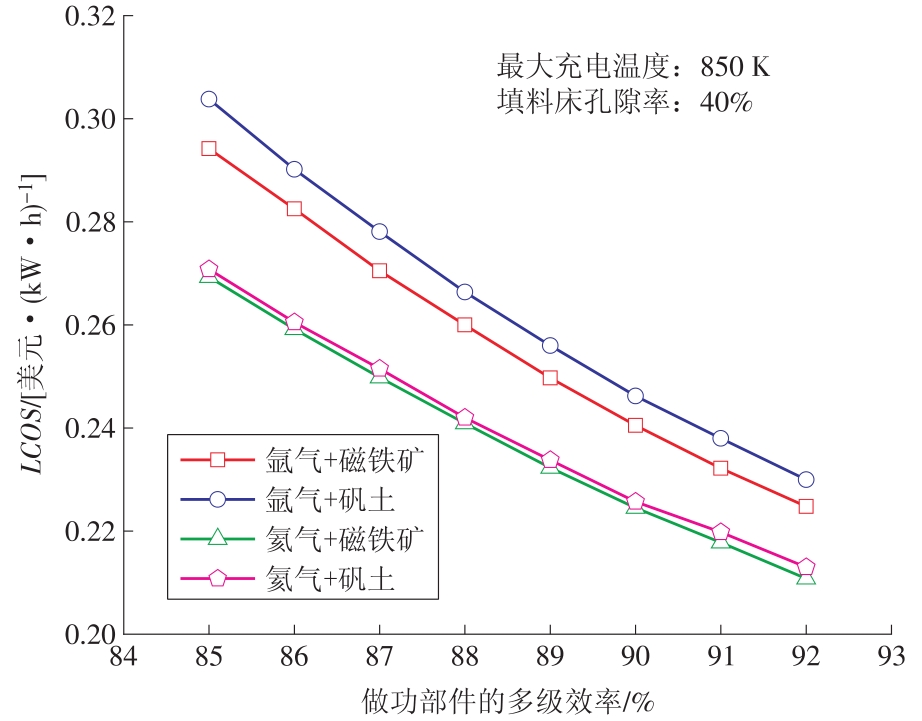

泵热储能技术因其具有大规模化、成本较低且无地理条件限制的优势,在未来电力系统中扮演着十分重要的角色。针对采用固体填料床且基于可逆焦耳-布雷顿循环的泵热储能系统,开展了不同设计参数对系统热-经济性的影响规律研究,结果表明：系统综合效率随着最大充电温度、做功部件多级效率和填料床孔隙率的增加而升高;当选取氦气为工质,磁铁矿为储热介质,且最大充电温度为850 K时,多级效率为92%,填料床孔隙率为46%时,得到最大综合效率72.45%。系统平准化储能成本随着最大充电温度和做功部件多级效率的增加而降低;当选取氦气为工质,磁铁矿为储热介质,且最大充电温度为850 K时,多级效率为92%,填料床孔隙率为40%时,可获得最小平准化储能成本0.211 美元/（kW·h）。

关键词: 泵热储能, 卡诺电池, 热-经济性分析, 平准化储能成本, 热-机械储能技术, 碳中和, 储能技术

Abstract:

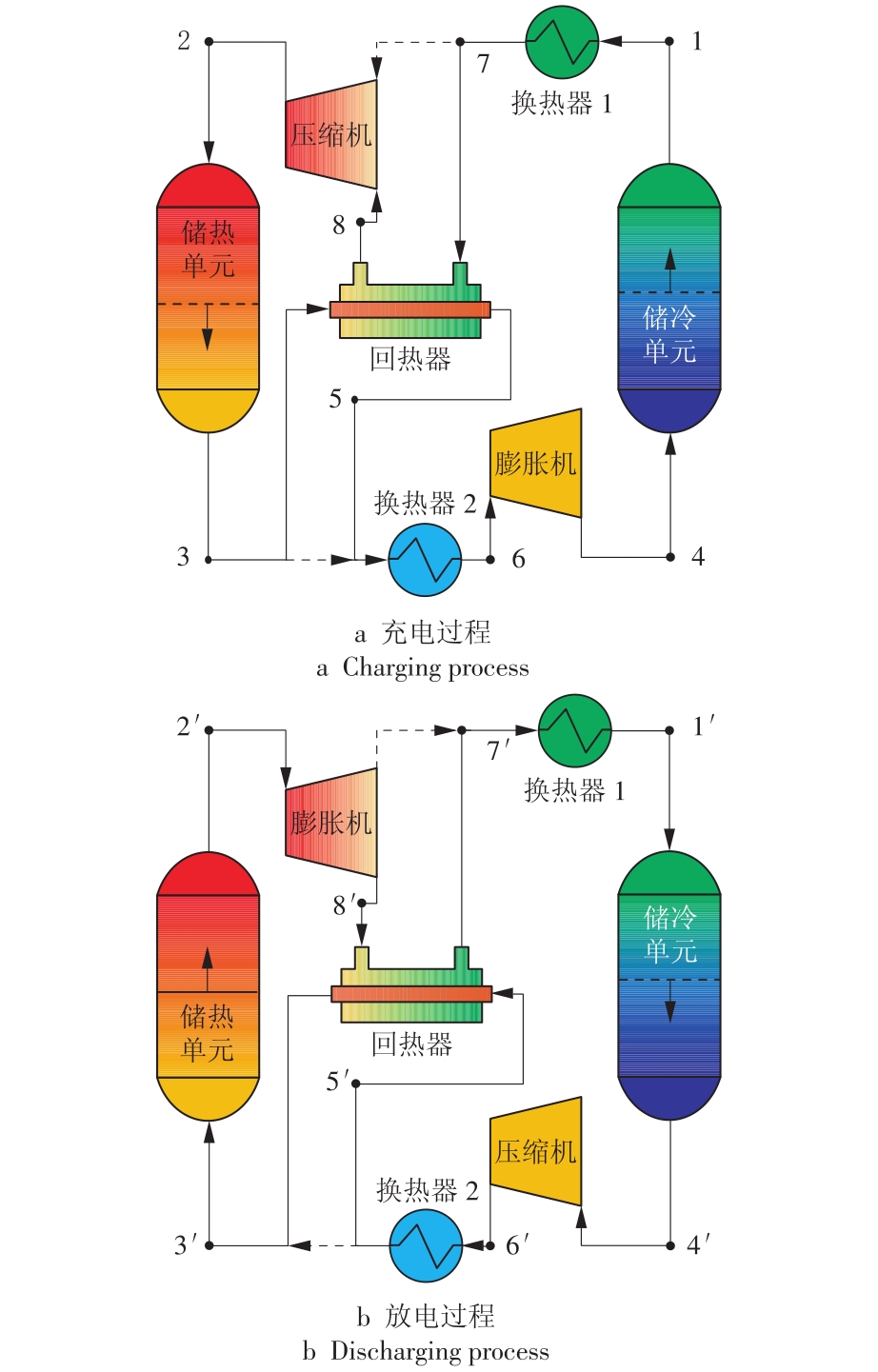

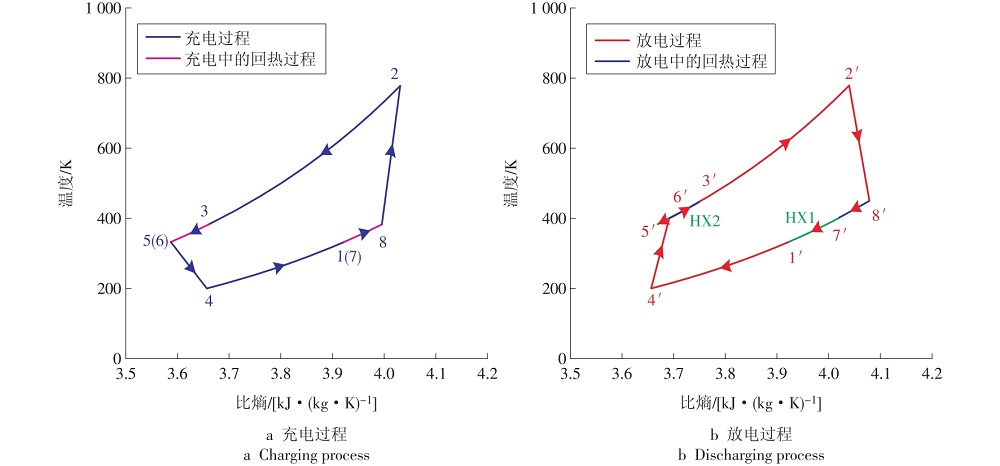

Pumped thermal energy storage technology will play a critical role in the future electric power system due to its large scale,low capital cost and no geographical constraints.A pumped thermal energy storage system based on solid packed beds and the reversible Joule-Brayton cycles and the effects of distinct design parameters on the system's thermo-economic performance were investigated.It can be revealed that the system roundtrip efficiency increase with the gowing of the maximum charging temperature,polytropic efficiency of the machines and porosity of packed beds.Using helium as the working fluid and magnetite as the storage material,the system's maximum roundtrip efficiency can be as high as 72.45% when the maximum charging temperature,polytropic efficiency of the machines and porosity of packed beds are 850 K,92% and 46%,respectively.The levelized energy storage cost of the system reduces with the rising of the maximum charging temperature and polytropic efficiency of the machines.Using helium as the working fluid and magnetite as the storage material,the minimum levelized cost energy storage will bottom at 0.211 dollar/（kW·h） when the maximum charging temperature,polytropic efficiency of the machines and porosity of packed beds are 850 K,92% and 40%,respectively.

Key words: pumped thermal energy storage, Carnot battery, thermo-economic analysis, levelized cost of storage, thermo-mechanical energy storage technology, carbon neutrality, energy storage technology

中图分类号:

TK11⁺4

赵永亮, 刘明, 王朝阳, 孙瑞强, 种道彤, 严俊杰. 基于固体填料床的泵热储能系统热-经济性分析[J]. 华电技术, 2021, 43(7): 1-8.

ZHAO Yongliang, LIU Ming, WANG Chaoyang, SUN Ruiqiang, CHONG Daotong, YAN Junjie. Thermo-economic analysis on the pumped thermal energy storage system based on the solid packed beds[J]. Huadian Technology, 2021, 43(7): 1-8.

图/表 10

图1

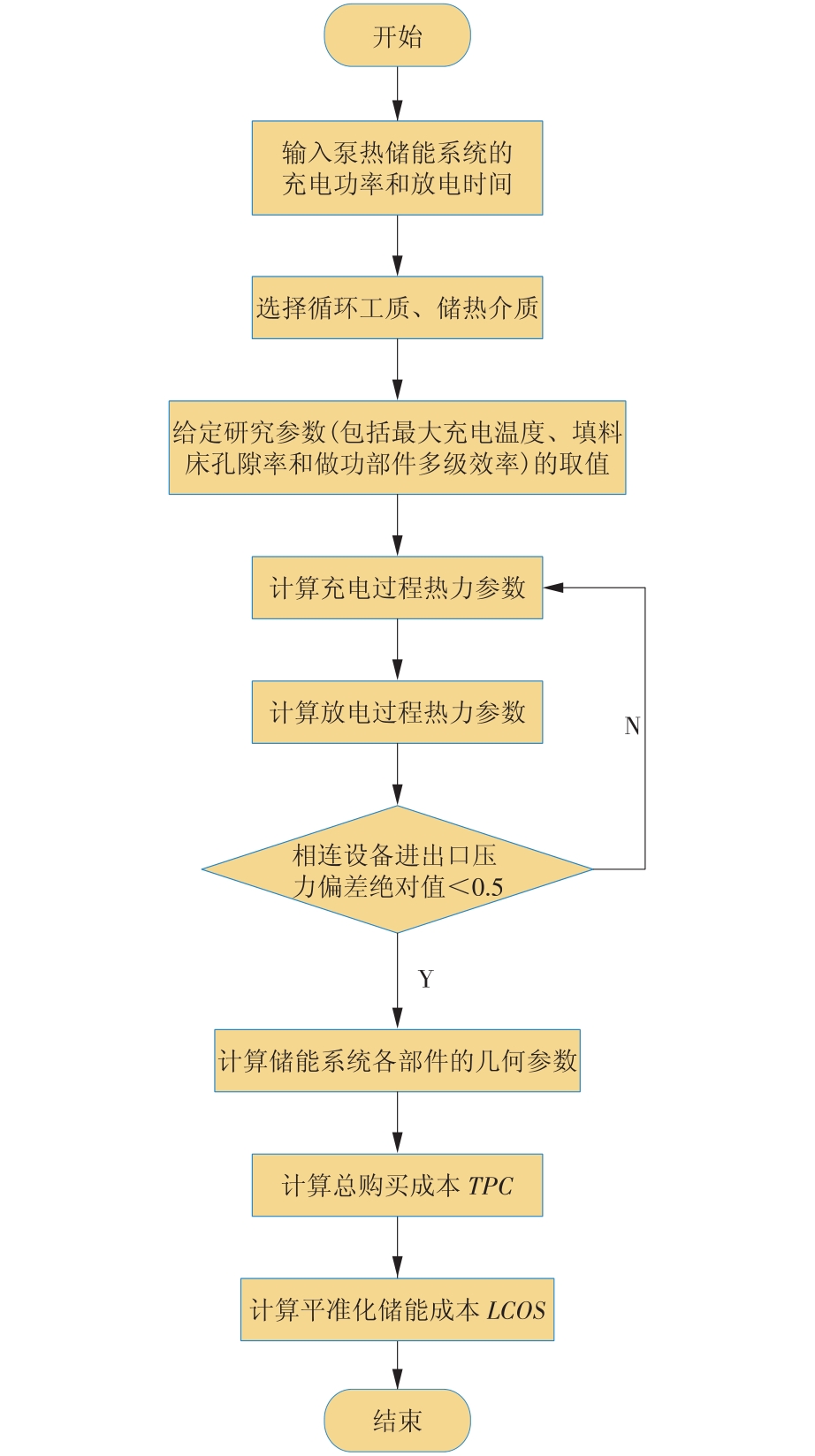

图2

表1

图3

图4

图5

图6

图7

图8

图9

参考文献 27

[1]	ZHOU S, WANG Y, ZHOU Y Y, et al. Roles of wind and solar energy in China's power sector:Implications of intermittency constraints[J]. Applied Energy, 2018, 213:22-30. doi: 10.1016/j.apenergy.2018.01.025
[2]	CRUZ M R M, FITIWI D Z, SANTOS S F, et al. A comprehensive survey of flexibility options for supporting the low-carbon energy future[J]. Renewable and Sustainable Energy Reviews, 2018, 97:338-353. doi: 10.1016/j.rser.2018.08.028
[3]	魏海姣, 鹿院卫, 张灿灿, 等. 燃煤机组灵活性调节技术研究现状及展望[J]. 华电技术, 2020, 42(4):63-69.
	WEI Haijiao, LU Yuanwei, ZHANG Cancan, et al. Status and prospect of flexibility regulation technology for coal-fired power plants[J]. Huadian Technology, 2020, 42(4):63-69.
[4]	王金星, 张少强, 张瀚文, 等. 燃煤电厂调峰调频储能技术的研究进展[J]. 华电技术, 2020, 42(4):64-71.
	WANG Jinxing, ZHANG Shaoqiang, ZHANG Hanwen, et al. Progress on the peak load regulation,frequency regulation and energy storage technologies for coal-fired power plants[J]. Huadian Technology, 2020, 42(4):64-71.
[5]	王兴兴, 孙建桥, 陈明. 储能火电联合调频系统设计与研究[J]. 华电技术, 2020, 42(4):78-82.
	WANG Xingxing, SUN Jianqiao, CHEN Ming. Design and research on energy storage and thermal power combined frequency modulation systems[J]. Huadian Technology, 2020, 42(4):78-82.
[6]	RAHMAN M M, ONI A O, GEMECHU E, et al. Assessment of energy storage technologies:A review[J]. Energy Conversion and Management, 2020, 223.DOI: 10.1016/j.enconman.2020.113295.
[7]	ANEKE M, WANG M H. Energy storage technologies and real life applications—A state of the art review[J]. Applied Energy, 2016, 179:350-377. doi: 10.1016/j.apenergy.2016.06.097
[8]	STEINMANN W D. Thermo-mechanical concepts for bulk energy storage[J]. Renewable and Sustainable Energy Reviews, 2017, 75:205-219. doi: 10.1016/j.rser.2016.10.065
[9]	OLYMPIOS A V, MCTIGUE J D, FARRES-ANTUNEZ P, et al. Progress and prospects of thermo-mechanical energy storage—A critical review[J]. Progress in Energy, 2020, 3.DOI: 10.1088/2516-1083/abdbba.
[10]	韩伟, 崔凯平, 赵晓辉, 等. 光热电站储热系统设计及储罐预热方案研究[J]. 华电技术, 2020, 42(4):42-46.
	HAN Wei, CUI Kaiping, ZHAO Xiaohui, et al. Design for CSP plants' energy storage system and research on preheating strategy with tanks[J]. Huadian Technology, 2020, 42(4):42-46.
[11]	左春帅, 樊海鹰, 王恩宇. 太阳能跨季节储热供热系统性能研究[J]. 华电技术, 2020, 42(11):50-56.
	ZUO Chunshuai, FAN Haiying, WANG Enyu. Study on the performance of a solar seasonal heat-storage and heating system[J]. Huadian Technology, 2020, 42(11):50-56.
[12]	BENATO A. Performance and cost evaluation of an innovative pumped thermal electricity storage power system[J]. Energy, 2017, 138:419-436. doi: 10.1016/j.energy.2017.07.066
[13]	BENATO A, STOPPATO A. Heat transfer fluid and material selection for an innovative pumped thermal electricity storage system[J]. Energy, 2018, 147:155-168. doi: 10.1016/j.energy.2018.01.045
[14]	GEORGIOU S, SHAH N, MARKIDES C N. A thermo-economic analysis and comparison of pumped-thermal and liquid-air electricity storage systems[J]. Applied Energy, 2018, 226:1119-1133. doi: 10.1016/j.apenergy.2018.04.128
[15]	WANG L, LIN X P, CHAI L, et al. Cyclic transient behavior of the Joule-Brayton based pumped heat electricity storage:Modeling and analysis[J]. Renewable and Sustainable Energy Reviews, 2019, 111:523-534. doi: 10.1016/j.rser.2019.03.056
[16]	WANG L, LIN X P, CHAI L, et al. Unbalanced mass flow rate of packed bed thermal energy storage and its influence on the Joule-Brayton based pumped thermal electricity storage[J]. Energy Conversion and Management, 2019, 185:593-602. doi: 10.1016/j.enconman.2019.02.022
[17]	LAUGHLIN R B. Pumped thermal grid storage with heat exchange[J]. Journal of Renewable and Sustainable Energy, 2017, 9(4).DOI: 10.1063/1.4994054.
[18]	SALOMONE-GONZáLEZ D, GONZáLEZ-AYALA J, MEDINA A, et al. Pumped heat energy storage with liquid media:Thermodynamic assessment by a Brayton-like model[J]. Energy Conversion and Management, 2020, 226.DOI: 10.1016/j.enconman.2020.113540.
[19]	ZHAO Yongliang, LIU Ming, SONG Jian, et al. Advanced exergy analysis of a Joule-Brayton pumped thermal electricity storage system with liquid-phase storage[J]. Energy Conversion and Management, 2021, 231.DOI: 10.1016/j.enconman.2021.113867.
[20]	DUMONT O, FRATE G F, PILLAI A, et al. Carnot battery technology:A state-of-the-art review[J]. Journal of Energy Storage, 2020, 32.DOI: 10.1016/j.est.2020.101756.
[21]	FRATE G F, FERRARI L, DESIDERI U. Multi-criteria investigation of a pumped thermal electricity storage (PTES) system with thermal integration and sensible heat storage[J]. Energy Conversion and Management, 2020, 208.DOI: 10.1016/j.enconman.2020.112530.
[22]	HU S Z, YANG Z, LI J, et al. Thermo-economic analysis of the pumped thermal energy storage with thermal integration in different application scenarios[J]. Energy Conversion and Management, 2021, 236.DOI: 10.1016/j.enconman.2021.114072.
[23]	SMALLBONE A, JÜLCH V, WARDLE R, et al. Levelised cost of storage for pumped heat energy storage in comparison with other energy storage technologies[J]. Energy Conversion and Management, 2017, 152:221-228. doi: 10.1016/j.enconman.2017.09.047
[24]	TAFONE A, DING Y L, LI Y L, et al. Levelised Cost of Storage(LCOS) analysis of liquid air energy storage system integrated with Organic Rankine Cycle[J]. Energy, 2020, 198.DOI: 10.1016/j.energy.2020.117275.
[25]	JULCH V. Comparison of electricity storage options using levelized cost of storage(LCOS) method[J]. Applied Energy, 2016, 183:1594-1606.
[26]	MOSTAFA M H, ABDEL ALEEM S H E, ALI S G, et al. Techno-economic assessment of energy storage systems using annualized life cycle cost of storage(LCCOS) and levelized cost of energy(LCOE) metrics[J]. Journal of Energy Storage, 2020, 29.DOI: 10.1016/j.est.2020.101345.
[27]	CHEN L X, HU P, ZHAO P P, et al. Thermodynamic analysis of a high temperature pumped thermal electricity storage(HT-PTES) integrated with a parallel Organic Rankine Cycle(ORC)[J]. Energy Conversion and Management, 2018, 177:150-160. doi: 10.1016/j.enconman.2018.09.049

参数		成本计算
TDPC	TPC	TPC
	部件安装	25% TPC
	仪表安装	8% TPC
	管道安装	10% TPC
	电气安装	10% TPC
	建筑	10% TPC
	土地	4% TPC
IDC		14% TDPC
EPC		TDPC + IDC
C&OC	应急成本	10% EPC
C&OC	所有者成本	5% EPC
TCI		EPC + C&OC
