储热过程竖排圆柱表面熔盐自然对流传热规律研究

doi:10.3969/j.issn.1674-1951.2021.07.009

华电技术 ›› 2021, Vol. 43 ›› Issue (7): 54-61.doi: 10.3969/j.issn.1674-1951.2021.07.009

储热过程竖排圆柱表面熔盐自然对流传热规律研究

于强¹(), 何聪¹, 智瑞平¹, 鹿院卫¹^,^*(), 吴玉庭¹, 杨桂春²

1.北京工业大学传热强化与过程节能教育部重点实验室暨传热与能源利用北京市重点实验室,北京 100124
2.中国寰球工程有限公司北京分公司,北京 100012

收稿日期:2021-05-07 修回日期:2021-06-15 出版日期:2021-07-25 发布日期:2021-07-27
通讯作者: 鹿院卫
作者简介:于强（1988—）,男,山东菏泽人,在读博士研究生,从事熔盐传热蓄热方面的研究工作（E-mail： yuqiang@emails.bjut.edu.cn）。
基金资助:
国家自然科学基金项目(52076006);国家重点研发计划(2017YFB0903603);内蒙古科技重大专项(2019ZD014)

Research on natural convection heat transfer of molten salts on vertical cylinder surface during heat storage

YU Qiang¹(), HE Cong¹, ZHI Ruiping¹, LU Yuanwei¹^,^*(), WU Yuting¹, YANG Guichun²

1. Key Laboratory of Enhanced Heat Transfer and Energy Conservation/Beijing Key Laboratory of Heat Transfer and Energy Conversion,Beijing University of Technology,Beijing 100124,China
2. China Huanqiu Contracting and Engineering （Beijing） Company Limited,Beijing 100012,China

Received:2021-05-07 Revised:2021-06-15 Online:2021-07-25 Published:2021-07-27
Contact: LU Yuanwei

摘要/Abstract

摘要：

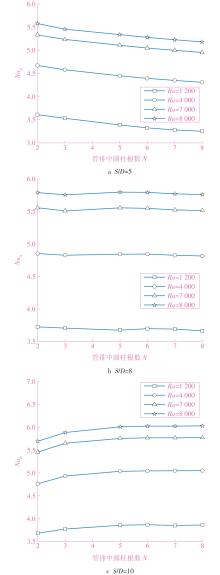

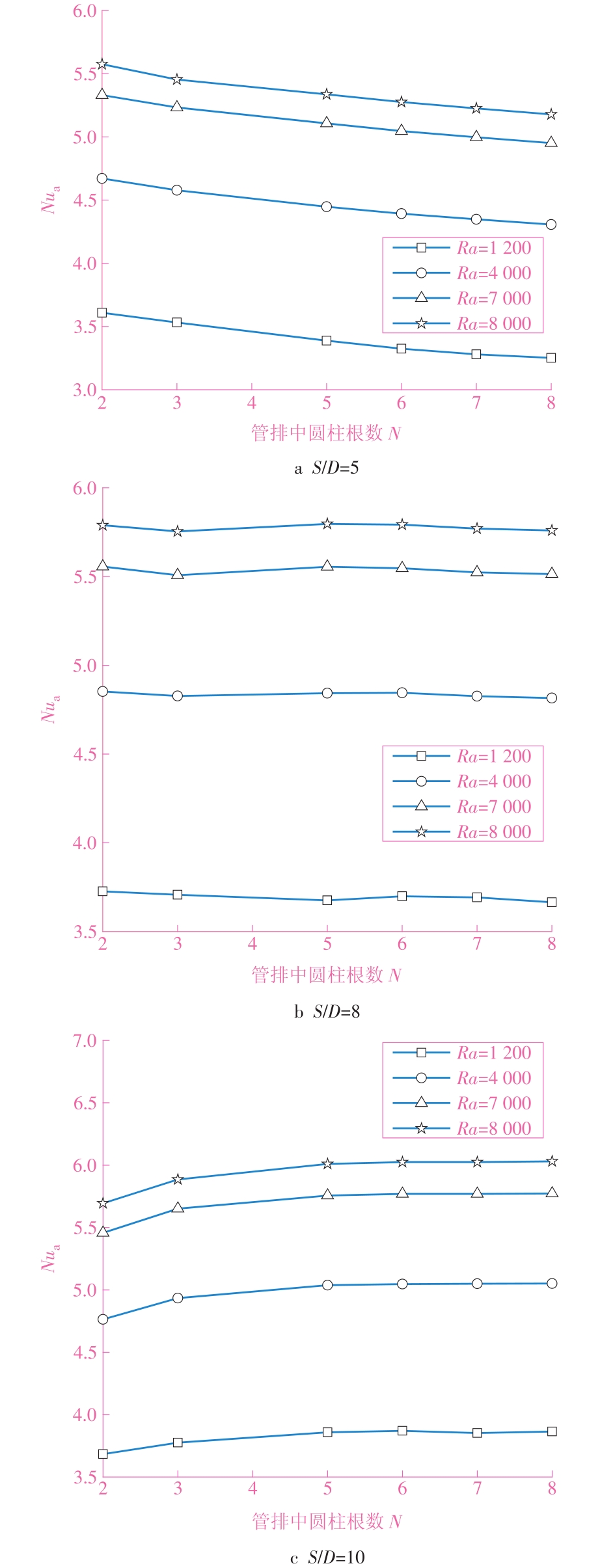

为了得到储热过程竖排圆柱表面熔盐自然对流传热规律,通过数值模拟的方法,对圆柱间距S/D=5~10（S为相邻2根圆柱之间的间距,D为管排圆柱的直径）的2~8根竖排圆柱表面自然对流传热进行了研究。结果表明：管排中每一根圆柱表面的自然对流传热与该圆柱在管排中的位置和圆柱间距S/D有关。整个管排圆柱表面熔盐自然对流传热平均努赛尔数（Nu_a）是由圆柱的间距S/D、圆柱根数N和瑞利数（Ra）决定的。当S/D较小时（S/D=5）,多根管排圆柱表面熔盐自然对流传热Nu_a随着管排中圆柱根数的增加而减小;当S/D较大时（S/D=10）,多根管排圆柱表面熔盐自然对流传热Nu_a随着管排中圆柱根数的增加而增大。研究结果可以为熔盐蓄热装置设计提供理论依据。

关键词: 自然对流, 熔盐, 管排, 圆柱间距, 努赛尔数（Nu）, 瑞利数（Ra）, 传热规律, 碳中和

Abstract:

In order to obtain the natural convection heat transfer law by of molten salts on the surface of vertical cylinders during heat charging,a numerical simulation was made on the natural convection heat transfer around a cylinder array with 2 to 8 vertical pillars whose cylindrical spacing （ S/D）=5~10 （S is the distance between two adjacent cylinders,D is the diameter of the cylinder）.The results show that the natural convection heat transfer on each cylinder surface is related to the position of the cylinder in the row and the its S/D.The average Nu（Nu_a）of the natural convection heat transfer made by molten salt around the whole cylinder array is determined by the S/D,the number of cylinders（N） and Ra.When S/D is small（S/D=5）,the Nu_a of natural convection heat transfer of molten salt on the cylinders' surface will decrease with the number of cylinders in the row.When S/D is large（S/D=10）,the Nu_a of natural convection heat transfer on the cylinders' surface will augment with the number of cylinders in the row.The research results can provide theoretical basis for the design of molten salt heat storage device.

Key words: natural convection, molten salt, cylinder array, cylindrical spacing, Nu, Ra, heat transfer law, carbon neutrality

中图分类号:

TK124

于强, 何聪, 智瑞平, 鹿院卫, 吴玉庭, 杨桂春. 储热过程竖排圆柱表面熔盐自然对流传热规律研究[J]. 华电技术, 2021, 43(7): 54-61.

YU Qiang, HE Cong, ZHI Ruiping, LU Yuanwei, WU Yuting, YANG Guichun. Research on natural convection heat transfer of molten salts on vertical cylinder surface during heat storage[J]. Huadian Technology, 2021, 43(7): 54-61.

图/表 12

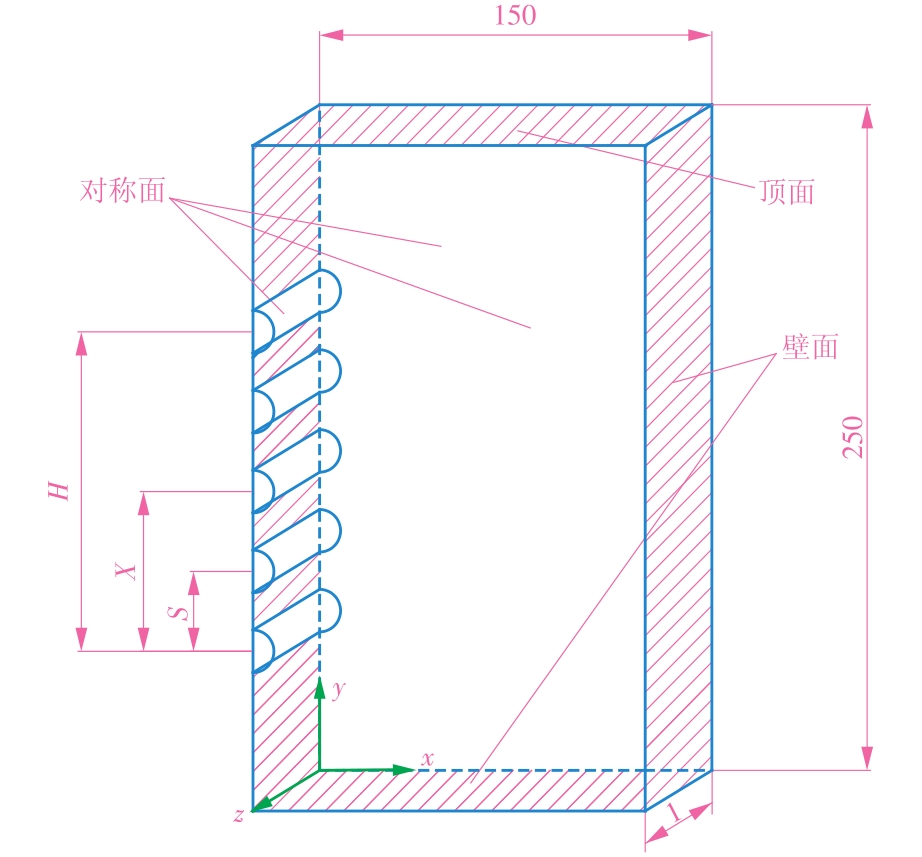

图1

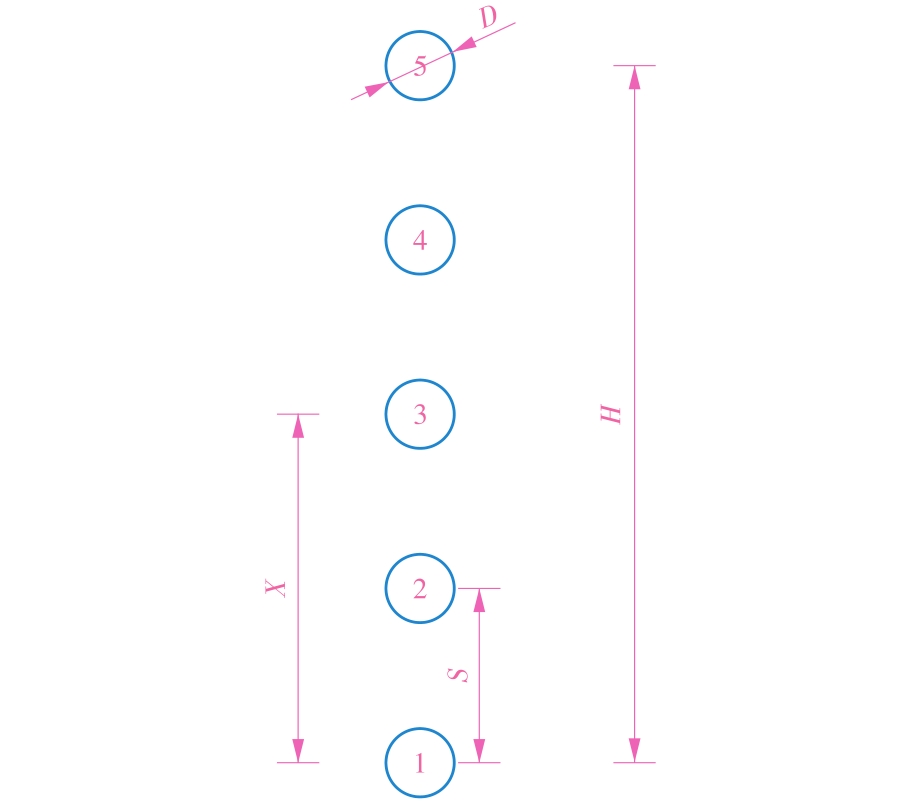

图2

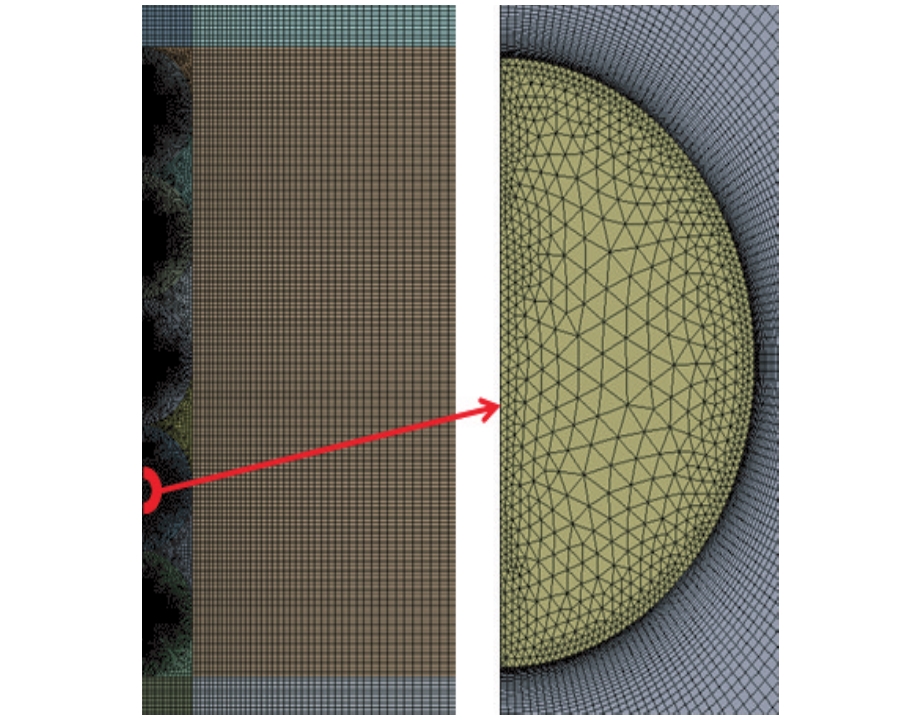

图3

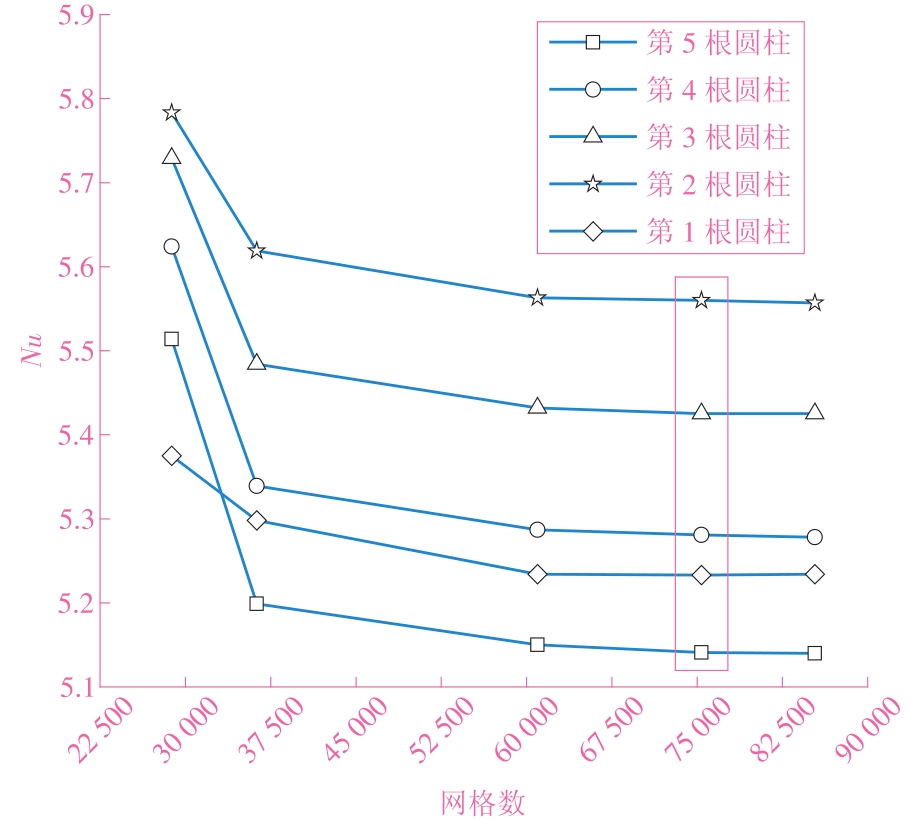

图4

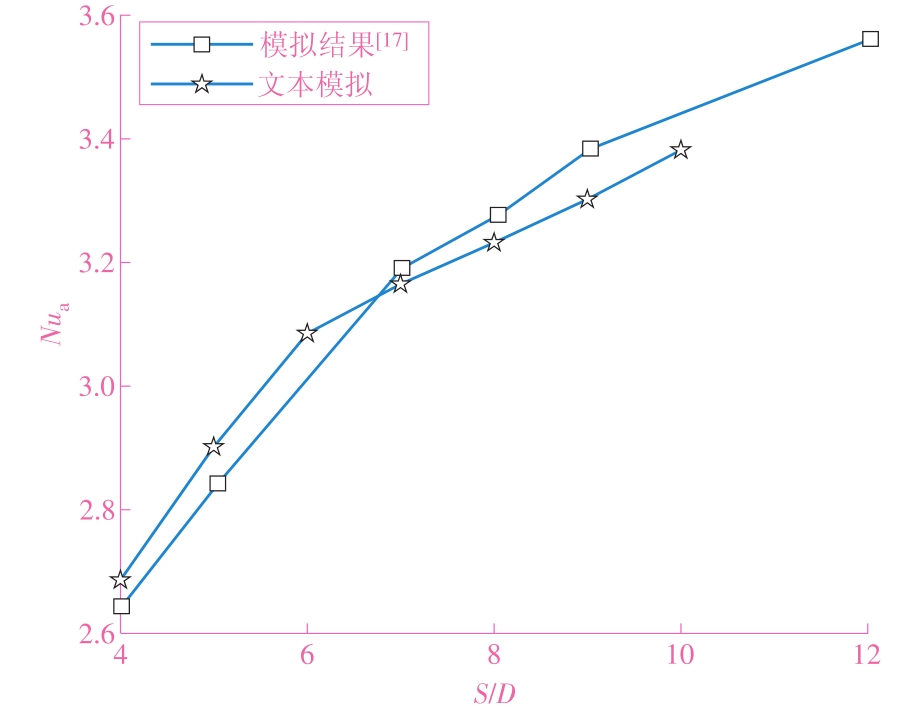

图5

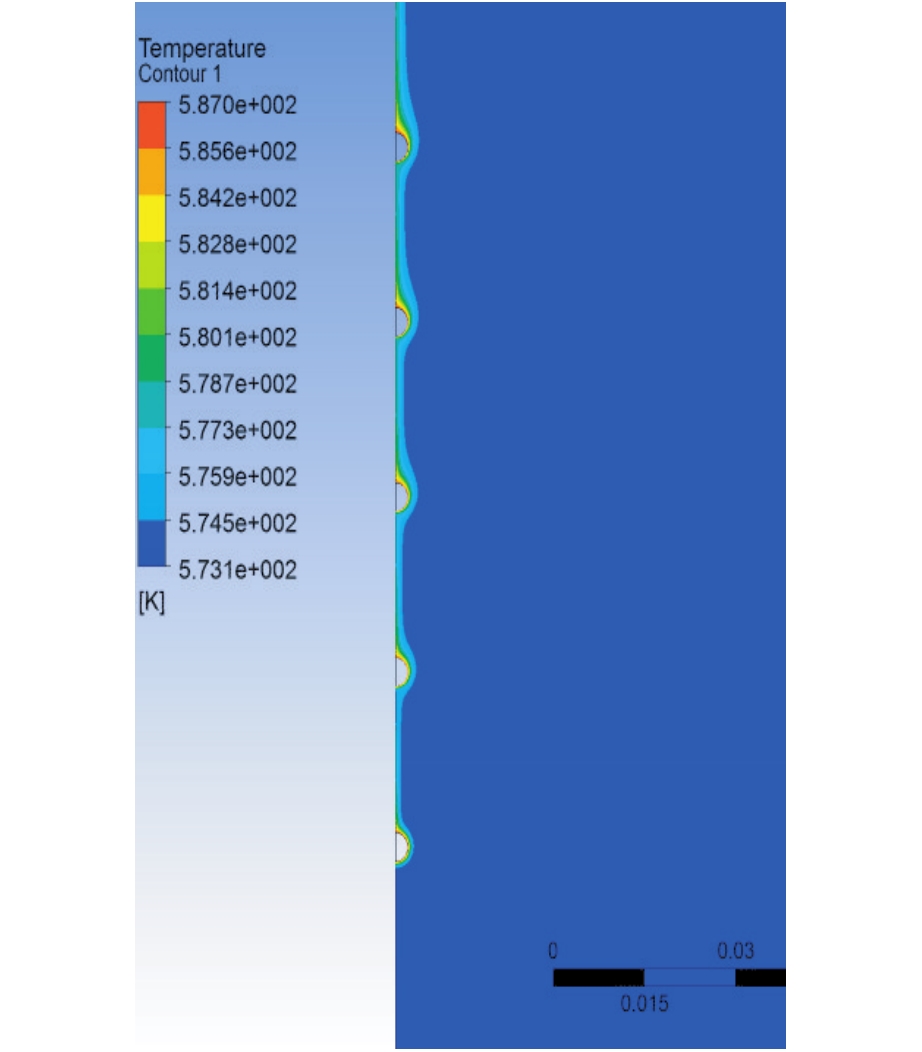

图6

表1

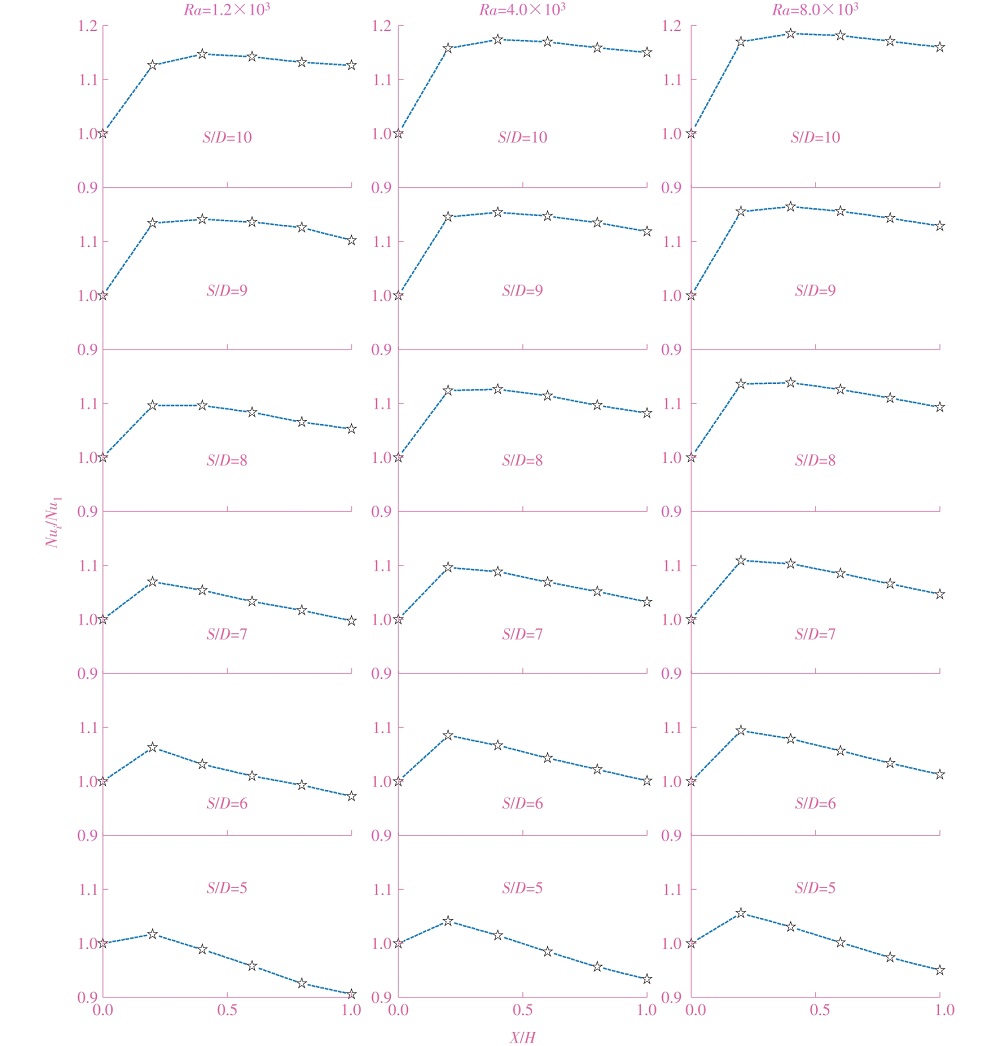

图7

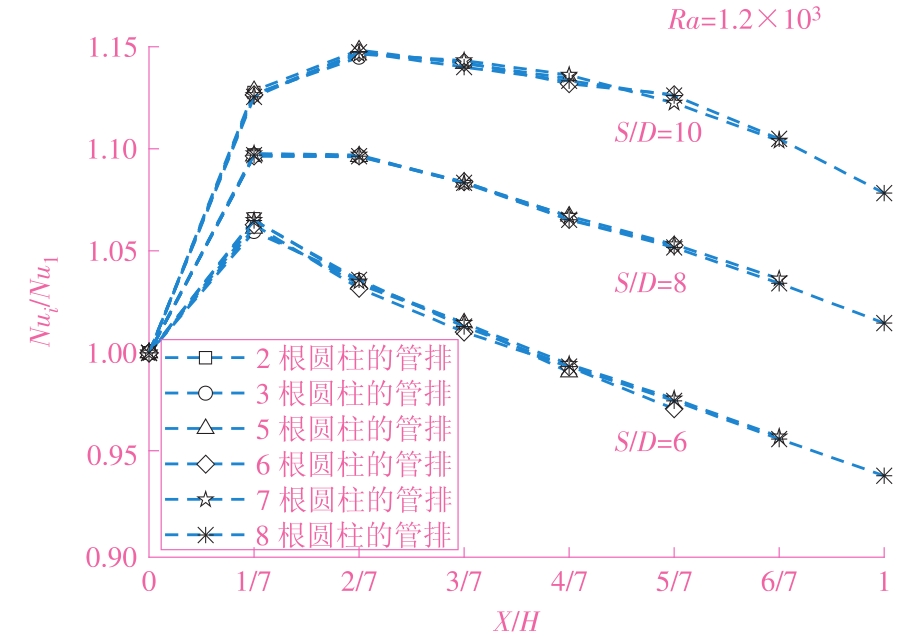

图8

图9

图10

图11

参考文献 20

[1]	LIU M, TAY S N H, BELL S, et al. Review on concentrating solar power plants and new developments in high temperature thermal energy storage technologies[J]. Renewable and Sustainable Energy Reviews, 2016, 53:1411-1432. doi: 10.1016/j.rser.2015.09.026
[2]	ACHKARI O, FADAR A E. Latest developments on TES and CSP technologies-energy and environmental issues, applications and research trends[J]. Applied Thermal Engineering, 2020, 167:1359-4311.
[3]	AWAN A B, ZUBAIR M, PRAVEEN R P, et al. Design and comparative analysis of photovoltaic and parabolic trough based CSP plants[J]. Solar Energy, 2019, 183:551-565. doi: 10.1016/j.solener.2019.03.037
[4]	徐其利, 孙杰. 用于太阳能光热发电系统的CaO/Ca(OH)₂化学储热技术综述[J]. 华电技术, 2020, 42(4):1-11.
	XU Qili, SUN Jie. Review of CaO/Ca(OH)₂ chemical heat storage technology for CSP [J]. Huadian Technology, 2020, 42(4):1-11.
[5]	HUANG Z J, ZOU Y K, WEI X L, et al. Mixed convection heat transfer of molten salt outside coiled tube[J]. International Communications in Heat and Mass Transfer, 2021, 120(2).DOI: 10.1016/j.icheatmasstransfer.2020.105004.
[6]	CHEN H, CHEN X, WU Y T, et al. Experimental study on forced convection heat transfer of KNO₃-Ca(NO₃)₂+SiO₂ molten salt nanofluid in circular tube[J]. Solar Energy, 2020, 206:900-906. doi: 10.1016/j.solener.2020.06.061
[7]	韩伟, 崔凯平, 赵晓辉, 等. 光热电站储热系统设计及储罐预热方案研究[J]. 华电技术, 2020, 42(4):42-46.
	HAN Wei, CUI Kaiping, ZHAO Xiaohui, et al. Design for CSP plants' energy storage system and research on preheating strategy with tanks[J]. Huadian Technology, 2020, 42(4):42-46.
[8]	崔凯平, 韩伟, 倪煜, 等. 熔盐储罐热分层混温过程研究[J]. 华电技术, 2020, 42(5):8-13.
	CUI Kaiping, HAN Wei, NI Yu, et al. Research on thermal stratification and control process in molten salt storage tanks[J]. Huadian Technology, 2020, 42(5):8-13.
[9]	LU Y W, ZHANG Y H, ZHANG C C, et al. Experimental study on heat discharging characteristic of single tank with different annular baffle conditions[J]. International Journal of Energy Research, 2020, 44:11434-11442. doi: 10.1002/er.v44.14
[10]	ZHANG C C, SHI S L, LU Y W, et al. Heat discharging and natural convection heat transfer performance of coil heat exchanger in single molten salt tank[J]. Applied Thermal Engineering, 2020, 166.DOI: 10.1016/j.applthermaleng.2019.114689.
[11]	YOUSEFI T, ASHJAEE M. Experimental study of natural convection heat transfer from vertical array of isothermal horizontal elliptic cylinders[J]. Experimental Thermal and Fluid Science, 2007, 32:240-248. doi: 10.1016/j.expthermflusci.2007.04.001
[12]	REYMOND O, MURRAY D B, O'DONOVAN T S. Natural convection heat transfer from two horizontal cylinders[J]. Experimental Thermal and Fluid Science, 2008, 32(8):1702-1709. doi: 10.1016/j.expthermflusci.2008.06.005
[13]	SPARROW E M, NIETHAMMER J E. Effect of vertical separation distance and cylinder-to-cylinder temperature imbalance on natural convection for a pair of horizontal cylinders[J]. Journal of Heat Transfer, 1981, 103:638-644. doi: 10.1115/1.3244520
[14]	ZAHRA R, NENAD S. Natural convection heat transfer from a bundle of heated circular cylinders with staggered arrangement immersed in molten solar salt[J]. International Journal of Heat and Mass Transfer, 2020, 156.DOI: 10.1016/j.ijheatmasstransfer.2019.119032.
[15]	ZAHRA R, NENAD S. Natural convection heat transfer from a bundle of in-line heated circular cylinders immersed in molten solar salt[J]. International Journal of Heat and Mass Transfer, 2020, 148.DOI: 10.1016/j.ijheatmasstransfer.2019.119032.
[16]	LU Y W, YU Q, DU W B, et al. Natural convection heat transfer of molten salts around a vertically aligned horizontal cylinder set[J]. International Communications in Heat & Mass Transfer, 2016, 76:147-155.
[17]	CORCIONE M. Correlating equations for free convection heat transfer from horizontal isothermal cylinders set in a vertical array[J]. International Journal of Heat & Mass Transfer, 2005, 48(17):3660-3673.
[18]	REN N, WU Y T, MA C F, et al. Preparation and thermal properties of quaternary mixed nitrate with low melting point[J]. Solar Energy Materials & Solar Cells, 2014, 127:6-13. doi: 10.1016/j.solmat.2014.03.056
[19]	张晓盼, 鹿院卫, 于强, 等. 超声-微波法制备熔盐纳米复合材料试验研究[J]. 华电技术, 2020, 42(4):12-16.
	ZHANG Xiaopan, LU Yuanwei, YU Qiang, et al. Experimental study on preparation of a molten salt nanocomposite by ultrasonic dispersion and microwave method[J]. Huadian Technology, 2020, 42(4):12-16.
[20]	陈睿哲, 熊亚选, 张慧, 等. 储能供热熔盐换热器设计及运行特性分析[J]. 华电技术, 2020, 42(12):54-59.
	CHEN Ruizhe, XIONG Yaxuan, ZHANG Hui, et al. Design and dynamic performance analysis on a molten salt heat exchanger for energy storage and heating[J]. Huadian Technology, 2020, 42(12):54-59.

项目	底部圆柱表面的局部对流换热系数
项目	h₁	h₂	h₃	h₄	h₅
S/D=5	727.45	768.35	751.76	731.84	713.89
S/D=6	732.84	791.61	782.61	767.12	752.60
S/D=7	726.86	809.26	806.97	796.07	783.46
S/D=8	723.51	823.89	827.47	820.36	810.19
S/D=9	723.55	837.15	845.81	841.75	833.55
S/D=10	723.98	848.55	861.95	860.49	854.53
