燃料电池金属有机框架质子膜材料研究展望

doi:10.3969/j.issn.2097-0706.2022.08.011

摘要/Abstract

摘要：

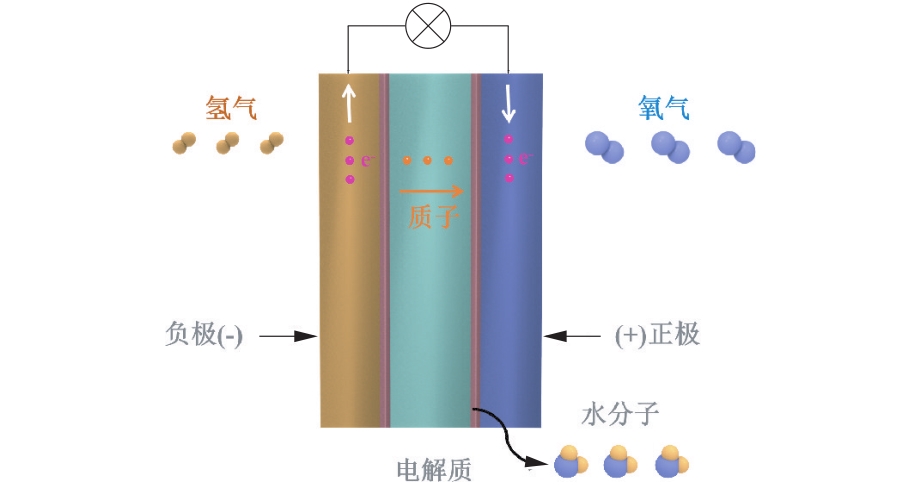

质子交换膜燃料电池（PEMFC）是清洁高效的能源转换装置。质子交换膜作为重要的组件之一,会选择性地允许质子转移,但其昂贵的制作成本及较差的高温稳定性限制了在宽温范围的应用。金属有机框架（MOF）材料合成方法简单、结构稳定、比表面积高,广泛应用于催化和吸附等领域。近年来,研究人员发现某些MOF材料在一定温度、湿度范围内拥有优异的质子传导性能,且合成价格低廉,可作为潜在的质子交换膜替代材料。从有机配体（羧酸盐、膦酸盐、磺酸盐等）和客体分子（咪唑、铵根离子等）两部分叙述MOF材料的合成,每种MOF材料的化学稳定性、质子导电性能及其导电机理等方面的研究进展,并指出该类导电材料的发展前景和未来面临的挑战及可实施策略。

关键词: 金属有机框架, 燃料电池, 质子传导, 有机配体, 客体分子, 稳定性

Abstract:

A proton exchange membrane fuel cell（PEMFC） is a clean and efficient energy conversion device. Proton exchange membrane,as an important component of a PEMFC, can selectively permit the transfer of protons. However, high cost and poor stability against high temperature of proton exchange membranes restrict their practical applications in wide temperature range. Metal organic framework （MOF） materials are widely applied in catalytic and adsorption fields due to their facile synthesis, robust structures and high specific surface areas. In recent years, it has been revealed that a few MOF materials with high proton conductivity and low cost are deemed as potential alternatives for proton exchange membranes. Herein, the synthesis, chemical stability, proton conductivity and mechanism of MOF materials are discussed based on organic ligands （carboxylate, phosphonate, sulfonate, etc.） and guest molecules （imidazole, ammonium ion, etc.）. The development prospect, future challenges and feasible strategies of the conductive MOF materials are also proposed.

Key words: metal organic frameworks, fuel cell, proton conduction, organic ligand, guest molecule, stability

中图分类号:

TK01:TM911

张靖, 刘宇宙, 贺贝贝, 赵凌. 燃料电池金属有机框架质子膜材料研究展望[J]. 综合智慧能源, 2022, 44(8): 97-106.

ZHANG Jing, LIU Yuzhou, HE Beibei, ZHAO Ling. Reviews on proton membrane materials for metal-organic frameworks in fuel cells[J]. Integrated Intelligent Energy, 2022, 44(8): 97-106.

图/表 9

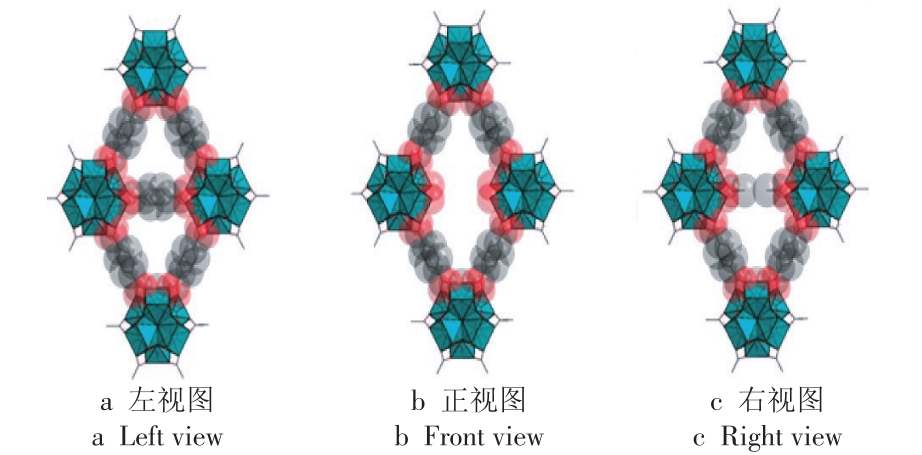

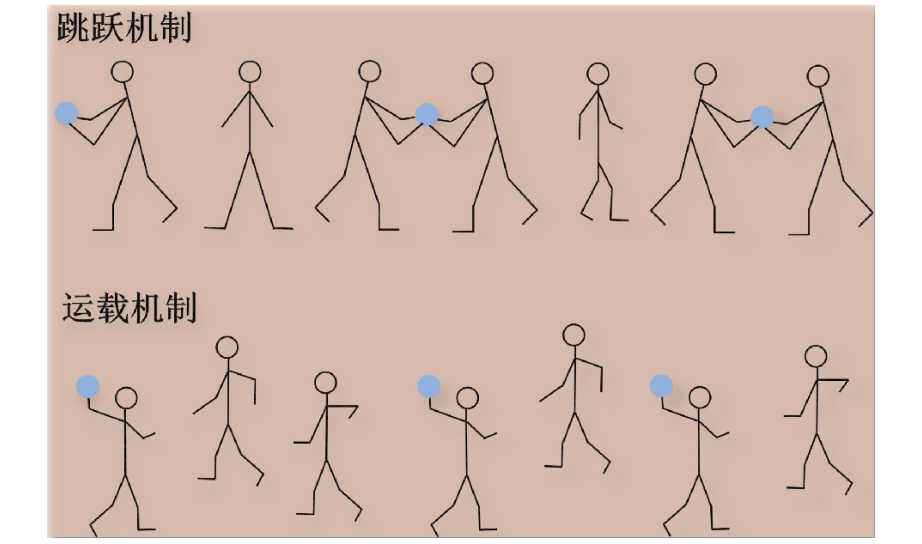

图1

图2

表1

图3

图4

表2

图5

图6

图7

参考文献 78

[1]	SHARAF O Z, ORHAN M F. An overview of fuel cell technology: Fundamentals and applications[J]. Renewable and Sustainable Energy Reviews, 2014, 32: 810-853. doi: 10.1016/j.rser.2014.01.012
[2]	GOLKHATMI S Z, ASGHAR M I, LUND P D. A review on solid oxide fuel cell durability:Latest progress,mechanisms,and study tools[J]. Renewable and Sustainable Energy Reviews, 2022, 161: 112339. doi: 10.1016/j.rser.2022.112339
[3]	张宝斌. 质子交换膜燃料电池冷启动策略研究现状[J]. 节能, 2018, 37(12):107-111.
	ZHANG Baobin. Research status on cold start strategy of proton exchange membrane fuel cell[J]. Energy Conservation, 2018, 37(12):112-116.
[4]	岳利可, 王世学, 李林军. 质子交换膜燃料电池冷启动研究进展[J]. 化工进展, 2017, 36(9):3257-3265.
	YUE Like, WANG Shixue, LI Linjun. Research progress of cold start of proton exchange membrane fuel cell[J]. Chemical Industry and Engineering Progress, 2017, 36(9):3257-3265.
[5]	MAURITZ K A, MOORE R B. State of understanding of Nafion[J]. Chemical reviews, 2004, 104(10): 4535-4586. doi: 10.1021/cr0207123
[6]	TAKATA H, MIZUNO N, NISHIKAWA M, et al. Adsorption properties of water vapor on sulfonated perfluoropolymer membranes[J]. International Journal of Hydrogen Energy, 2007, 32(3): 371-379. doi: 10.1016/j.ijhydene.2006.09.041
[7]	GAYEN P, CHAPLIN B P. Fluorination of boron-doped diamond film electrodes for minimization of perchlorate formation[J]. ACS Applied Materials & Interfaces, 2017, 9(33): 27638-27648.
[8]	FU R Q, WOO J J, SEO S J, et al. Sulfonated polystyrene/polyvinyl chloride composite membranes for PEMFC applications[J]. Journal of Membrane Science, 2008, 309(1-2): 156-164. doi: 10.1016/j.memsci.2007.10.013
[9]	LEE C H, PARK C H, LEE Y M. Sulfonated polyimide membranes grafted with sulfoalkylated side chains for proton exchange membrane fuel cell(PEMFC) applications[J]. Journal of Membrane Science, 2008, 313(1-2): 199-206. doi: 10.1016/j.memsci.2008.01.004
[10]	AHMED F, SUTRADHAR S C, RYU T, et al. Comparative study of sulfonated branched and linear poly (phenylene)s polymer electrolyte membranes for fuel cells[J]. International Journal of Hydrogen Energy, 2018, 43(10): 5374-5385. doi: 10.1016/j.ijhydene.2017.08.175
[11]	YOO T, AZIZ M A, OH K, et al. Modified sulfonated Poly (arylene ether) multiblock copolymers containing highly sulfonated blocks for polymer electrolyte membrane fuel cells[J]. Journal of Membrane Science, 2017, 542: 102-109. doi: 10.1016/j.memsci.2017.08.008
[12]	GUTRU R, PEERA S G, BHAT S D, et al. Synthesis of sulfonated poly (bis (phenoxy) phosphazene) based blend membranes and its effect as electrolyte in fuel cells[J]. Solid State Ionics, 2016, 296: 127-136. doi: 10.1016/j.ssi.2016.09.011
[13]	RACHIURI Y, BISHT K K, PARMAR B, et al. Luminescent MOFs comprising mixed tritopic linkers and Cd(II)/Zn(II) nodes for selective detection of organic nitro compounds and iodine capture[J]. Journal of Solid State Chemistry, 2015, 223: 23-31. doi: 10.1016/j.jssc.2014.05.012
[14]	ZHANG X, WANG Z J, CHEN S G, et al. Cd-based metal-organic frameworks from solvothermal reactions involving in situ aldimine condensation and the highly sensitive detection of Fe³⁺ ions[J]. Dalton Transactions, 2017, 46(7): 2332-2338. doi: 10.1039/C6DT04675D
[15]	YAGHI O M, LI G, LI H. Selective binding and removal of guests in a microporous metal-organic framework[J]. Nature, 1995, 378(6558): 703-706. doi: 10.1038/378703a0
[16]	LI H, EDDAOUDI M, O'KEEFFE M, et al. Design and synthesis of an exceptionally stable and highly porous metal-organic framework[J]. Nature, 1999, 402(6759): 276-279. doi: 10.1038/46248
[17]	ROSHANRAVAN B, YOUNESI H, ABDOLLAHI M, et al. Incorporating sulfonated MIL-100(Fe) in sulfonated polysulfone for enhancing microbial fuel cell performance[J]. Fuel, 2022, 312: 122962. doi: 10.1016/j.fuel.2021.122962
[18]	LATROCHE M, SURBLE S, SERRE C, et al. Hydrogen storage in the giant-pore metal-organic frameworks MIL-100 and MIL-101[J]. Angewandte Chemie International Edition, 2006, 118(48): 8407-8411.
[19]	CAVKA J H, JAKOBSEN S, OLSBYE U, et al. A new zirconium inorganic building brick forming metal organic frameworks with exceptional stability[J]. Journal of the American Chemical Society, 2008, 130(42):13850-13851. doi: 10.1021/ja8057953
[20]	PISCOPO C G, POLYZOIDIS A, SCHWARZER M, et al. Stability of UiO-66 under acidic treatment: opportunities and limitations for post-synthetic modifications[J]. Microporous and Mesoporous Materials, 2015, 208: 30-35. doi: 10.1016/j.micromeso.2015.01.032
[21]	PAN Y, SUN K, LIU S J, et al. Core-shell ZIF-8@ZIF-67-derived CoP nanoparticle-embedded N-doped carbon nanotube hollow polyhedron for efficient overall water splitting[J]. Journal of the American Chemical Society, 2018, 140(7): 2610-2618. doi: 10.1021/jacs.7b12420
[22]	HUANG X C, LIN Y Y, ZHANG J P, et al. Ligand-directed strategy for zeolite-type metal-organic frameworks:Zinc(II) imidazolates with unusual zeolitic topologies[J]. Angewandte Chemie International Edition, 2006, 45(10): 1557-1559. doi: 10.1002/anie.200503778
[23]	SHIGEMATSU A, YAMADA T, KITAGAWA H. Wide control of proton conductivity in porous coordination polymers[J]. Journal of the American Chemical Society, 2011, 133(7): 2034-2036. doi: 10.1021/ja109810w
[24]	TAYLOR-PASHOW K M L, DELLA ROCCA J, XIE Z, et al. Postsynthetic modifications of iron-carboxylate nanoscale metal-organic frameworks for imaging and drug delivery[J]. Journal of the American Chemical Society, 2009, 131(40): 14261-14263. doi: 10.1021/ja906198y
[25]	MCKINLAY A C, MORRIS R E, HORCAJADA P, et al. BioMOFs: Metal-organic frameworks for biological and medical applications[J]. Angewandte Chemie International Edition, 2010, 49(36): 6260-6266. doi: 10.1002/anie.201000048
[26]	AHMET S. Metal substrate for fuel cells[Z]. 2009.
[27]	DESANTIS D, MASON J A, JAMES B D, et al. Techno-economic analysis of metal-organic frameworks for hydrogen and natural gas storage[J]. Energy & Fuels, 2017, 31(2): 2024-2032. doi: 10.1021/acs.energyfuels.6b02510
[28]	LI Y Z, WANG G D, MA L N, et al. Multiple functions of gas separation and vapor adsorption in a new MOF with open tubular channels[J]. ACS Applied Materials & Interfaces, 2021, 13(3): 4102-4109.
[29]	LE D H, LOUGHAN R P, GLADYSIAK A, et al. Lanthanide metal-organic frameworks for the fixation of CO₂ under aqueous-rich and mixed-gas conditions[J]. Journal of Materials Chemistry A, 2022, 10(3): 1442-1450. doi: 10.1039/D1TA09463G
[30]	WANG Y, LIU B, SHEN X J, et al. Engineering the activity and stability of MOF-nanocomposites for efficient water oxidation[J]. Advanced Energy Materials, 2021, 11(16): 2003759. doi: 10.1002/aenm.202003759
[31]	WAHIDUZZAMAN M, WANG S, SCHNEE J, et al. A high proton conductive hydrogen-sulfate decorated titanium carboxylate metal-organic framework[J]. ACS Sustainable Chemistry & Engineering, 2019, 7(6): 5776-5783.
[32]	LIU R L, ZHAO L L, YU S H, et al. Enhancing proton conductivity of a 3D metal-organic framework by attaching guest NH₃ molecules[J]. Inorganic Chemistry, 2018, 57(18): 11560-11568. doi: 10.1021/acs.inorgchem.8b01606
[33]	SARANGO-RAMIREZ M K, LIM D W, KOLOKOLOV D I, et al. Superprotonic conductivity in metal-organic framework via solvent-free coordinative urea insertion[J]. Journal of the American Chemical Society, 2020, 142(15): 6861-6865. doi: 10.1021/jacs.0c00303
[34]	BAO Y L, ZHENG J Y, ZHENG H P, et al. Cu-MOF@PVP/PVDF hybrid composites as tunable proton-conducting materials[J]. Journal of Solid State Chemistry, 2022, 310: 123070. doi: 10.1016/j.jssc.2022.123070
[35]	梁茜, 王诚, 雷一杰, 等. 金属有机框架材料在质子交换膜燃料电池中的潜在应用[J]. 化学进展, 2018, 30(11):1770-1783. doi: 10.7536/PC171239
	LIANG Xi, WANG Cheng, LEI Yijie, et al. Potential applications of metal organic framework-based materials for proton exchange membrane fuel cells[J]. Progress in Chemistry, 2018, 30(11): 1770-1783.
[36]	BRADSHAW D, GARAI A, HUO J. Metal-organic framework growth at functional interfaces: Thin films and composites for diverse applications[J]. Chemical Society Reviews, 2012, 41(6): 2344-2381. doi: 10.1039/C1CS15276A
[37]	AGMON N. The grotthuss mechanism[J]. Chemical Physics Letters, 1995, 244(5-6): 456-462. doi: 10.1016/0009-2614(95)00905-J
[38]	KREUER K D, RABENAU A, WEPPNER W. Vehicle mechanism, a new model for the interpretation of the conductivity of fast proton conductors[J]. Angewandte Chemie International Edition, 1982, 21(3): 208-209.
[39]	PILI S, ARGENT S P, MORRIS C G, et al. Proton conduction in a phosphonate-based metal-organic framework mediated by intrinsic "free diffusion inside a sphere"[J]. Journal of the American Chemical Society, 2016, 138(20): 6352-6355. doi: 10.1021/jacs.6b02194
[40]	LOSCH P, JOSHI H R, VOZNIUK O, et al. Proton mobility, intrinsic acid strength, and acid site location in zeolites revealed by varying temperature infrared spectroscopy and density functional theory studies[J]. Journal of the American Chemical Society, 2018, 140(50): 17790-17799. doi: 10.1021/jacs.8b11588
[41]	LI Y, WEE L H, VOLODIN A, et al. Polymer supported ZIF-8 membranes prepared via an interfacial synthesis method[J]. Chemical Communications, 2015, 51(5): 918-920. doi: 10.1039/C4CC06699E
[42]	VAKILI R, XU S J, AL-JANABI N, et al. Microwave-assisted synthesis of zirconium-based metal organic frameworks (MOFs): Optimization and gas adsorption[J]. Microporous and Mesoporous Materials, 2018, 260: 45-53. doi: 10.1016/j.micromeso.2017.10.028
[43]	SADAKIYO M, YAMADA T, KITAGAWA H. Rational designs for highly proton-conductive metal-organic frameworks[J]. Journal of the American Chemical Society, 2009, 131(29): 9906-9907. doi: 10.1021/ja9040016
[44]	ISHIKAWA R, UENO S, YAGISHITA S, et al. Proton conduction via lattice water molecules in oxalato-bridged lanthanide porous coordination polymers[J]. Dalton Transactions, 2016, 45(39): 15399-15405. doi: 10.1039/C6DT02677J
[45]	O̅KAWA H, SADAKIYO M, OTSUBO K, et al. Proton conduction study on water confined in channel or layer networks of La^IIIM^III(ox)₃·10H₂O(M=Cr,Co,Ru,La)[J]. Inorganic Chemistry, 2015, 54(17): 8529-8535. doi: 10.1021/acs.inorgchem.5b01176
[46]	ZHANG J, BAI H J, REN Q, et al. Extra water-and acid-stable MOF-801 with high proton conductivity and its composite membrane for proton-exchange membrane[J]. ACS Applied Materials & Interfaces, 2018, 10(34): 28656-28663.
[47]	TAYLOR J M, DEKURA S, IKEDA R, et al. Defect control to enhance proton conductivity in a metal-organic framework[J]. Chemistry of Materials, 2015, 27(7): 2286-2289. doi: 10.1021/acs.chemmater.5b00665
[48]	SHALINI S, AGGARWAL S, SINGH S K, et al. 10000-fold enhancement in proton conduction by doping of cesium ions in a proton-conducting zwitterionic metal-organic framework[J]. European Journal of Inorganic Chemistry, 2016, 2016(27): 4382-4386. doi: 10.1002/ejic.201600364
[49]	SARAVANABHARATHI D, OBULICHETTY M, RAMESHKUMAR S, et al. New 2-methyl benzimidazole based zinc carboxylates:Supramolecular structures, biomimetic proton conductivities and luminescent properties[J]. Inorganica Chimica Acta, 2015, 437: 167-176. doi: 10.1016/j.ica.2015.08.018
[50]	ZHU M, SONG X Z, SONG S Y, et al. A temperature-responsive smart europium metal-organic framework switch for reversible capture and release of intrinsic Eu³⁺ ions[J]. Advanced Science, 2015, 2(4): 1500012. doi: 10.1002/advs.201500012
[51]	SUN Z B, YU S H, ZHAO L L, et al. A highly stable two-dimensional copper(II) organic framework for proton conduction and ammonia impedance sensing[J]. Chemistry—A European Journal, 2018, 24(42): 10829-10839. doi: 10.1002/chem.201801844
[52]	LIU R L, LIU Y R, YU S H, et al. A highly proton-conductive 3D ionic cadmium-organic framework for ammonia and amines impedance sensing[J]. ACS Applied Materials & Interfaces, 2018, 11(1): 1713-1722.
[53]	BAZAGA-GARCIA M, PAPADAKI M, COLODRERO R M P, et al. Tuning proton conductivity in alkali metal phosphonocarboxylates by cation size-induced and water-facilitated proton transfer pathways[J]. Chemistry of Materials, 2015, 27(2): 424-435. doi: 10.1021/cm502716e
[54]	BAZAGA-GARCIA M, COLODRERO R M P, PAPADAKI M, et al. Guest molecule-responsive functional calcium phosphonate frameworks for tuned proton conductivity[J]. Journal of the American Chemical Society, 2014, 136(15): 5731-5739. doi: 10.1021/ja500356z
[55]	COLODRERO R M P, OLIVERA-PASTOR P, LOSILLA E R, et al. High proton conductivity in a flexible, cross-linked,ultramicroporous magnesium tetraphosphonate hybrid framework[J]. Inorganic Chemistry, 2012, 51(14): 7689-7698. doi: 10.1021/ic3007316
[56]	DONNADIO A, NOCCHETTI M, COSTANTINO F, et al. A layered mixed zirconium phosphate/phosphonate with exposed carboxylic and phosphonic groups: X-ray powder structure and proton conductivity properties[J]. Inorganic Chemistry, 2014, 53(24): 13220-13226. doi: 10.1021/ic502473w
[57]	YANG F, XU G, DOU Y, et al. A flexible metal-organic framework with a high density of sulfonic acid sites for proton conduction[J]. Nature Energy, 2017, 2(11): 877-883. doi: 10.1038/s41560-017-0018-7
[58]	YANG F, HUANG H, WANG X, et al. Proton conductivities in functionalized UiO-66:Tuned properties, thermogravimetry mass, and molecular simulation analyses[J]. Crystal Growth & Design, 2015, 15(12):5827-5833. doi: 10.1021/acs.cgd.5b01190
[59]	TAYLOR J M, KOMATSU T, DEKURA S, et al. The role of a three dimensionally ordered defect sublattice on the acidity of a sulfonated metal-organic framework[J]. Journal of the American Chemical Society, 2015, 137(35): 11498-11506. doi: 10.1021/jacs.5b07267
[60]	YANG F, HUANG H L, WANG X Y, et al. Proton conductivities in functionalized UiO-66:Tuned properties,thermogravimetry mass, and molecular simulation analyses[J]. Crystal Growth & Design, 2015, 15(12): 5827-5833. doi: 10.1021/acs.cgd.5b01190
[61]	PHANG W J, JO H, LEE W R, et al. Superprotonic conductivity of a UiO-66 framework functionalized with sulfonic acid groups by facile postsynthetic oxidation[J]. Angewandte Chemie International Edition, 2015, 127(17): 5231-5235.
[62]	RAGON F, CAMPO B, YANG Q, et al. Acid-functionalized UiO-66 (Zr) MOFs and their evolution after intra-framework cross-linking:Structural features and sorption properties[J]. Journal of Materials Chemistry A, 2015, 3(7): 3294-3309. doi: 10.1039/C4TA03992K
[63]	SCHAATE A, ROY P, GODT A, et al. Modulated synthesis of Zr-based metal-organic frameworks:From nano to single crystals[J]. Chemistry-A European Journal, 2011, 17(24): 6643-6651. doi: 10.1002/chem.201003211
[64]	JEONG N C, SAMANTA B, LEE C Y, et al. Coordination-chemistry control of proton conductivity in the iconic metal-organic framework material HKUST-1[J]. Journal of the American Chemical Society, 2012, 134(1): 51-54. doi: 10.1021/ja2110152
[65]	SINGHA S, MAITY S K, BISWAS S, et al. A magnesium-based bifunctional MOF: Studies on proton conductivity, gas and water adsorption[J]. Inorganica Chimica Acta, 2016, 453: 321-329. doi: 10.1016/j.ica.2016.08.033
[66]	LIU R L, ZHAO L L, DAI W, et al. A comparative investigation of proton conductivities for two metal-organic frameworks under water and aqua-ammonia vapors[J]. Inorganic Chemistry, 2018, 57(3): 1474-1482. doi: 10.1021/acs.inorgchem.7b02851
[67]	LIANG X, LI B, WANG M H, et al. Effective approach to promoting the proton conductivity of metal-organic frameworks by exposure to aqua-ammonia vapor[J]. ACS Applied Materials & Interfaces, 2017, 9(30): 25082-25086.
[68]	TAYLOR J M, DAWSON K W, SHIMIZU G K H. A water-stable metal-organic framework with highly acidic pores for proton-conducting applications[J]. Journal of the American Chemical Society, 2013, 135(4): 1193-1196. doi: 10.1021/ja310435e
[69]	ALBERTI G, CASCIOLA M, COSTANTINO U, et al. Protonic conductivity of layered zirconium phosphonates containing —SO₃H groups.I.Preparation and characterization of a mixed zirconium phosphonate of composition Zr(O₃PR)_0.73(O₃PR′)_1.27·nH₂O,with R=-C₆H₄-SO₃H and R′=-CH₂-OH[J]. Solid State Ionics, 1992, 50(3-4): 315-322. doi: 10.1016/0167-2738(92)90235-H
[70]	ALBERTI G, BOCCALI L, CASCIOLA M, et al. Protonic conductivity of layered zirconium phosphonates containing —SO₃H groups.III. preparation and characterization of gamma-zirconium sulfoaryl phosphonates[J]. Solid State Ionics, 1996, 84(1-2):97-104. doi: 10.1016/S0167-2738(96)83011-6
[71]	JAIMEZ E, HIX G B, SLADE R C T. The titanium(I) salt of N,N-(diphosphonomethyl) glycine:Synthesis, characterisation,porosity and proton conduction[J]. Journal of Materials Chemistry, 1997, 7(3): 475-479. doi: 10.1039/a606024b
[72]	GAO Y, BRPERSEN R, HAGEMAN W, et al. High proton conductivity in cyanide-bridged metal-organic frameworks:Understanding the role of water[J]. Journal of Materials Chemistry A, 2015, 3(44): 22347-22352. doi: 10.1039/C5TA05280G
[73]	ZHANG G, FEI H. Missing metal-linker connectivities in a 3-D robust sulfonate-based metal-organic framework for enhanced proton conductivity[J]. Chemical Communications, 2017, 53(29): 4156-4159. doi: 10.1039/C7CC01461A
[74]	PARDO E, TRAIN C, GONTARD G, et al. High proton conduction in a chiral ferromagnetic metal-organic quartz-like framework[J]. Journal of the American Chemical Society, 2011, 133(39): 15328-15331. doi: 10.1021/ja206917z
[75]	YOU Y W, XUE C, TIAN Z F, et al. Three orders of magnitude enhancement of proton conductivity of porous coordination polymers by incorporating ion-pairs into a framework[J]. Dalton Transactions, 2016, 45(18): 7893-7899. doi: 10.1039/C6DT00290K
[76]	BUREEKAEW S, HORIKE S, HIGUCHI M, et al. One-dimensional imidazole aggregate in aluminium porous coordination polymers with high proton conductivity[J]. Nature Materials. 2011, 8(10): 831-836. doi: 10.1038/nmat2526
[77]	YE Y X, GUO W G, WANG L H, et al. Straightforward loading of imidazole molecules into metal-organic framework for high proton conduction[J]. Journal of the American Chemical Society, 2017, 139(44):15604-15607. doi: 10.1021/jacs.7b09163
[78]	ZHANG F M, DOND L Z, QIN J S, et al. Effect of imidazole arrangements on proton-conductivity in metal-organic frameworks[J]. Journal of the American Chemical Society, 2017, 139(17): 6183-6189. doi: 10.1021/jacs.7b01559

有机配体	金属有机框架	结构	质子电导率/(S·cm^-1)	参考文献

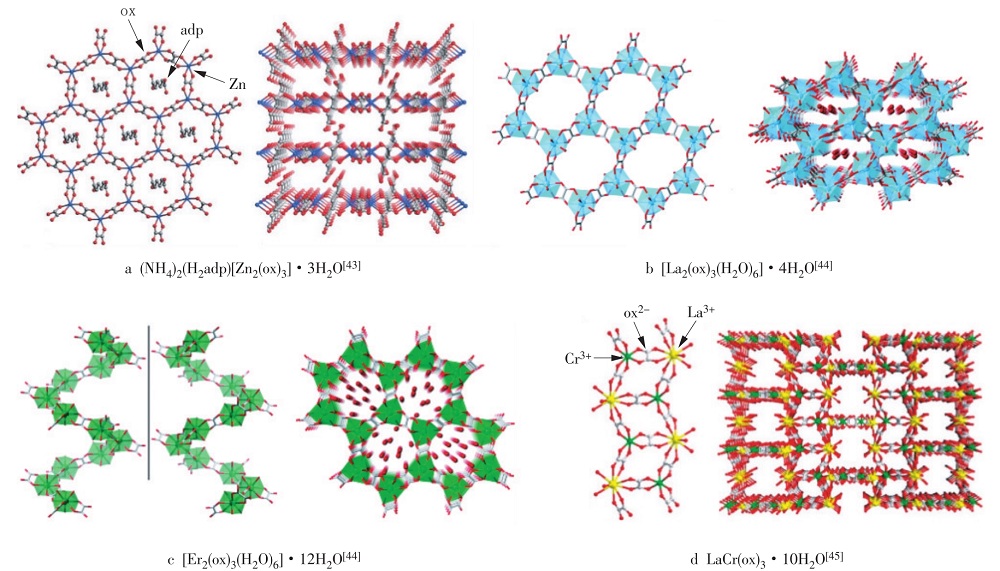

草酸盐/甲酸盐	[Fe(ox)(H₂O)₂]	1D	1.30×10^-6(25 ℃,40%~95%RH)	[43]
	[La₂(ox)₃(H₂O)₆]·4H₂O	2D	3.35×10^-7(95 ℃,100%RH)	[44]
	[Er₂(ox)₃(H₂O)₆]·12H₂O	3D	1.76 ×10^-9(90 ℃,100%RH)	[44]
	LaCr(ox)₃·10H₂O	1D	1.00×10^-6(25 ℃,40%~95%RH)	[45]
	LaCo(ox)₃·10H₂O	1D	1.00×10^-5(25 ℃,40%~95%RH)	[45]
	LaRu(ox)₃·10H₂O	2D	3.00×10^-8(25 ℃,40%~95%RH)	[45]
	LaLa(ox)₃·10H₂O	2D	3.00×10^-8(25 ℃,40%~95%RH)	[45]
	LaCo(ox)₃·10H₂O	2D	1.00×10^-10(25 ℃,40%~95%RH)	[45]
	MOF-801	3D	1.88×10^-3(25 ℃,98%RH)	[46]
芳香羧酸酯	Zr₆O₄(OH)₆(p-BDC)₅	3D	6.93×10^-3(65 ℃,95%RH)	[47]
	Mg(p-BDC)(PyOH)	3D	8.30×10^-6(90 ℃,90%RH)	[48]
	[[Zn(2-MBIm)(o-BDC)(H₂O)]·2H₂O]_n	1D	1.00×10^-5(25 ℃,100%RH)	[49]
	[Cu(H₄L)(DMF)₄]_n	1D	3.46×10^-3(95 ℃,95%RH)	[50]
咪唑类	[Cu(p-IPhHIDC)]_n	2D	1.15×10^-3(100 ℃,98%RH)	[51]
咪唑类	{Na[Cd(MIDC)]}_n	3D	1.04×10^-3(100 ℃,98%RH)	[52]
磷酸盐	[Li₃(HPA)(H₂O)₄]·H₂O	1D	1.10×10^-4(24 ℃,98%RH)	[53]
	Na₂(HHPA)(H₂O)₄	3D	5.60×10^-3(24 ℃,98%RH)	[53]
	K₂(HHPA)(H₂O)₂	3D	1.30×10^-3(24 ℃,98%RH)	[53]
	Cs(H₂HPA)	3D	3.50×10^-5(24 ℃,98%RH)	[53]
	[Ca₂(H₃PiPhtA)₂(H₂PiPhtA)(H₂O)₂]·5H₂O	3D	5.70×10^-4(24 ℃,98%RH)	[54]
	MgH₆ODTMP·6H₂O	3D	1.60×10^-3(19 ℃,100%RH)	[55]
	Zr₂(PO₄)H₅(L)₂·2H₂O	2D	1.00×10^-3(140 ℃,95%RH)	[56]
磺酸盐	BUT-8	3D	1.27×10^-1(80 ℃,100%RH)	[57]
磺酸盐	UiO-66-SO₃H	—	3.40×10^-1(80 ℃,98%RH)	[58]

有机配体	金属有机框架	结构	质子电导率/(S·cm^-1)	参考文献
NH₄⁺	(NH₄)₄[MnCr₂(ox)₆]·4H₂O	2D	1.10×10^-3(40 ℃,96%RH)	[74]

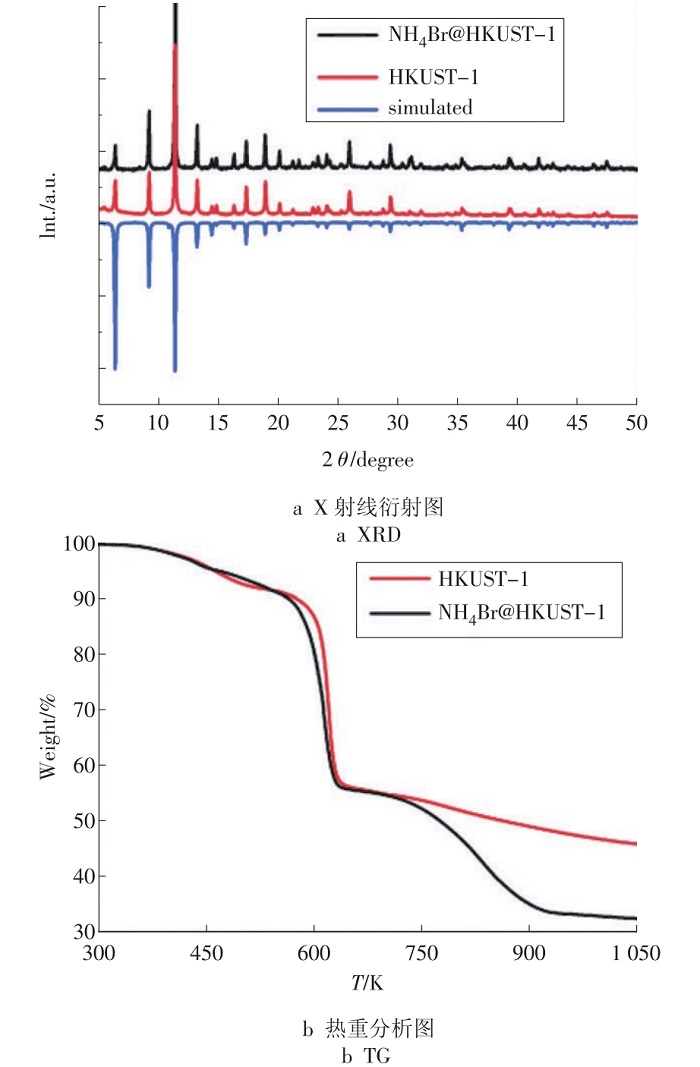

NH₄⁺	NH₄Br@HKUST-1	3D	8.99×10^-4(25 ℃,99%RH)	[75]
咪唑类	Al(OH)(1,4-ndc)	3D	2.20×10^-5(25 ℃,99%RH)	[76]

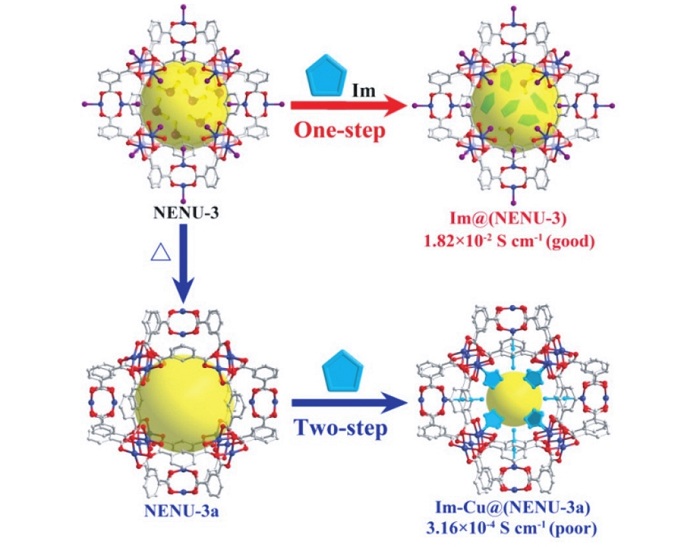

	Im@(NENU-3)	3D	1.82×10^-2(70 ℃,90%RH)	[77]
	Im-Cu@(NENU-3a)	3D	3.16×10^-4(70 ℃,90%RH)	[77]

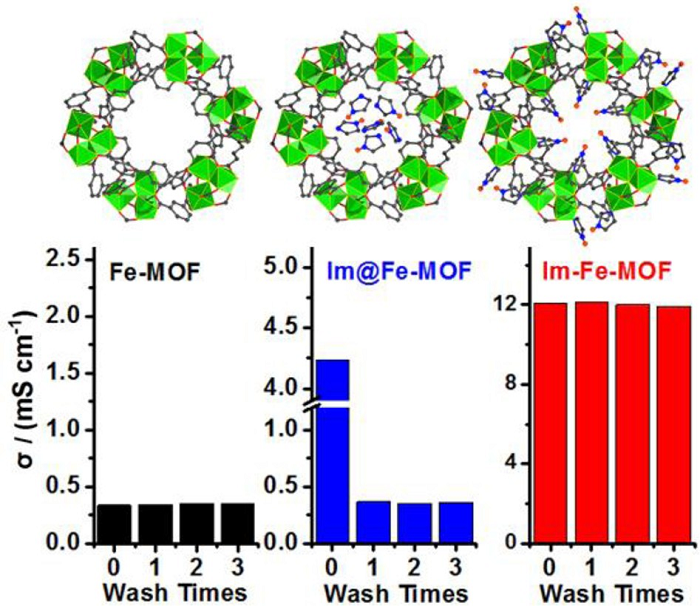

	Im@Fe-MOF	3D	4.23×10^-3(60 ℃,98%RH)	[78]
