针对气象敏感型综合能源负荷的收敛交叉映射因果关系分析

doi:10.3969/j.issn.2097-0706.2023.01.003

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (1): 23-30.doi: 10.3969/j.issn.2097-0706.2023.01.003

针对气象敏感型综合能源负荷的收敛交叉映射因果关系分析

金立^a^,^b(), 张力^a^,^c^,^*(), 任炬光^a^,^c, 唐杨^a^,^b, 唐侨^a^,^c, 刘小兵^a^,^b

a.流体及动力机械教育部重点实验室，西华大学，成都 610039
b.能源与动力工程学院，西华大学，成都 610039
c.电气与电子信息学院，西华大学，成都 610039

收稿日期:2022-09-25 修回日期:2023-01-05 出版日期:2023-01-25 发布日期:2023-02-22
通讯作者: *张力（1982），男，副教授，硕士生导师，硕士，从事综合能源系统规划与运行优化等方面的研究，zhangl@mail.xhu.edu.cn。
作者简介:金立（1998），男，在读硕士研究生，从事综合能源负荷特性、负荷预测等方面的研究，jinli@stu.xhu.edu.cn。
基金资助:
国家重点研发计划项目(2018YFB0905200)

Causality analysis of climate sensitive loads in integrated energy system based on convergence cross mapping

JIN Li^a^,^b(), ZHANG Li^a^,^c^,^*(), REN Juguang^a^,^c, TANG Yang^a^,^b, TANG Qiao^a^,^c, LIU Xiaobing^a^,^b

a. Key Laboratory of Fluid and Power Machinery， Ministry of Education， Xihua University， Chengdu 610039， China
b. School of Energy and Power Engineering， Xihua University， Chengdu 610039， China
c. School of Electrical Engineering and Electronic Information， Xihua University， Chengdu 610039， China

Received:2022-09-25 Revised:2023-01-05 Online:2023-01-25 Published:2023-02-22
Supported by:
National Key R&D Program of China(2018YFB0905200)

摘要/Abstract

摘要：

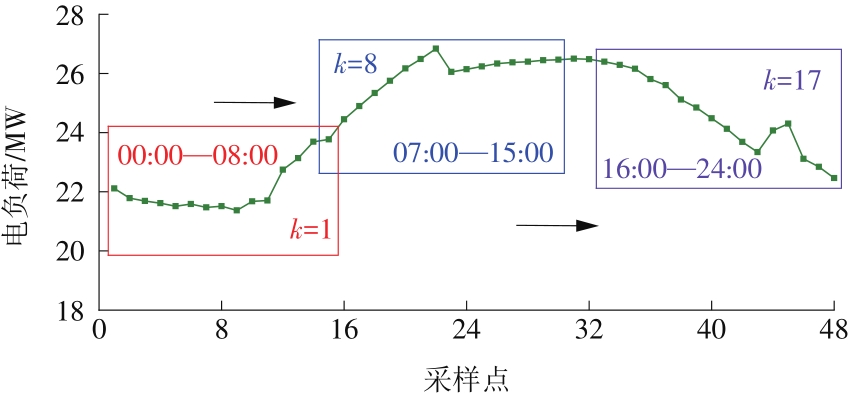

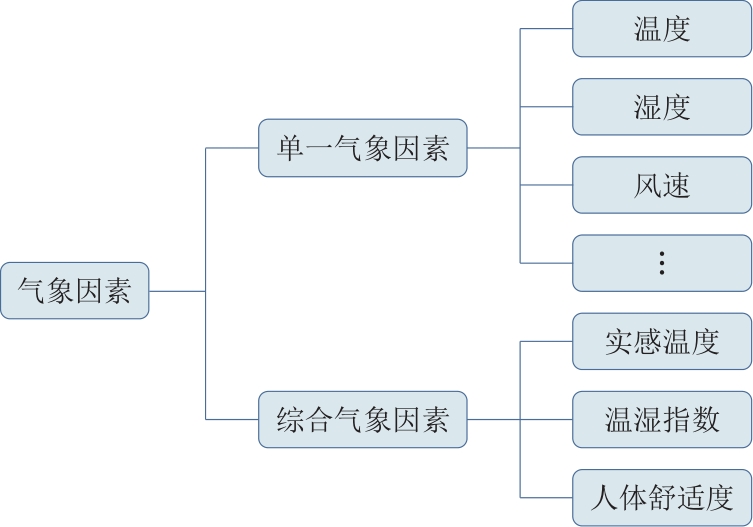

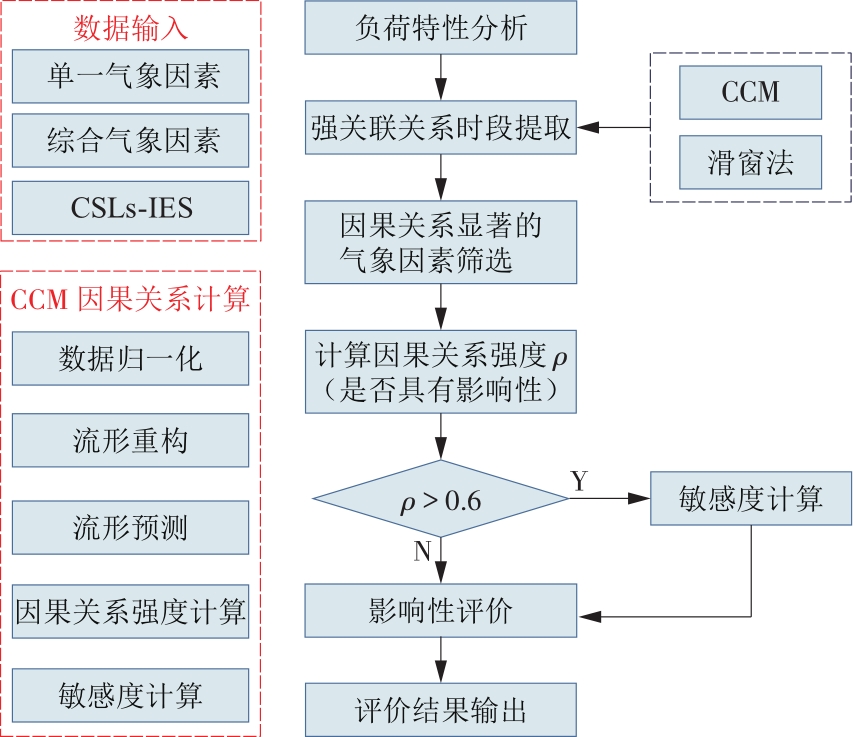

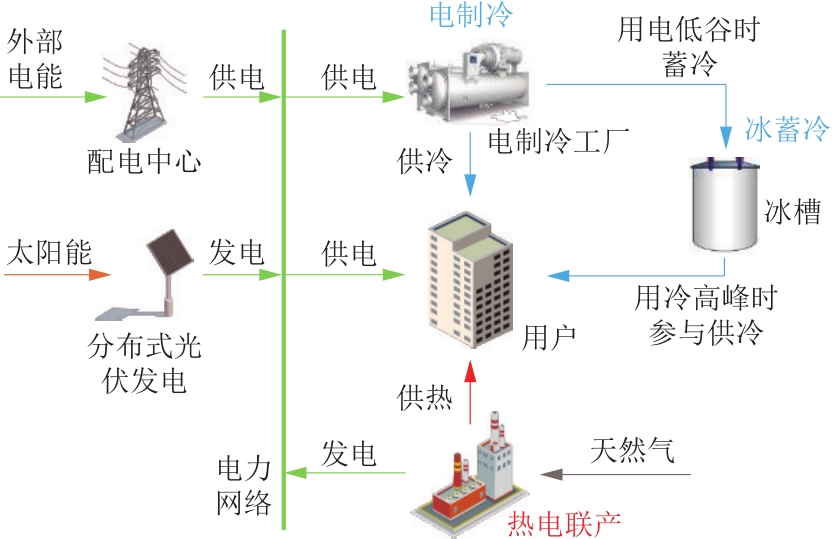

气象敏感型综合能源负荷是随气候条件变化而波动明显的电、冷、热等多元负荷，具有较强的随机性、不确定性与耦合转化关系，现有的负荷特性分析方法难以精准量化评估气象因素对其的影响。选取实际的综合能源系统为分析对象，基于负荷特性分析，建立了包含多种单一和综合气象因素的关联指标体系，通过基于滑窗法的强关联时段提取、基于收敛交叉映射方法的因果关系强度及敏感度计算构建了因果关系模型与分析流程，结合算例仿真对所提模型进行了验证。结果表明，所提方法能够准确衡量气象因素对多元负荷的影响，可为后续开展能源系统规划与负荷预测研究提供参考。

关键词: 综合能源系统, 气象敏感型综合能源负荷, 因果关系分析, 收敛交叉映射, 滑窗法, 敏感度, 负荷预测

Abstract:

Climate sensitive loads in integrated energy system （CSLs-IES） refer to the electric， cold， heat and other multiple loads that are significantly affected by climate conditions. The loads are of strong randomness， uncertainty and coupling transformation relationships，and their characteristic impacted by climate factors are difficult to be quantified accurately by existing analysis methods. Taking an integrated energy system as the study object， its load characteristics are analysed. Starting from establishing an index system considering a single or multiple meteorological elements， the strong correlation periods are extracted by sliding window method， then the causality analysis model and calculation process are constructed based on the causality strength and sensitivity calculated by convergent cross mapping （CCM）.The proposed model is verified by a case and its results show that the proposed method can effectively identify the impact level of meteorological elements on multiple loads， which is important for the further research on energy system planning and load forecasting.

Key words: integrated intelligent energy system, climate sensitive loads in integrated energy system （CSLs-IES）, causality analysis, convergent cross mapping, sliding window, sensitivity coefficient, load forecasting

中图分类号:

TK01：TM714

金立, 张力, 任炬光, 唐杨, 唐侨, 刘小兵. 针对气象敏感型综合能源负荷的收敛交叉映射因果关系分析[J]. 综合智慧能源, 2023, 45(1): 23-30.

JIN Li, ZHANG Li, REN Juguang, TANG Yang, TANG Qiao, LIU Xiaobing. Causality analysis of climate sensitive loads in integrated energy system based on convergence cross mapping[J]. Integrated Intelligent Energy, 2023, 45(1): 23-30.

图/表 12

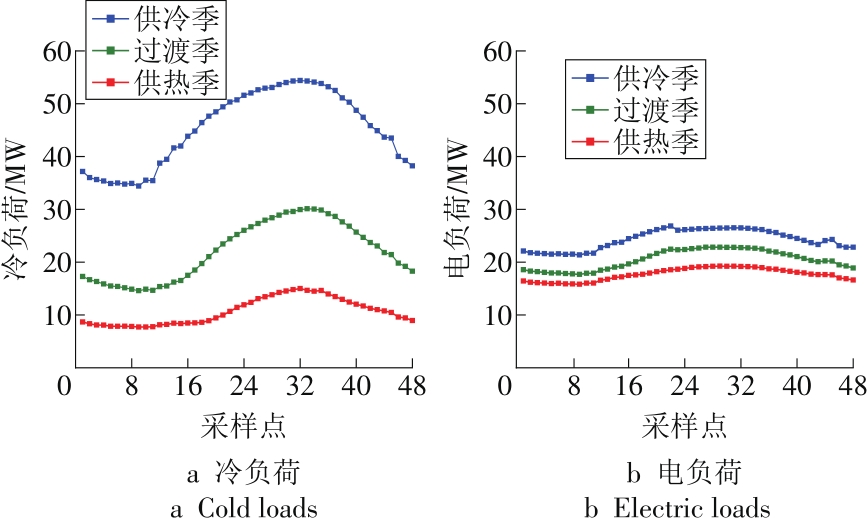

图1

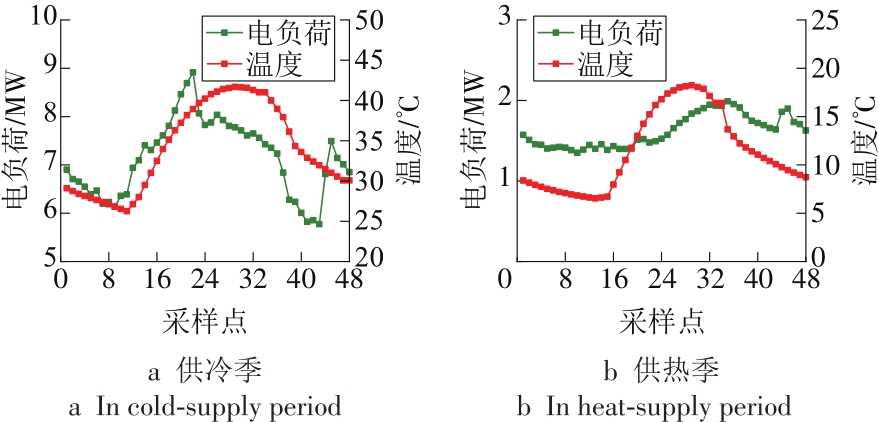

图2

图3

图4

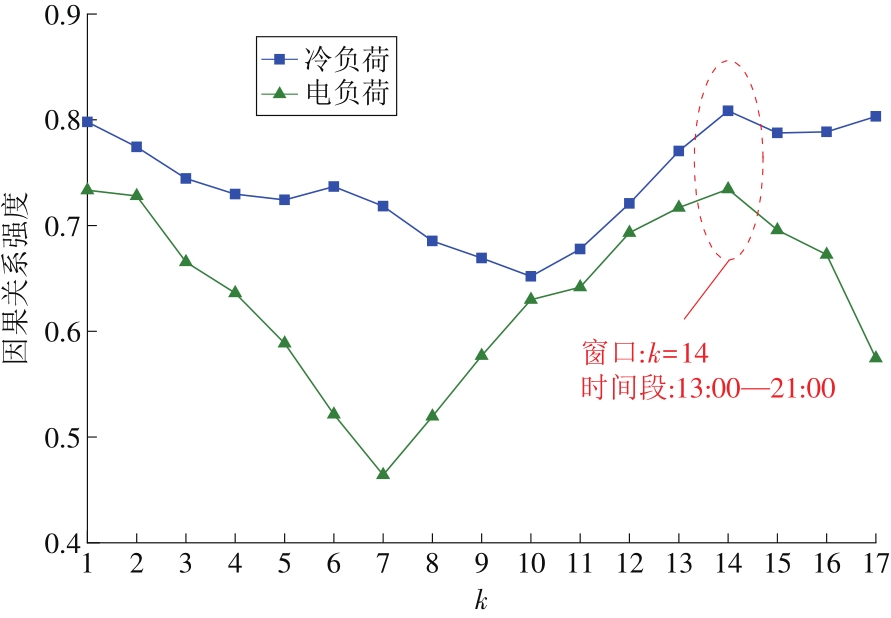

图5

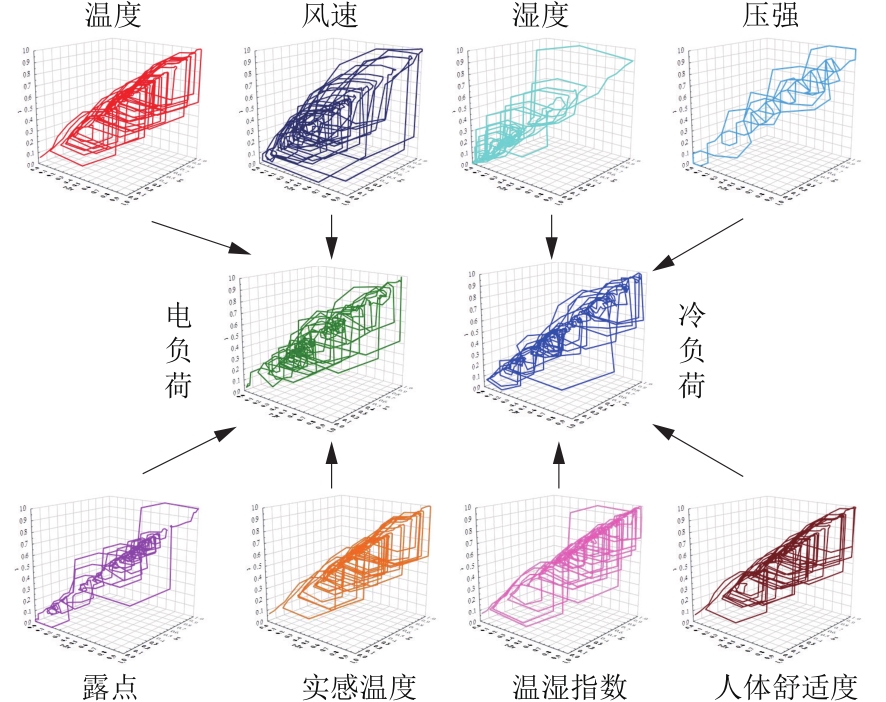

图6

图7

图8

图9

表1

表2

图10

参考文献 30

[1]	刘创. 计及气象参数的区域电-热综合能源系统运行优化研究[D]. 北京: 华北电力大学, 2021.
	LIU Chuang. Research on optimization of regional integrated electric-heat system considering the meteorological parameter[D]. Beijing: North China Electric Power University, 2021.
[2]	朱海东, 郝浩, 郑剑, 等. 基于冷热电多能互补的园区综合能源系统设计[J]. 华电技术, 2021, 43(4):34-38.
	ZHU Haidong, HAO Hao, ZHENG Jian, et al. Design of integrated energy system for parks based on complementation of cold,heat and electricity[J]. Huadian Technology, 2021, 43(4):34-38.
[3]	张爱平, 赵利兴, 刘静. 楼宇型综合能源服务系统智能优化运行研究[J]. 综合智慧能源, 2022, 44(2):42-48. doi: 10.3969/j.issn.2097-0706.2022.02.007
	ZHANG Aiping, ZHAO Lixing, LIU Jing. Research on optimized operation of building-type integrated energy service systems[J]. Integrated Intelligent Energy, 2022, 44(2):42-48. doi: 10.3969/j.issn.2097-0706.2022.02.007
[4]	陈曦, 彭泓华, 曹杰, 等. 基于改进组合赋权-逼近理想解排序法的综合能源系统规划方案综合评价[J]. 重庆理工大学学报(自然科学版), 2022, 36(3):181-190.
	CHEN Xi, PENG Honghua, CAO Jie, et al. Overall evaluation of integrated energy system planning scheme based on improved combination weighting-TOPSIS[J]. Journal of Chongqing University of Technology(Natural Science), 2022, 36(3):181-190.
[5]	胡雪, 杨俊红, 刘德朝, 等. 基于人工智能与热力系统融合的综合节能技术研究[J]. 华电技术, 2020, 42(11):21-33.
	HU Xue, YANG Junhong, LIU Dechao, et al. Research on comprehensive energy-saving technology based on integration of artificial intelligence into thermal systems[J]. Huadian Technology, 2020, 42(11):21-33.
[6]	王梓弋. 基于区域能源规划的建筑群冷热负荷特性研究[D]. 重庆: 重庆大学, 2020.
	WANG Ziyi. Research on cooling and heating load characteristics of building groups based on district energy planning[D]. Chongqing: Chongqing University, 2020.
[7]	陈涛, 吕松, 任廷林, 等. 基于最小二乘支持向量机的周用电量预测方法[J]. 华电技术, 2020, 42(1):35-40.
	CHEN Tao, LYU Song, REN Tinglin, et al. Prediction method for weekly electricity consumption based on LSSVM algorithm[J]. Huadian Technology, 2020, 42(1):35-40.
[8]	赵娜, 石玉恒, 李乃杰, 等. 温湿变化对北京城区气象敏感电力负荷的影响分析[J]. 中国电力, 2017, 50(2):175-180.
	ZHAO Na, SHI Yuheng, LI Naijie, et al. The relationship of temperature humidity index and meteorology sensitive power load in Beijing[J]. Electric Power, 2017, 50(2):175-180.
[9]	雷绍兰, 古亮, 杨佳, 等. 重庆地区电力负荷特性及其影响因素分析[J]. 中国电力, 2014, 47(12):61-65.
	LEI Shaolan, GU Liang, YANG Jia, et al. Analysis of electric power load characteristics and its influencing factors in Chongqing region[J]. Electric Power, 2014, 47(12):61-65.
[10]	曹磊, 祖蓓. 夏季温湿指数与气象敏感电力负荷的研究[J]. 现代电力, 2011, 28(5):41-45.
	CAO Lei, ZU Bei. Research on summer temperature-humidity index and weather sensitive electric load[J]. Modern Electric Power, 2011, 28(5):41-45.
[11]	彭维珂, 聂椿明, 陈衡, 等. 基于智能算法的空冷火电机组负荷预测研究[J]. 华电技术, 2021, 43(3):57-64.
	PENG Weike, NIE Chunming, CHEN Heng, et al. Study on load forecasting for air cooling thermal power units based on intelligent algorithm[J]. Huadian Technology, 2021, 43(3):57-64.
[12]	赵德印, 范宏武, 潘黎. 气象参数与建筑冷热负荷相关性分析[J]. 绿色建筑, 2019, 11(1):47-50,55.
	ZHAO Deyin, FAN Hongwu, PAN Li. Relevance between climate parameter and building heating & cooling load[J]. Green Building, 2019, 11(1):47-50,55.
[13]	李柏松. 基于因果关系分析的多元时间序列变量选择[D]. 大连: 大连理工大学, 2021.
	LI Baisong. Variables selection multivariate time series based causality analysis[D]. Dalian: Dalian University of Technology, 2021.
[14]	费新怡. 基于CCM的工业非线性因果分析研究[D]. 杭州: 浙江大学, 2020.
	FEI Xinyi. Research on industrial nonlinear causality analysis based on CCM[D]. Hangzhou: Zhejiang University, 2020.
[15]	GRANGER C W J. Investigating causal relations by econometric models and cross-spectral methods[J]. Econometrica, 1969, 37(3):424-438. doi: 10.2307/1912791
[16]	ZHANG Z, QIN H, LIU Y, et al. Long short-term memory network based on neighborhood gates for processing complex causality in wind speed prediction[J]. Energy Weekly News, 2019, 192:37-51.
[17]	任伟杰, 韩敏. 多元时间序列因果关系分析研究综述[J]. 自动化学报, 2021, 47(1):64-78.
	REN Weijie, HAN Min. Survey on causality analysis of multivariate time series[J]. Acta Automatica Sinica, 2021, 47(1):64-78.
[18]	ZOU C L, FENG J F. Granger causality vs. dynamic Bayesian network inference: A comparative study[J]. BMC Bioinformatics, 2009, 10(1):122-122. doi: 10.1186/1471-2105-10-122
[19]	TAKENS F. Detecting strange attractors in turbulence[M]// Dynamical Systems and Turbulence. Heidelberg: Springer-Verlag, 1981:366-381.
[20]	SUGIHARA G, MAY R, YE H, et al. Detecting causality in complex ecosystems[J]. Science, 2012, 338(6106):496-500. doi: 10.1126/science.1227079 pmid: 22997134
[21]	WU T, GAO X, AN S, et al. Time-varying pattern causality inference in global stock markets[J]. International Review of Financial Analysis, 2021, 77:101806. doi: 10.1016/j.irfa.2021.101806
[22]	李浩然, 邱彤. 基于因果分析的烧结生产状态预测模型[J]. 化工学报, 2021, 72(3):1438-1446.
	LI Haoran, QIU Tong. Sintering production state prediction model based on causal analysis[J]. CIESC Journal, 2021, 72(3):1438-1446.
[23]	MAIA-SILVA D, KUMAR R, NATEGHI R. The critical role of humidity in modeling summer electricity demand across the United States[J]. Nature Communications, 2020, 11:1686. doi: 10.1038/s41467-020-15393-8
[24]	杜彦巍, 林莉, 牟道槐, 等. 综合气象指数对电力负荷的影响分析[J]. 重庆大学学报(自然科学版), 2006, 29(12):56-60.
	DU Yanwei, LIN Li, MU Daohuai, et al. Analysis of the effect of compositive meteorology index on power load[J]. Journal of Chongqing University(Natural Science Edition), 2006, 29(12):56-60.
[25]	马丽君, 孙根年, 李玲芬, 等. 海口旅游气候舒适度与客流量年内变化相关分析[J]. 资源科学, 2008, 30(11):1754-1759.
	MA Lijun, SUN Gennian, LI Lingfen, et al. Correlative analysis of climate comfort and monthly variation of tourists in Haikou city[J]. Resources Science, 2008, 30 (11):1754-1759.
[26]	闫利. 建筑节能设计的敏感性分析方法[J]. 制冷与空调, 2010, 24(4):49-52.
	YAN Li. The sensitivity analysis in building energy efficiency design[J]. Refrigeration and Air-Conditioning, 2010, 24(4):49-52.
[27]	ASU. Campus metabolism[EB/OL].[2022-09-20]. http://cm.asu.edu.
[28]	U.S. Department of Energy, Office of Energy Efficiency and Renewable Energy.National solar radiation database[EB/OL].[2021-09-20]. https://maps.nrel.gov/nsrdb-viewer.
[29]	SUN C, SONG J, LI L, et al. Implementation of hybrid short-term load forecasting system with analysis of temperature sensitivities[J]. Soft Computing, 2008, 12(7):633-638. doi: 10.1007/s00500-007-0252-1
[30]	王译锋. 考虑负荷间非线性协同作用的综合能源系统短期电负荷预测[D]. 南宁: 广西大学, 2021.
	WANG Yifeng. Short-term electric load forecasting of integrated energy system considering nonlinear synergy between different loads[D]. Nanning: Guangxi University, 2021.

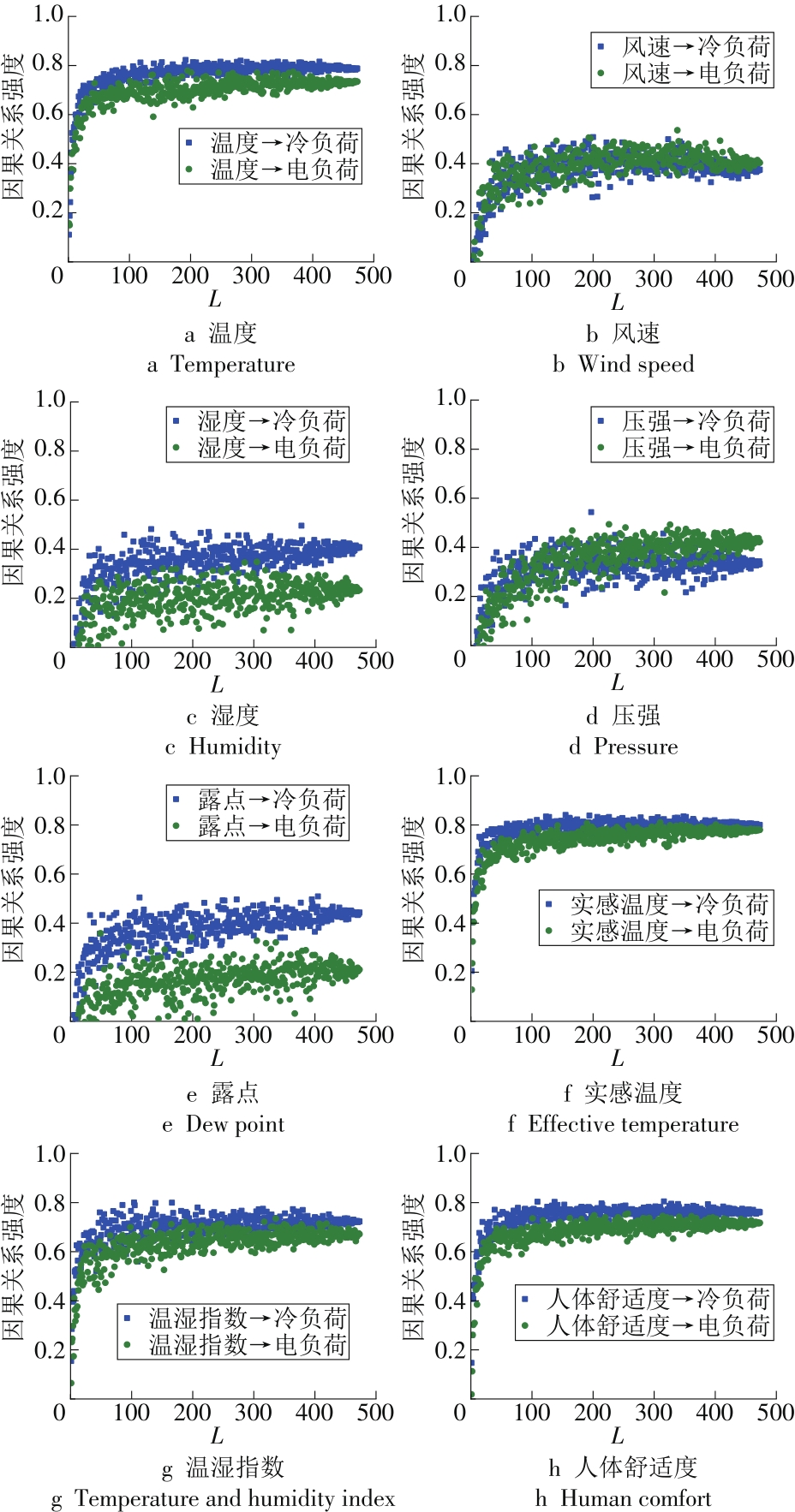

气象因素	与电负荷的因果关系强度	与冷负荷的因果关系强度
风速	0.43	0.40
湿度	0.23	0.41
温度	0.73	0.79
压强	0.42	0.33
露点	0.21	0.44
实感温度	0.78	0.80
温湿指数	0.67	0.72
人体舒适度	0.72	0.76

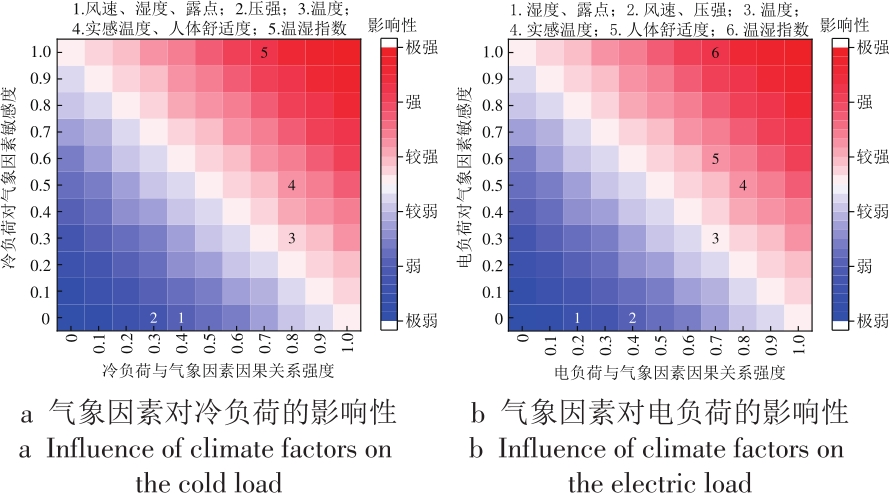

气象因素	电负荷敏感度	冷负荷敏感度
温度	0.68	0.84
实感温度	1.23	1.50
温湿指数	3.24	3.32
人体舒适度	1.30	1.32
