含风光接入的微电网可靠性影响分析

doi:10.3969/j.issn.2097-0706.2023.01.008

摘要/Abstract

摘要：

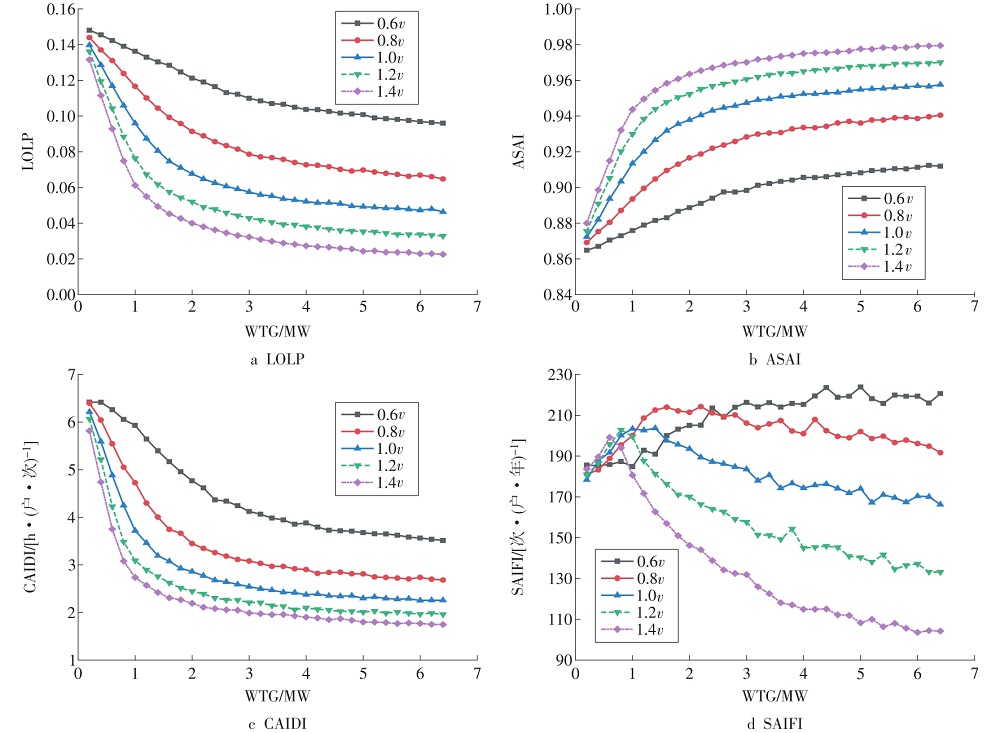

提高风光接入率有利于“碳达峰”“碳中和”目标的实现，但风电、光电的随机性会影响微电网可靠运行。通过可靠性分析环节可为风光友好接入微电网提供评估依据。建立了含随机性的风光输出功率模型，引入概率、频率及持续时间等指标分析了微电网的可靠性，研究了光伏模型中光伏输出功率的Beta分布参数（α和β）、风速和风光渗透率对系统可靠性的影响。结果表明，α和β可以影响光伏输出功率，进而影响系统可靠性水平；风速也是影响可靠性的因素之一，在避免因风速过大损坏风电机组的前提下，选择风力资源丰富区域开展风电接入有利于系统可靠性；当α=2.00，β=0.80时，在一定风光渗透率下，提高光伏发电所占比例可改善概率性指标和用户平均停电持续时间指标，但系统平均停电频率会持续增加。

关键词: 风光接入, 微电网可靠性, 碳达峰, 碳中和, 随机性, 风光渗透率

Abstract:

Increasing the proportion of grid-connected wind and solar power is conducive to achieving the carbon peaking and carbon neutrality. However， the randomness of wind and solar power will affect the reliable operation of microgrid. The reliability analysis can provide an evaluation basis for the smooth access of wind and solar power to microgrid. Firstly， the model of the wind and solar power output considering the randomness is established. Then， probability， frequency，duration and other indicators are introduced to analyze the reliability of microgrid. Finally， the effects of Beta distribution parameters（α and β）， wind speed， wind and solar permeability on system reliability are studied. The results show that the Beta distribution parameters can affect the photovoltaic power output， and then affect the system reliability level. Wind speed is also one of the factors affecting reliability. On the premise of avoiding damage to wind turbines cause by excessive wind speed， getting wind power accessed into power grid from areas with rich wind resources is conducive to the system reliability. When α=2.00， β=0.80， increasing the proportion of photovoltaic power is beneficial to restraining the probability indexes and customer average interruption duration index（CAIDI）， but will continue to increase the system average interruption frequency index（SAIFI）.

Key words: wind and solar power access, microgrid reliability, carbon peaking, carbon neutrality, randomness, wind and solar permeability

中图分类号:

TK01：TM761

翁志鹏, 周京华, 李津, 詹政东. 含风光接入的微电网可靠性影响分析[J]. 综合智慧能源, 2023, 45(1): 67-74.

WENG Zhipeng, ZHOU Jinghua, LI Jin, ZHAN Zhengdong. Impact of wind and solar power grid connection on microgrid reliability[J]. Integrated Intelligent Energy, 2023, 45(1): 67-74.

图/表 8

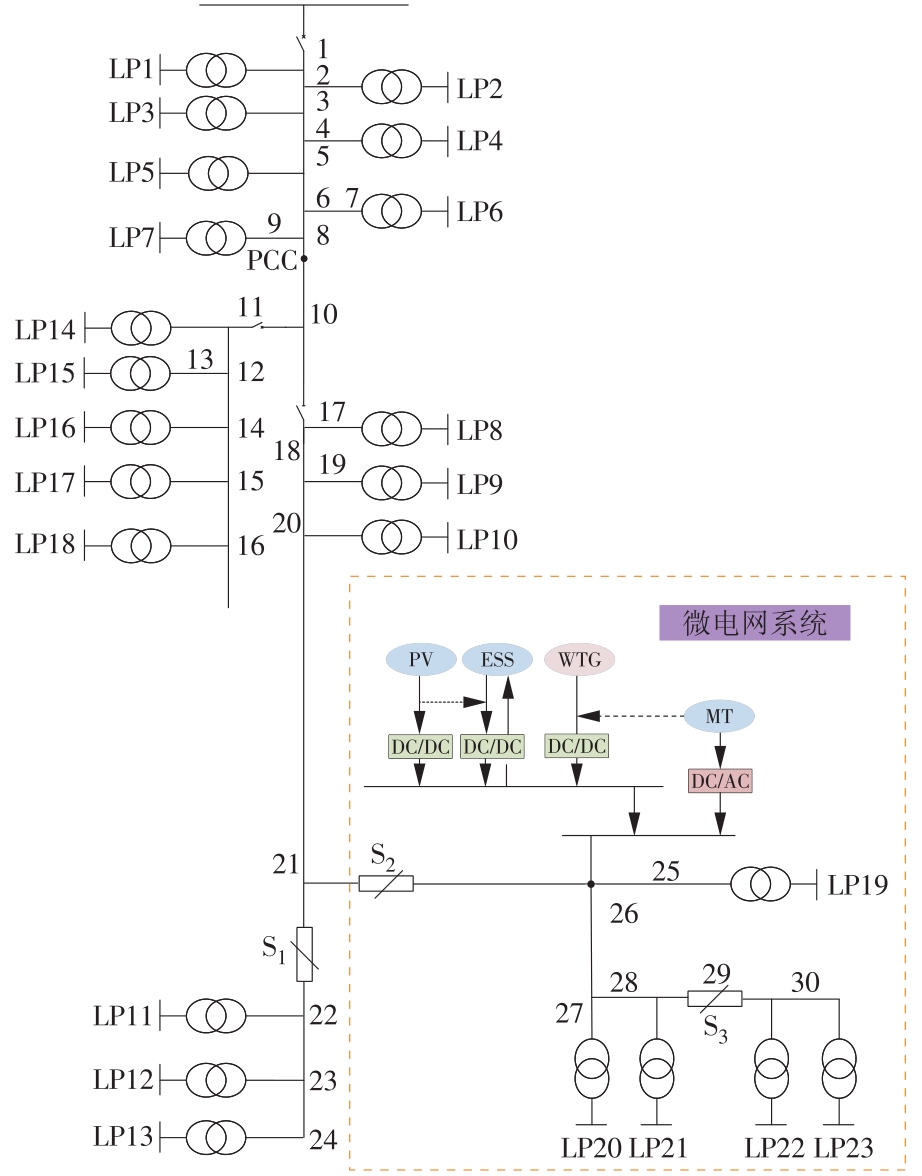

图1

图2

表1

表2

图3

图4

图5

表3

参考文献 22

[1]	GUO X S, LOU S H, WU Y W, et al. Low-carbon operation of combined heat and power integrated plants based on solar-assisted carbon capture[J]. Journal of Modern Power System and Clean Energy, 2022, 10(5):1138-1151. doi: 10.35833/MPCE.2021.000046
[2]	张建华, 史佳琪, 郑德化, 等. 微电网运行与控制IEC标准进展与分析[J]. 电力系统自动化, 2018, 42(24):1-10.
	ZHANG Jianhua, SHI Jiaqi, ZHENG Dehua, et al. Development and analysis of microgrid operation and control standards of international electrotechnical commission[J]. Automation of Electric Power Systems, 2018, 42(24):1-10.
[3]	梁双, 胡学浩, 张东霞, 等. 基于随机模型的光伏发电置信容量评估方法[J]. 电力系统自动化, 2012, 36(13):32-37.
	LIANG Shuang, HU Xuehao, ZHANG Dongxia, et al. Probabilistic models based evaluation method for capacity credit of photovoltaic generation[J]. Automation of Electric Power Systems, 2012, 36(13):32-37.
[4]	葛少云, 曹雨晨, 刘洪, 等. 考虑可靠性约束的综合能源微网供能能力评估[J]. 电力系统自动化, 2020, 44(7):31-37.
	GE Shaoyun, CAO Yuchen, LIU Hong, et al. Evaluation of energy supply capability for multi-energy microgrid considering reliability constraint[J]. Automation of Electric Power Systems, 2020, 44(7):31-37.
[5]	雷敏, 魏务卿, 曾进辉, 等. 考虑需求响应的负荷控制对供电可靠性影响分析[J]. 电力系统自动化, 2018, 42(10):53-59.
	LEI Min, WEI Wuqing, ZENG Jinhui, et al. Effect of load control on power supply reliability considering demand response[J]. Automation of Electric Power Systems, 2018, 42(10):53-59.
[6]	刘洪, 李吉峰, 葛少云, 等. 多元储能系统运行策略对综合能源微网可靠性影响评估[J]. 电力系统自动化, 2019, 43(10):47-53.
	LIU Hong, LI Jifeng, GE Shaoyun, et al. Impact evaluation of operation strategies of multiple energy storage systems on reliability of multi-energy microgrid[J]. Automation of Electric Power Systems, 2019, 43(10):47-53.
[7]	陈丽丽, 牟龙华, 许旭锋, 等. 储能装置运行策略及运行特性对微电网可靠性的影响[J]. 电力自动化设备, 2017, 37(7):70-76.
	CHEN Lili, MU Longhua, XU Xufeng, et al. Influences of energy storage operational strategy and characteristic on microgrid reliability[J]. Electric Power Automation Equipment, 2017, 37(7):70-76.
[8]	王杨, 谢开贵, 胡博, 等. 基于时序模拟的离网型微网可靠性分析[J]. 电工技术学报, 2016, 31(6):206-211.
	WANG Yang, XIE Kaigui, HU Bo, et al. Reliability analysis of islanded microgrid based on sequential simulation[J]. Transactions of China Electrotechnical Society, 2016, 31(6):206-211.
[9]	周保荣, 黄廷城, 张勇军. 计及激励型需求响应的微电网可靠性分析[J]. 电力系统自动化, 2017, 41(13):70-78.
	ZHOU Baorong, HUANG Tingcheng, ZHANG Yongjun. Reliability analysis on microgrid considering incentive demand response[J]. Automation of Electric Power Systems, 2017, 41(13):70-78.
[10]	谢林, 李子清, 苟旭, 等. 基于多种策略的孤岛型微网可靠性分析方法[J]. 电工技术, 2018(17):4-8.
	XIE Lin, LI Ziqing, GOU Xu, et al. Reliability analysis method of island microgrid based on variety strategies[J]. Electric Engineering, 2018(17):4-8.
[11]	李颖杰, 温启良. 含风-光-储的微网接入对配电网供电可靠性的影响[J]. 电测与仪表, 2020, 57(13):98-103.
	LI Yingjie, WEN Qiliang. Effect of micro-grid access with wind-light-storage on power supply reliability of distribution network[J]. Electrical Measurement & Instrumentation, 2020, 57(13):98-103.
[12]	崔凯, 孔祥玉, 金强, 等. 考虑分布式电源出力间歇性的微电网可靠性评估[J]. 电力系统及其自动化学报, 2018, 30(9):97-102.
	CUI Kai, KONG Xiangyu, JIN Qiang, et al. Reliability analysis method for microgrid with intermittent distributed generations[J]. Proceedings of the CSU-EPSA, 2018, 30(9):97-102.
[13]	宋晓通, 翁志鹏, 周京华, 等. 基于多态不确定性全时序仿真的微电网可靠性评估与规划[J]. 高电压技术, 2020, 46(5):1518-1527.
	SONG Xiaotong, WENG Zhipeng, ZHOU Jinghua, et al. Reliability evaluation and planning of microgrid based on whole time sequence simulation of multi-state uncertainty[J]. High Voltage Engineering, 2020, 46(5):1518-1527.
[14]	WENG Z P, ZHOU J H, ZHAN Z Z. Reliability evaluation of standalone microgrid based on sequential Monte Carlo simulation method[J]. Energies, 2022, 15(18). DOI: 10.3390/EN15186706. doi: 10.3390/EN15186706
[15]	KARAKI S H, CHEDID R B, RAMADAN R. Probabilistic performance assessment of autonomous solar-wind energy conversion systems[J]. IEEE Transactions on Energy Conversion, 1999, 14(3):766-772. doi: 10.1109/60.790949
[16]	欧阳婷, 蔡晔, 王炜宇, 等. 计及风电、光伏预测不确定性的抽水蓄能日前全调度优化[J]. 综合智慧能源, 2022, 44(11):20-27.
	OUYANG Ting, CAI Ye, WANG Weiyu, et al. Overall day-ahead scheduling optimization for pumped-storage power stations considering the uncertainty of wind and photovoltaic power prediction[J]. Integrated Intelligent Energy, 2022, 44(11):20-27.
[17]	朱莉, 潘文霞, 霍志红, 等. 风电场并网技术[M]. 北京: 中国电力出版社, 2011.
[18]	DING Y, SINGH C, GOEL L, et al. Short-term and medium-term reliability evaluation for power systems with high penetration of wind power[J]. IEEE Transaction on Sustainability Energy, 2014, 5(3):896-906.
[19]	FU Q, FMONTOYA L, SOLANKI A, et al. Microgrid generation capacity design with renewables and energy storage addressing power quality and surety[J]. IEEE Transaction on Smart Grid, 2019, 3:2019-2027. doi: 10.1109/TSG.2012.2223245
[20]	WANG C S, ZHANG T Y, LUO F Z, et al. Impacts of cyber system on microgrid operational reliability[J]. IEEE Transaction on Smart Grid, 2019, 10:105-115. doi: 10.1109/TSG.2017.2732484
[21]	IEEE guide for electric power distribution reliability indices—Redline:IEEE Std1366—2003[S].
[22]	张兴科, 魏朝阳, 王康平, 等. 面向高比例光伏并网的火电爬坡压力缓解策略[J]. 综合智慧能源, 2022, 44(1):1-8. doi: 10.3969/j.issn.2097-0706.2022.01.001
	ZHANG Xingke, WEI Chaoyang, WANG Kangping, et al. Strategies for relieving ramp pressure of thermal power units with high-proportion photovoltaic power connecting to the grid[J]. Integrated Intelligent Energy, 2022, 44(1):1-8. doi: 10.3969/j.issn.2097-0706.2022.01.001

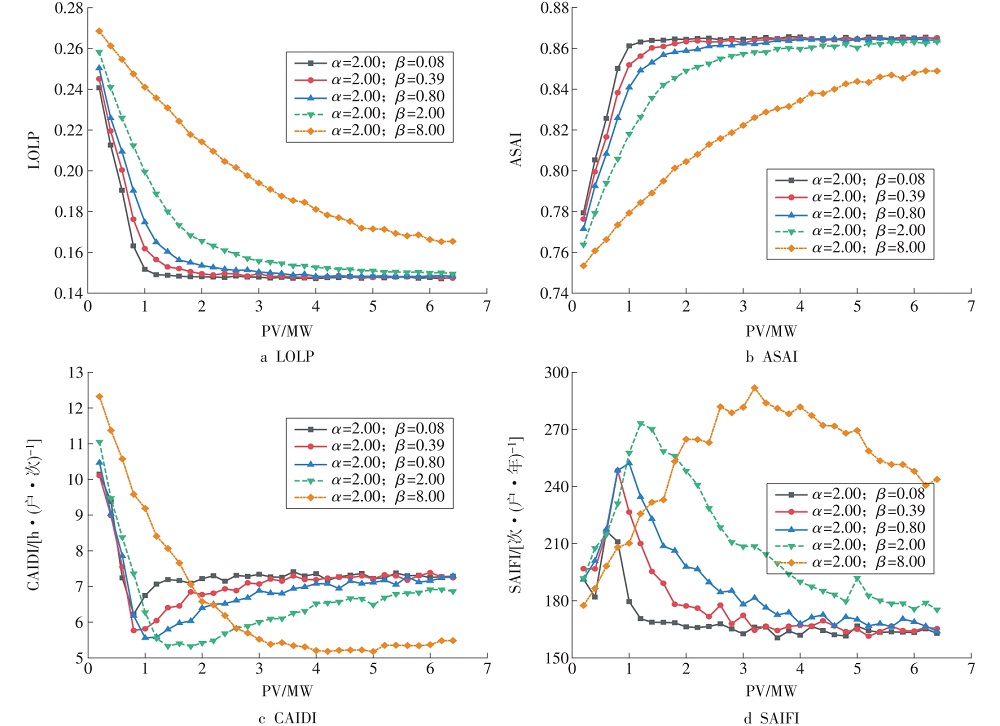

配置方案	α	β	α/(α+β)
A₁	2.00	0.08	0.962
B₁	2.00	0.39	0.837
C	2.00	0.80	0.714
D₁	2.00	2.00	0.500
E₁	2.00	8.00	0.200

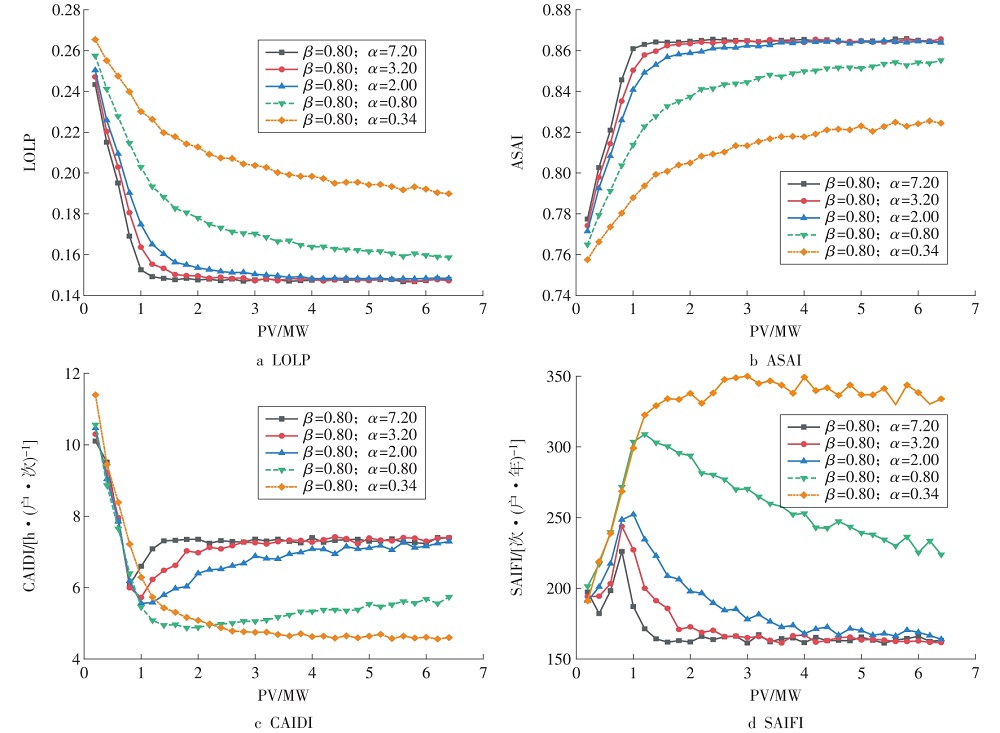

配置方案	α	β	α/(α+β)
A₂	7.20	0.80	0.900
B₂	3.20	0.80	0.800
C	2.00	0.80	0.714
D₂	0.80	0.80	0.500
E₂	0.34	0.80	0.298

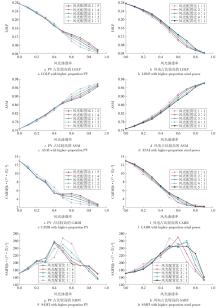

风光配置比	PV比例/%	风光配置比	PV比例/%
1∶5	83.33	2∶1	33.33
1∶4	80.00	3∶1	25.00
1∶3	75.00	4∶1	20.00
1∶2	66.67	5∶1	16.67
1∶1	50.00
