基于红外遥感的供热系统测温方法优化及适用性分析

doi:10.3969/j.issn.2097-0706.2023.04.009

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (4): 59-68.doi: 10.3969/j.issn.2097-0706.2023.04.009

基于红外遥感的供热系统测温方法优化及适用性分析

高连瑞¹(), 丛铭阳²^,³, 王源¹, 徐海东¹, 谢洪涛¹, 王德人²^,³, 周志刚²^,³^,^*()

1.黑龙江龙唐电力投资有限公司，哈尔滨 150028
2.哈尔滨工业大学建筑学院，哈尔滨 150006
3.寒地城乡人居环境科学与技术工业和信息化部重点实验室（哈尔滨工业大学），哈尔滨 150006

收稿日期:2023-01-15 修回日期:2023-03-25 接受日期:2023-04-25 出版日期:2023-04-25
通讯作者: *周志刚（1978），男，教授，博士生导师，系副主任，博士，从事低碳智慧供热、多能互补供能系统数字化平台研发等方面的研究，hit_zzg@163.com。
作者简介:高连瑞（1974），男，高级工程师，从事供热生产安全管理、供热经济运行、智慧供热建设等方面的工作， 644046584@qq.com。
基金资助:
国家自然科学基金项目(62276080)

Optimization and applicability analysis on temperature measurement method for the heating system based on infrared remote sensing

GAO Lianrui¹(), CONG Mingyang²^,³, WANG Yuan¹, XU Haidong¹, XIE Hongtao¹, WANG Deren²^,³, ZHOU Zhigang²^,³^,^*()

1. Heilongjiang Longtang Power Investment Company Limited， Harbin 150028， China
2. School of Architecture, Harbin Institute of Technology, Harbin 150006, China
3. Key Laboratory of Cold Region Urban and Rural Human Settlement Environment Science and Technology（Harbin Institute of Technology）, Ministry of Industry and Information Technology, Harbin 150006, China

Received:2023-01-15 Revised:2023-03-25 Accepted:2023-04-25 Published:2023-04-25
Supported by:
National Natural Science Foundation of China(62276080)

摘要/Abstract

摘要：

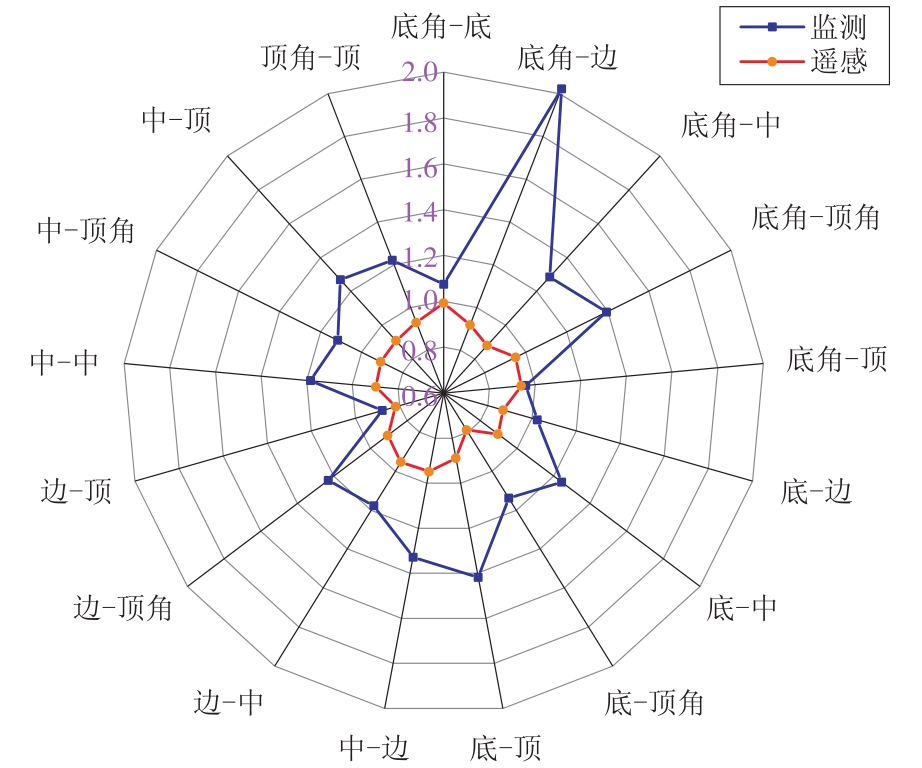

用户侧室温采集是智慧能源系统实现按需供热和效果评估的重要手段和关键测量参数，但现有方法面临成本问题和局部测点安装位置选择导致的准确度问题。基于红外遥感的测温方法与实际场景相结合，探究结合红外遥感与传感器测温的综合室温测量方法，分析测温位置、气象、用户开窗行为和基准房间数量对测温效果的影响，以及该方法的优化效果并讨论其工程应用性。结论显示，当基准房间数量增加至2个后收益最高，可明显降低天气、开窗等外界干扰的影响，提高方法的鲁棒性，同时不受边际递减效益的影响，误差约在±1.5 ℃的范围内。对于基准传感器的布置优化问题，经过对比发现，边-顶组合可作为一个较好的参考位置，该方法与常规方法相比能明显降低覆盖率指标中的传感器安装要求，为未来的工程适用性提供参考。

关键词: 红外遥感, 误差分析, 数据采集, 智慧能源, 适用性分析, 供热

Abstract:

User-side room temperature acquisition is an essential tool for integrated intelligent energy systems' on-demand heat supply， and room temperature is the key performance evaluation parameter for the system. However， current acquisition approaches are of excessive cost and high uncertainty caused by sensor locations. Combining the infrared remote sensing-based temperature measurement method with the actual scenarios， the impacts of sensor locations， weather conditions， users' open window behaviors and the number of baseline rooms on the temperature measurement were analyzed. Then， the optimization and applicability of the proposed method were discussed. The analysis results show that when the number of baseline rooms goes up to two， the impacts of external interferences， such as weather conditions and window opening behaviors， can be reduced significantly，and the robustness of the system can be improved. Unaffected by diminishing marginal benefits， the approach can keep the measurement error within ±1.5 ℃. As for the installation position of sensors， the edge-top combination is taken as the better choice. Compared with the conventional method， the proposed method can significantly reduce the requirements on the coverage rate of sensors， and can provide a reference for the engineering cases in the future.

Key words: infrared remote sensing, error analysis, data acquisition, intelligent energy, applicability analysis, heating

中图分类号:

TU832：TU119.22：TK01

高连瑞, 丛铭阳, 王源, 徐海东, 谢洪涛, 王德人, 周志刚. 基于红外遥感的供热系统测温方法优化及适用性分析[J]. 综合智慧能源, 2023, 45(4): 59-68.

GAO Lianrui, CONG Mingyang, WANG Yuan, XU Haidong, XIE Hongtao, WANG Deren, ZHOU Zhigang. Optimization and applicability analysis on temperature measurement method for the heating system based on infrared remote sensing[J]. Integrated Intelligent Energy, 2023, 45(4): 59-68.

图/表 13

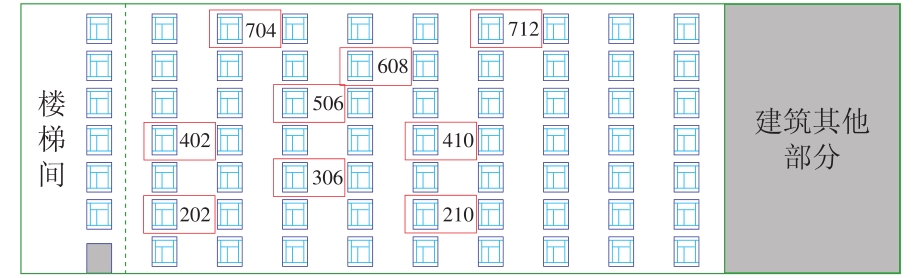

图1

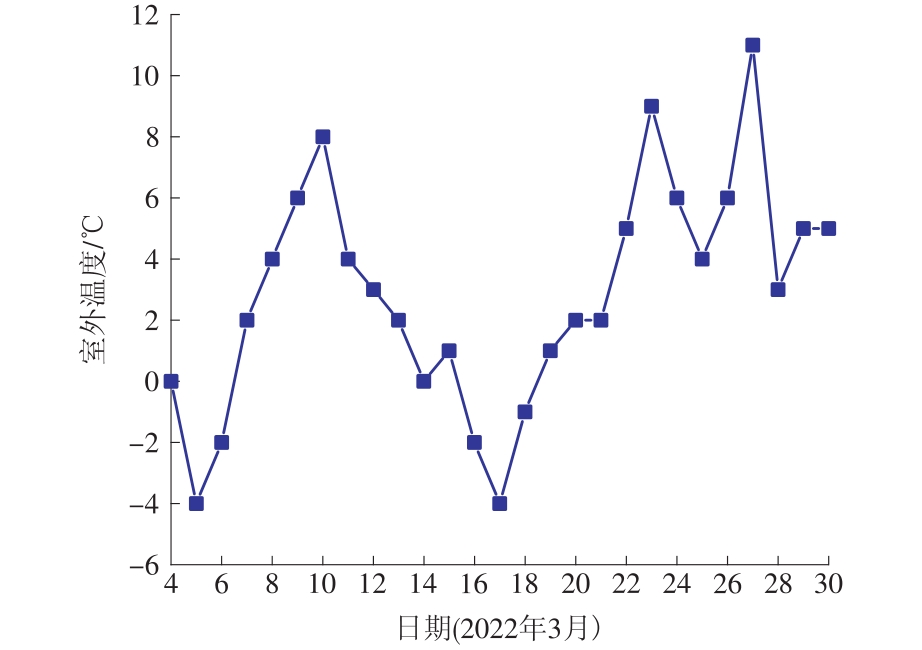

图2

图3

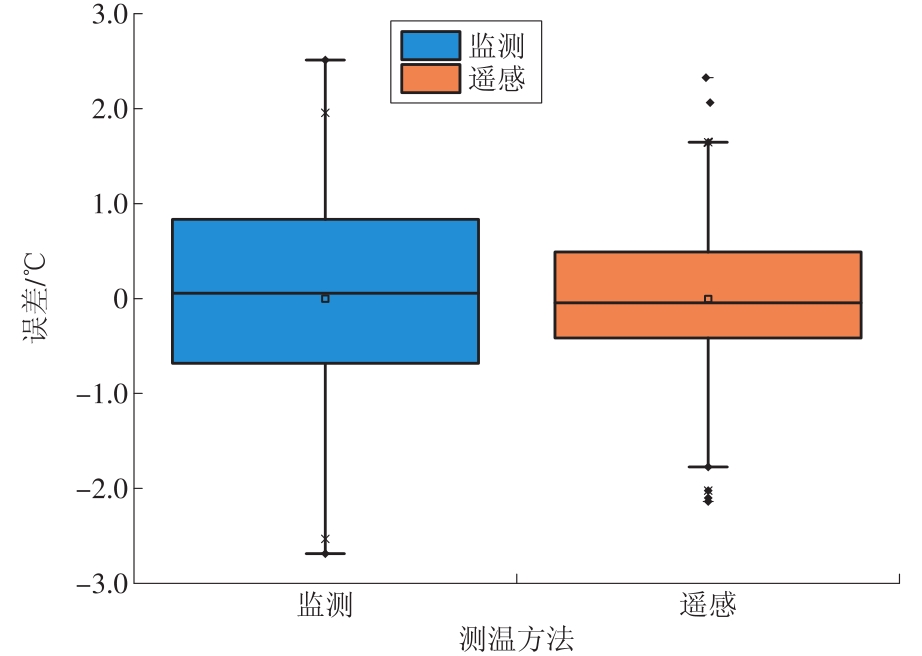

图4

图5

图6

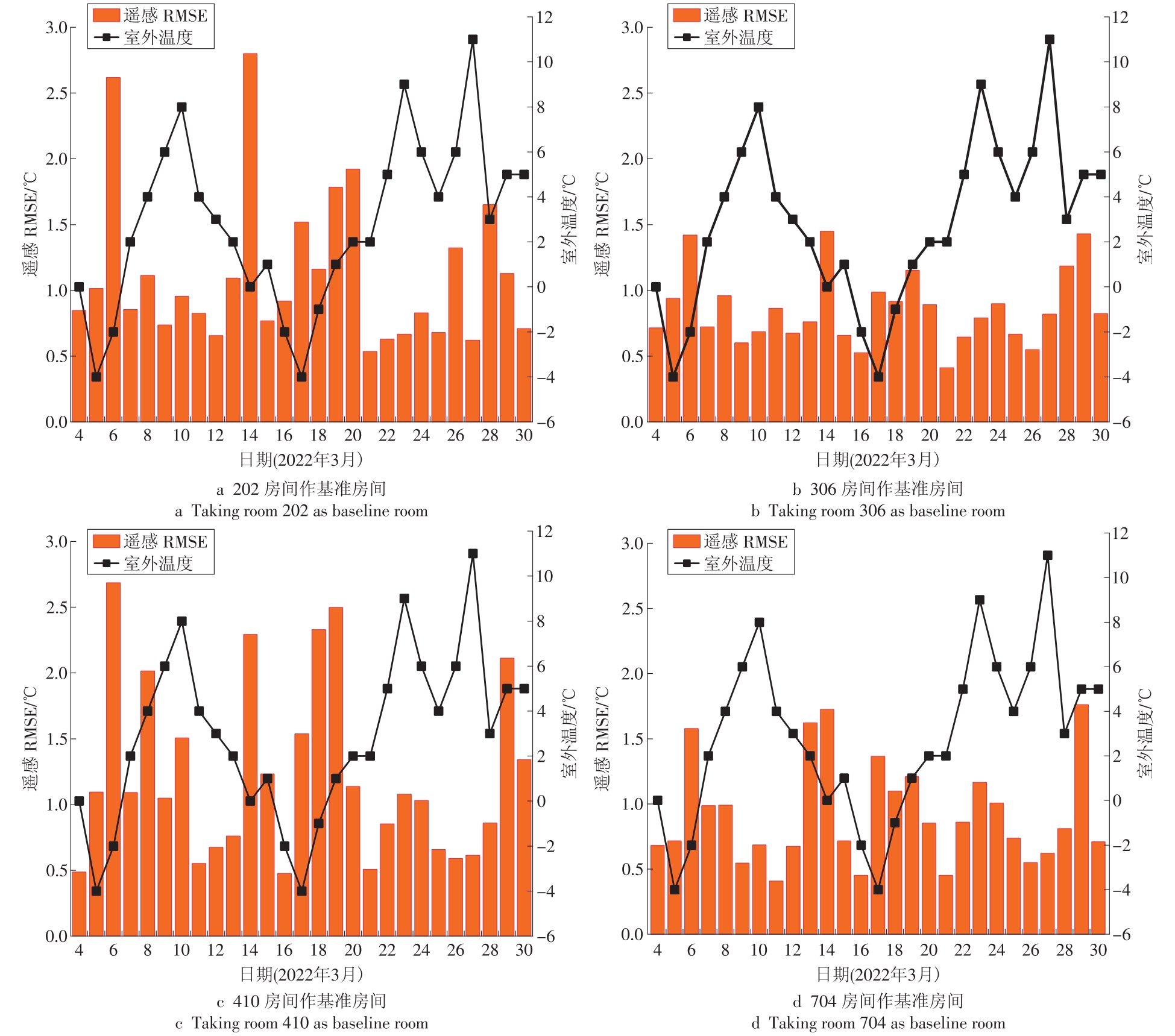

图7

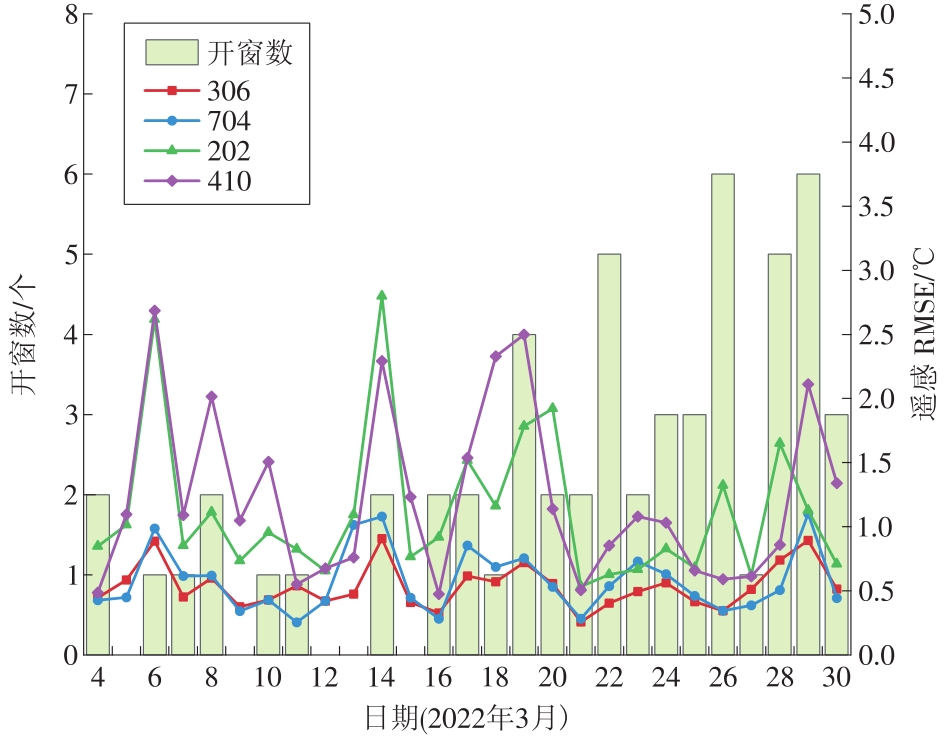

图8

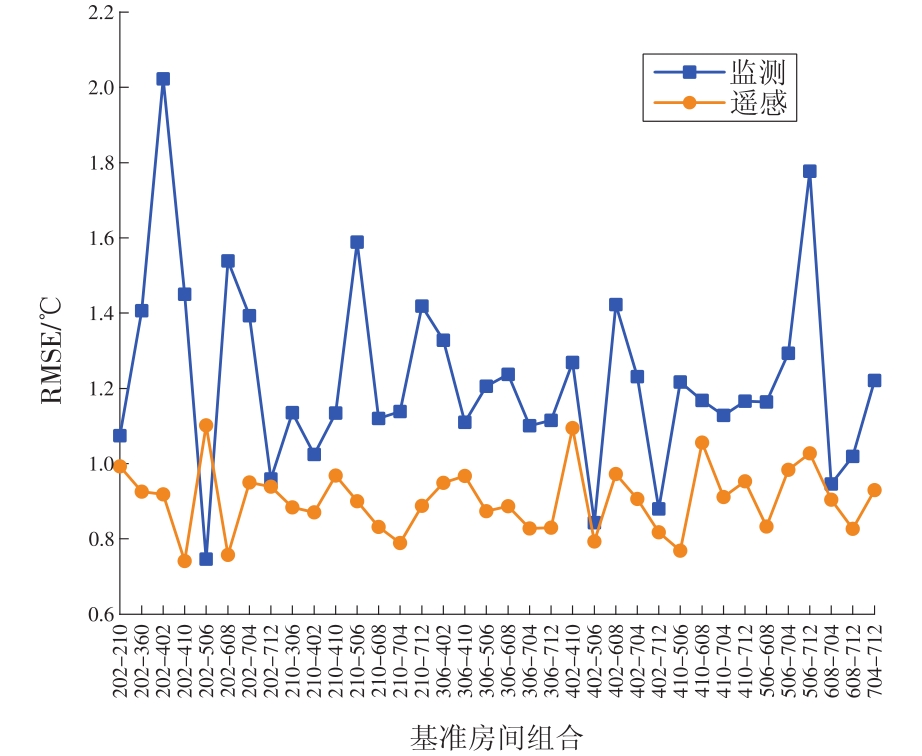

图9

图10

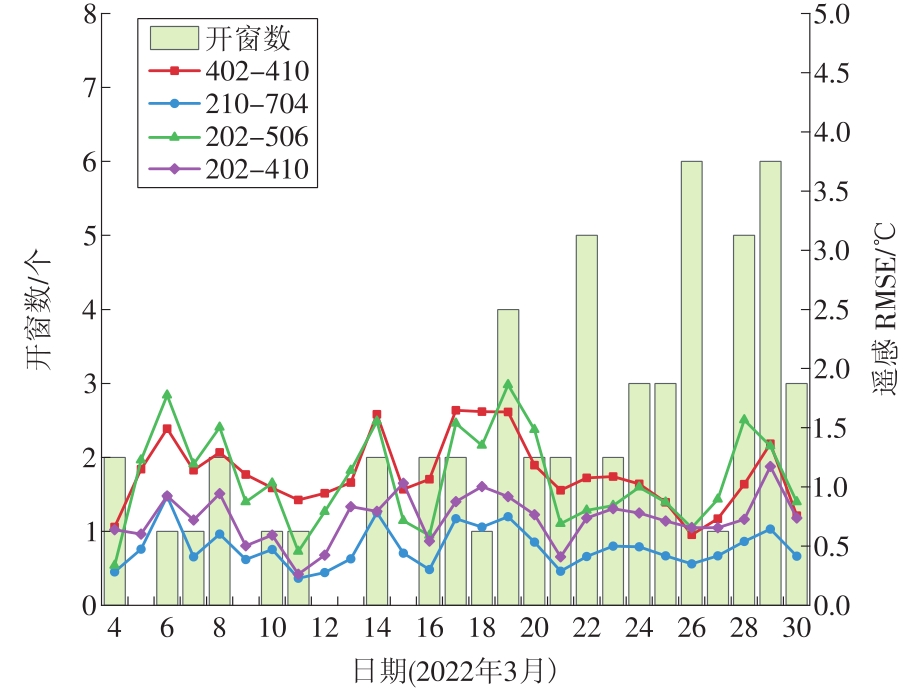

图11

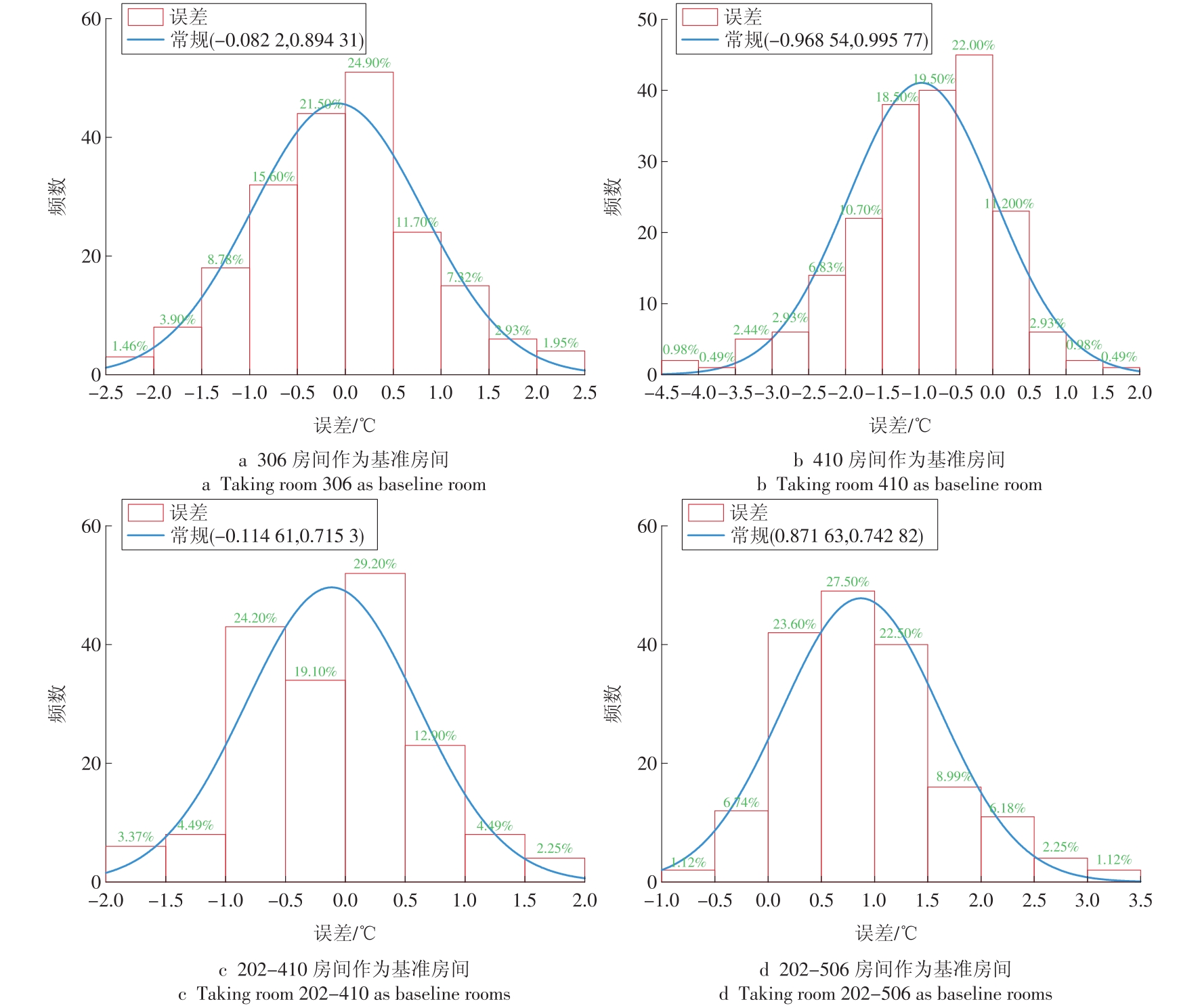

图12

图13

参考文献 22

[1]	中国建筑节能协会建筑能耗与碳排放数据专委会. 2022 中国建筑能耗与碳排放研究报告[R]. 重庆, 2022.
[2]	清华大学建筑节能研究中心. 中国建筑节能年度发展报告[M]. 北京: 中国建筑工业出版社, 2021.
	Tsinghua University Architectural Energy Research Center. 2021 annual report on China's building energy efficiency[M]. Beijing: China Architecture & Building Press, 2021.
[3]	钟崴, 陆烁玮, 刘荣. 智慧供热的理念、技术与价值[J]. 区域供热, 2018(2):1-5.
	ZHONG Wei, LU Shuowei, LIU Rong. Concept, technology and value of smart heating[J]. District Heating, 2018(2):1-5.
[4]	刘志新, 姬忠良, 王松, 等. 室温采集设备在智慧供热中的应用[J]. 中国科技信息, 2019(24):37-38,13.
	LIU Zhixin, JI Zhongliang, WANG Song, et al. Application of room temperature acquisition equipment in smart heating[J]. China Science and Technology Information, 2019(24):37-38,13.
[5]	曹屹立, 张洪源, 梁艳. 基于无线射频和GPRS网络的室温分级监测系统[J]. 电子测试, 2016(17):110-111.
	CAO Yili, ZHANG Hongyuan, LIANG Yan. Room temperature classification monitoring system based on wireless RF and GPRS network[J]. Electronic Test, 2016 (17):110-111.
[6]	丁雪峰. 基于物联网的供热系统用户侧监测系统研究[D]. 青岛: 青岛理工大学, 2021.
	DING Xuefeng. Research on user-side monitoring system of heating system based on Internet of Things[D]. Qingdao: Qingdao Technological University, 2021.
[7]	刘海燕, 程伟佳, 牛小化, 等. 基于物联网技术的北方民用建筑供暖数据获取方法[J]. 区域供热, 2022 (2):108-116.
	LIU Haiyan, CHENG Weijia, NIU Xiaohua, et al. Data acquisition method of heating system in northern civil buildings based on Internet of Things technology[J]. District Heating, 2022(2):108-116.
[8]	赵红燕. 集中供热用户室温远程采集系统研究与开发[D]. 青岛: 中国石油大学(华东), 2014.
	ZHAO Hongyan. Central heating user remote collection system research and development at the room temperature[D]. Qingdao: China University of Petroleum (East China), 2014.
[9]	段豪. 供热无线室温监测系统的搭建策略[J]. 现代工业经济和信息化, 2022, 12(5):240-241,275.
	DUAN Hao. Strategy for building a wireless room temperature monitoring system for heating[J]. Modern Industrial Economy and Informationization, 2022, 12(5):240-241,275.
[10]	王野, 于涛. 无线室温采集系统在热网均衡控制中的应用[J]. 控制工程, 2017, 24(11):2380-2386.
	WANG Ye, YU Tao. Application of the wireless room temperature acquisition system in heating network equilibrium control[J]. Control Engineering of China, 2017, 24(11):2380-2386.
[11]	张琪曼. 地表温度热红外遥感反演理论及实践研究[J]. 科技视界, 2022(3):18-20.
	ZHANG Qiman. Research on theory and practice of thermal infrared remote sensing inversion of surface temperature[J]. Science & Technology Vision, 2022(3):18-20.
[12]	潘冬, 蒋朝辉, 桂卫华. 基于方向发射率校正的红外测温补偿方法[J]. 仪器仪表学报, 2022, 43(6): 213-220.
	PAN Dong, JIANG Chaohui, GUI Weihua. An infrared temperature compensation method based on directional emissivity correction[J]. Chinese Journal of Scientific Instrument, 2022, 43(6): 213-220.
[13]	金蓉, 赵立华, 郑林涛, 等. 无人机低空热红外遥感观测高度对地表温度反演的影响[J]. 建筑科学, 2022, 38(2): 89-98.
	JIN Rong, ZHAO Lihua, ZHENG Lintao, et al. Influence of observation height of UAVs low altitude thermal infrared remote sensing on land surface temperature retrieval[J]. Building Science, 2022, 38(2): 89-98.
[14]	董凌彰, 李文鑫, 郭放, 等. 无人机遥感测量围护结构传热性能及室内温度的应用研究[J]. 区域供热, 2020 (6):37-45,71.
	DONG Lingzhang, LI Wenxin, GUO Fang, et al. Application of UAVs remote sensing measurement in heat transfer performance of enclosure structure and indoor temperature[J]. District Heating, 2020(6):37-45,71.
[15]	FICAPAL A, MUTIS I. Framework for the detection, diagnosis, and evaluation of thermal bridges using infrared thermography and unmanned aerial vehicles[J]. Buildings, 2019, 9(8): 179. doi: 10.3390/buildings9080179
[16]	ZHENG H, ZHONG X, YAN J, et al. A thermal performance detection method for building envelope based on 3D model generated by UAV thermal imagery[J]. Energies, 2020, 13(24): 6677. doi: 10.3390/en13246677
[17]	陈琳. 基于红外热成像的北方居住建筑外墙热阻辨识方法[D]. 哈尔滨: 哈尔滨工业大学, 2020.
	CHEN Lin. Identification method for thermal resistance of northern residential building exterior walls assisted with infrared thermography[D]. Harbin: Harbin Institute of Technology, 2020.
[18]	杨立. 红外热像仪测温计算与误差分析[J]. 红外技术, 1999(4): 20-24.
	YANG Li. Calculation and error analysis of infrared thermal imager temperature measurement[J]. Infrared Technology, 1999(4):20-24.
[19]	WEI S, QIN W, HAN L, et al. The research on compensation algorithm of infrared temperature measurement based on intelligent sensors[J]. Cluster Computing, 2019, 22: 6091-6100. doi: 10.1007/s10586-018-1828-5
[20]	杨卓. 智慧供热系统评价体系研究[D]. 哈尔滨: 哈尔滨工业大学, 2021.
	YANG Zhuo. Research on the evaluation system of intelligent heating system[D]. Harbin: Harbin Institute of Technology, 2021.
[21]	张旭, 张浩浩, 顾吉浩. 室温空间特性差异性分析及抽样推断方法研究[J]. 综合智慧能源, 2022, 44(9): 51-58. doi: 10.3969/j.issn.2097-0706.2022.09.007
	ZHANG Xu, ZHANG Haohao, GU Jihao. Study on difference analysis and sampling inference methods of room temperature spatial characteristics[J]. Integrated Intelligent Energy, 2022, 44(9): 51-58. doi: 10.3969/j.issn.2097-0706.2022.09.007
[22]	郑刚, 李金刚, 刘依婷. 基于建筑综合物性系数的换热站运行调节策略分析[J]. 华电技术, 2021, 43(12): 72-78.
	ZHENG Gang, LI Jingang, LIU Yiting. Analysis on operation regulation strategy for heat exchange stations based on building comprehensive physical property coefficients[J]. Huadian Technology, 2021, 43(12): 72-78.
