直流微网蓄电池-SMES混合储能系统容量配置方法

doi:10.3969/j.issn.2097-0706.2023.09.008

摘要/Abstract

摘要：

配置混合储能系统（HESS）可以有效减轻光伏发电输出功率波动性对直流微网的安全可靠运行带来的不利影响。为了更好地利用超导磁储能（SMES）响应速度快、功率密度高、效率高、可以无损储存电能等优点，基于与蓄电池组合而成的HESS的互补特性提出了以提高HESS经济性为目标的能量管理策略。对蓄电池-SMES HESS建立系统全生命周期成本（LCC）模型及其约束条件。对HESS进行容量优化配置可以有效降低系统成本，在满足系统功率要求的前提下，将最小LCC作为目标函数，通过引入加速因子的粒子群算法对系统容量进行配置，并结合算例建立微网模型，验证所提容量配置策略的有效性。

关键词: 光伏发电, 直流微网, 混合储能系统, 超导磁储能, 容量配置, 蓄电池

Abstract:

The configuration of a hybrid energy storage system（HESS） can effectively mitigate the adverse effects of PV power output volatility on the safe and reliable operation of a DC microgrid. In order to make better use of the advantages of superconducting magnetic storage（SMES），such as fast response，high power density，high efficiency and the ability to store electricity without energy loss，an energy management strategy is proposed based on the complementarity of a HESS in a battery pack，to improve the economy of HESSs. Then， life cycle cost（LCC）model and its constraints are proposed. The capacity optimization configuration of the HESS can effectively reduce its system cost. Under the premise of satisfying the power requirements on the system，with the LCC as the objective function， the configuration of the HESS is obtained by particle swarm optimization with acceleration coefficients. The effectiveness of the proposed capacity allocation strategy is verified by a case in a microgrid.

Key words: photovoltaic power generation, DC microgrid, hybrid energy storage system, superconducting magnetic energy storage, capacity configuration, battery

中图分类号:

TK01

乔力晖, 李明澈, 张睿, 方宗杰. 直流微网蓄电池-SMES混合储能系统容量配置方法[J]. 综合智慧能源, 2023, 45(9): 59-64.

QIAO Lihui, LI Mingche, ZHANG Rui, FANG Zongjie. Capacity configuration method for a battery-SMES hybrid energy storage system in a DC microgrid[J]. Integrated Intelligent Energy, 2023, 45(9): 59-64.

图/表 9

图1

图2

表1

图3

表2

图4

表3

图5

表4

参考文献 22

[1]	李祥山, 杨晓东, 张有兵, 等. 含母线电压补偿和负荷功率动态分配的直流微电网协调控制[J]. 电力自动化设备, 2020, 40(1): 198-204.
	LI Xiangshan, YANG Xiaodong, ZHANG Youbing, et al. Coordinated control of DC microgrid considering bus voltage compensation and load power dynamic sharing[J]. Electric Power Automation Equipment, 2020, 40(1): 198-204.
[2]	李春曦, 王佳, 叶学民, 等. 我国新能源发展现状及前景[J]. 电力科学与工程, 2012, 28(4): 1-8.
	LI Chunxi, WANG Jia, YE Xuemin, et al. Development and prospects of new energy in China[J]. Electric Power Science and Engineering, 2012, 28(4): 1-8.
[3]	韩芳. 我国可再生能源发展现状和前景展望[J]. 可再生能源, 2010, 28(4): 137-140.
	HAN Fang. Development status and prospect of renewable energy in China[J]. Renewable Energy Resources, 2010, 28(4): 137-140.
[4]	于国星, 侯睿, 汪任潇, 等. 孤岛微网分层分布式频率调节及功率优化控制[J]. 电力系统自动化, 2020, 44(7): 53-60.
	YU Guoxing, HOU Rui, WANG Renxiao, et al. Hierarchical distributed frequency regulation and power optimization control for islanded microgrid[J]. Automation of Electric Power Systems, 2020, 44(7): 53-60.
[5]	孙广宇, 李永丽, 靳伟, 等. 基于三相多功能逆变器的微电网电能质量综合治理策略[J]. 电网技术, 2019, 43(4):1211-1219.
	SUN Guangyu, LI Yongli, JIN Wei, et al. A comprehensive power quality control strategy for microgrid based on three-phase multi-function inverters[J]. Power System Technology, 2019, 43(4):1211-1219.
[6]	邹见效, 戴碧蓉, 彭超, 等. 基于荷电状态分级优化的混合储能风电功率平抑方法[J]. 电力系统自动化, 2013, 37(24): 1-6.
	ZOU Jianxiao, DAI Birong, PENG Chao, et al. Wind power smoothing method using hybrid energy storage system based on SOC hierarchical optimization[J]. Automation of Electric Power Systems, 2013, 37(24): 1-6.
[7]	李凯, 秦文萍, 张海涛, 等. 含混合储能的微电网能量管理系统控制策略[J]. 电力系统及其自动化学报, 2016, 28(10): 85-91.
	LI Kai, QIN Wenping, ZHANG Haitao, et al. Control strategy for microgrid energy management system including hybrid energy storage[J]. Proceedings of the CSU-EPSA, 2016, 28(10): 85-91.
[8]	周林, 黄勇, 郭珂, 等. 微电网储能技术研究综述[J]. 电力系统保护与控制, 2011, 39(7): 147-152.
	ZHOU Lin, HUANG Yong, GUO Ke, et al. A survey of energy storage technology for micro grid[J]. Power System Protection and Control, 2011, 39(7): 147-152.
[9]	WANG S, TANG Y J, SHI J, et al. Design and advanced control strategies of a hybrid energy storage system for the grid integration of wind power generations[J]. IET Renewable Power Generation, 2015, 9(2): 89-98. doi: 10.1049/rpg2.v9.2
[10]	KALIYAPPAN K, SUTHA S, KATHIRVEL R. Smes based DFIG generator reactive power improvement using SVPWM[J]. International Journal of Electrical and Electronic Engineering & Telecommunications, 2014, 3(4): 51-66.
[11]	NIE Z, XIAO X, KANG Q, et al. SMES-battery energy storage system for conditioning outputs from direct drive linear wave energy converters[J]. IEEE Transactions on Applied Superconductivity, 2013, 23(3):5000705. doi: 10.1109/TASC.2013.2246852
[12]	LIN X, LEI Y. Coordinated control strategies for SMES-battery hybrid energy storage systems[J]. IEEE Access, 2017, 5: 23452-23465. doi: 10.1109/ACCESS.2017.2761889
[13]	杨芳华, 刘娇, 陈浩, 等. 超导-蓄电池混合储能装置接于配电网对电压稳定性的影响[J]. 电力学报, 2014, 29(3): 211-214.
	YANG Fanghua, LIU Jiao, CHEN Hao, et al. Influence of superconducting magnetic-battery energy storage hybrid energy storage connected to distribution on voltage stability[J]. Journal of Electric Power, 2014, 29(3): 211-214.
[14]	谭兴国, 王辉, 张黎, 等. 微电网复合储能多目标优化配置方法及评价指标[J]. 电力系统自动化, 2014, 38(8): 7-14.
	TAN Xingguo, WANG Hui, ZHANG Li, et al. Multi-objective optimization of hybrid energy storage and assessment indices in microgrid[J]. Automation of Electric Power Systems, 2014, 38(8): 7-14.
[15]	李成, 杨秀, 张美霞, 等. 基于成本分析的超级电容器和蓄电池混合储能优化配置方案[J]. 电力系统自动化, 2013, 37(18): 20-24.
	LI Cheng, YANG Xiu, ZHANG Meixia, et al. Optimal configuration scheme for hybrid energy storage system of super-capacitors and batteries based on cost analysis[J]. Automation of Electric Power Systems, 2013, 37(18): 20-24.
[16]	田培根, 肖曦, 丁若星, 等. 自治型微电网群多元复合储能系统容量配置方法[J]. 电力系统自动化, 2013, 37(1): 168-173.
	TIAN Peigen, XIAO Xi, DING Ruoxing, et al. A capacity configuring method of composite energy storage system in autonomous multi-microgrid[J]. Automation of Electric Power Systems, 2013, 37(1): 168-173.
[17]	LI G L, YUAN B F, GE M, et al. Capacity configuration optimization of a hybrid renewable energy system with hydrogen storage[J]. International Journal of Green Energy, 2022, 19(14): 1583-1599. doi: 10.1080/15435075.2021.2018323
[18]	李霞林, 郭力, 王成山, 等. 直流微电网关键技术研究综述[J]. 中国电机工程学报, 2016, 36(1): 2-17.
	LI Xialin, GUO Li, WANG Chengshan, et al. Key technologies of DC microgrids:An overview[J]. Proceedings of the CSEE, 2016, 36(1): 2-17.
[19]	杨国华, 朱向芬, 马玉娟, 等. 基于改进粒子群算法的混合储能系统容量优化[J]. 电测与仪表, 2015, 52(23): 1-5,10.
	YANG Guohua, ZHU Xiangfen, MA Yujuan, et al. Capacity optimization of hybrid energy storage based on improved PSO algorithm[J]. Electrical Measurement & Instrumentation, 2015, 52(23): 1-5,10.
[20]	王东风, 孟丽. 粒子群优化算法的性能分析和参数选择[J]. 自动化学报, 2016, 42(10): 1552-1561.
	WANG Dongfeng, MENG Li. Performance analysis and parameter selection of PSO algorithms[J]. Acta Automatica Sinica, 2016, 42(10): 1552-1561.
[21]	温港成, 石鑫, 张怡, 等. 考虑设备变工况特性的园区综合能源系统两阶段规划优化方法研究[J]. 综合智慧能源, 2022, 44(10): 1-11. doi: 10.3969/j.issn.2097-0706.2022.10.001
	WEN Gangcheng, SHI Xin, ZHANG Yi, et al. Research on two-stage planning optimization approach for community integrated energy systems considering off-design conditions[J]. Integrated Intelligent Energy, 2022, 44(10): 1-11. doi: 10.3969/j.issn.2097-0706.2022.10.001
[22]	王义, 杨志伟, 吴坡, 等. 计及高比例分布式光伏能源接入的配电网状态估计[J]. 综合智慧能源, 2022, 44(10): 12-18. doi: 10.3969/j.issn.2097-0706.2022.10.002
	WANG Yi, YANG Zhiwei, WU Po, et al. State estimation for the distribution network with high-proportion distributed photovoltaic energy[J]. Integrated Intelligent Energy, 2022, 44(10): 12-18. doi: 10.3969/j.issn.2097-0706.2022.10.002

项目	蓄电池	SMES
额定电压/V	200	1 200
额定容量/(A⋅h)	50.0	2.5
充电效率	0.80	0.99
放电效率	0.80	0.99
放电深度	0.8	—
运行系数	0.10	0.01
维护系数	0.02	—
循环次数	1 500	—
处理系数	0.08	0.02

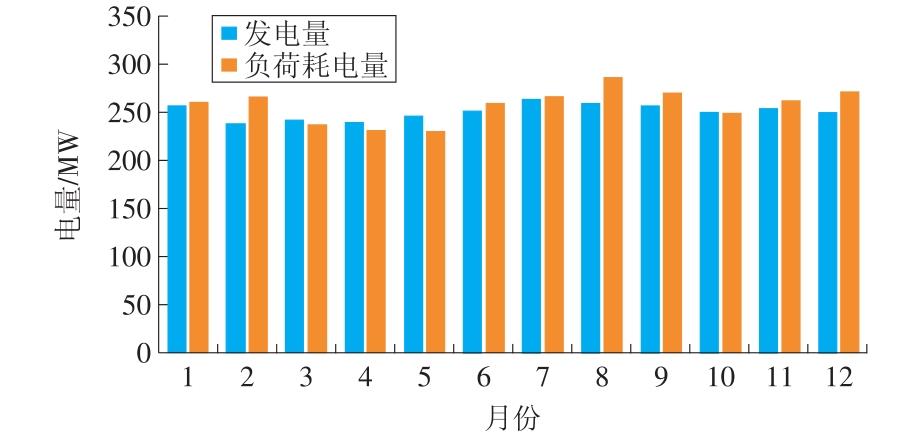

优化参数	配置结果
蓄电池/个	388 640
SMES/个	41 360
f_LPSP	0.036 1
最小成本/元	1 647 200

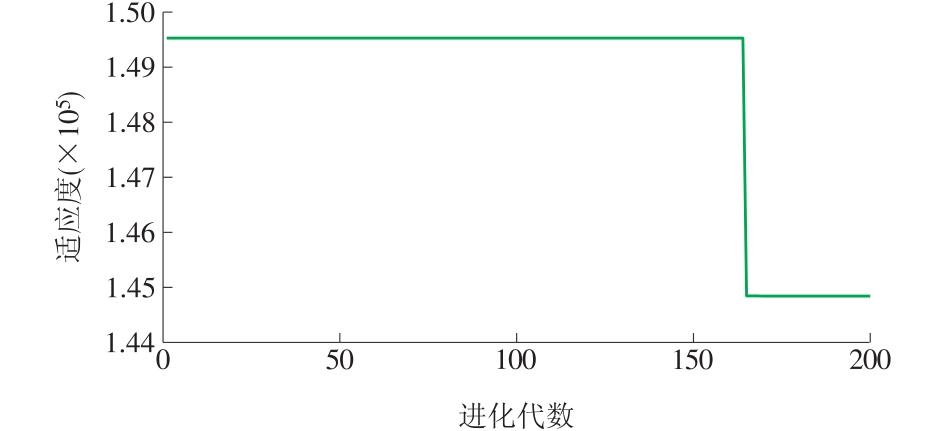

优化参数	配置结果
蓄电池/个	348 470
SMES/个	19 910
f_LPSP	0.036 0
最小成本/元	1 470 700

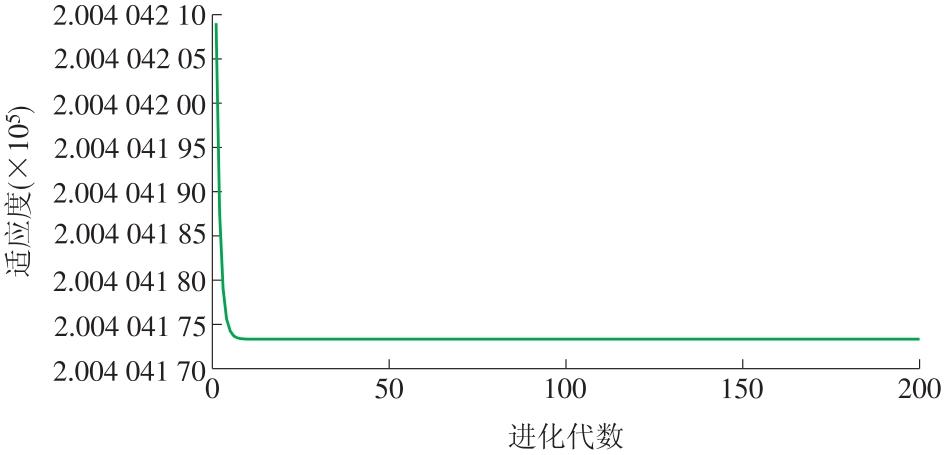

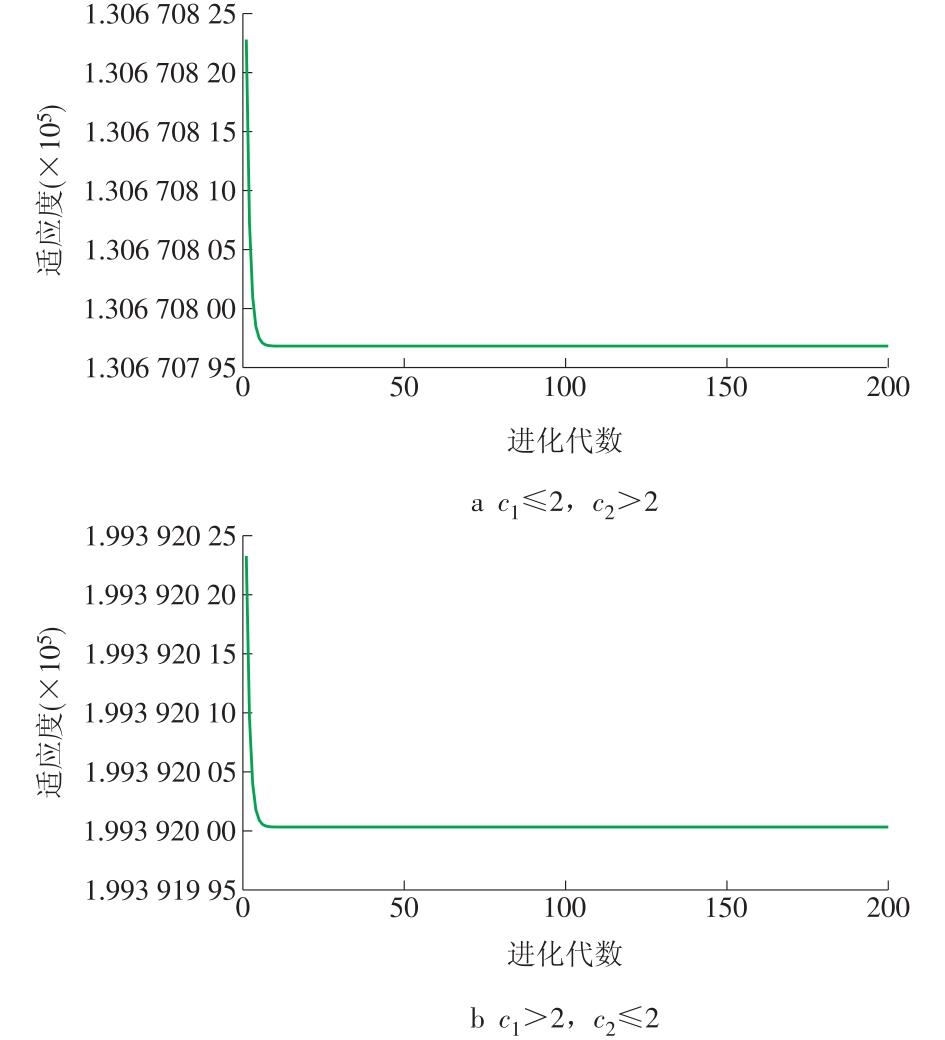

优化参数	c₁≤2，c₂>2	c₁>2，c₂≤2
蓄电池/个	336 580	347 590
SMES/个	17 910	16 010
f_LPSP	0.036 1	0.036 0
最小成本/元	1 420 100	1 465 700
