基于改进粒子群算法的光伏系统附加向心属性最大功率跟踪研究

doi:10.3969/j.issn.2097-0706.2022.03.011

摘要/Abstract

摘要：

对鸟类的群集行为进行研究,观察到在初始阶段鸟类的飞行是随机的,但随着观察时间的增长,外围要素表现出向群的核心移动的趋势。将这种特征特性与传统粒子群算法相结合,开发出一种改进型粒子群算法,增强了算法的全局开发和局部探索能力。通过不同光照条件下的光伏阵列对仿真算法进行对比验证,给出了最大功率点计算值和实测值的跟踪曲线。结果证明所提出的算法在部分遮蔽及变化光照下均能快速、稳定地在线寻得全局最大功率点,较好地解决了传统最大功率跟踪技术容易陷入局部最大功率的问题。

关键词: 光伏发电, 改进型粒子群算法, 最大功率点跟踪, 计算机仿真

Abstract:

In the study on the flocking behavior of birds,it is observed that birds fly randomly at the initial stage,but the peripheral ones show the tendency to move to the core of the flock as time goes.Combining this attribute with the traditional particle swarm algorithm,the improved PSO algorithm is of better global exploitation and local exploration capacities.The performances of different algorithms are measured and compared based on the PV array modeling under various illumination conditions.The results demonstrate that the proposed algorithm can find the global maximum power point quickly and stably under partial shading and changing illumination conditions, and solve the problem that traditional maximum power point tracking （MPPT）are prone to falling into local optima.

Key words: photovoltaic power generation, improved PSO algorithm, MPPT, computer simulation

中图分类号:

TK51

李旭炯, 孙林花, 杨郭明. 基于改进粒子群算法的光伏系统附加向心属性最大功率跟踪研究[J]. 综合智慧能源, 2022, 44(3): 70-76.

LI Xujiong, SUN Linhua, YANG Guoming. MPPT for PV systems appended with centripetal attribute based on improved PSO algorithm[J]. Integrated Intelligent Energy, 2022, 44(3): 70-76.

图/表 14

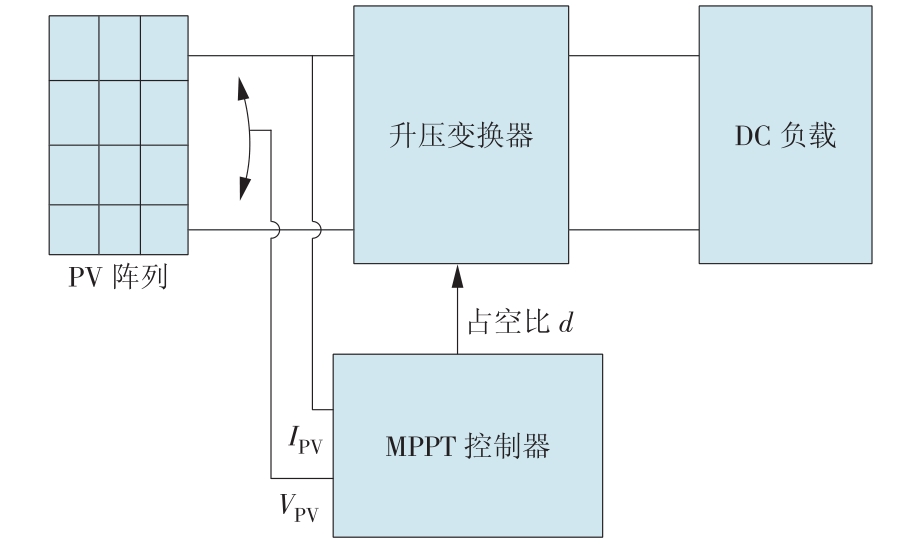

图1

图2

图3

图4

图5

图6

表1

表2

表3

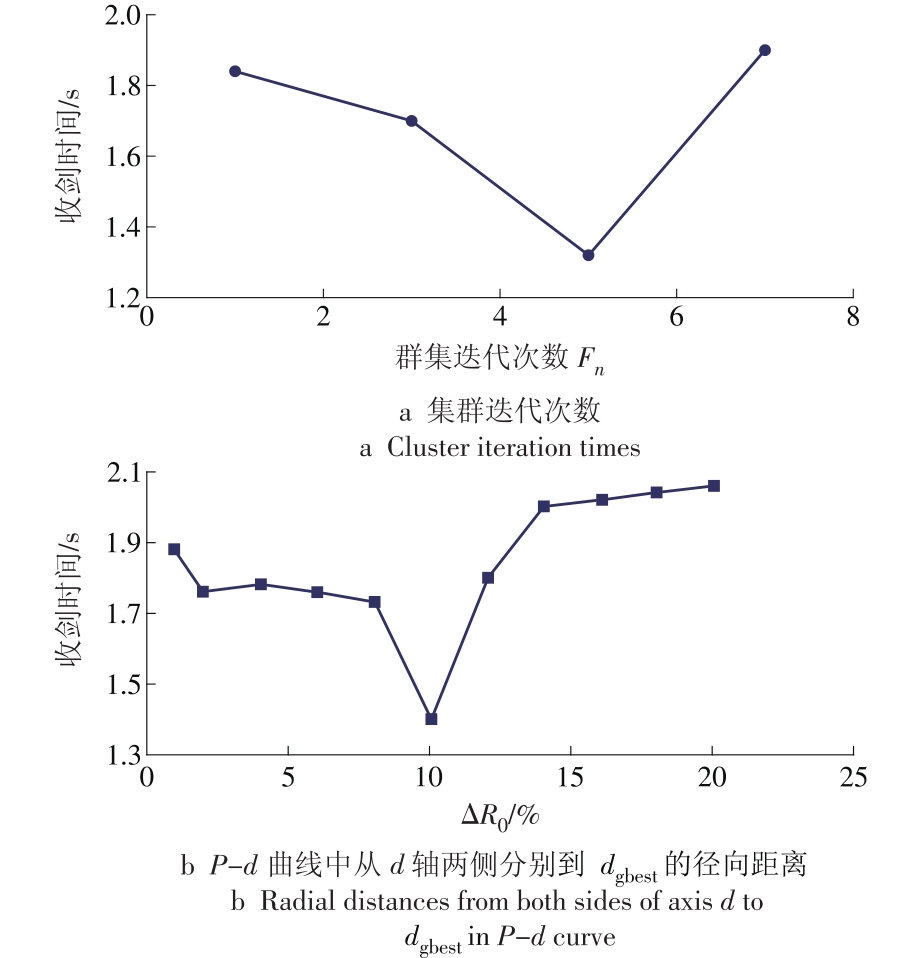

PSO算法参数

参数	ω	c₁	c₂	$Δ$ R₀	F_n
数值	0.4	2	3	10%	5

表3

图7

表4

图8

图9

表5

参考文献 26

[1]	张栋华. 微电网优化配置与运行研究[D]. 上海:东华大学, 2013.
[2]	王云平, 李颖, 阮新波. 基于局部阴影下光伏阵列电流特性的最大功率点跟踪算法[J]. 电工技术学报, 2016, 31(14):201-210,218.
	WANG Yunping, LI Ying, RUAN Xinbo. Maximum power point tracking algorithm for photovoltaic array under partial shading based on current property[J]. Transactions of China Electrotechnical Society, 2016, 31(14):201-210,218.
[3]	朱湘临, 廖志凌, 刘国海. 太阳能电池MPPT方法的初值问题及其试验研究[J]. 电力电子技术, 2010, 44(2):7-9.
	ZHU Xianglin, LIAO Zhiling, LIU Guohai. Research on the initial values of MPPT algorithm for solar cell[J]. Power Electronics, 2010, 44(2):7-9.
[4]	王镇道, 李炳璋. 一种光伏系统的多峰值最大功率点跟踪策略[J]. 电力电子技术, 2014, 48(9):4-6,37.
	WANG Zhendao, LI Bingzhang. A novel global maximum power point tracking strategy for photovoltaic system[J]. Power Electronics, 2014, 48(9):4-6,37.
[5]	TEY K S, MEKHILEF S, SEYEDMAHMOUDIAN M, et al. Improved differential evolutionbased MPPT algorithm using SEPIC for PV systems under partial shaded conditions and load variation[J]. IEEE Transactions on Industrial Informatics, 2018, 14(10):4322-4334. doi: 10.1109/TII.9424
[6]	DARABAN S, PETREUS D, MOREL C. A novel MPPT (maximum power point tracking) algorithm based on a modified genetic algorithm specialized on tracking the global maximum power point in photovoltaic systems affected by partial shading[J]. Energy, 2014(74):374-388.
[7]	LIU Y H, HUANG S C, HUANG J W, et al. A particle swarm optimization-based maximum power point tracking algorithm for PV systems operating under partially shaded conditions[J]. IEEE Transactions on Energy Conversion, 2012, 27(4):1027-1035. doi: 10.1109/TEC.2012.2219533
[8]	李刚, 李超臣, 王雅文, 等. 局部阴影下光伏电池最大功率点跟踪方法[J/OL]. 电测与仪表, 2020.(2020-12-01)[2021-11-15]. https://kns.cnki.net/kcms/detail/23.1202.TH.20201130.1706.014.html.
	LI Gang, LI Chaochen, WANG Yawen, et al. Maximum power point tracking method for photovoltaic cells under partial shading conditions[J/OL]. Electrical Measurement & Instrumentation, 2020.(2020-12-01)[2021-11-15]. https://kns.cnki.net/kcms/detail/23.1202.TH.20201130.1706.014.html.
[9]	HOSSAIN M A, POTA H R, SQUARTINI S, et al. Modified PSO algorithm for realtime energy management in grid-connected microgrids[J]. Renewable Energy, 2019(136):746-757.
[10]	EFEDI M Z, MURDIANTO F D, SETIAWAN R E. Modeling and simulation of MPPT sepic converter using modified PSO to overcome partial shading impact on DC microgrid system[J]. International Electronics Symposium on Engineering Technology and Applications (IES-ETA), 2017: 27-32.
[11]	SUN Y, LOU Z, XI Z P, et al. Composite MPPT control algorithm with partial shading on PV arrays[J]. IEEE 4th Information Technology and Mechatronics Engineering Conference (ITOEC), 2018, 898-902.
[12]	李云凤, 雷勇, 杜佳耘, 等. 多态蚁群-细菌觅食算法实现部分遮蔽下光伏系统最大功率跟踪[J/OL]. 现代电力,2021.(2021-11-08)[2021-11-15]. https://doi.org/10.19725/j.cnki.1007-2322.2021.0082.
	LI Yunfeng, LEI Yong, DU Jiayun, et al. Maximum power tracking of photovoltaic system under partial shading based on PACO-BFOA[J/OL]. Modern Electric Power,2021.(2021-11-08)[2021-11-15]. https://doi.org/10.19725/j.cnki.1007-2322.2021.0082.
[13]	THOMPSON W A, VERTINSKY I. Bird flocking revisited: The case with polymorphic prey[J]. Journal of Animal Ecology, 1975, 44(3):755-765. doi: 10.2307/3717
[14]	KENNEDY J, EBERHART R. Particle swarm optimization[C]// Proceedings of ICNN'95-International Conference on Neural Networks. 1995: 1942-1948.
[15]	李昌华, 毕成功, 李智杰. 基于改进PSO算法的人群疏散模型[J]. 系统仿真学报, 2020, 32(6):1000-1008.
	LI Changhua, BI Chenggong, LI Zhijie. Crowd evacuation model based on improved PSO algorithm[J]. Journal of System Simulation, 2020, 32(6):1000-1008.
[16]	HAMILTON W D. Geometry for the selfish herd[J]. Journal of Theoretical Biology, 1971, 31(2):295-311. doi: 10.1016/0022-5193(71)90189-5
[17]	QI J, ZHANG Y B, CHEN Y. Modeling and maximum power point tracking (MPPT) method for PV array under partial shade conditions[J]. Renewable Energy, 2014(66):337-345.
[18]	ALAJMI B N, AHMED K H, FINNEY S J, et al. A maximum power point tracking technique for partially shaded photovoltaic systems in microgrids[J]. IEEE Transactions on Industrial Electronics, 2013, 60(4):1596-1606. doi: 10.1109/TIE.2011.2168796
[19]	ZHENG Y B, WANG W Y, CHEN W R, et al. Research on MPPT of photovoltaic system based on PSO under partial shading condition[C]// Proceedings of the 35th Chinese Control Conference. 2016: 8654-8659.
[20]	杨标, 张晓虎. 基于粒子群优化算法和占空比扰动观察法的光伏阵列MPPT控制[J]. 电工技术, 2021(5):32-36.
	YANG Biao, ZHANG Xiaohu. The maximum power point tracking control of photovoltaic array based on particle swarm optimization algorithm and duty cycle disturbance observation method[J]. Electric Engineering, 2021(5):32-36.
[21]	ERDEM Z. A review of MPPT algorithms for partial shading conditions[C]// Special Issue of the 3rd International Conference on Computational and Experimental Science and Engineering(ICCESEN 2016). 2017: 1128-1133.
[22]	ISHAQUE K, SALAM Z. A deterministic particle swarm optimization maximum power point tracker for photvoltaic system under partial shading condition[J]. IEEE Transactions on Industrial Electronics, 2012, 60(8):3195-3206.
[23]	倪中华. 人工蜂群算法在云计算系统中的应用[J]. 数学的实践与认识, 2020, 50(24):275-284.
	NI Zhonghua. Application of artificial bee colony algorithm in cloud computing system[J]. Journal of Mathematics in Practice and Theory, 2020, 50(24):275-284.
[24]	SIVAKUMAR P, KADER A A, KALIAVARADHAN Y, et al. Analysis and enhancement of PV efficiency with incremental conductance MPPT technique under non-linear loading conditions[J]. Renewable Energy, 2015, 81:543-550. doi: 10.1016/j.renene.2015.03.062
[25]	MIYATAKE M, VEERACHARY M, TORIUMI F, et al. Maximum power point tracking of multiple PV arrays:A PSO approach[J]. IEEE Transactions on Aerospace and Electronic Systems, 2011, 47(1):367-380. doi: 10.1109/TAES.2011.5705681
[26]	SUNDARESWARAN K, KUMAR V V, PALANI S. Application of a combined particle swarm optimization and perturb and observe method for MPPT in PV systems under partial shading conditions[J]. Renewable Energy, 2015, 75:308-317. doi: 10.1016/j.renene.2014.09.044

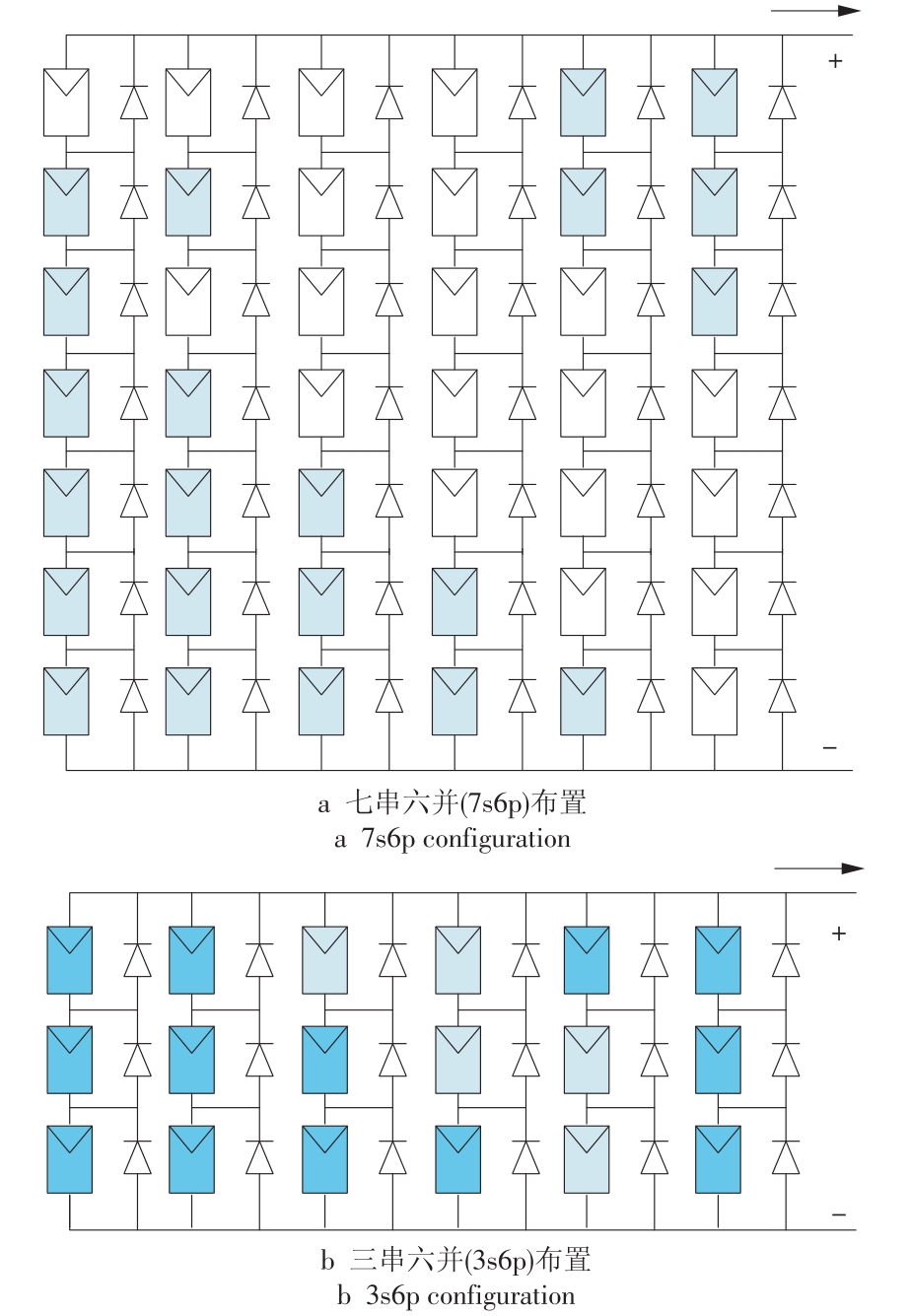

PV 布置	阴影模式与功率峰值/W	跟踪方法	功率/ W	收敛时间/s	跟踪效率/%	能量跟踪因子

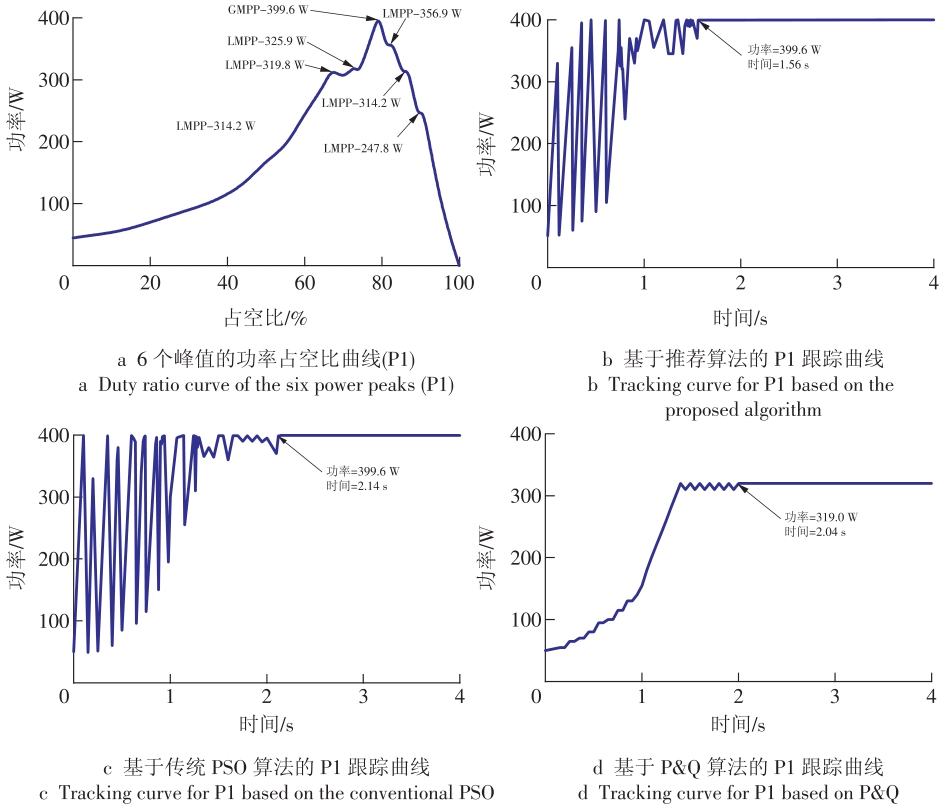

7s6p	P1	推荐方法	399.60	1.56	99.99	0.967 8
	399.6（GMPP）	PSO	399.60	2.14	99.98	0.914 6
	356.9（LMPP）	P&O	319.80	2.04	80.03	0.796 1

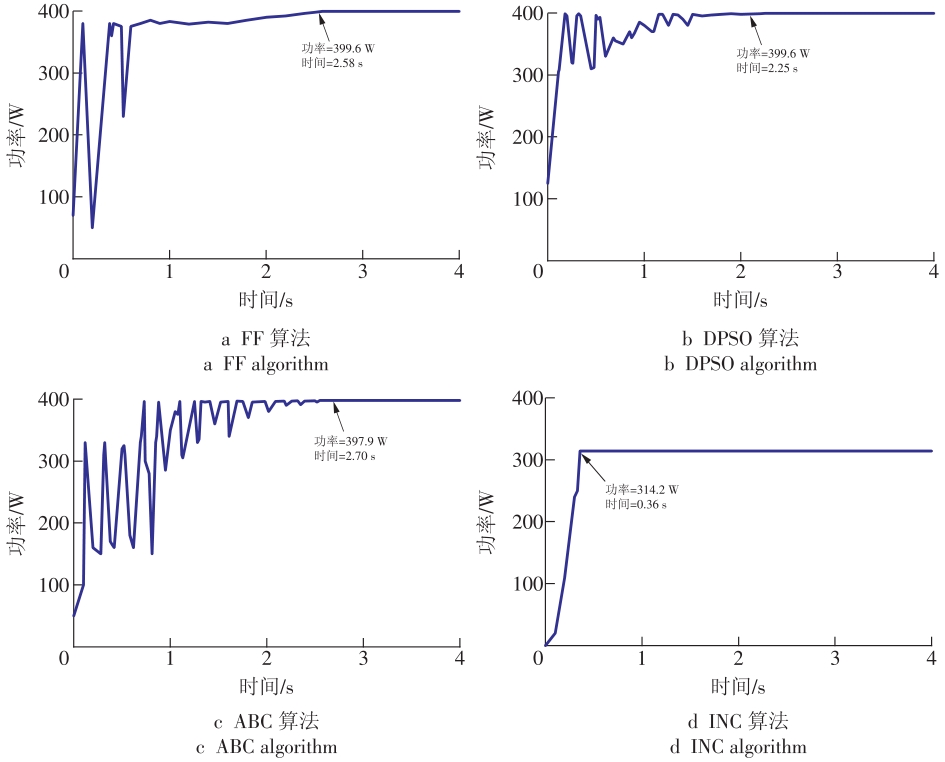

	325.9（LMPP）	FF	399.60	2.58	99.75	0.930 6
	319.8（LMPP）	DPSO	399.60	2.25	98.56	0.932 8
	314.2（LMPP）	ABC	397.90	2.70	99.58	0.919 1
	247.8（LMPP）	INC	314.20	0.36	78.62	0.765 6

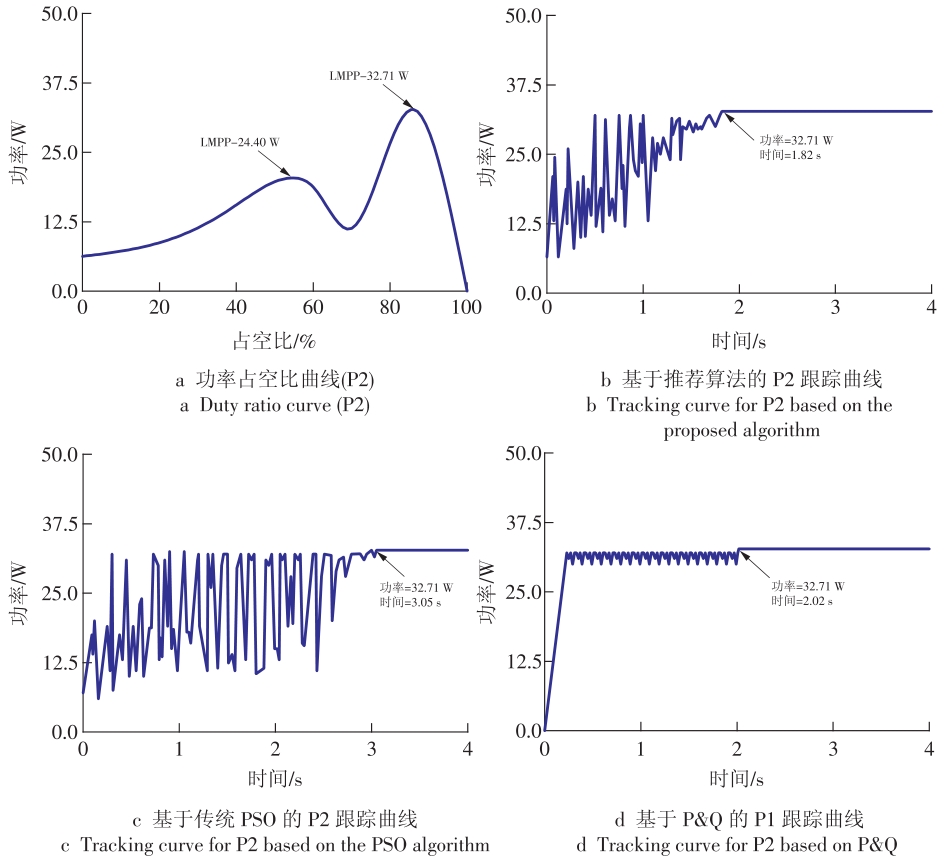

3s6p	P2	推荐方法	32.71	1.82	99.98	0.968 0
	32.7（GMPP）	PSO	32.71	3.05	99.98	0.908 6
	20.4（LMPP）	P&O	32.71	2.02	99.98	0.942 6

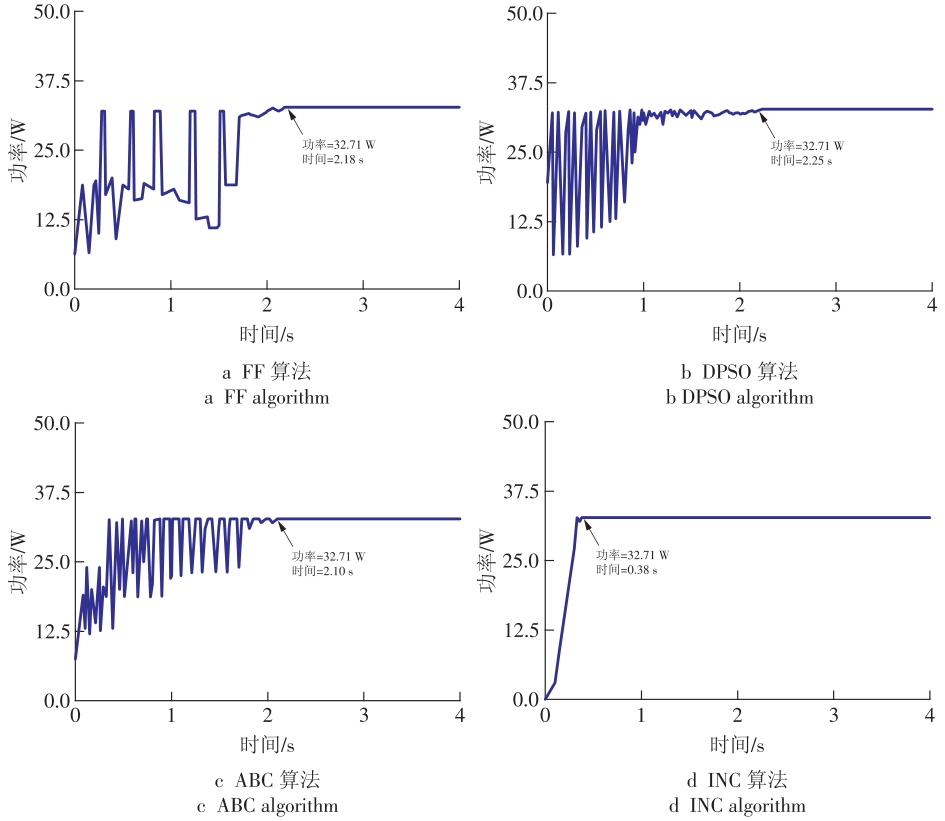

		FF	32.71	2.18	99.78	0.910 6
		DPSO	32.71	2.25	99.78	0.941 1
		ABC	32.71	2.10	99.56	0.913 9
		INC	32.71	0.38	99.78	0.957 2

项目	数值
最大功率（P_max）/W	20
开路电压（V_oc）/V	21.0
短路电流（I_sc）/A	1.28
最大功率电压（V_mp）/V	17.2
最大功率电流（I_mp）/A	1.20

试验装置	规格
微控制器	PIC16F876A
PV模块	Innova solar IN-15P
IGBT模块	VID-04
电容/mF	470.0
电感/mH	1.5
电感内阻/Ω	0.358
负载电阻/Ω	100.000

PV 布置	阴影模式与功率峰值/W	跟踪方法	功率/ W	收敛时间/s	跟踪效率/%	能量跟踪因子

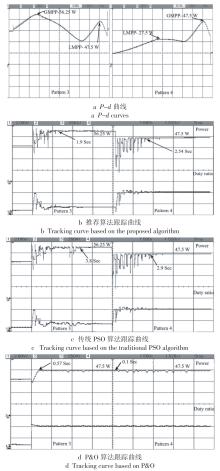

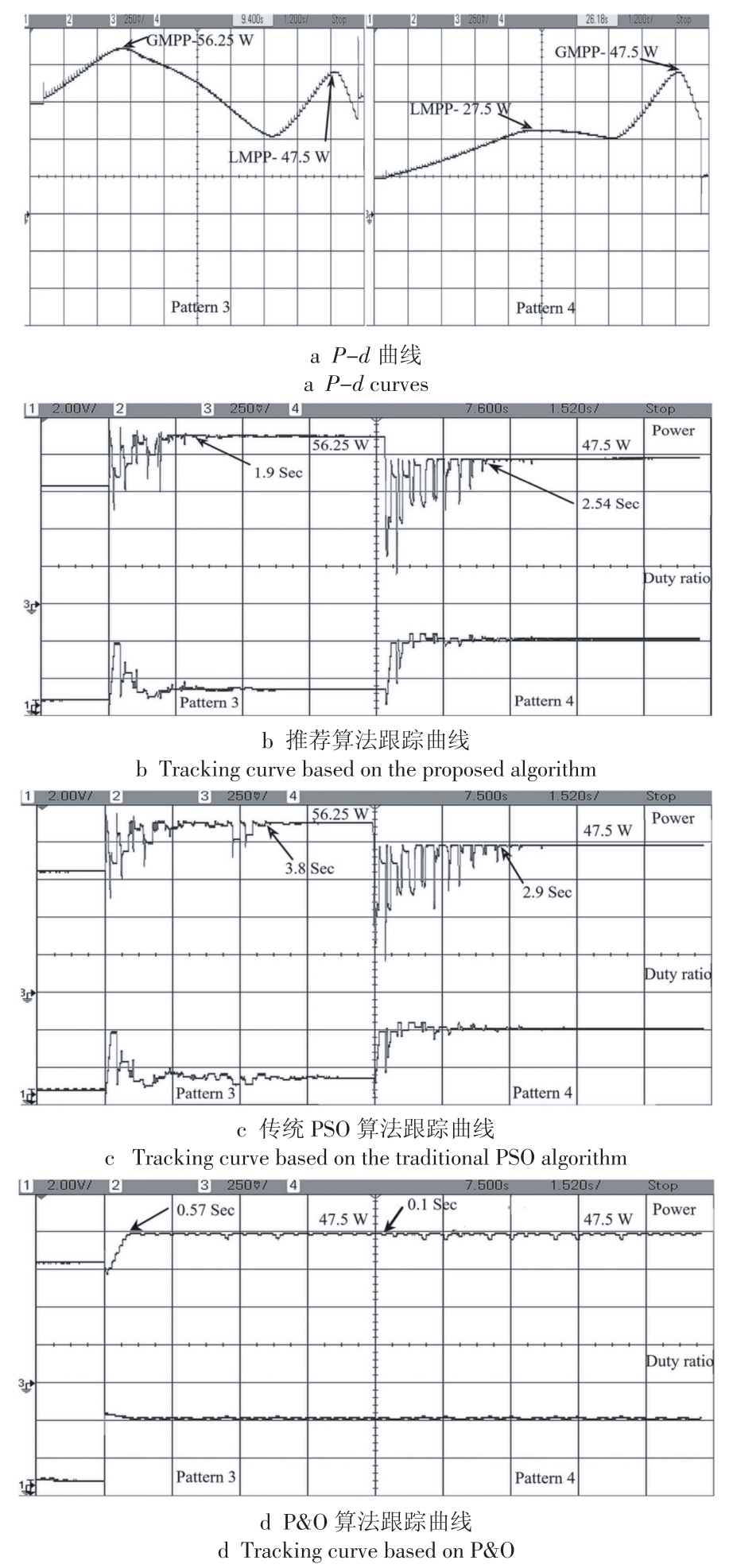

4s4p	P3	推荐方法	56.25	1.90	99.98	0.958 3
	56.25（GMPP）	PSO	56.25	3.80	99.98	0.902 8
	47.50（LMPP）	P&O	47.50	0.57	84.44	0.837 8
	P4	推荐方法	47.50	2.54	99.98	0.944 9
	47.50（GMPP）	PSO	47.50	2.90	98.56	0.924 6
	27.50（LMPP）	P&O	47.50	0.10	100.00	0.987 8

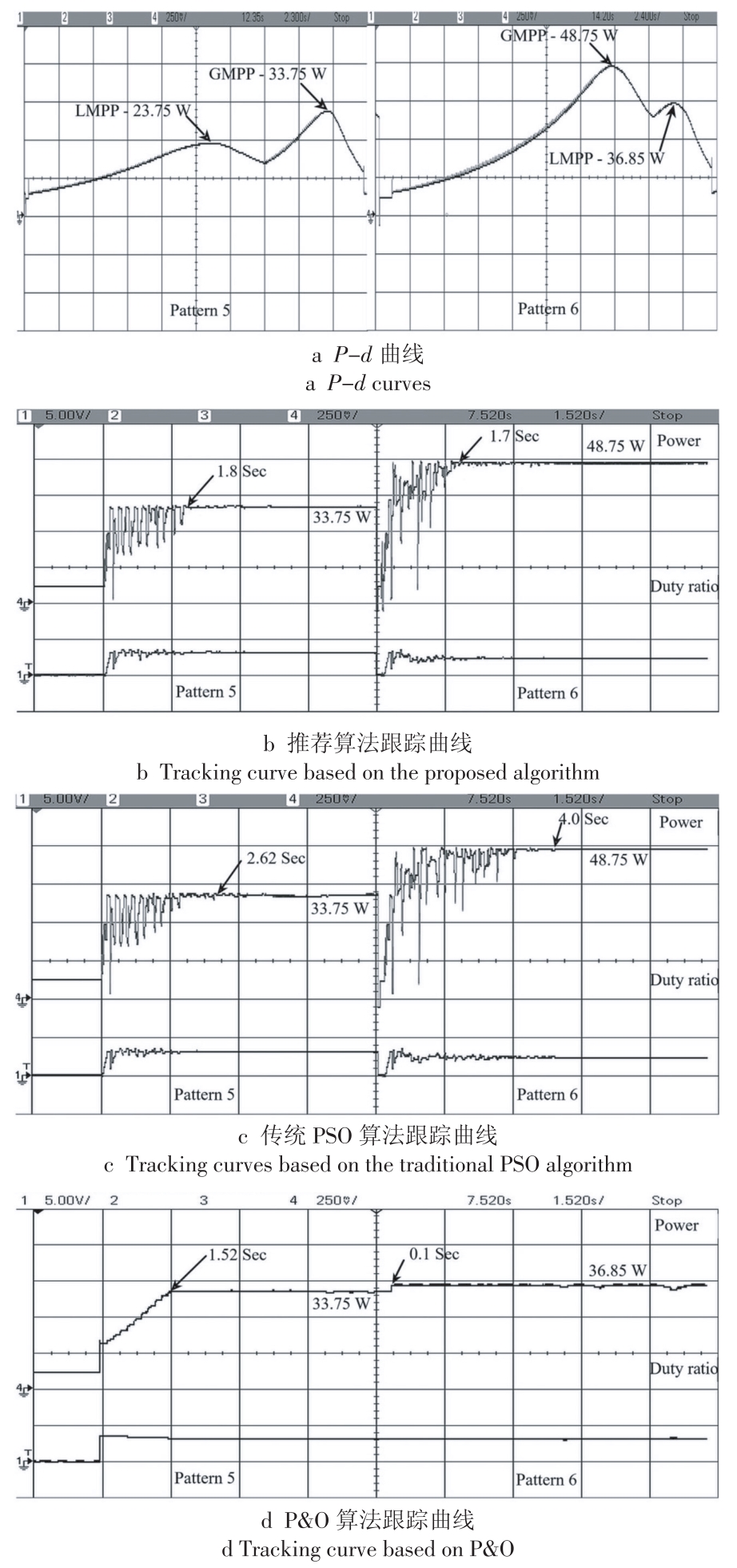

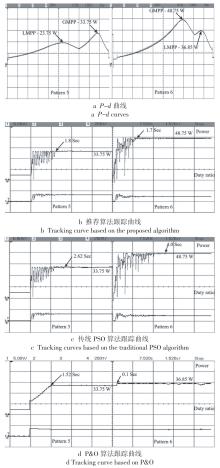

3s6p	P5	推荐方法	33.75	1.80	99.99	0.958 5
	33.75（GMPP）	PSO	33.75	2.62	99.98	0.908 2
	23.75（LMPP）	P&O	32.71	1.52	100.00	0.875 7
	P6	推荐方法	48.75	1.70	99.99	0.956 2
	48.75（GMPP）	PSO	48.75	4.00	99.99	0.897 3
	36.85（LMPP）	P&O	36.85	0.10	75.58	0.755 8
