计及风电、光伏预测不确定性的抽水蓄能日前全调度优化

doi:10.3969/j.issn.2097-0706.2022.11.003

摘要/Abstract

摘要：

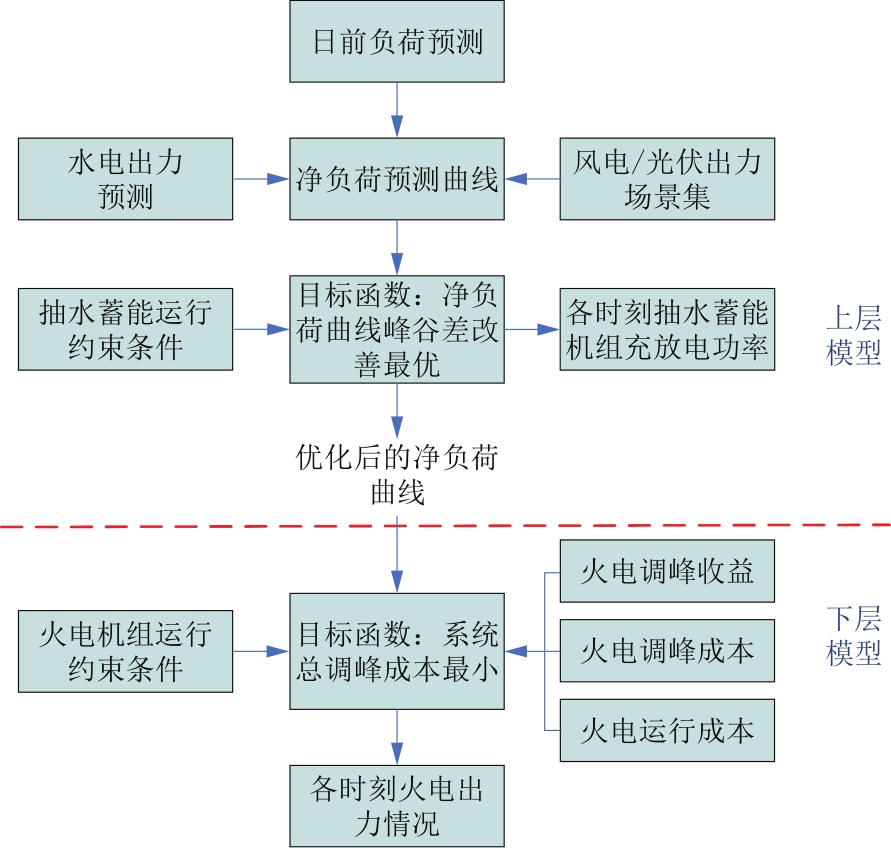

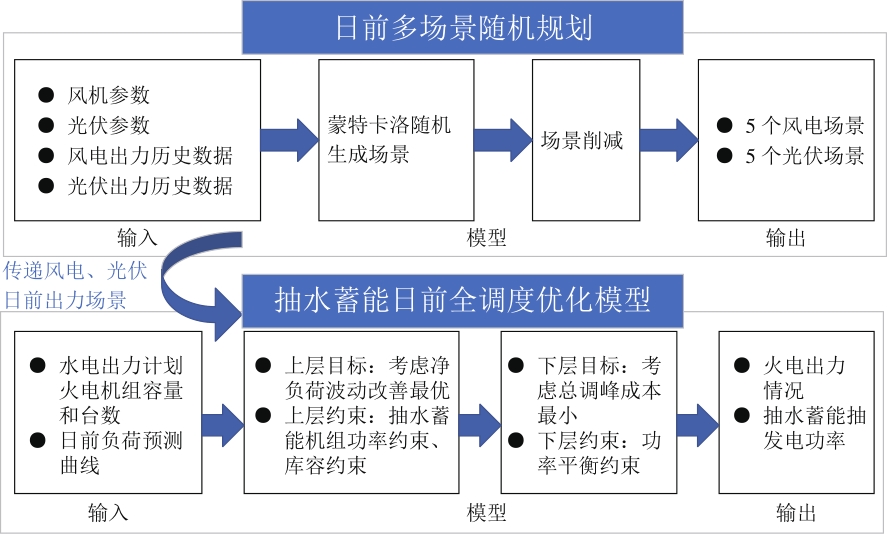

为降低风电、光伏等可再生能源出力预测不确定性对日前优化调度运行经济性的影响，提出一种计及风电-光伏预测不确定性的抽水蓄能日前全调度优化模型。首先，基于Weibull分布对风速进行预测，基于Beta分布对太阳辐照度进行预测，得到风电、光伏预测出力，采用多场景随机规划方法解决日前风电、光伏出力预测不确定性；其次，以日前风电、光伏出力预测场景集和负荷预测曲线为基础，结合水电、火电和抽水蓄能建立抽水蓄能日前全调度优化模型，以净负荷波动改善最优和总调峰成本最小为目标，求解得到抽水蓄能的抽发功率和火电的出力情况。以国内某省实际数据为算例，验证了该模型可充分平抑新能源出力波动，减小火电调峰压力，改善系统运行经济性。

关键词: 风电, 光伏发电, 抽水蓄能, 出力预测, 负荷预测, Weibull分布, Beta分布, 多场景随机规划, 全调度优化

Abstract:

In order to reduce the impact of uncertain forecasting on renewable energy outputs on the economy of day-ahead optimization scheduling， an overall day-ahead scheduling optimization model for pumped storage power stations considering the uncertainty of wind and photovoltaic power prediction is proposed. Firstly， the wind speed and solar irradiance are predicted based on Weibull distribution and Beta distribution，respectively. The predicted outputs of wind and photovoltaic power are obtained. The multi-scenario stochastic programming is adopted to solve the uncertainty of day-ahead wind and photovoltaic output predictions. Secondly， based on the scenario set of the predicted day-ahead wind and photovoltaic outputs and the load prediction curve， the overall day-ahead dispatching optimization model for the pumped storage power station considering wind， PV and thermal power is established. Taking steady net load and the minimum total peak-shaving cost as objectives， the water pumping and power generation outputs of the storage power station and the output of the thermal power units are obtained. Verified by the data from a province in China，the model can fully smooth the fluctuation of new energy outputs， reduce the peak load regulation pressure of thermal power units， and improve the economy of the system.

Key words: wind power, PV power, pumped storage, output prediction, load prediction, Weibull distribution, Beta distribution, multi-scenario stochastic programming, overall scheduling optimization

中图分类号:

TK01⁺9:TK71

欧阳婷, 蔡晔, 王炜宇, 唐夏菲, 谭玉东. 计及风电、光伏预测不确定性的抽水蓄能日前全调度优化[J]. 综合智慧能源, 2022, 44(11): 20-27.

OUYANG Ting, CAI Ye, WANG Weiyu, TANG Xiafei, TAN Yudong. Overall day-ahead scheduling optimization for pumped-storage power stations considering the uncertainty of wind and photovoltaic power prediction[J]. Integrated Intelligent Energy, 2022, 44(11): 20-27.

图/表 12

图1

图2

表1

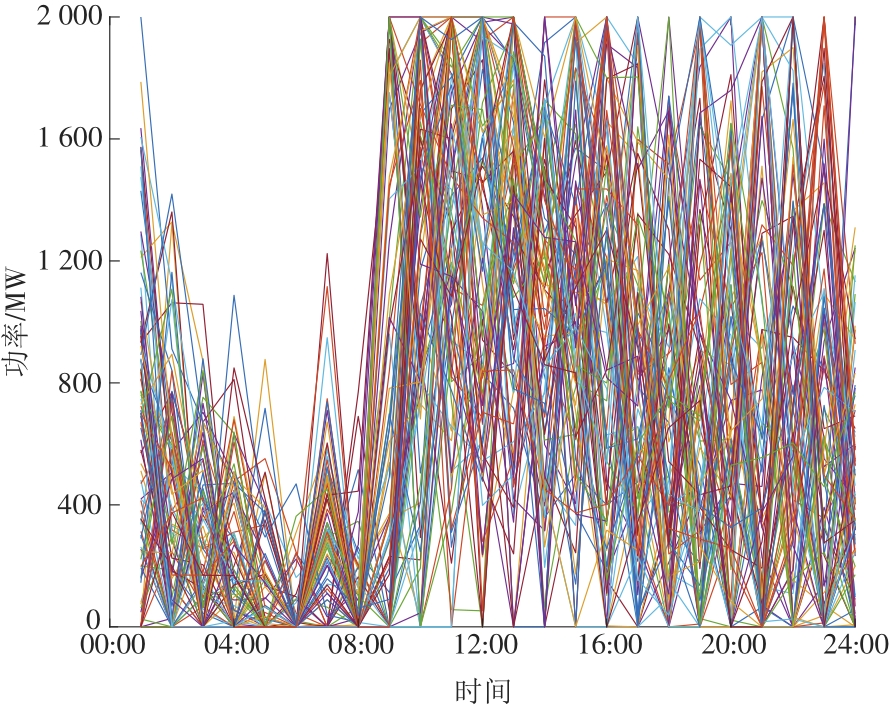

图3

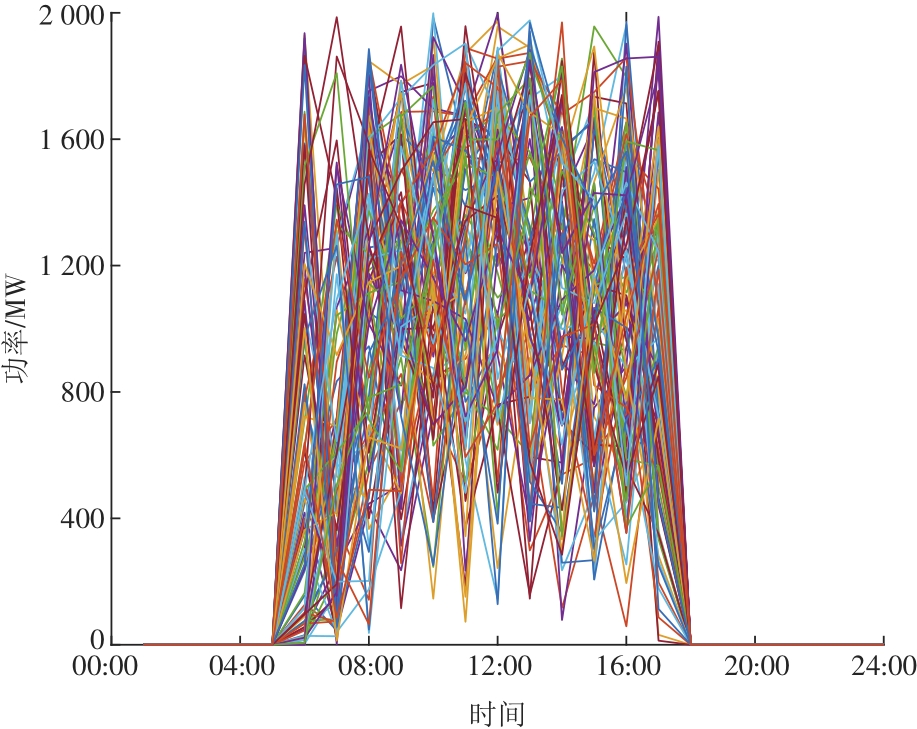

图4

图5

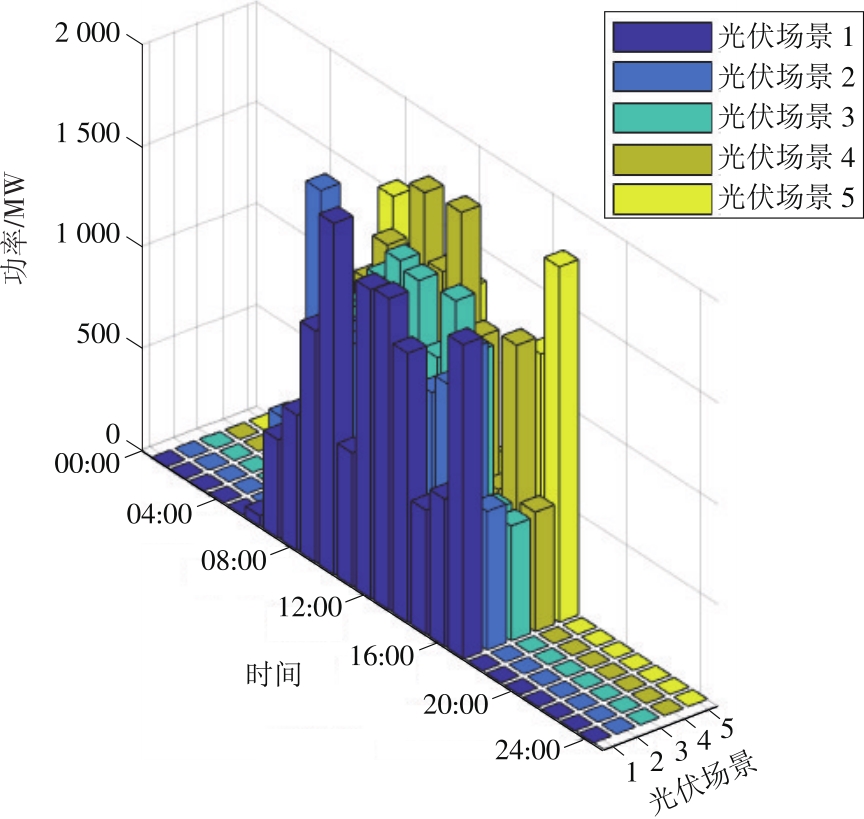

图6

表2

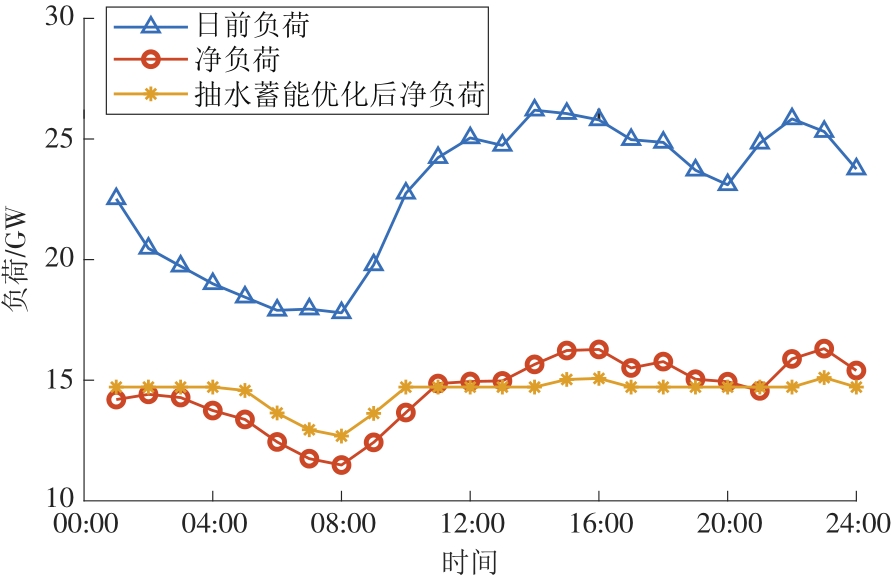

图7

表3

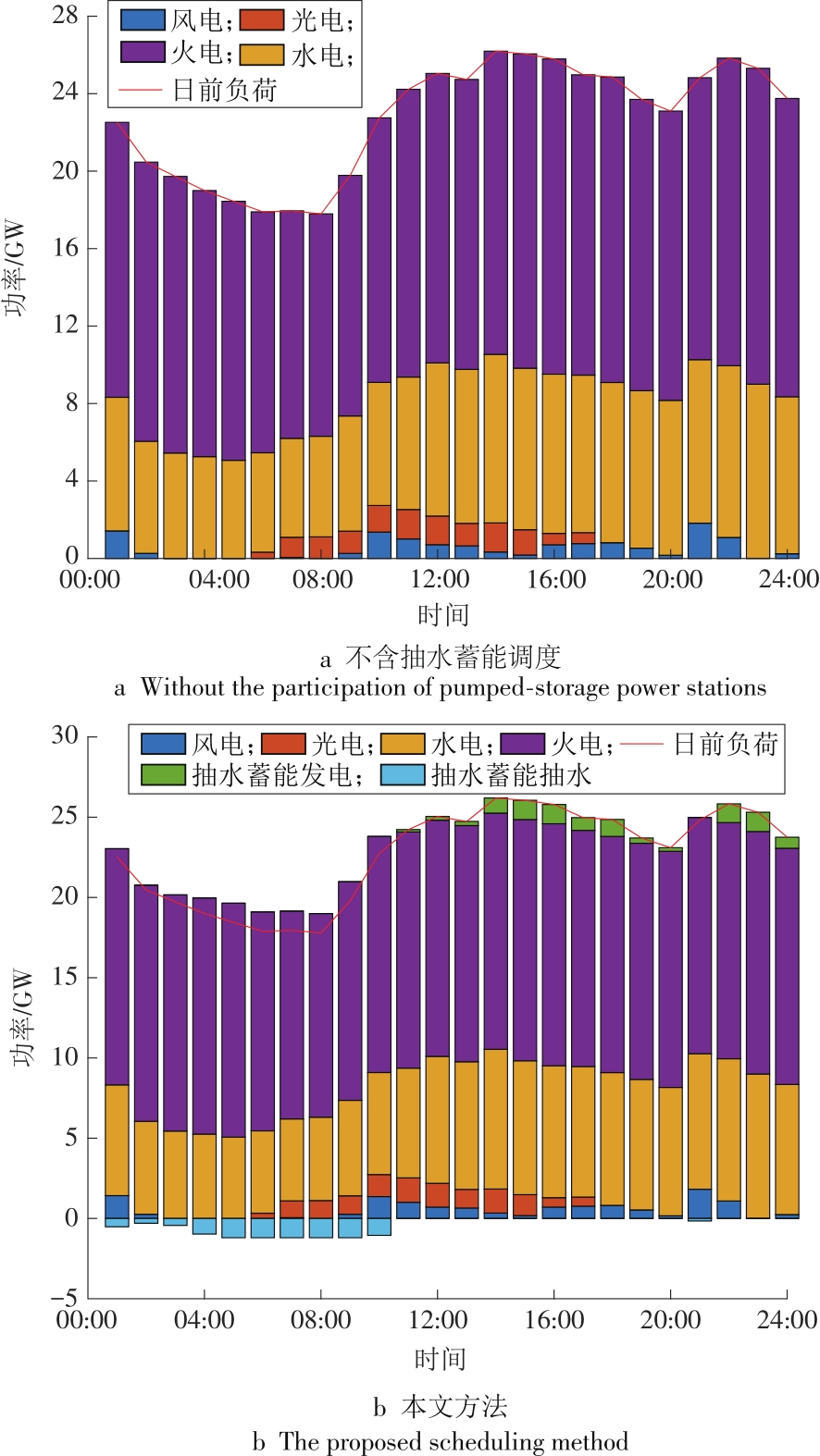

图8

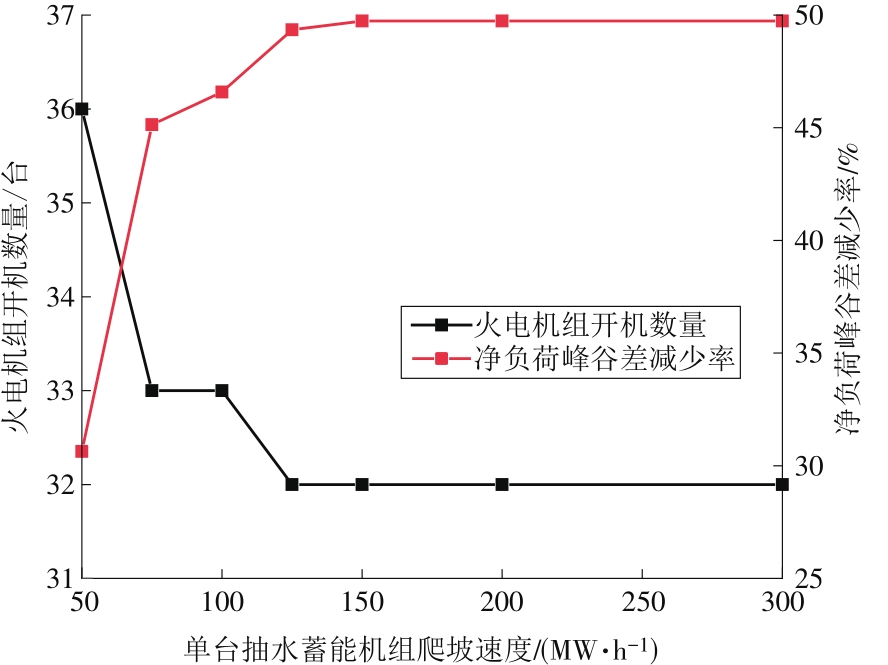

图9

参考文献 21

[1]	ZHANG S J, WEI J, CHEN X, et al. China in global wind power development: Role, status and impact[J]. Renewable & Sustainable Energy Reviews, 2020, 127: 109881.
[2]	吴耀武, 汪昌霜, 娄素华, 等. 计及风电-负荷耦合关系的含大规模风电系统调峰运行优化[J]. 电力系统自动化, 2017, 41(21):163-169.
	WU Yaowu, WANG Changshuang, LOU Suhua, et al. Peak load regulating operation and optimization in power systems with large-scale wind power and consider coupling relation between wind power and load[J]. Automation of Electric Power Systems, 2017, 41(21):163-169.
[3]	HEMMATI R, MEHRJERDI H, BORNAPOUR M. Hybrid hydrogen-battery storage to smooth solar energy volatility and energy arbitrage considering uncertain electrical-thermal loads[J]. Renewable Energy, 2020, 154:1180-1187. doi: 10.1016/j.renene.2020.03.092
[4]	张俊涛, 程春田, 申建建, 等. 考虑风光不确定性的高比例可再生能源电网短期联合优化调度方法[J]. 中国电机工程学报, 2020, 40(18):5921-5932.
	ZHANG Juntao, CHENG Chuntian, SHEN Jianjian, et al. Short-term joint optimal dispatching method for high-proportion renewable energy grids considering wind and wind uncertainty[J]. Proceedings of the CSEE, 2020, 40(18):5921-5932.
[5]	张兴科, 魏朝阳, 王康平, 等. 面向高比例光伏并网的火电爬坡压力缓解策略[J]. 综合智慧能源, 2022, 44(1): 1-8. doi: 10.3969/j.issn.2097-0706.2022.01.001
	ZHANG Xingke, WEI Chaoyang, WANG Kangping, et al. Strategies for relieving ramp pressure of thermal power units with high-proportion photovoltaic power connecting to the grid[J]. Integrated Intelligent Energy, 2022, 44(1): 1-8. doi: 10.3969/j.issn.2097-0706.2022.01.001
[6]	迟永宁, 刘燕华, 王伟胜, 等. 风电接入对电力系统的影响[J]. 电网技术, 2007, 31(3):77-81.
	CHI Yongning, LIU Yanhua, WANG Weisheng, et al. Study on impact of wind power integration on power system[J]. Power System Technology, 2007, 31(3):77-81.
[7]	林俐, 邹兰青, 周鹏, 等. 规模风电并网条件下火电机组深度调峰的多角度经济性分析[J]. 电力系统自动化, 2017, 41(7):21-27.
	LIN Li, ZOU Lanqing, ZHOU Peng, et al. Multi-angle economic analysis on deep peak regulation of thermal power units with large-sacle wind power integration[J]. Automation of Electric Power System, 2017, 41(7):21-27.
[8]	林俐, 田欣雨. 基于火电机组分级深度调峰的电力系统经济调度及效益分析[J]. 电网技术, 2017, 41(7):2255-2263.
	LIN Li, TIAN Xinyu. Analysis of deep peak regulation and its benefit of thermal units in power system with large scale wind power integrated[J]. Power System Technology, 2017, 41(7):2255-2263.
[9]	王金星, 张少强, 张瀚文, 等. 燃煤电厂调峰调频储能技术的研究进展[J]. 华电技术, 2020, 42(4): 64-71.
	WANG Jinxing, ZHANG Shaoqiang, ZHANG Hanwen, et al. Progress on the peak load regulation,frequency regulation and energy storage technologies for coal-fired power plants[J]. Huadian Technology, 2020, 42(4): 64-71.
[10]	LIANG Z P, CHEN H, CHEN S, et al. Probability-driven transmission expansion planning with high-penetration renewable power generation:A case study in northwestern China[J]. Applied Energy, 2019, 255:113610. doi: 10.1016/j.apenergy.2019.113610
[11]	ZHANG Y, MA C, LIAN J, et al. Optimal photovoltaic capacity of large-scale hydro-photovoltaic complementary systems considering electricity delivery demand and reservoir characteristics[J]. Energy Conversion and Management, 2019, 195:597-608. doi: 10.1016/j.enconman.2019.05.036
[12]	李国庆, 李欣彤, 边竞, 等. 计及光伏-负荷预测不确定性的直流跨省互联电网双级调度策略[J]. 中国电机工程学报, 2021, 41(14):4763-4776.
	LI Guoqing, LI Xintong, BIAN Jing, et al. Two level scheduling strategy for inter-provincial DC power grid considering the uncertainty of PV-load prediction[J]. Proceedings of the CSEE, 2021, 41(14):4763-4776.
[13]	黄伟, 刘斯亮, 王武, 等. 长时间尺度下计及光伏不确定性的配电网无功优化调度[J]. 电力系统自动化, 2018, 42(5):154-162.
	HUANG Wei, LIU Siliang, WANG Wu, et al. Optimal reactive power dispatch with long-time scale in distribution network considering uncertainty of photovoltaic[J]. Automation of Electric Power Systems, 2018, 42(5):154-162.
[14]	蒋文坤, 韩颖慧, 薛智文, 等. 多能互补能源系统中储能原理及其应用[J]. 综合智慧能源, 2022, 44(1):63-71. doi: 10.3969/j.issn.2097-0706.2022.01.009
	JIANG Wenkun, HAN Yinghui, XUE Zhiwen, et al. Energy storage technologies and their applications in multi-energy complementary power system[J]. Integrated Intelligent Energy, 2022, 44(1):63-71. doi: 10.3969/j.issn.2097-0706.2022.01.009
[15]	张鲲. 风电并网环境下抽水蓄能电站优化控制策略研究[D]. 北京: 华北电力大学, 2015.
[16]	王金星, 张少强, 张瀚文, 等. 燃煤电厂调峰调频储能技术的研究进展[J]. 华电技术, 2020, 42(4): 64-71.
	WANG Jinxing, ZHANG Shaoqiang, ZHANG Hanwen, et al. Progress on the peak load regulation,frequency regulation and energy storage technologies for coal-fired power plants[J]. Huadian Technology, 2020, 42(4):64-71.
[17]	吴耀武, 汪昌霜, 娄素华, 等. 计及风电-负荷耦合关系的含大规模风电系统调峰运行优化[J]. 电力系统自动化, 2017, 41(21):163-169.
	WU Yaowu, WANG Changshuang, LOU Suhua, et al. Peak load regulating operation and optimization in power systems with large-scale wind power and considering coupling relation between wind power and load[J]. Automation of Electric Power Systems, 2017, 41(21):163-169.
[18]	张刘冬, 殷明慧, 卜京, 等. 基于成本效益分析的风电-抽水蓄能联合运行优化调度模型[J]. 电网技术, 2015, 39(12):3386-3392.
	ZHANG Liudong, YIN Minghui, BU Jing, et al. A joint optimal operation model of wind farms and pumped storage units based on cost-benefit analysis[J]. Power System Technology, 2015, 39(12):3386-3392.
[19]	黄庶, 林舜江, 刘明波. 含风电场和抽水蓄能电站的多目标安全约束动态优化调度[J]. 中国电机工程学报, 2016, 36(1):112-121.
	HUANG Shu, LIN Shunjiang, LIU Mingbo. Multi-objective security constrained dynamic optimal dispatch with wind farms and pumped storage stations[J]. Proceedings of the CSEE, 2016, 36(1):112-121.
[20]	吉兴全, 张广伟, 刘志鹏, 等. 考虑抽水蓄能及电网运营成本的源荷储协调优化调度[J]. 水电能源科学, 2019, 37(3):191-195.
	JI Xingquan, ZHANG Guangwei, LIU Zhipeng, et al. Coordinated optimization dispatch of source load storage considering pumped storage units and grid operating cost[J]. Water Resources and Power, 2019, 37(3):191-195.
[21]	姜枫, 鲍峰, 姬联涛, 等. 考虑抽蓄-风-光-火联合系统运行经济效益的日前优化调度研究[J]. 水力发电, 2022, 48(1):99-105,111.
	JIANG Feng, BAO Feng, JI Liantao, et al. Research on optimization of day-ahead dispatching of pumped storage-wind power-photovoltaic-thermal power hybrid system considering operating economic benefit[J]. Water Power, 2022, 48(1):99-105,111.

机组类型	机组容量/MW	数量/台	总容量/MW
火电机组	660	18	11 880.0
	330	16	5 280.0
	210	2	420.0
抽水蓄能机组	300	4	1 200.0
风电机组			6 690.9
光伏机组			3 906.7
水电机组			15 806.4

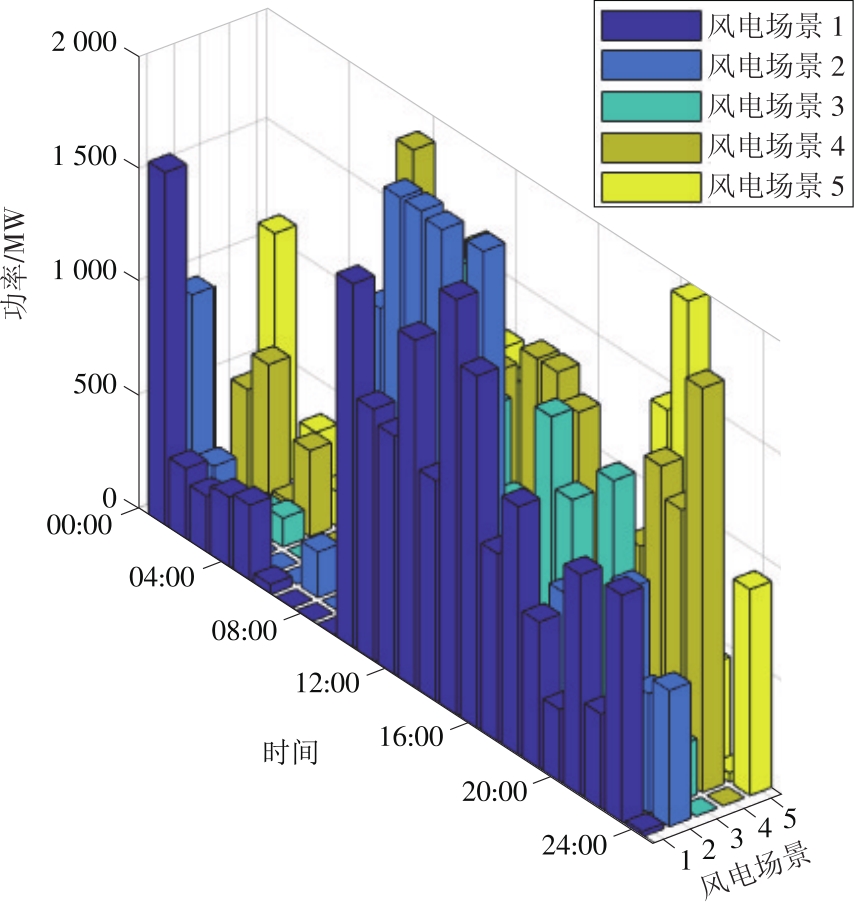

场景	发生概率
场景	风电	光伏
1	0.410	0.190
2	0.120	0.160
3	0.150	0.300
4	0.180	0.120
5	0.140	0.230

指标	不含抽水蓄能	本文方法
净负荷峰谷差/MW	4 825.4	2 425.4
净负荷峰谷差减少率/%		49.75
调峰成本/万元	7 883.0	7 840.1
火电机组开机台数	36	32
