工业-民用耦合能源系统不确定运行条件适应能力研究

doi:10.3969/j.issn.2097-0706.2025.10.008

摘要/Abstract

摘要：

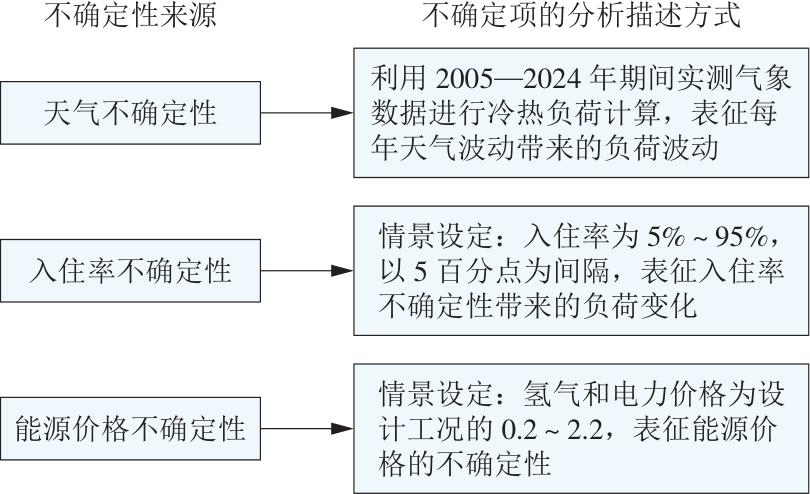

综合利用工业余热及能源副产物为周边建筑供能，是能源梯级综合利用的重要手段。但工业生产计划和建筑用能相对独立，分别由不同的因素主导，在常规源荷不确定性之外又引入了新的不确定因素，系统设计决策的边界条件更为复杂。以上海某工业园区工业-民用耦合能源系统为例，设定了逐年气象、入住率及能源价格等典型不确定运行条件，选取4种典型的系统配置方案，量化综合供能系统对不确定运行条件的适应性。计算结果表明，配置总装机容量10%∼20%的燃料电池冷热电联供设备，可以明显提升系统的适应能力，多变场景下运行时的经济性优于全电热泵系统。

关键词: 工业-民用耦合能源系统, 工业余热, 不确定性, 气象条件, 入住率, 能源价格, 燃料电池, 冷热电联供, 热泵

Abstract:

The comprehensive utilization of industrial waste heat and energy by-products to supply energy for surrounding buildings is an important means of integrated cascade utilization of energy. However， industrial production schedules and building energy consumption are relatively independent， each dominated by different factors. This introduces new uncertainties beyond conventional source-load variations， making the boundary conditions for system design decisions even more complex. Taking an industrial-civil coupled energy system in an industrial park in Shanghai as a case study， typical uncertain operating conditions—including year-by-year meteorological variations， occupancy rates， and energy prices—were defined. Four typical system configuration schemes were selected to quantify the adaptability of the integrated energy supply system to these uncertainties. The calculation results showed that configuring fuel cell combined cooling， heating， and power equipment at 10%—20% of the total installed capacity could significantly enhance system adaptability， and its economic performance under variable scenarios was superior to that of all-electric heat pump systems.

Key words: industrial-civil coupled energy system, industrial waste heat, uncertainty, meteorological conditions, occupancy rate, energy price, fuel cell, combined cooling， heating， and power, heat pump

中图分类号:

TK01

黄子硕, 窦真兰, 陈佳盈. 工业-民用耦合能源系统不确定运行条件适应能力研究[J]. 综合智慧能源, 2025, 47(10): 69-76.

HUANG Zishuo, DOU Zhenlan, CHEN Jiaying. Adaptability of industrial-civil coupled energy systems under uncertain operating conditions[J]. Integrated Intelligent Energy, 2025, 47(10): 69-76.

图/表 14

表1

表2

图1

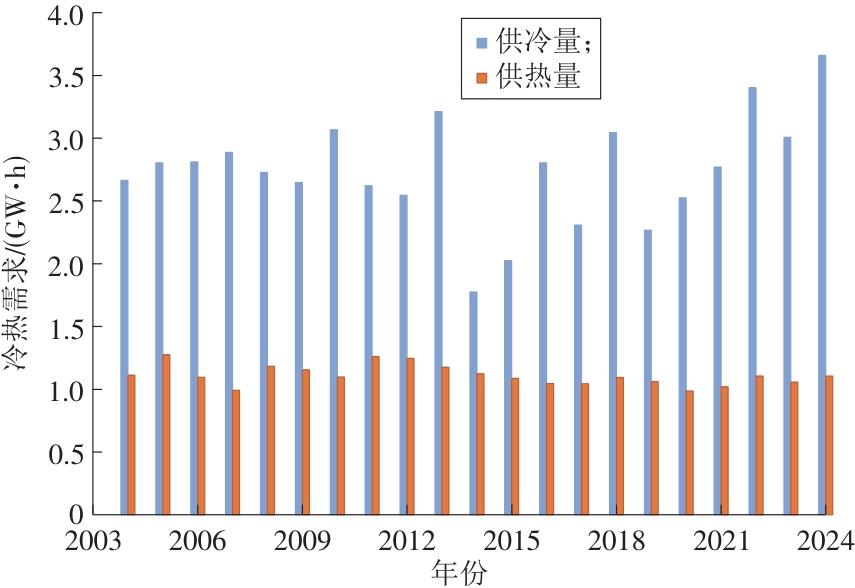

图2

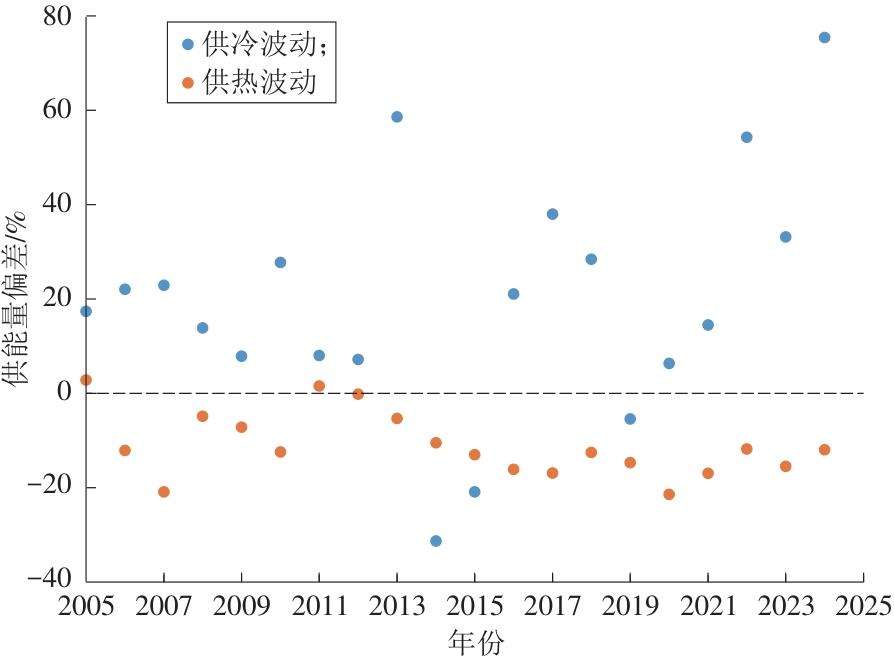

图3

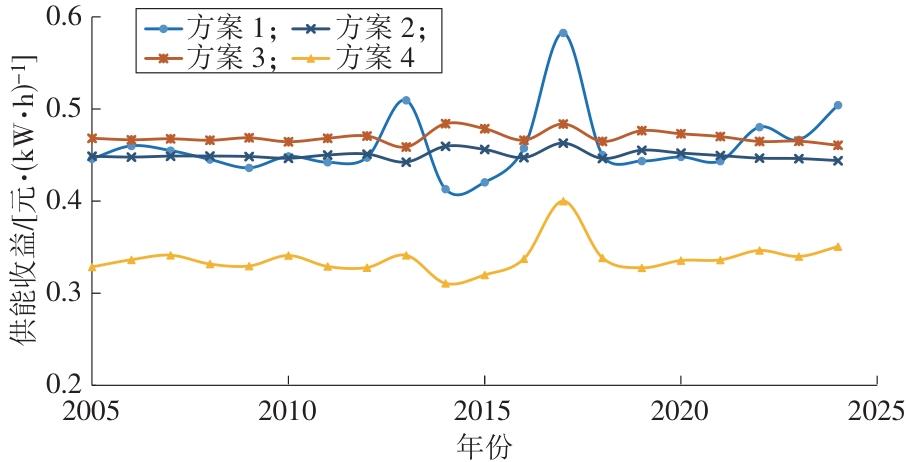

图4

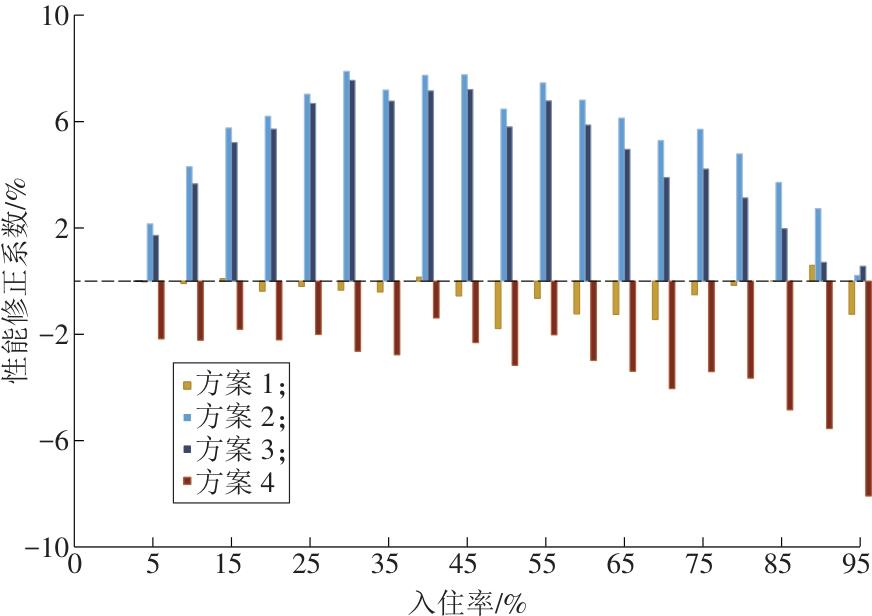

图5

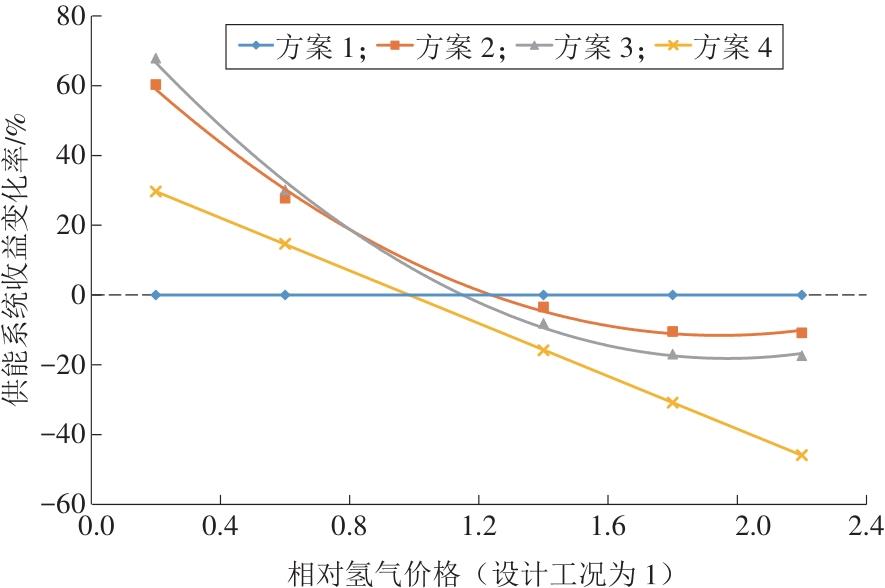

图6

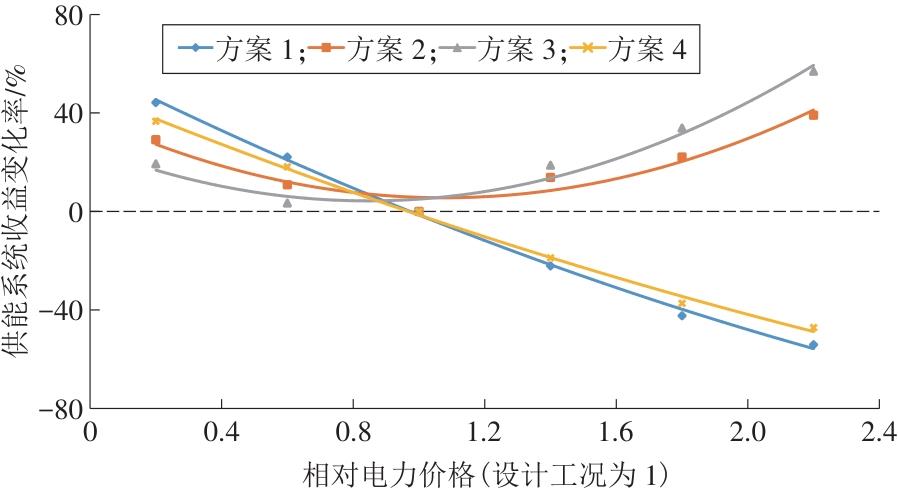

图7

图8

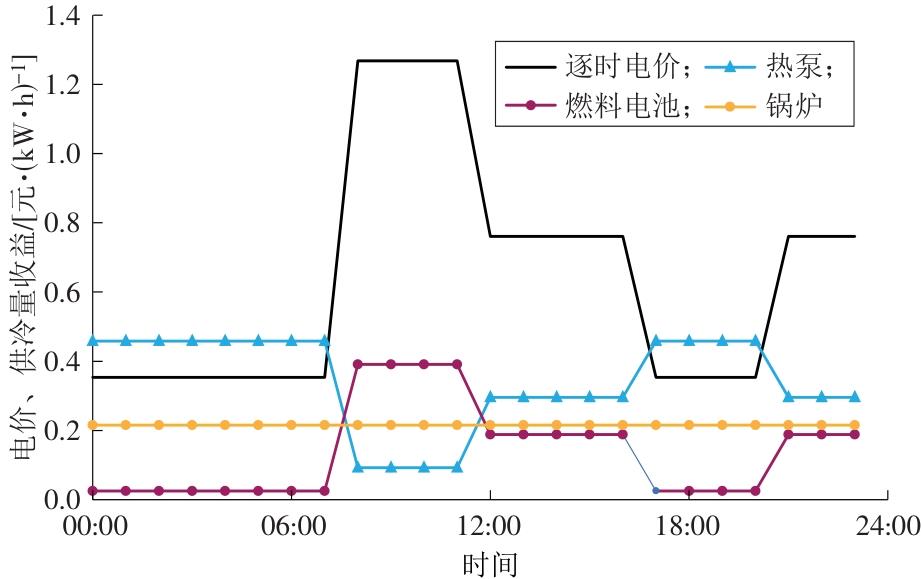

图9

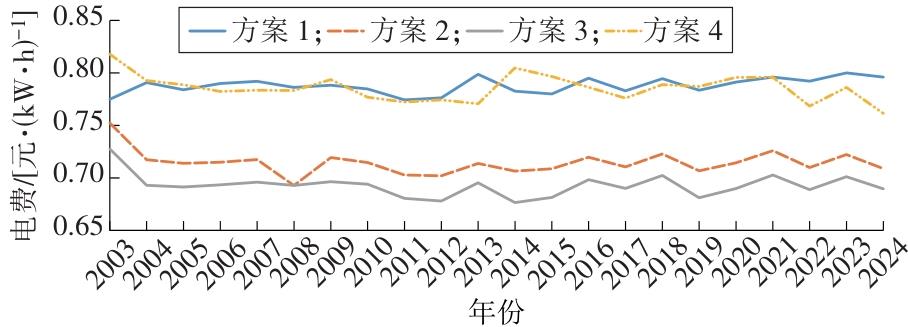

图10

图11

图12

参考文献 26

[1]	孙立, 余潜跃, 张玉琼, 等. 基于绿电转氨的综合能源生产单元经济性与碳足迹评估[J]. 中国电机工程学报, 2025, 45(7): 2567-2579.
	SUN Li, YU Qianyue, ZHANG Yuqiong, et al. Evaluation of economy and carbon footprint of integrated energy production unit based on green power to ammonia[J]. Proceedings of the CSEE, 2025, 45(7): 2567-2579.
[2]	YUAN M, MATHIESEN BVAD, SCHNEIDER N, et al. Renewable energy and waste heat recovery in district heating systems in China: A systematic review[J]. Energy, 2024, 294: 130788.
[3]	方豪, 王春林, 林波荣. 我国钢铁余热清洁供暖现状和产能调整下的余热潜力预测[J]. 建筑节能, 2019, 47(6): 106-111.
	FANG Hao, WANG Chunlin, LIN Borong. Current situation of clean heating using surplus heat from iron and steel industry and prediction on the future potential of the surplus heat[J]. Building Energy Efficiency, 2019, 47(6): 106-111.
[4]	饶文姬, 赵良举, 刘朝, 等. 利用LNG冷能与工业余热的有机朗肯循环研究[J]. 工程热物理学报, 2014(2):213-217.
	RAO Wenji, ZHAO Liangju, LIU Chao, et al. Research of organic Rankine cycle utilizing LNG cold exergy and waste heat[J]. Journal of Engineering Thermophysics, 2014(2): 213-217.
[5]	张建平. 吸收式热泵技术在工业余热回收中的应用与前景[J]. 科技资讯, 2024(16):206-208.
	ZHANG Jianping. Application and prospect of absorption heat pump technology in industrial waste heat recovery[J]. Science & Technology Information, 2024(16): 206-208.
[6]	安美燕, 赵心蕊, 徐震原, 等. 工业余热回收的耦合压缩-吸收式高温热泵循环[J]. 上海交通大学学报, 2021, 55(4): 434-443. doi: 10.16183/j.cnki.jsjtu.2020.023
	AN Meiyan, ZHAO Xinrui, XU Zhenyuan, et al. A hybrid compression-absorption high temperature heat pump cycles for industrial waste heat recovery[J]. Journal of Shanghai Jiao Tong University, 2021, 55(4): 434-443.
[7]	罗进成, 李锁华, 商玮珂, 等. 化石资源与新能源融合下的制氢技术发展及展望[J]. 应用化工, 2024, 53(11): 2777-2782.
	LUO Jincheng, LI Suohua, SHANG Weike, et al. Development and prospect of hydrogen production technology under the integration of fossil resources and new energy[J]. Applied Chemical Industry, 2024, 53(11): 2777-2782.
[8]	栗奕博. 计及风光氢储的综合能源系统协同规划研究[D]. 北京: 华北电力大学, 2024.
	LI Yibo. Study on collaborative planning of comprehensive energy system considering wind-solar hydrogen storage[D]. Beijing: North China Electric Power University, 2024.
[9]	艾鑫. 计及垃圾热解和氢能耦合的综合能源系统优化调度研究[D]. 阜新: 辽宁工程技术大学, 2024.
	AI Xin. Study on optimal scheduling of comprehensive energy system considering the coupling of waste pyrolysis and hydrogen energy[D]. Fuxin:Liaoning Technical University, 2024.
[10]	YANG Z X, REN Z Y, LI H, et al. A multi-stage stochastic dispatching method for electricity-hydrogen integrated energy systems driven by model and data[J]. Applied Energy, 2024, 371: 123668.
[11]	韦翌帆. 考虑源-荷不确定性和低碳目标的含氢综合能源系统优化[D]. 石家庄: 河北科技大学, 2024.
	WEI Yifan. Optimization of hydrogen-containing comprehensive energy system considering source-load uncertainty and low-carbon target[D]. Shijiazhuang: Hebei University of Science and Technology, 2024.
[12]	熊阳阳, 于艾清, 王育飞, 等. 基于多场景多重不确定性的含混氢天然气的综合能源系统运行优化[J]. 储能科学与技术, 2024, 13(6): 1888-1899. doi: 10.19799/j.cnki.2095-4239.2023.0958
	XIONG Yangyang, YU Aiqing, WANG Yufei, et al. Optimization of integrated energy system operation containing hydrogen-compressed natural gas based on multiple scenarios and uncertainties[J]. Energy Storage Science and Technology, 2024, 13(6): 1888-1899. doi: 10.19799/j.cnki.2095-4239.2023.0958
[13]	FANG X L, DONG W, WANG Y B, et al. Multi-stage and multi-timescale optimal energy management for hydrogen-based integrated energy systems[J]. Energy, 2024, 286: 129576.
[14]	梁涛, 柴露露, 谭建鑫, 等. 基于深度强化学习算法的氢耦合电-热综合能源系统优化调度[J]. 电力自动化设备, 2025, 45(1): 59-66.
	LIANG Tao, CHAI Lulu, TAN Jianxin, et al. Optimal scheduling of hydrogen coupled electrothermal integrated energy system based on deep reinforcement learning algorithm[J]. Electric Power Automation Equipment, 2025, 45(1): 59-66.
[15]	梁俊鹏, 张高航, 李凤婷, 等. 计及氢储能-制氨-碳捕集的综合能源系统低碳优化调度[J]. 电力自动化设备, 2024, 44(10): 16-23.
	LIANG Junpeng, ZHANG Gaohang, LI Fengting, et al. Low-carbon optimal scheduling of integrated energy system considering hydrogen energy storage, ammonia production and carbon capture[J]. Electric Power Automation Equipment, 2024, 44(10): 16-23.
[16]	王晓燕, 吴书泉. 基于改进粒子群优化算法的源网荷储系统容量配置研究[J]. 综合智慧能源, 2024, 46(9): 28-36. doi: 10.3969/j.issn.2097-0706.2024.09.004
	WANG Xiaoyan, WU Shuquan. Research on capacity allocation for source-grid-load-storage systems based on improved PSO[J]. Integrated Intelligent Energy, 2024, 46(9): 28-36. doi: 10.3969/j.issn.2097-0706.2024.09.004
[17]	郑杰凯, 何山, 韩璐, 等. 计及混合博弈配电网与氢能系统的多综合能源服务商优化调度[J]. 电力自动化设备, 2025, 45(1):67-75.
	ZHENG Jiekai, HE Shan, HAN Lu, et al. Optimal scheduling of multi-integrated energy service provider considering hybrid game-based distribution network and hydrogen energy system[J]. Electric Power Automation Equipment, 2025, 45(1): 67-75.
[18]	刘浩, 王丹, 贾宏杰, 等. 电-气-氢综合能源系统能碳安全域模型构建与分析[J]. 电网技术, 2025, 49(1):73-83.
	LIU Hao, WANG Dan, JIA Hongjie, et al. Construction and analysis of energy carbon security region model of electric gas hydrogen integrated energy system[J]. Power System Technology, 2025, 49 (1): 73-83.
[19]	黄子硕, 何桂雄, 闫华光, 等. 园区级综合能源系统优化模型功能综述及展望[J]. 电力自动化设备, 2020, 40(1): 10-18.
	HUANG Zishuo, HE Guixiong, YAN Huaguang, et al. Overview and prospect of optimization model function for community-scale integrated energy system[J]. Electric Power Automation Equipment, 2020, 40(1): 10-18.
[20]	MIRAKYAN A, DE GUIO R. Modelling and uncertainties in integrated energy planning[J]. Renewable and Sustainable Energy Reviews, 2015, 46: 62-69.
[21]	王海鸣, 张润之, 周家辉, 等. 离网式风光互补制氢合成绿氨系统容量配置优化分析[J]. 综合智慧能源, 2024, 46(11): 73-82. doi: 10.3969/j.issn.2097-0706.2024.11.009
	WANG Haiming, ZHANG Runzhi, ZHOU Jiahui, et al. Optimal capacity configuration of off-grid wind-solar hybrid hydrogen production and green ammonia synthesis system[J]. Integrated Intelligent Energy, 2024, 46(11): 73-82. doi: 10.3969/j.issn.2097-0706.2024.11.009
[22]	ZHOU G W, BAI M L, LI H L, et al. Multi-objective station-network synergy planning for regional integrated energy system considering energy cascade utilization and uncertainty[J]. Energy Conversion and Management, 2024, 301: 118073.
[23]	伊利亚·普利高津. 确定性的终结: 时间、混沌与新自然法则[M].湛敏,译. 上海: 上海科技教育出版社, 1998.
[24]	埃德加·莫兰. 方法:天然之天性[M]. 吴泓缈, 冯学俊, 译. 北京: 北京大学出版社, 2002.
[25]	休·考特尼. 不确定性管理[M].北京新华信商业风险管理有限责任公司,译. 北京: 中国人民大学出版社, 2004.
[26]	HUANG Z S, YU H, CHU X Y, et al. A novel optimization model based on game tree for multi-energy conversion systems[J]. Energy, 2018, 150: 109-121.

剩余不确定性	状态	特点	分析方法
第1层次	情景清晰明确	可进行单一性预测	量化模型模拟分析决策工具
第2层次	有几种高度可能的情景	有限的、离散的情景	定性分析、定量评估、博弈论
第3层次	情景在一定范围内变化	未来情景在一定范围内变化，没有离散的情景	区间规划模型、概率模型
第4层次	情景模糊不清	无法预测未来情景，时间短暂	类比和类型确认、场景遍历、模糊决策

方案	地源热泵/MW	燃料电池系统/MW	氢、燃气锅炉/MW	水冷冷水机组/MW	投资回收期/a
1	3.88				9.22
2	1.90	0.21		1.76	9.16
3	1.69	0.42		1.76	9.89
4			2.11	3.88	7.74
