660 MW超超临界二次再热机组深度调峰试验研究

doi:10.3969/j.issn.1674-1951.2021.05.010

摘要/Abstract

摘要：

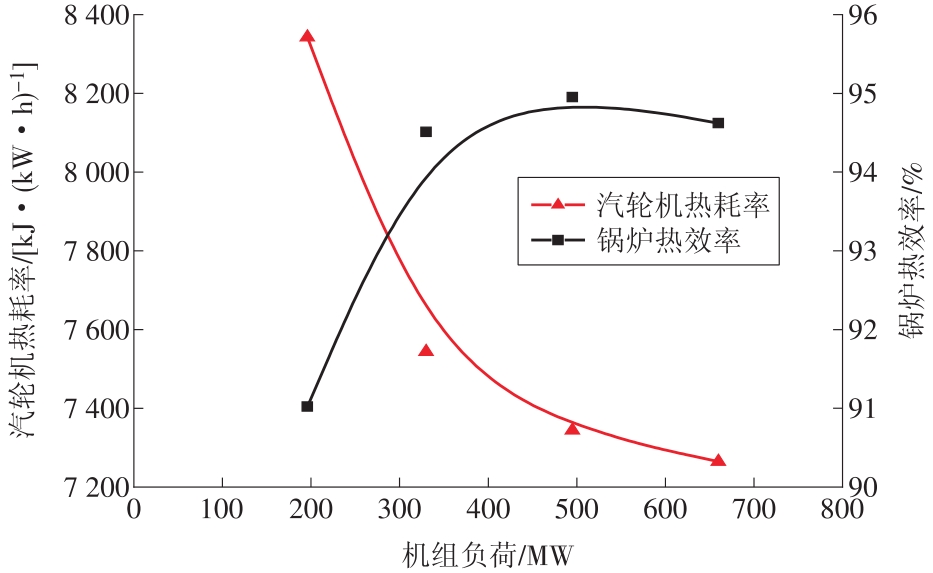

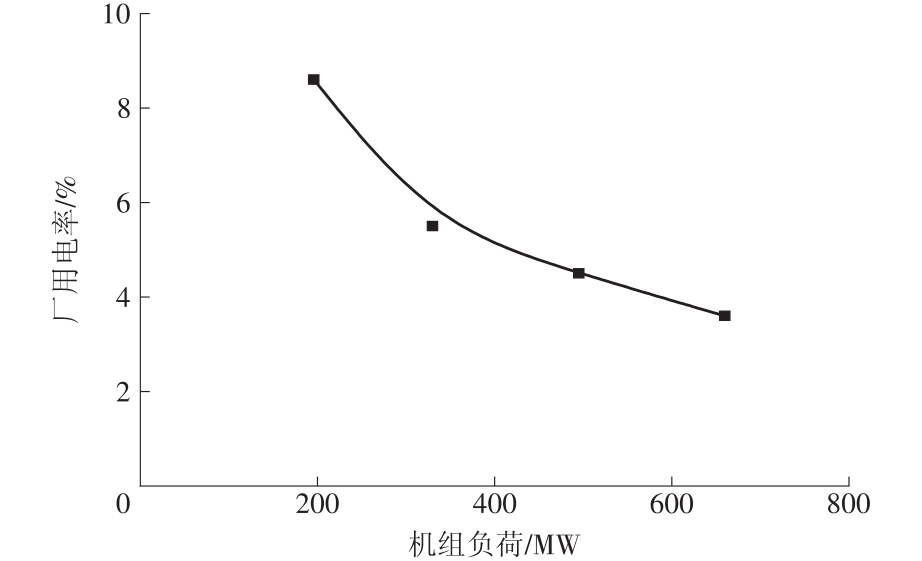

为适应碳达峰、碳中和目标下燃煤机组的发展趋势,研究了某660 MW超超临界二次再热机组的深度调峰。经过试验发现,该机组完全具备在30%额定负荷下的深度调峰能力：锅炉燃烧稳定、状态良好;主辅机控制与运行参数正常且稳定,具有一定的调节裕度;环保设备投运正常、污染物排放都达到国家规定的超低排放的标准。尽管如此,在30%额定负荷下运行时机组的经济效益明显下降,与50%额定负荷时相比,供电煤耗急剧增加,受汽机热耗率、锅炉热效率和厂用电率变化的影响共增加煤耗约49.0 g/（kW·h）。试验结果说明,深度调峰机组的运行参数还有待进一步调整和改进。

关键词: 深度调峰, 二次再热, 最低稳燃负荷, 30%额定负荷, 超超临界锅炉, 供电煤耗, 碳中和

Abstract:

To adapt to the development trend of coal-fired units in the context of realizing carbon peak and carbon neutrality, deep peak-load shaving study was made on a 660MW ultra-supercritical secondary reheating unit. The experiment verified that the unit performs well at 30% rated load. Under 30% rated load, the combustion in the boiler is stable and in good condition. The control and operation parameters of the main and auxiliary equipment are normal and stable with adjustment margins. The environmental protection equipment works well and keeps the discharged pollutant within the ultra-low emission standards of China. However, the economic performance of the unit running with 30% rated load is inferior to that with 50% rated load. Influenced by heat consumption for steam turbine unit,heat consumption for boiler and auxiliary power rate,coal consumption for power supply of the unit running with 30% rated load is much higher than that of the unit with 50% rated load,increasing by 49.0 g/（kW·h）.Thus,the parameters of units under deep peak-load shaving need to be further adjusted and optimized.

Key words: deep peak-load shaving, secondary reheating, minimum load for stable combustion, 30% rated load, ultra-supercritical boiler, coal consumption for power supply, carbon neutrality

中图分类号:

TK01 ⁺8：TM621

丛星亮, 谢红, 苏阳, 张骏, 程英捷. 660 MW超超临界二次再热机组深度调峰试验研究[J]. 华电技术, 2021, 43(5): 64-69.

CONG Xingliang, XIE Hong, SU Yang, ZHANG Jun, CHENG Yingjie. Experimental study on deep peak-load shaving of a 660 MW ultra-supercritical secondary reheating unit[J]. Huadian Technology, 2021, 43(5): 64-69.

图/表 10

表1

表2

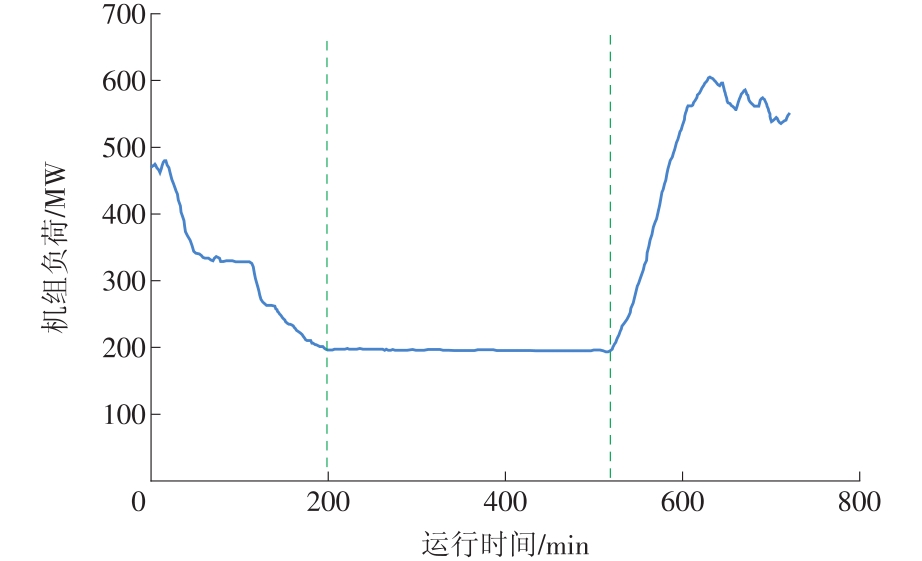

图1

表3

表4

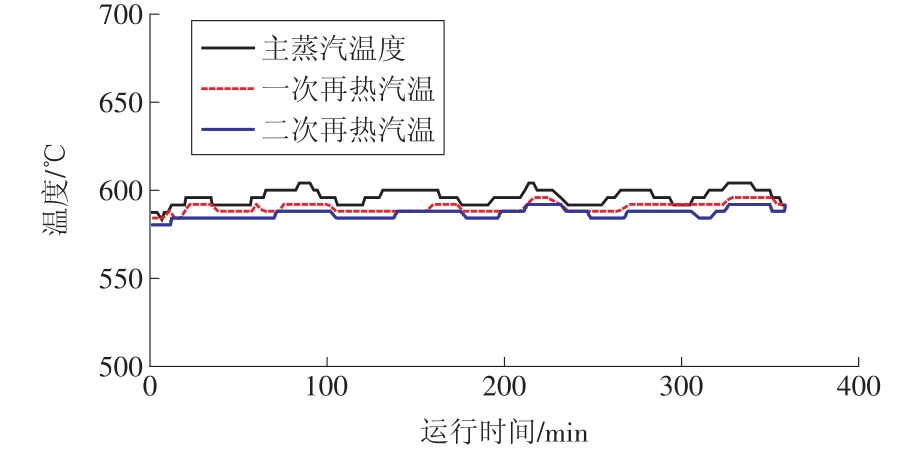

图2

表5

图3

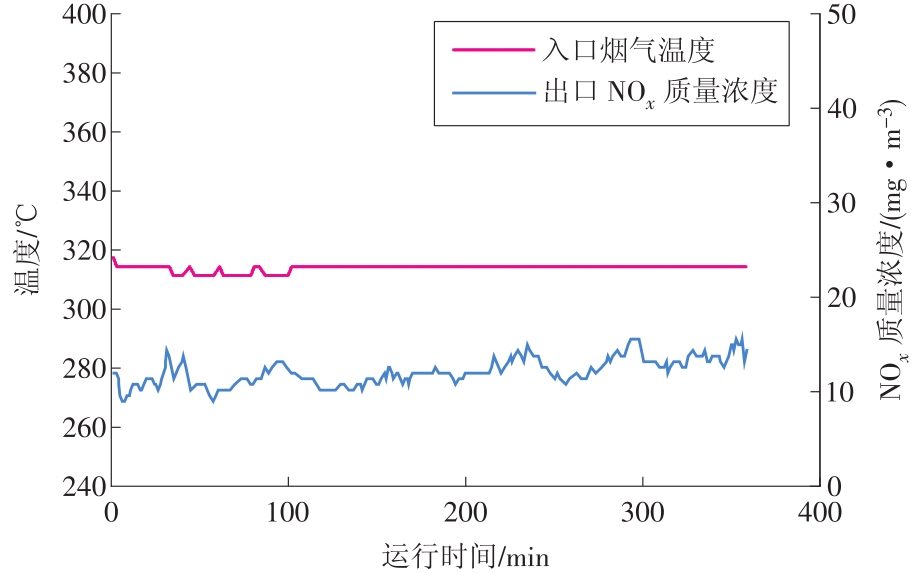

图4

图5

参考文献 19

[1]	孙海峰, 王兆辉, 王建峰, 等. 600 MW超临界机组深度调峰安全可靠运行解析[J]. 华电技术, 2020,42(12):94-100.
	SUN Haifeng, WANG Zhaohui, WANG Jianfeng, et al. Analysis on safety and reliability of 600 MW supercritical units' deep peak regulation[J]. Huadian Technology, 2020,42(12):94-100.
[2]	谢灵鸥, 徐琰, 胡建明, 等. 燃煤电厂30%额定负荷深度调峰技术研究及实践[J]. 能源研究与利用, 2020(3):33-36.
	XIE Ling'ou, XU Yan, HU Jianming, et al. Research and practice of 30% rated depth peak-load technology for coal-fired power plants[J]. Energy Research & Utilization, 2020(3):33-36.
[3]	刘文胜, 吕洪坤, 蔡洁聪, 等. 600 MW亚临界锅炉30%额定负荷深度调峰试验研究[J]. 锅炉技术, 2019,50(4):59-65.
	LIU Wensheng, LYU Hongkun, CAI Jiecong, et al. Experimental study on 30% rated depth peak-load for a 600 MW sub-critical boiler[J]. Boiler Technology, 2019,50(4):59-65.
[4]	华敏, 董益华, 项群扬, 等. 超临界660 MW燃煤机组深度调峰试验研究[J]. 电站系统工程, 2019(5):35-36.
	HUA min, DONG Yihua, XIANG Qunyang, et al. Research on deep load regulation of 660 MW supercritical coal-fired units[J]. Power System Engineering, 2019(5):35-36.
[5]	王立, 王燕晋, 李战国, 等. 火力发电机组深度调峰试验及优化[J]. 发电设备, 2019,33(2):133-137.
	WANG Li, WANG Yanjin, LI Zhanguo, et al. Deep peak shaving tests and optimization for thermal power units[J]. Power Equipment, 2019,33(2):133-137.
[6]	胡建根, 童家麟, 矛建波, 等. 典型燃煤锅炉深度调峰能力比较研究[J]. 锅炉技术, 2019,50(6):59-64.
	HU Jiangen, TONG Jialin, MAO Jianbo, et al. The research of the comparison of deep peak regulation capacity for typical coal-fired boilers[J]. Boiler Technology, 2019,50(6):59-64.
[7]	于浩洋, 高明明, 张缦, 等. 循环流化床机组深度调峰性能分析与评价[J]. 热力发电, 2020,49(5):65-72.
	YU Haoyang, GAO Mingming, ZHANG Man, et al. Performance analysis and evaluation of deep peak-regulating for circulating fluidized bed units[J]. Thermal Power Generation, 2020,49(5):65-72.
[8]	高林, 王林, 刘畅, 等. 火电机组深度调峰热工控制系统改造[J]. 热力发电, 2018,47(5):95-100.
	GAO Lin, WANG Lin, LIU Chang, et al. Thermal control system retrofit for deep peak load regulation of thermal power unit[J]. Thermal Power Generation, 2018,47(5):95-100.
[9]	吴瑞康, 华敏, 秦攀, 等. 燃煤机组深度调峰对汽轮机设备的影响[J]. 热力发电, 2018,47(5):89-94.
	WU Ruikang, HUA Min, QIN Pan, et al. Influence of deep peak load regulation of coal-fired units on turbine equipment[J]. Thermal Power Generation, 2018,47(5):89-94.
[10]	马玉华, 邢长青, 徐君诏, 等. 深度调峰负荷时亚临界自然循环锅炉水循环安全计算与分析[J]. 热力发电, 2018,47(10):108-114.
	MA Yuhua, XING Changqing, XU Junzhao, et al. Safety calculation and analysis for thermal-hydraulic circulation of a subcritical natural circulation boiler at severe peak load regulation[J]. Thermal Power Generation, 2018,47(10):108-114.
[11]	周文台, 王克, 吕为智. 深度调峰下的再热汽温偏差调整试验研究[J]. 动力工程学报, 2019,39(9):700-704,730.
	ZHOU Wentai, WANG Ke, LÜ Weizhi. Experimental study on deviation adjustment of reheat steam temperatures under deep peak shaving conditions[J]. Journal of Chinese Society of Power Engineering, 2019,39(9):700-704,730.
[12]	电站煤粉锅炉燃煤掺烧技术导则:DL/T 1445—2015[S].
[13]	HUSTAD J E, SONJU O K. Experimental studies of lower flammability limits of gases and mixtures of elevated temperatures[J]. Combustion and Flame, 1988,71(3):283-294. doi: 10.1016/0010-2180(88)90064-8
[14]	李军, 周怀春, 柳朝晖, 等. 电站燃煤锅炉最低无油稳燃负荷预测[J]. 中国电机工程学报, 2000,20(2):73-77.
	LI Jun, ZHOU Huaichun, LIU Zhaohui, et al. Prediction of the minimum load of operation for utility pulverized coal-fired bolier[J]. Proceedings of the CSEE, 2000,20(2):73-77.
[15]	马大卫, 王正风, 何军, 等. 安徽煤电深度调峰下机组煤耗和污染物排放特征研究[J]. 华电技术, 2019,41(12):1-7,15.
	MA Dawei, WANG Zhengfeng, HE Jun, et al. Study on the coal consumption and pollutant discharge characteristics of coal-fired units participating in deep peak-regulating operation in Anhui Province[J]. Huadian Technology, 2019,41(12):1-7,15.
[16]	火电厂烟气脱硝技术导则:DL/T 296—2011[S].
[17]	综合能耗计算通则:GB/T 2589—2008[S].
[18]	刘福国, 蒋雪霞, 李志. 燃煤发电机组负荷率影响供电煤耗的研究[J]. 电站系统工程, 2008,24(4):47-49.
	LIU Fuguo, Jiang Xuexia, LI Zhi. Investigation on effects of generator load on coal consumption rate in fossil power plant[J]. Power System Engineering, 2008,24(4):47-49.
[19]	吴思明, 童家麟, 吴跃森, 等. 某亚临界锅炉综合升级改造实践及其性能分析[J]. 华电技术, 2020,42(6):66-71.
	WU Siming, TONG Jialin, WU Yueseng, et al. Comprehensive upgrading reconstruction and performance analysis of a subcritical boiler[J]. Huadian Technology, 2020,42(6):66-71.

名称	单位	数值
热耗率验收(THA)工况功率	MW	660.0
额定主蒸汽压力	MPa	31.000
额定主蒸汽温度	℃	600.0
额定一次再热蒸汽压力	MPa	10.521
额定一次再热蒸汽温度	℃	620.0
额定二次再热蒸汽压力	MPa	3.211
额定二次再热蒸汽温度	℃	566.0
额定背压	kPa	4.7
额定给水温度	℃	315.0
THA工况热耗	kJ/(kW·h)	7 109

项目	单位	最大出力工况	额定负荷工况
过热蒸汽流量	t/h	1 785.49	1 733.48
过热蒸汽出口压力	MPa	32.45	32.36
过热蒸汽出口温度	℃	605.0	605.0
给水压力	MPa	36.45	36.14
给水温度	℃	314.0	314.0
一次再热蒸汽流量	t/h	1 668.69	1 602.84
一次再热器出口压力	MPa	11.05	10.59
一次再热器出口温度	℃	623.0	623.0
一次再热器进口压力	MPa	11.40	10.93
一次再热器进口温度	℃	436.0	428.0
二次再热蒸汽流量	t/h	1 425.42	1 365.49
二次再热器出口压力	MPa	3.33	3.18
二次再热器出口温度	℃	623.0	623.0
二次再热器进口压力	MPa	3.52	3.36
二次再热器进口温度	℃	442.0	442.0

名称	单位	数值
A/C/D给煤机给煤量	t/h	29.9/28.8/30.9
A/C/D磨煤机电流	A	39.0/45.7/43.0
A/C/D磨煤机入口一次风量	t/h	85.7/87.7/84.8
A/C/D磨煤机入口一次风温	℃	143.5/126.3/192.3
A/C/D磨煤机出口风粉温度	℃	80.1/81.0/80.5
A/C/D磨煤机热一次风门开度	%	23.3/18.6/20.5
A/C/D磨煤机冷一次风门开度	%	44.6/47.0/33.8
A/C/D磨煤机液压加载压力	MPa	5.60/4.80/4.70

名称	单位	数值
空预器主电机电流A/B	A	23.7/24.1
引风机动叶位置反馈A/B	%	37.90/37.30
引风机电流A/B	A	189.4/190.1
引风机入口压力A/B	kPa	-2.1/-2.1
送风机动叶位置反馈A/B	%	22.4/21.6
送风机电流A/B	A	55.1/55.1
送风机出口压力A/B	kPa	0.9/0.9
一次风机动叶位置反馈A/B	%	42.22/38.25
一次风机电流A/B	A	102.7/100.2
一次风机出口压力A/B	kPa	8.2/8.6
总风量	t/h	1 264.1
总一次风量	t/h	339.1
A/B 侧二次风量	t/h	482.3/442.7

名称	单位	稳态偏差
负荷率	%	+0.24,-0.30
主蒸汽压力	MPa	±0.14
主蒸汽温度	℃	±8.5
一次再热蒸汽温度	℃	±5.0
二次再热蒸汽温度	℃	±5.5
