电石渣骨架定型相变材料储热性能研究

doi:10.3969/j.issn.2097-0706.2022.04.009

综合智慧能源 ›› 2022, Vol. 44 ›› Issue (4): 71-75.doi: 10.3969/j.issn.2097-0706.2022.04.009

电石渣骨架定型相变材料储热性能研究

熊亚选¹(), 王辉祥¹, 胡子亮¹, 药晨华¹, 宋超宇¹, 丁玉龙²

1.北京建筑大学供热供燃气通风及空调工程北京市重点试验室,北京100044
2.英国伯明翰大学伯明翰储能中心,伯明翰 B15 2TT

收稿日期:2021-04-27 修回日期:2021-05-25 出版日期:2022-04-25 发布日期:2022-05-05
作者简介:熊亚选（1977）,男,教授,博士,从事高温熔盐储热方面的研究, xiongyaxuan@bucea.edu.cn;
王辉祥（1997）,男,在读硕士研究生,从事固体储热方面的研究;
胡子亮（1997）,男,在读硕士研究生,从事固体储热方面的研究;
药晨华（1997）,男,在读硕士研究生,从事固体储热方面的研究;
宋超宇（1998）,女,在读硕士研究生,从事固体储热方面的研究;
丁玉龙（1962）,男,教授,英国皇家工程院院士,博士,从事储能技术方面的研究。
基金资助:
北京市教委科研项目(KM201910016011)

Study on heat storage performance of shape-stable carbide slag skeleton phase change material

XIONG Yaxuan¹(), WANG Huixiang¹, HU Ziliang¹, YAO Chenhua¹, SONG Chaoyu¹, DING Yulong²

1. Key Lab of HVAC,Beijing University of Civil Engineering and Architecture,Beijing 100044,China
2. Birmingham Centerfor Energy storage,University of Birmingham,Birmingham B15 2TT,UK

Received:2021-04-27 Revised:2021-05-25 Online:2022-04-25 Published:2022-05-05

摘要/Abstract

摘要：

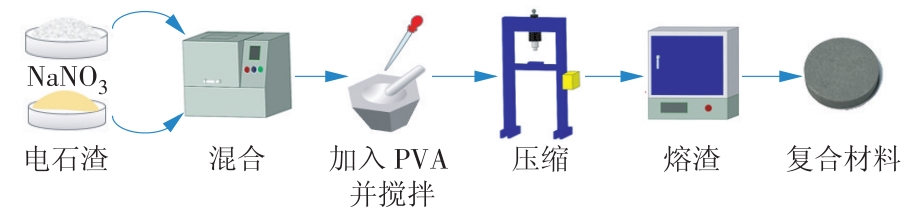

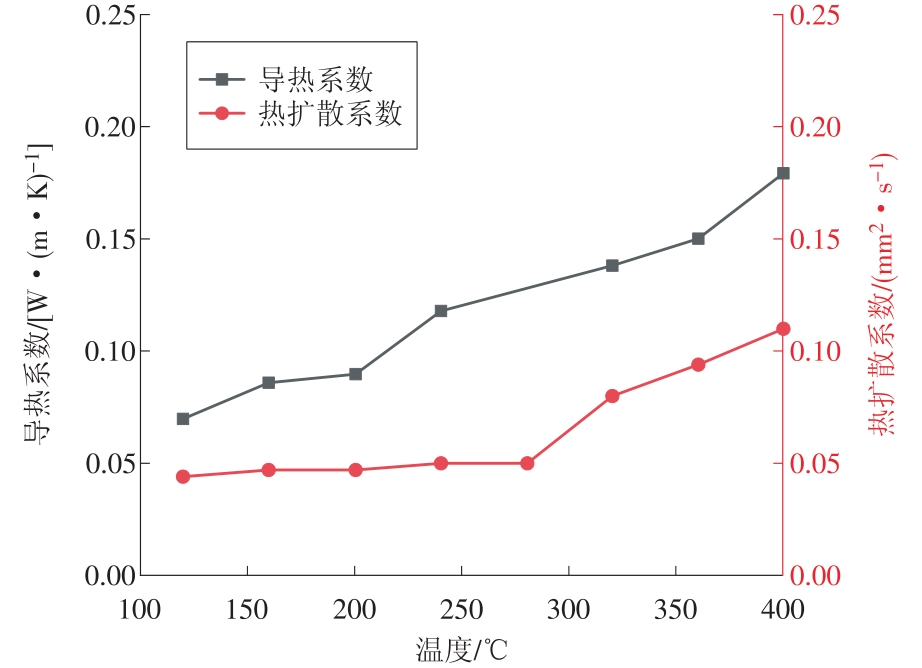

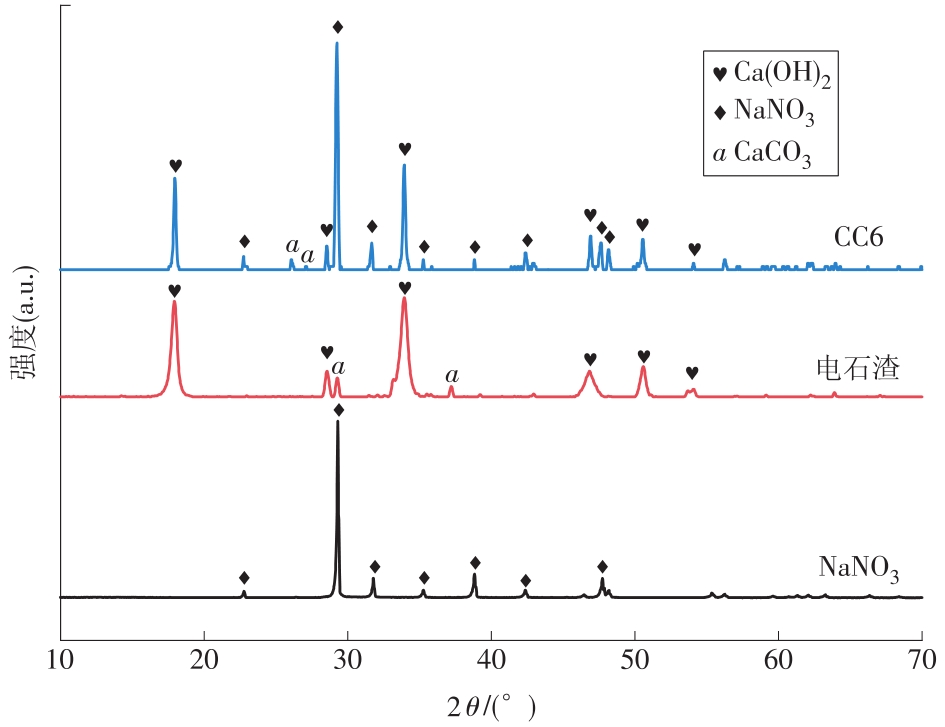

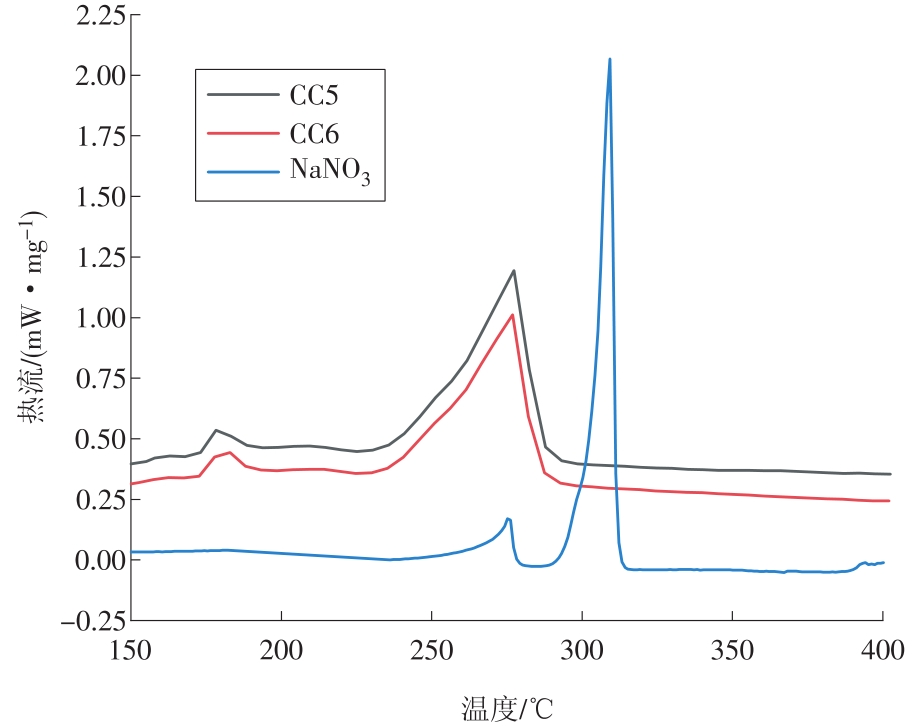

电石渣是生产乙炔过程中伴生的工业固体废弃物,大量堆积污染环境。在碳中和背景下,为资源化利用固体废弃物,以电石渣为骨架材料,NaNO₃为相变材料,采用冷压缩-热烧结法制备电石渣基复合相变储热材料。采用X射线衍射法（XRD）、热重-差示扫描量热法（TG-DSC）和激光导热分析法（LFA）对该材料进行了表征和分析。结果表明,该复合材料具备良好的化学相容性,NaNO₃和电石渣质量比为5∶5时,各种热物理性能最好,为最佳比例。该比例下复合材料的导热系数最大为0.18 W/（m∙K）,50~500 ℃内的储热密度为457.2 J/g,具备良好的储热性能。

关键词: 固体废弃物, 电石渣, 骨架材料, 相变材料, 热能储存, 冷压缩-热烧结法, 碳中和

Abstract:

Calcium carbide slag is an industrial solid waste associated with the production of acetylene,and a large number of accumulations pollute the environment.Under the background of carbon neutralization,calcium carbide slag-based composite phase change heat storage material was prepared by cold compression-hot sintering method with calcium carbide slag as skeleton material and NaNO₃ as phase change material for resource utilization of solid waste.The material was characterized by X-ray diffraction（XRD）,thermogravimetry-differential scanning calorimetry（TG-DSC） and laser thermal conductivity analysis（LFA）.The results showed that the composite had good chemical compatibility.When the mass ratio of NaNO₃ to carbide slag was 5∶5,various thermophysical properties were the best,which was the best ratio.Under this ratio,the maximum thermal conductivity of the composite was 0.18 W/（m∙K）,and the thermal storage density was 457.2 J/g at 50~500 °C,which showed good thermal storage performance.

Key words: solid waste, calcium carbide slag, framework material, phase change materials, thermal energy storage, cold compression-hot sintering method, carbon neutrality

中图分类号:

TK02

熊亚选, 王辉祥, 胡子亮, 药晨华, 宋超宇, 丁玉龙. 电石渣骨架定型相变材料储热性能研究[J]. 综合智慧能源, 2022, 44(4): 71-75.

XIONG Yaxuan, WANG Huixiang, HU Ziliang, YAO Chenhua, SONG Chaoyu, DING Yulong. Study on heat storage performance of shape-stable carbide slag skeleton phase change material[J]. Integrated Intelligent Energy, 2022, 44(4): 71-75.

图/表 8

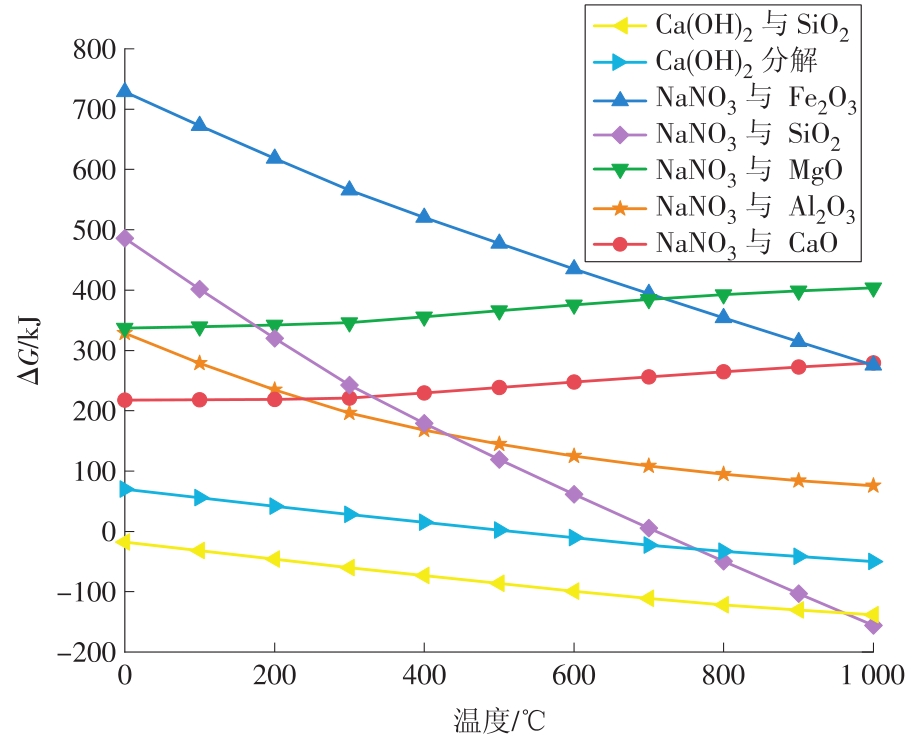

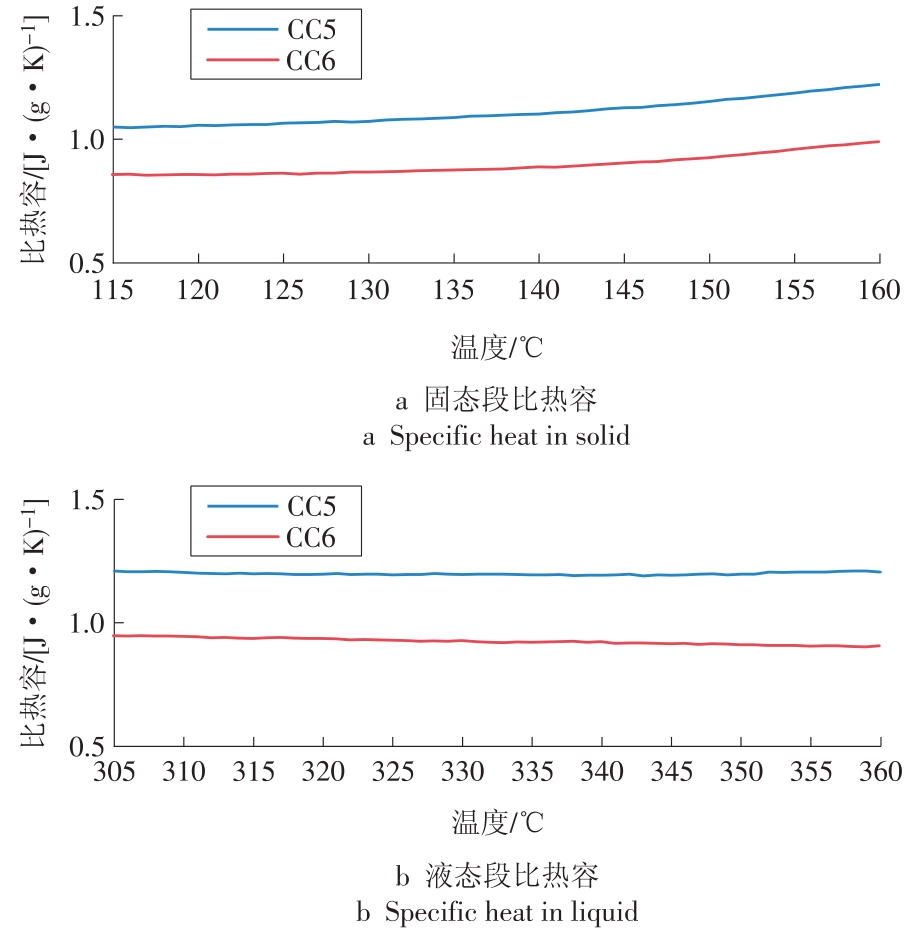

图1

表1

图2

图3

图4

图5

图6

图7

参考文献 17

[1]	王蕾, 裴庆冰. 全球能源需求特点与形势[J]. 中国能源, 2018, 40(9):13-18,7.
[2]	郭敏晓, 杨宏伟. 围绕“碳中和”愿景能源与环境领域将呈现六方面的变化趋势 “十三五”能源与环境形势及“十四五”展望[J]. 中国能源, 2021(3):19-23,58.
[3]	马冰, 贾凌霄, 于洋, 等. 地球科学与碳中和:现状与发展方向[J]. 中国地质, 2021, 48(2):347-358.
	MA Bing, JIA Lingxiao, YU Yang, et al. Geoscience and carbon neutralization:Current status and development direction[J]. Geology in China, 2021, 48(2):347-358.
[4]	LI Q, LI C, DU Z, et al. A review of performance investigation and enhancement of shell and tube thermal energy storage device containing molten salt based phase change materials for medium and high temperature applications[J]. Applied Energy, 2019, 255:113806. doi: 10.1016/j.apenergy.2019.113806
[5]	JIANG F, ZHANG L L, SHE X H, et al. Skeleton materials for shape-stabilization of high temperature salts based phase change materials:A critical review[J]. Renewable and Sustainable Energy Reviews, 2020, 119:109539. doi: 10.1016/j.rser.2019.109539
[6]	CHEN X, TANG Z D, LIU P P, et al. Smart utilization of multifunctional metal oxides in phase change materials[J]. Matter, 2020, 3(3):708-741. doi: 10.1016/j.matt.2020.05.016
[7]	GE Z W, YE F, DING Y L. Composite materials for thermal energy storage:Enhancing performance through microstructures[J]. Chemistry Sustainability Energy Materials, 2014, 7(5):1318-1325.
[8]	LI Q, CONG L, ZHANG X S, et al. Fabrication and thermal properties investigation of aluminium based composite phase change material for medium and high temperature thermal energy storage[J]. Solar Energy Materials and Solar Cells, 2020, 211:110511. doi: 10.1016/j.solmat.2020.110511
[9]	YU Q H, JIANG Z, CONG L, et al. A novel low-temperature fabrication approach of composite phase change materials for high temperature thermal energy storage[J]. Applied Energy, 2019, 237:367-377. doi: 10.1016/j.apenergy.2018.12.072
[10]	SANG L X, XU Y W. Form stable binary chlorides/expanded graphite composite material with enhanced compressive strength for high temperature thermal storage[J]. Journal of Energy Storage, 2020, 31:101611. doi: 10.1016/j.est.2020.101611
[11]	YU Q, LU Y W, ZHANG C C, et al. Research on thermal properties of novel silica nanoparticle/binary nitrate/expanded graphite composite heat storage blocks[J]. Solar Energy Materials and Solar Cells, 2019, 201:110055. doi: 10.1016/j.solmat.2019.110055
[12]	REN Y X, XU C, YUAN M D, et al. Ca(NO₃)₂-NaNO₃/expanded graphite composite as a novel shape-stable phase change material for mid-to high-temperature thermal energy storage[J]. Energy Conversion and Management, 2018, 163:50-58. doi: 10.1016/j.enconman.2018.02.057
[13]	LIU R P, ZHANG F, SU W M, et al. Impregnation of porous mullite with Na₂SO₄ phase change material for thermal energy storage[J]. Solar Energy Materials and Solar Cells, 2015, 134:268-274. doi: 10.1016/j.solmat.2014.12.012
[14]	ANAGNOSTOPOULOS A, NAVARRO M E, STEFANIDOU M, et al. Red mud-molten salt composites for medium-high temperature thermal energy storage and waste heat recovery applications[J]. Journal of Hazardous Materials, 2021, 413:125407. doi: 10.1016/j.jhazmat.2021.125407
[15]	WANG T Y, ZHANG T Y, XU G Z, et al. A new low-cost high-temperature shape-stable phase change material based on coal fly ash and K₂CO₃[J]. Solar Energy Materials and Solar Cells, 2020, 206:110328. doi: 10.1016/j.solmat.2019.110328
[16]	王燕, 黄云, 姚华, 等. 太阳盐/钢渣定型复合相变储热材料的制备与性能研究[J]. 过程工程学报, 2021, 21(3):332-340.
	WANG Yan, HUANG Yun, YAO Hua, et al. Fabrication and characterization of form-stable solar salt/steel slag composite phase change material for thermal energy storage[J]. Chinese Journal of Process Engineering, 2021, 21(3):332-340.
[17]	王长君, 刘硕, 丁薛峰. 相变储能技术在清洁供暖中的应用研究[J]. 华电技术, 2020, 42(11):91-96.
	WANG Changjun, LIU Shuo, DING Xuefeng. The study on application of phase change energy storage technology in clean heating[J]. Huadian Technology, 2020, 42(11):91-96.

项目	复合材料
项目	CC1	CC2	CC3	CC4	CC5	CC6	CC7
ω(NaNO₃)/%	70.0	60.0	57.5	55.0	52.5	50.0	40.0
ω(电石渣)/%	30.0	40.0	42.5	45.0	47.5	50.0	60.0
ω(PVA)/%	3.0	3.0	3.0	3.0	3.0	3.0	3.0

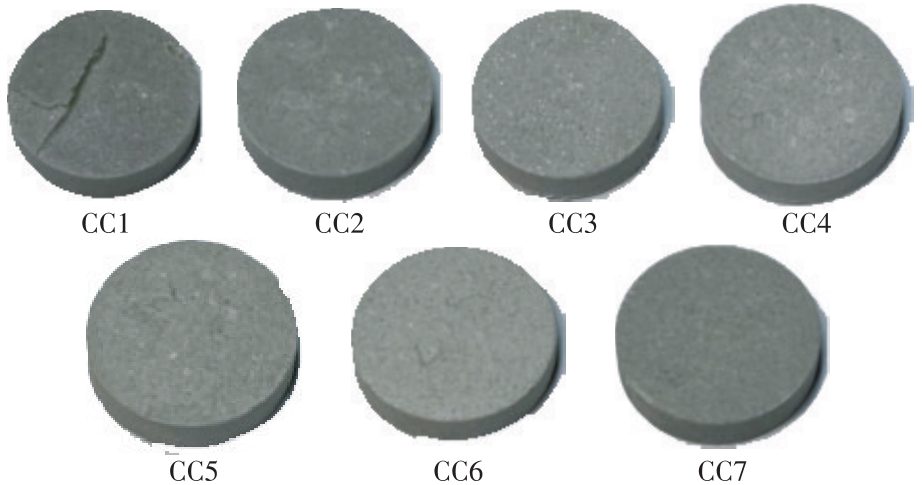

烧结后材料外观	S	L	L	L	L	N	N
