太阳能与燃气-蒸汽联合循环互补性能分析

doi:10.3969/j.issn.2097-0706.2023.12.010

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (12): 79-86.doi: 10.3969/j.issn.2097-0706.2023.12.010

• 优化运行与控制 • 上一篇

太阳能与燃气-蒸汽联合循环互补性能分析

耿直¹^,²^,³(), 陈柯宇¹, 刘媛媛², 张斌², 王剑利², 石天庆², 李芳², 顾煜炯⁴

1.郑州航空工业管理学院航空发动机学院，郑州 450046
2.华电郑州机械设计研究院有限公司，郑州 450046
3.清华大学能源与动力工程系，北京 100084
4.华北电力大学国家火力发电工程技术研究中心，北京 102206

收稿日期:2023-05-17 修回日期:2023-06-17 出版日期:2023-12-25 发布日期:2023-08-23
作者简介:耿直（1991），男，讲师，博士后，博士，从事清洁可再生能源高效转换与利用方面的研究，zhgz@zua.edu.cn。
基金资助:
河南省青年人才托举工程计划项目(2022HYTP021);中国华电集团科技项目(CHDKJ22-01-23);教育部教指委高等学校能源动力类教学研究与实践资助项目(NSJZW2021Y-99);河南省住房城乡建设科技计划资助项目(HNJS-2022-K57);河南科技智库调研课题(HNKJZK-2023-47B)

Complementarity analysis of solar energy and gas turbine combined cycle

GENG Zhi¹^,²^,³(), CHEN Keyu¹, LIU Yuanyuan², ZHANG Bin², WANG Jianli², SHI Tianqing², LI Fang², GU Yujiong⁴

1. School of Aero Engine， Zhengzhou University of Aeronautics， Zhengzhou 450046， China
2. Huadian Zhengzhou Mechanical Design Institute Company Limited， Zhengzhou 450046， China
3. Department of Energy and Power Engineering， Tsinghua University， Beijing 100084， China
4. National Thermal Power Engineering & Technology Research Center， North China Electric Power University， Beijing 102206， China

Received:2023-05-17 Revised:2023-06-17 Online:2023-12-25 Published:2023-08-23
Supported by:
Young Elite Scientists Sponsorship Program of Henan Province(2022HYTP021);Science and Technology Program of China Huadian Corporation(CHDKJ22-01-23);Funding for Teaching & Practice of Energy and Power of MOE Higher Education Teaching Guidance Committee(NSJZW2021Y-99);Henan Housing and Urban-Rural Construction Science and Technology Plan(HNJS-2022-K57);Research Project of Henan Provincial Science and Technology Think Tank(HNKJZK-2023-47B)

摘要/Abstract

摘要：

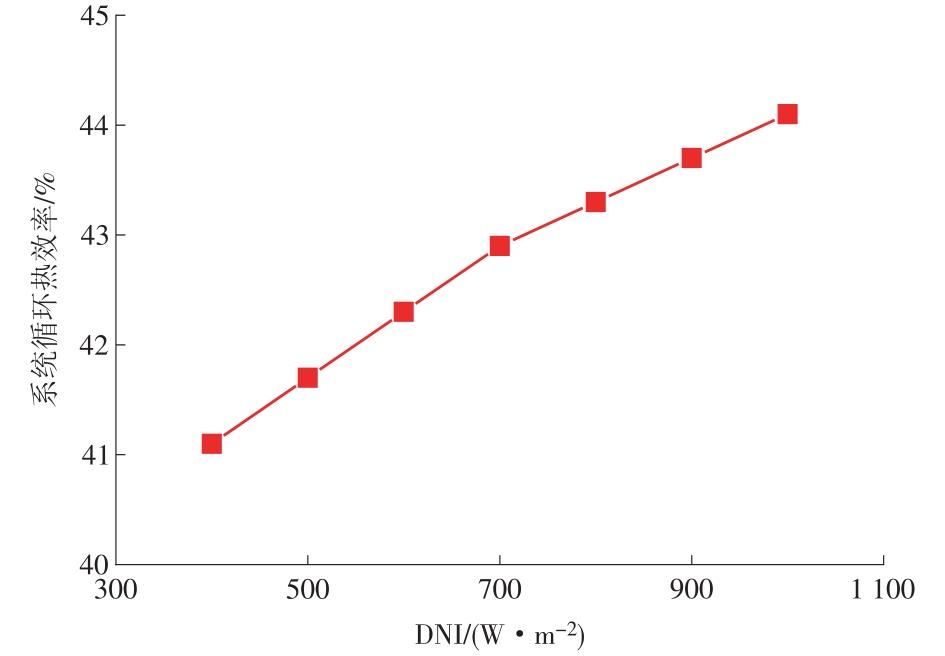

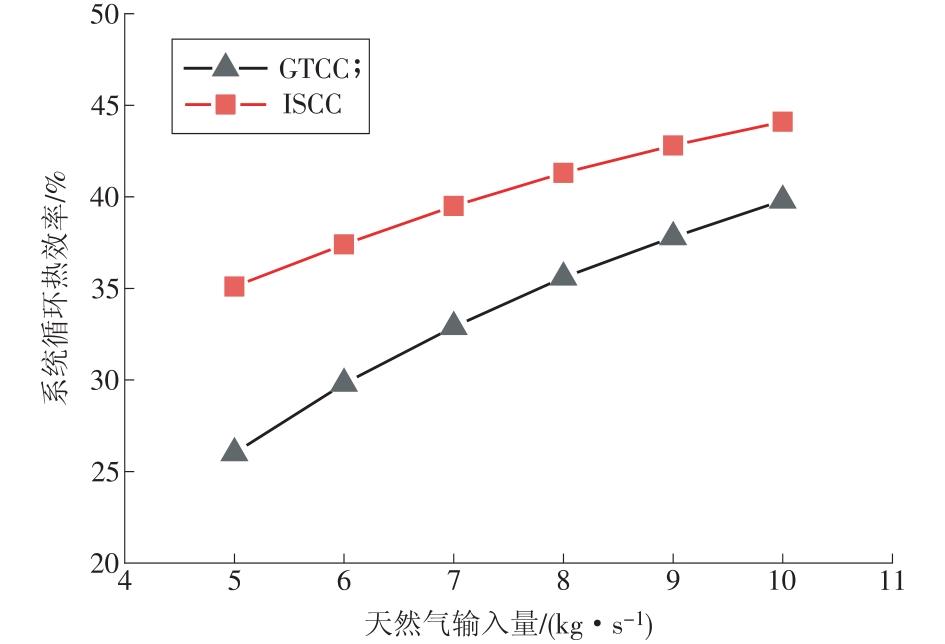

在世界能源储量短缺的背景下，如何提高现有能源可利用率已成为研究热点。太阳能作为一种清洁能源，为发展燃气-蒸汽联合循环（GTCC）系统提供了新的研究方向。将太阳能与燃气发电装置耦合在顶循环（布雷顿循环）的发电系统实现了新能源与传统燃机的多能互补综合利用。结合热力学第一定律理，搭建了整体热力学模型，利用Ebsilon模拟软件对太阳能互补联合循环（ISCC）系统和传统GTCC系统的运行性能参数进行了对比分析，并研究了不同法向直接辐照度（DNI）和大气环境温度对ISCC系统变工况下运行特性及整体节能的影响。研究表明，当天然气输入量为10 kg/s时，GTCC系统循环热效率为39.8%，ISCC系统循环热效率为44.1%；在控制系统总输出电功率不变的条件下，ISCC系统能比GTCC系统节省2.638 kg/s的天然气输入量。太阳能与传统GTCC的有机耦合使系统循环热效率和综合输出电功率大幅提高，并在经济性方面显现出较大优势。

关键词: 燃气-蒸汽联合循环, 太阳能, 太阳能互补联合循环, 性能分析, 互补耦合, 模拟仿真

Abstract:

In the fight against global energy shortage， how to improve the availability of existing energy has become a research hotspot. As a kind of clean energy， solar energy provides a new developing direction for the gas turbine combined cycle （GTCC） system. The power generation system in which solar energy and gas turbines are integrated in the top cycle （Brayton cycle） can realize multi-energy comprehensive utilization.The thermodynamic models for an ISCC system and a GTCC system are established in line with the first law of thermodynamics. Then， the performance parameters of these two systems are comparatively analyzed by Ebsilon simulation software， and the operating characteristics and energy-saving performance of the ISCC system under different direct normal radiation（DNI） and ambient temperature are studied. The research results show the circulating thermal efficiencies of the GTCC system and ISCC system are 39.8% and 44.1% respectively with a 10 kg/s gas inflow rate. On the premise that ISCC system's electric output remains unchanged， the ISCC system can saved 2.638 kg/s natural gas compared with the GTCC system. The coupling of solar energy and traditional GTCC can improve the thermal efficiency， electric output and economy of the whole system.

Key words: gas turbine combined cycle, solar energy, integrated solar combined cycle, performance analysis, complementary coupling, simulation

中图分类号:

TK12：TK123

耿直, 陈柯宇, 刘媛媛, 张斌, 王剑利, 石天庆, 李芳, 顾煜炯. 太阳能与燃气-蒸汽联合循环互补性能分析[J]. 综合智慧能源, 2023, 45(12): 79-86.

GENG Zhi, CHEN Keyu, LIU Yuanyuan, ZHANG Bin, WANG Jianli, SHI Tianqing, LI Fang, GU Yujiong. Complementarity analysis of solar energy and gas turbine combined cycle[J]. Integrated Intelligent Energy, 2023, 45(12): 79-86.

图/表 14

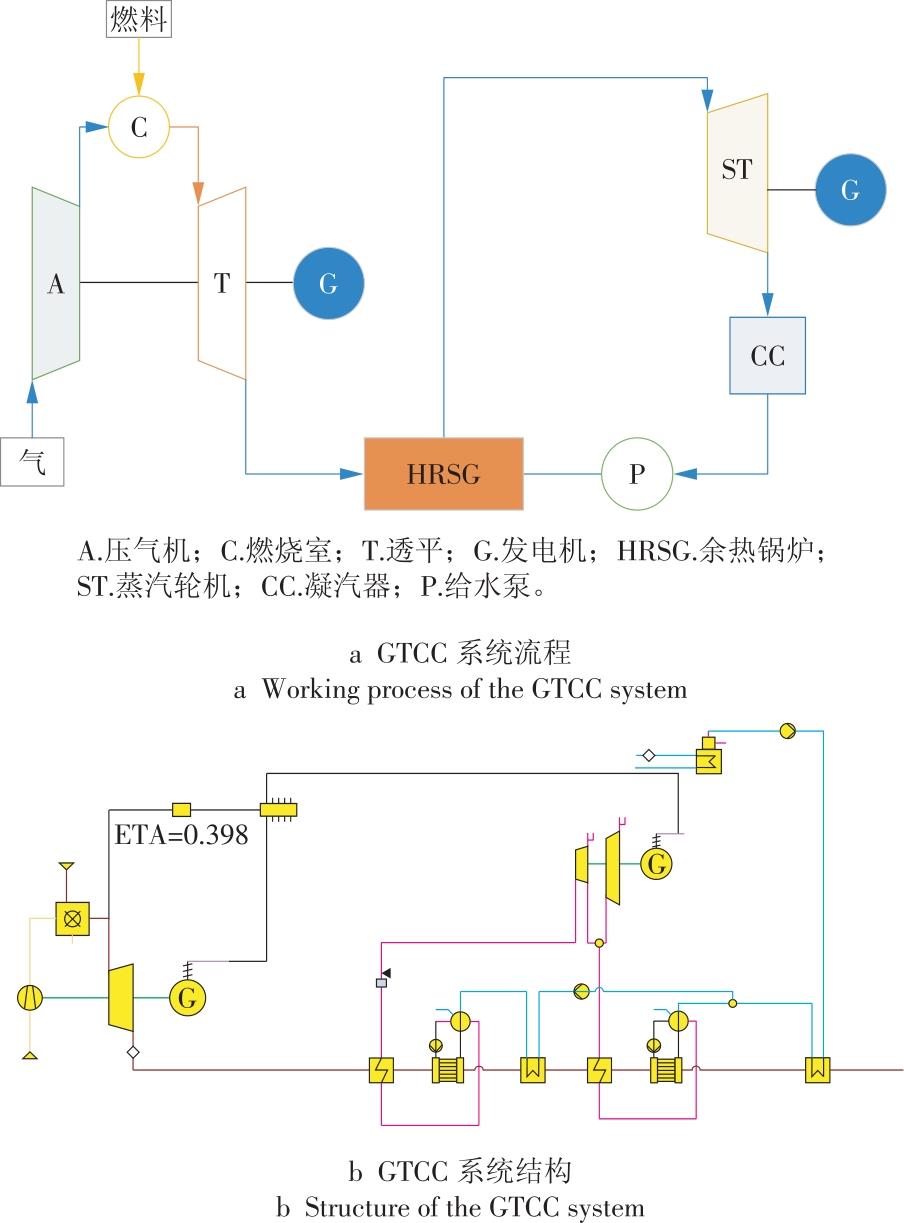

图1

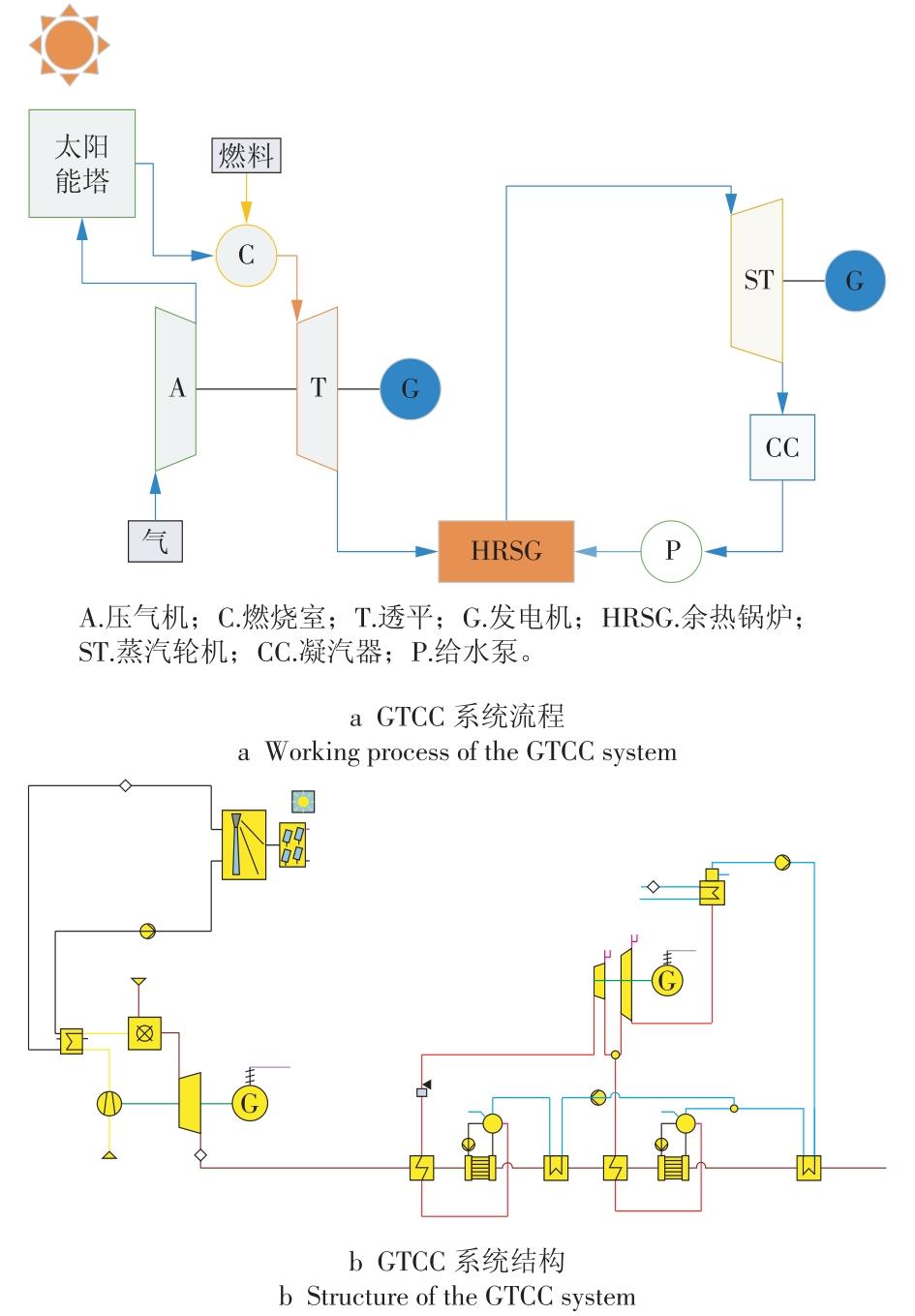

图2

表1

表2

表3

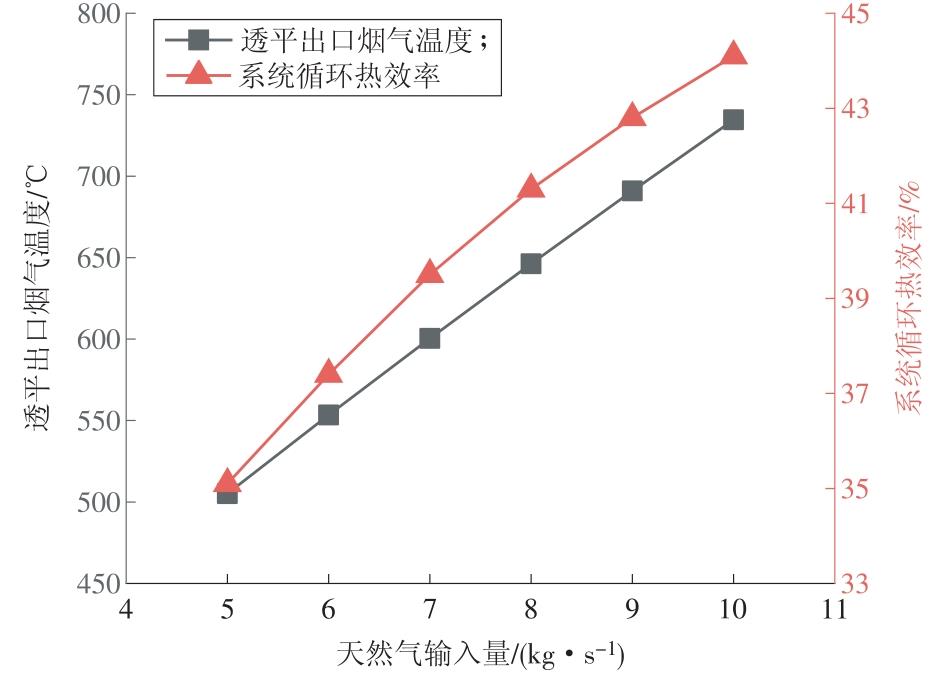

图3

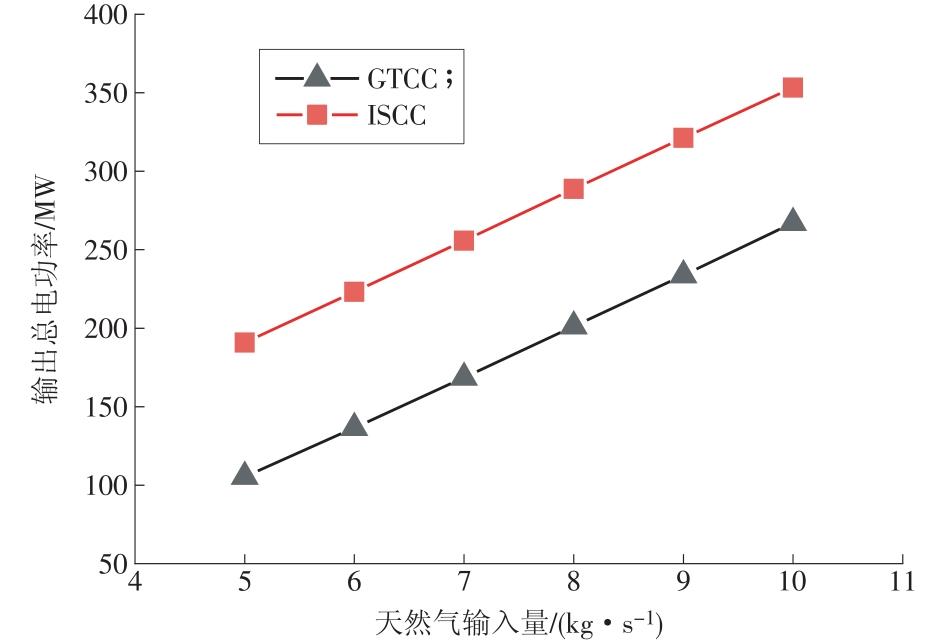

图4

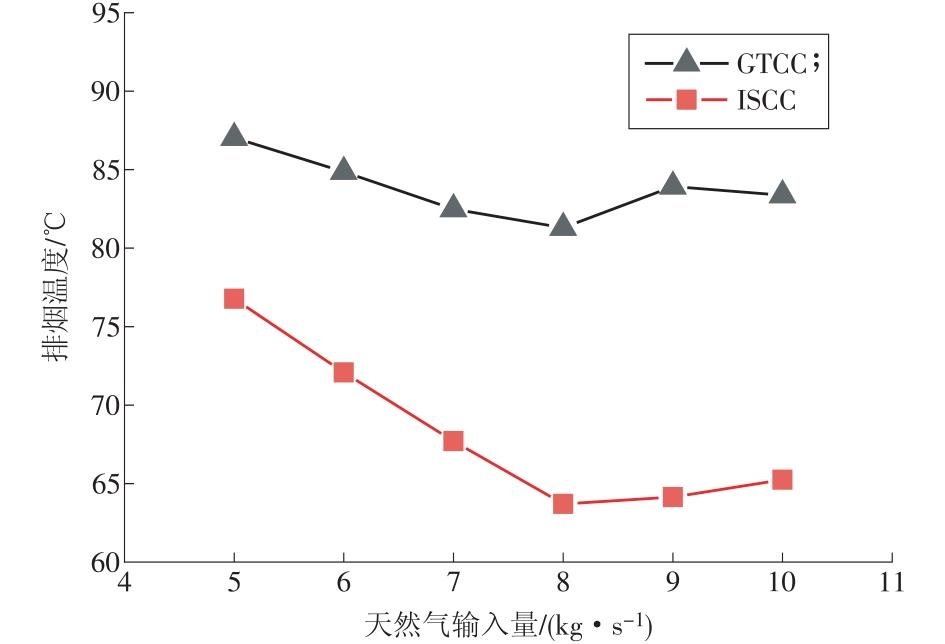

图5

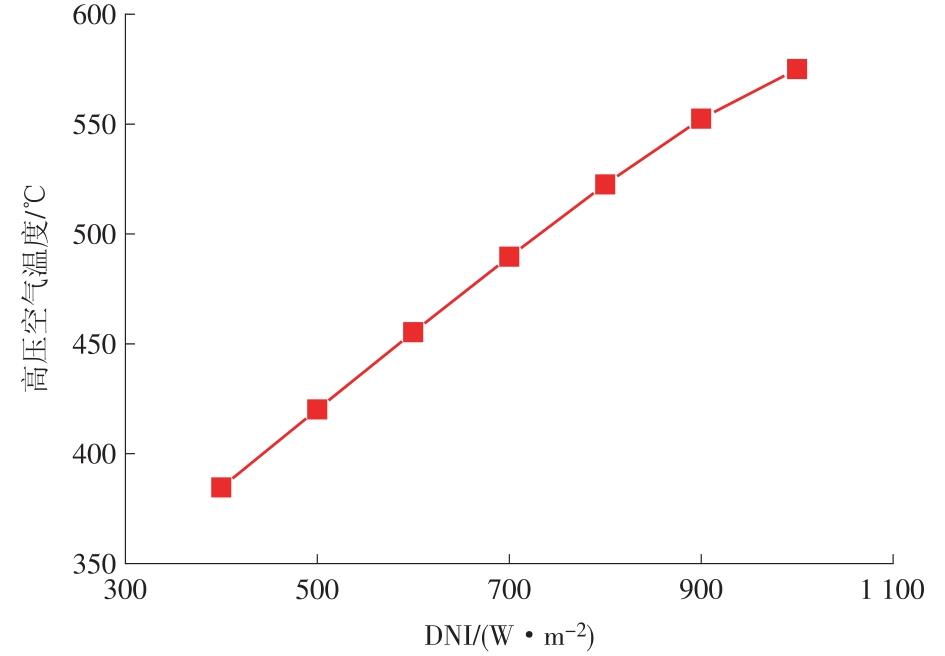

图6

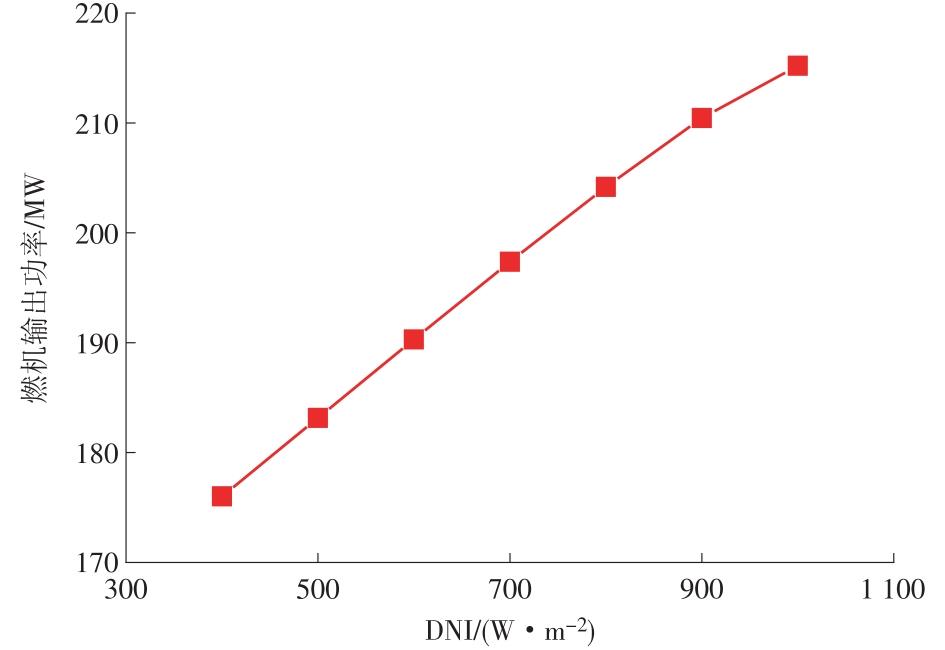

图7

图8

表4

图9

图10

参考文献 22

[1]	马敬凯. 太阳能热互补联合循环系统优化设计研究[D]. 北京: 华北电力大学, 2018.
	MA Jingkai. Study on optimal design of solar combined cycle system with thermal complementarity[D]. Beijing: North China Electric Power University, 2018.
[2]	NEZAMMAHALLEH H. Exergy analysis of DSG parabolic trough collectors for the optimal integration with a combined cycle[J]. International Journal of Exergy, 2015, 16(1): 72-96. doi: 10.1504/IJEX.2015.067300
[3]	GÜLEN C, SMITH R W. Second law efficiency of the Rankine bottoming cycle of a combined cycle power plant[J]. Journal of Engineering for Gas Turbines and Power, 2008, 132(1):1017-1027.
[4]	MOHAMMAD A, MOHAMMAD M. Thermodynamic, thermoeconomic and life cycle assessment of a novel integrated solar combined cycle (ISCC) power plant[J]. Sustainable Energy Technologies and Assessments, 2018, 27: 192-205. doi: 10.1016/j.seta.2018.04.011
[5]	ROVIRA A, BARBERO R, MONTES J M, et al. Analysis and comparison of integrated solar combined cycles using parabolic troughs and linear Fresnel reflectors as concentrating systems[J]. Applied Energy, 2016, 162:990-1000. doi: 10.1016/j.apenergy.2015.11.001
[6]	王树成, 付忠广, 张高强, 等. 基于先进㶲分析方法的太阳能燃气联合循环㶲损分析[J]. 太阳能学报, 2020, 41(11): 192-198.
	WANG Shucheng, FU Zhongguang, ZHANG Gaoqiang, et al. Analysis of combined cycle loss of solar energy and gas based on advanced analysis method[J]. Journal of Solar Energy, 2020, 41(11): 192-198.
[7]	吕志鹏. 新型太阳能热互补联合循环发电系统研究[D]. 北京: 华北电力大学, 2018.
	LV Zhipeng. Research on a new solar-thermal complementary combined cycle power generation system[D]. Beijing: North China Electric Power University, 2018.
[8]	杨谱. 太阳能燃气-蒸汽联合循环热互补发电系统建模及优化[D]. 北京: 华北电力大学, 2020.
	YANG Pu. Modeling and optimization of solar gas-steam combined cycle heat complementary power generation system[D]. Beijing: North China Electric Power University, 2020.
[9]	曲万军. 基于燃气-蒸汽联合循环系统的太阳能热互补发电(ISCC)集成特性研究[D]. 北京: 华北电力大学, 2016.
	QU Wanjun. Study on the integration characteristics of an integrated solar combined cycle (ISCC)system[D]. Beijing: North China Electric Power University, 2016.
[10]	林汝谋, 韩巍, 金红光, 等. 太阳能互补的联合循环(ISCC)发电系统[J]. 燃气轮机技术, 2013, 26(2): 1-15.
	LIN Rumou, HAN Wei, JIN Hongguang, et al. The integrated solar combined cycle power generation systems[J]. Gas Turbine Technology, 2013, 26(2): 1-15.
[11]	谢坤. 塔式太阳能辅助燃气蒸汽联合循环系统研究[D]. 北京: 华北电力大学, 2018.
	XIE Kun. Research on tower solar-assisted gas-steam combined cycle system[D]. Beijing: North China Electric Power University, 2018.
[12]	睢士贤. 光热集成燃气蒸汽联合循环发电系统的运行优化研究[D]. 吉林: 东北电力大学, 2020.
	SUI Shixian. Research on operation optimization of concentrated solar power thermal power generation system[D]. Jilin:Northeast Electric Power University, 2020.
[13]	李猛. 基于太阳能与天然气互补的燃气轮机分布式供能系统研究[D]. 北京: 华北电力大学, 2019.
	LI Meng. Research on distributed energy supply system of gas turbine based on complementary solar energy and natural gas[D]. Beijing: North China Electric Power University, 2019.
[14]	金宇航. 分级式太阳能-燃气轮机联合循环集成系统性能研究[D]. 北京: 华北电力大学, 2018.
	JIN Yuhang. Study on performance of integrated system of graded solar-gas turbine combined cycle[D]. Beijing: North China Electric Power University, 2018.
[15]	王树坤. 太阳能与燃气联合循环系统的㶲分析与运行性能研究[D]. 吉林: 东北电力大学, 2022.
	WANG Shukun. Exergy analysis and operation behavior study of solar-gas combined cycle system[D]. Jilin:Northeast Electric Power University, 2022.
[16]	ELMOHLAWYASHRAF E, OCHKOVVALERY F, KAZANDZHANBORIS I. Thermal performance analysis of a concentrated solar power system (CSP) integrated with natural gas combined cycle (NGCC) power plant[J]. Case Studies in Thermal Engineering, 2019, 14:100458. doi: 10.1016/j.csite.2019.100458
[17]	BRODRICK P G, BRANDT A R, DURLOFSKY LJ. Optimal design and operation of integrated solar combined cycles under emissions intensity constraints[J]. Applied Energy, 2018, 226:979-990. doi: 10.1016/j.apenergy.2018.06.052
[18]	李航行. 太阳能-燃气联合循环热电联产机组性能研究[D]. 北京: 华北电力大学, 2021.
	LI Hangxing. Study on the performance of solar-gas combined cycle cogeneration unit[D]. Bejing: North China Electric Power University, 2021.
[19]	王刚, 曹勇, 王树坤, 等. ISCC分布式能源站的系统设计与初步分析[J]. 太阳能学报, 2021, 42(8): 66-70.
	WANG Gang, CAO Yong, WANG Shukun, et al. Design and preliminary analysis of ISCC distributed energy system[J]. Acta Energiae Solaris Sinica, 2021, 42(8): 66-70.
[20]	杨谱, 段立强, 潘盼. ISCC发电系统研究进展[J]. 华电技术, 2020, 42(4): 47-56.
	YANG Pu, DUAN Liqiang, PAN Pan. Research progress in ISCC power generation system[J]. Huadian Technology, 2020, 42(4): 47-56.
[21]	祖航, 王秋颖. 环境温度及负荷率对燃气-蒸汽联合循环热电联产机组性能的影响[J]. 华电技术, 2019, 41(11): 49-52.
	ZU Hang, WANG Qiuying. Effects of ambient temperature and load ratio on performance of gas-steam combined cycle cogeneration units[J]. Huadian Technology, 2019, 41(11): 49-52.
[22]	孙健, 秦宇, 王寅武, 等. 基于热网驱动的综合能源新型空气源高温热水机组性能研究[J]. 综合智慧能源, 2022, 44(7): 33-39. doi: 10.3969/j.issn.2097-0706.2022.07.004
	SUN Jian, QIN Yu, WANG Yinwu, et al. Study on the performance of new air-source high-temperature hot water units driven by heat supply network in integrated energy systems[J]. Integrated Intelligent Energy, 2022, 44(7): 33-39. doi: 10.3969/j.issn.2097-0706.2022.07.004

工质	压力/kPa	温度/℃	流量/(kg·s^-1)
空气	100	20.0	500
天然气	1 000	20.0	10
烟气	100	600.9	510

项目	数值
燃气轮机发电功率/MW	167.059
蒸汽轮机发电功率/MW	100.099
联合循环发电功率/MW	267.158
燃气轮机发电效率/%	24.9
循环热效率/%	39.8
排烟温度/℃	83.374

项目	参数	数值
环境参数	DNI/ (W·m^-2)	1 000
环境参数	大气环境温度/℃	20
系统运行参数	燃气轮机发电功率/MW	215.205
	蒸汽轮机发电功率/MW	138.065
	总发电功率/MW	353.270
	循环热效率/%	44.1
	排烟温度/℃	65.249

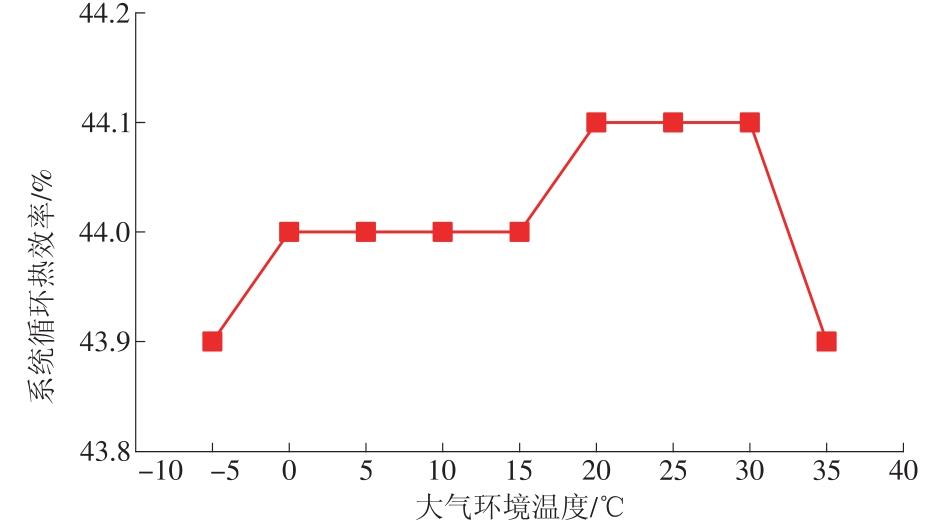

大气环境温度/℃	燃机高压空气温度/℃	燃机输出电功率/MW
-5	570.720	214.300
0	571.641	214.495
5	572.526	214.682
10	573.379	214.862
15	574.201	215.036
20	575.000	215.205
25	575.793	215.372
30	576.644	215.551
35	570.528	214.138
