考虑电动汽车公平性的虚拟电厂优化运行策略

doi:10.3969/j.issn.2097-0706.2025.01.009

摘要/Abstract

摘要：

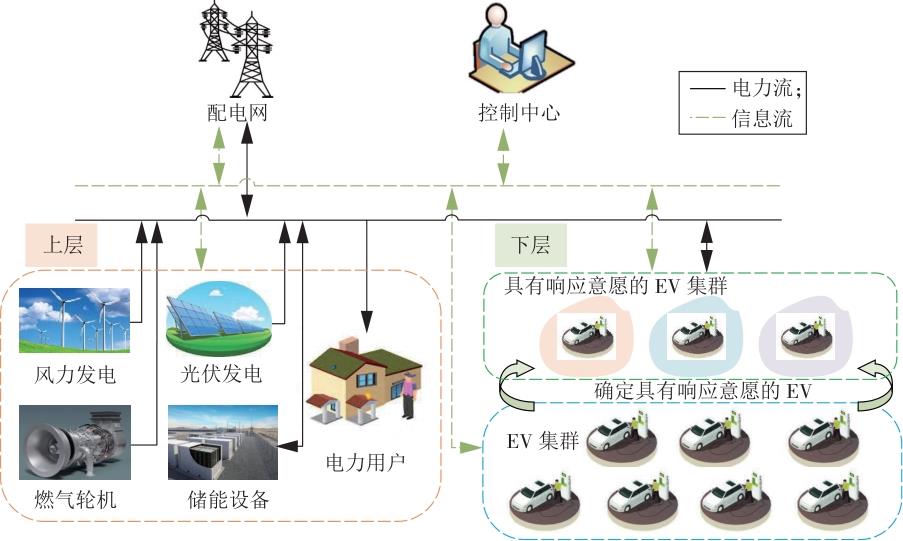

针对虚拟电厂（VPP）中电动汽车（EV）调度意愿较弱、响应功率较低所表现出的公平性考虑不足问题，提出了一种考虑EV公平性的VPP优化调度策略。为有效解决上述问题，建立了VPP与EV集群的双层优化模型，上层的VPP模型中包含了风电、光伏、燃气轮机、储能和用户单元，下层的EV集群模型中，引入了激励价格与EV价格，两者共同作用于用户响应意愿的影响机制。以VPP的运行收益最大化为目标，并基于用户的区间划分情况生成各类EV用户的激励价格，以此提高用户的调度参与度。在下层优化中，每个EV用户基于激励价格的吸引和自身经济考虑，决定是否参与VPP的调度响应，并对响应功率做出决策。基于强对偶卡罗需-库恩-塔克（KKT）条件和大M法求解双层优化问题。仿真结果表明该策略效果良好。

关键词: 虚拟电厂, 电动汽车, 公平性, EV价格区间划分, 差异化激励价格

Abstract:

To address the issue of insufficient consideration of fairness in weak scheduling willingness and low response power of electric vehicles（EVs）in virtual power plant（VPP），an optimal scheduling strategy for VPP considering fairness of EVs was proposed. To effectively resolve the issue，a bi-level optimization model was established for the VPP and the EV clusters. The upper-level VPP model included wind power，photovoltaic（PV）power，gas turbines，energy storage，and user units. In the lower-level EV cluster model，an influence mechanism was introduced to account for the combined effect of incentive prices and EV prices on the users willingness to respond. Aiming to maximize the operating revenue of the VPP，the incentive prices for various EV users were generated based on the users' interval division to improve their participation in scheduling. In the lower-level optimization，each EV user decided whether to participate in the VPP's scheduling response and determined the response power based on the attractiveness of the incentive prices and their own economic considerations. The bi-level optimization problem was then solved based on the KKT conditions and the Big method. Simulations verified the effectiveness of the proposed strategy.

Key words: virtual power plant, electric vehicles, fairness, EV price range classification, differential incentive pricing

中图分类号:

TK73

李明, 胡楠, 刘鑫蕊. 考虑电动汽车公平性的虚拟电厂优化运行策略[J]. 综合智慧能源, 2025, 47(1): 70-78.

LI Ming, HU Nan, LIU Xinrui. Optimal operation strategy of virtual power plants considering fairness for electric vehicles[J]. Integrated Intelligent Energy, 2025, 47(1): 70-78.

图/表 14

图1

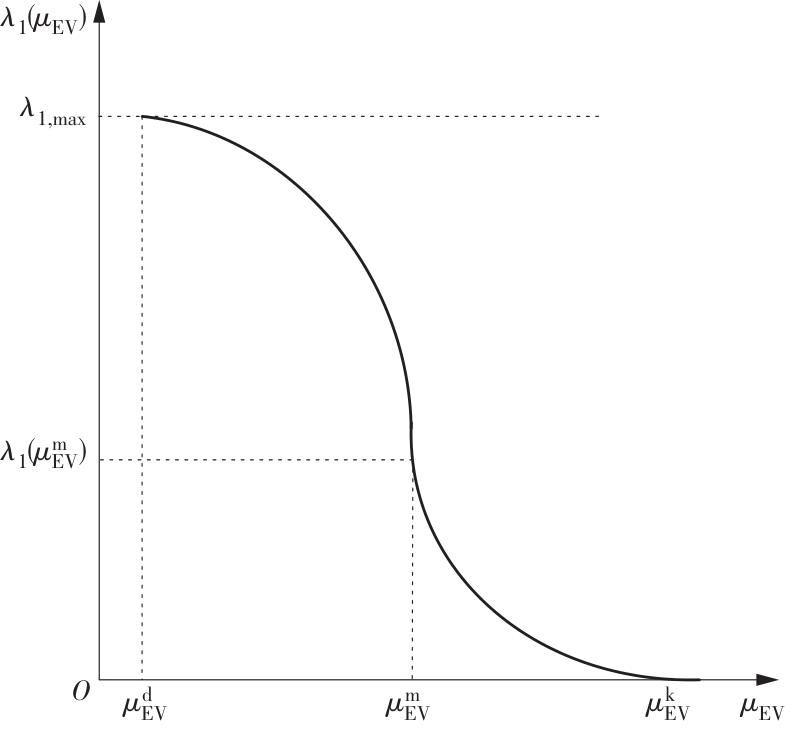

图2

图3

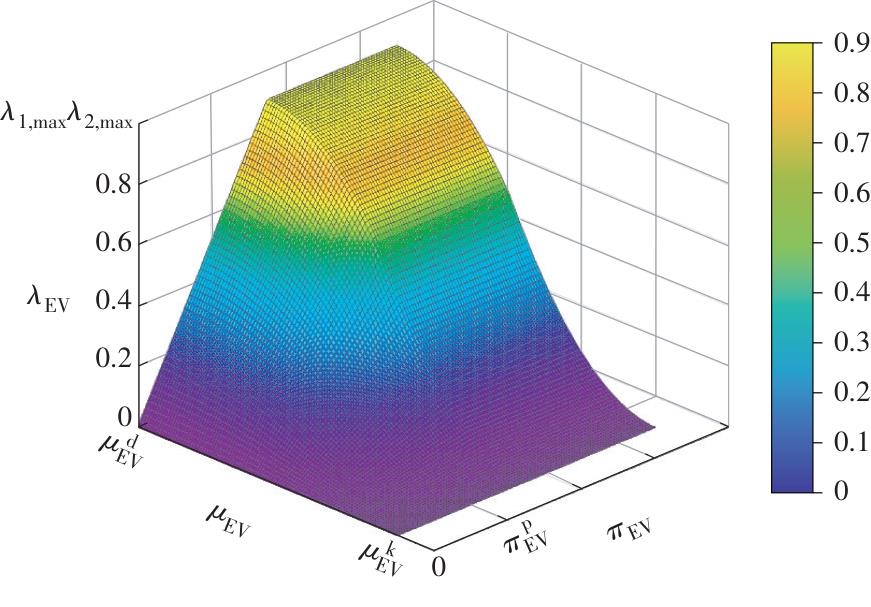

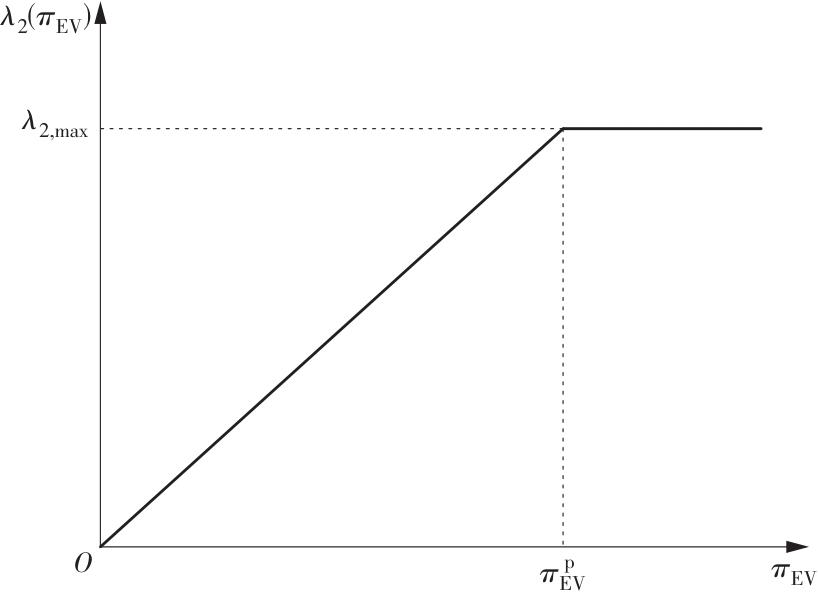

图4

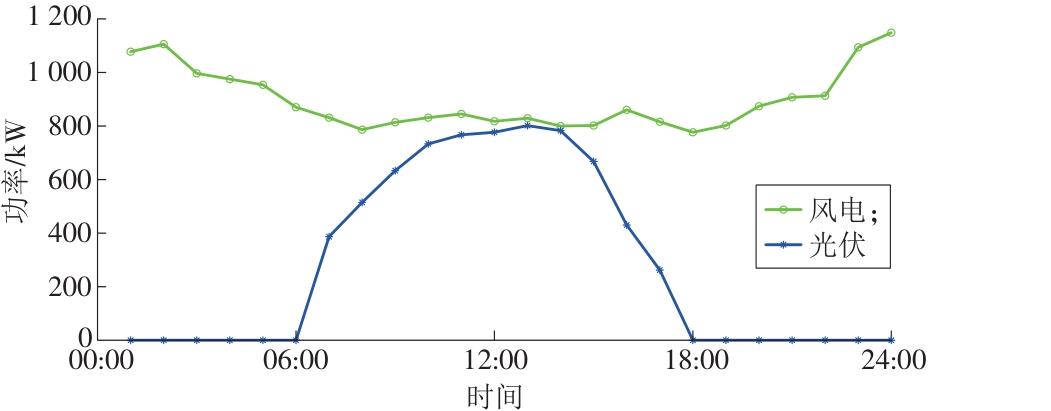

图5

表1

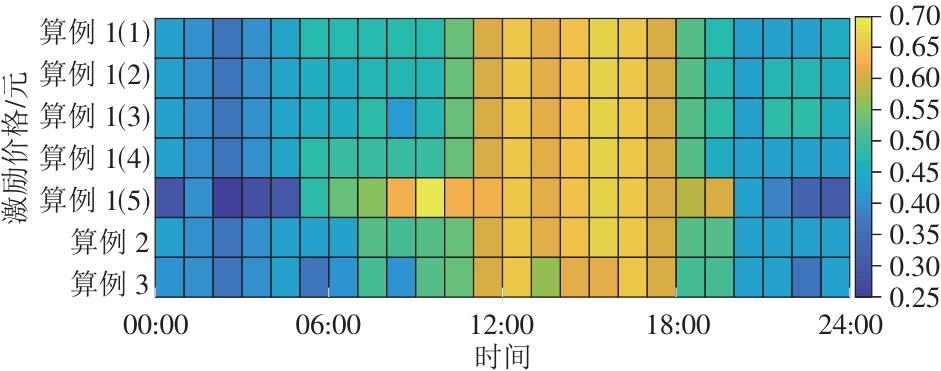

图6

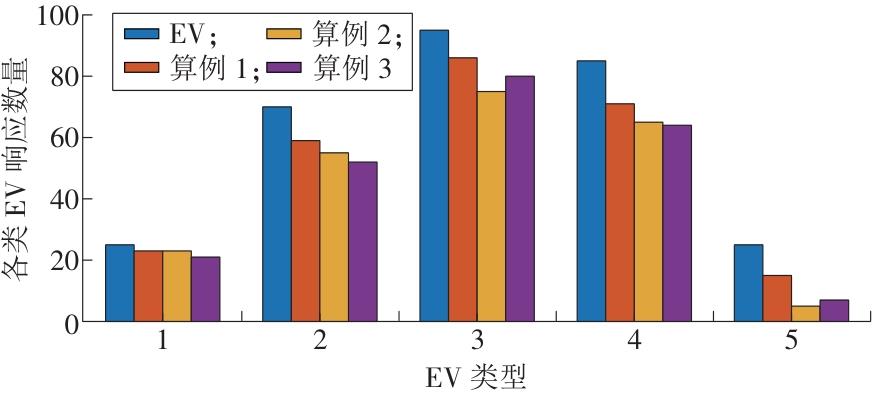

图7

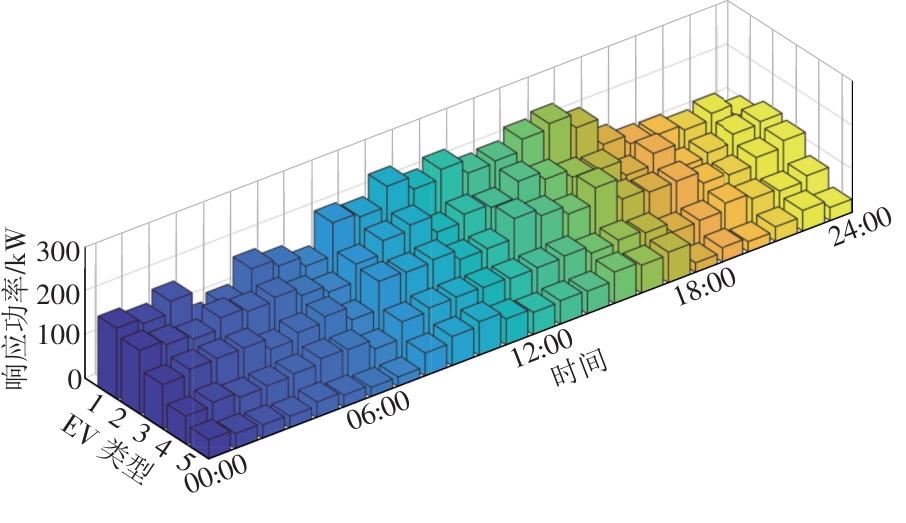

图8

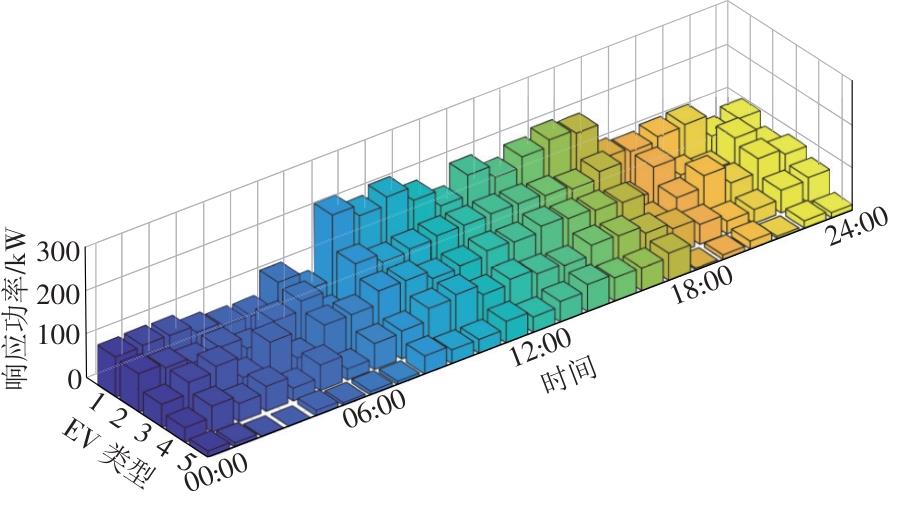

图9

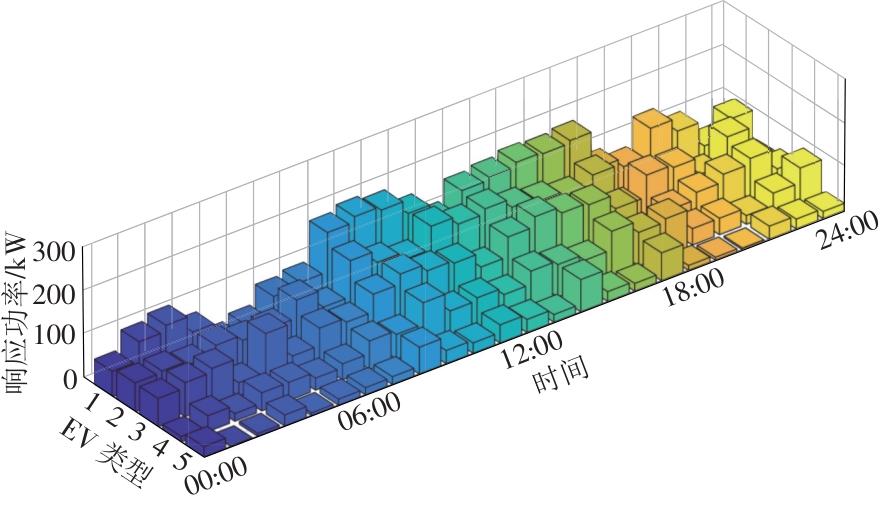

图10

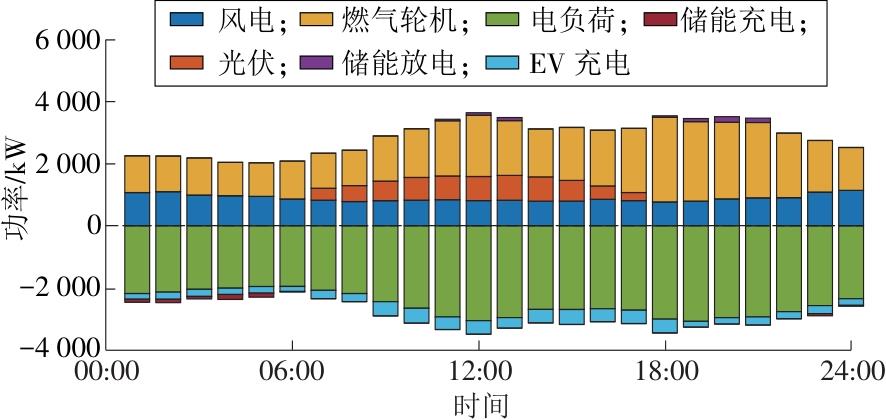

图11

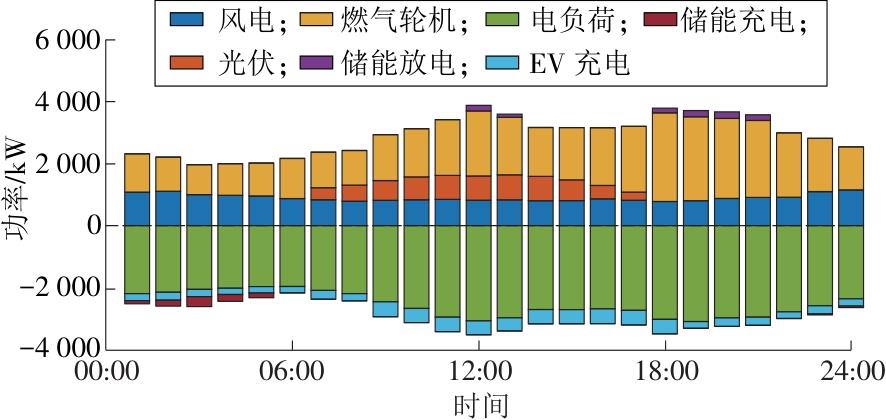

图12

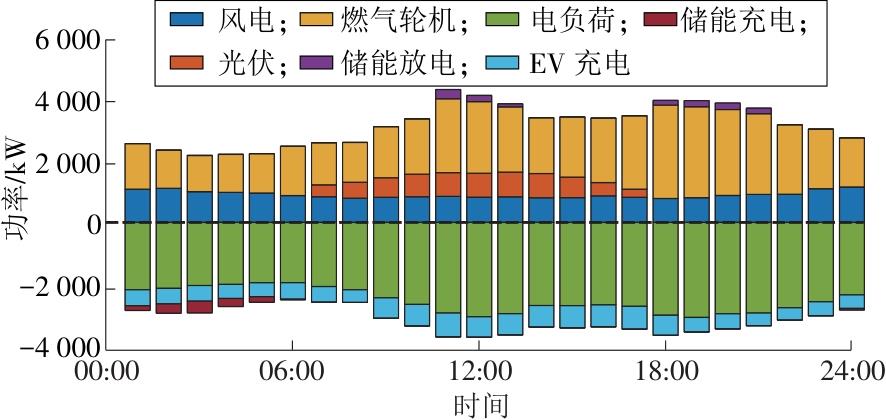

图13

参考文献 30

[1]	刘健, 刘雨鑫, 庄涵羽. 虚拟电厂关键技术及其建设实践[J]. 综合智慧能源, 2023, 45(6):59-65. doi: 10.3969/j.issn.2097-0706.2023.06.008
	LIU Jian, LIU Yuxin, ZHUANG Hanyu. Key technologies of virtual power plant and its construction practice[J]. Integrated Intelligent Energy, 2023, 45(6): 59-65. doi: 10.3969/j.issn.2097-0706.2023.06.008
[2]	李明扬, 窦梦园. 基于强化学习的含电动汽车虚拟电厂优化调度[J]. 综合智慧能源, 2024, 46(6): 27-34. doi: 10.3969/j.issn.2097-0706.2024.06.004
	LI Mingyang, DOU Mengyuan. Optimal scheduling of virtual power plants integrating electric vehicles based on reinforcement learning[J]. Integrated Intelligent Energy, 2024, 46(6): 27-34. doi: 10.3969/j.issn.2097-0706.2024.06.004
[3]	李奇威. 中国汽车工业发展报告(2020)[EB/OL]. (2020-07-24)[2024-08-20]. http://www.caam.org.cn/tjsj.
[4]	徐艳春, 李思佳, 汪平, 等. 考虑分布式电源时空相关及电动汽车充电负荷分布特性的有源配电网概率潮流[J]. 电网技术, 2024, 48(6): 2550-2563.
	XU Yanchun, LI Sijia, WANG Ping, et al. Probabilistic load flow of active distribution network considering spatial-temporal correlation of distribution generation and distribution characteristics of electric vehicle charging load[J]. Power System Technology, 2024, 48(6): 2550-2563.
[5]	国家发展改革委. 国家发展改革委等部门关于进一步提升电动汽车充电基础设施服务保障能力的实施意见[EB/OL]. (2022-01-10)[2024-08-20]. https://www.gov.cn/zhengce/zhengceku/2022-01/21/content_5669780.htm.
[6]	国家发展和改革委员会, 国家能源局. 国家发展改革委国家能源局关于完善能源绿色低碳转型体制机制和政策措施的意见[EB/OL].(2022-01-30)[2024-08-20]. https://www.gov.cn/zhengce/zhengceku/2022-02/11/content_5673015.htm.
[7]	曹永吉, 张恒旭, 施啸寒, 等. 规模化分布式能源参与大电网安全稳定控制的机制初探[J]. 电力系统自动化, 2021, 45(18): 1-8.
	CAO Yongji, ZHANG Hengxu, SHI Xiaohan, et al. Preliminary study on participation mechanism of large-scale distributed energy resource in security and stability control of large power grid[J]. Automation of Electric Power Systems, 2021, 45(18): 1-8.
[8]	蒋玮, 程澍, 李鹏, 等. 面向用户侧源储资源优化调度的能源区块链平台设计[J]. 电力系统自动化, 2021, 45(12): 11-19.
	JIANG Wei, CHENG Shu, LI Peng, et al. Design of energy blockchain platform for optimal dispatching of source and storage resources on user side[J]. Automation of Electric Power Systems, 2021, 45(12): 11-19.
[9]	王晛, 张华君, 张少华. 风电和电动汽车组成虚拟电厂参与电力市场的博弈模型[J]. 电力系统自动化, 2019, 43(3): 155-162.
	WANG Xian, ZHANG Huajun, ZHANG Shaohua. Game model of electricity market involving virtual power plant composed of wind power and electric vehicles[J]. Automation of Electric Power Systems, 2019, 43(3): 155-162.
[10]	张亚朋, 穆云飞, 贾宏杰, 等. 电动汽车虚拟电厂的多时间尺度响应能力评估模型[J]. 电力系统自动化, 2019, 43(12): 94-103.
	ZHANG Yapeng, MU Yunfei, JIA Hongjie, et al. Response capability evaluation model with multiple time scales for electric vehicle virtual power plant[J]. Automation of Electric Power Systems, 2019, 43(12): 94-103.
[11]	刘方, 徐耀杰, 杨秀, 等. 考虑电能交互共享的虚拟电厂集群多时间尺度协调运行策略[J]. 电网技术, 2022, 46(2): 642-656.
	LIU Fang, XU Yaojie, YANG Xiu, et al. Multi-time scale coordinated operation strategy of virtual power plant clusters considering power interactive sharing[J]. Power System Technology, 2022, 46(2): 642-656.
[12]	薛景润, 施啸寒, 曹永吉, 等. 虚拟电厂短时长精细化生产模拟方法与系统[J]. 中国电机工程学报, 2023, 43(9): 3366-3381.
	XUE Jingrun, SHI Xiaohan, CAO Yongji, et al. Refined modeling and system of virtual power plant short term production simulation[J]. Proceedings of the CSEE, 2023, 43(9): 3366-3381.
[13]	栾文鹏, 李培琳, 赵博超, 等. 考虑隐私保护的虚拟电厂内部交易决策优化[J]. 电力系统自动化, 2024, 48(18):158-166.
	LUAN Wenpeng, LI Peilin, ZHAO Bochao, et al. Optimization of internal trading decision-making in virtual power plants considering privacy protection[J]. Automation of Electric Power Systems, 2024, 48(18): 158-166.
[14]	周玮, 徐从明, 杨丹霞, 等. P2P能源共享下考虑意愿动态调整的电动汽车群需求响应策略研究[J]. 中国电机工程学报, 2023, 43(21): 8217-8230.
	ZHOU Wei, XU Congming, YANG Danxia, et al. Research on demand response strategy of electric vehicles considering dynamic adjustment of willingness under P2P energy sharing[J]. Proceedings of the CSEE, 2023, 43(21): 8217-8230.
[15]	张卫国, 徐青山, 陈堃, 等. 考虑电价敏感用户行为的电动汽车虚拟电厂外特性[J]. 高电压技术, 2023, 49(4): 1372-1379.
	ZHANG Weiguo, XU Qingshan, CHEN Kun, et al. External characteristics of electric vehicle virtual power plant considering electricity price-sensitive user behavior[J]. High Voltage Engineering, 2023, 49(4): 1372-1379.
[16]	张卫国, 宋杰, 郭明星, 等. 考虑电动汽车充电需求的虚拟电厂负荷均衡管理策略[J]. 电力系统自动化, 2022, 46(9): 118-126.
	ZHANG Weiguo, SONG Jie, GUO Mingxing, et al. Load balancing management strategy for virtual power plants considering charging demand of electric vehicles[J]. Automation of Electric Power Systems, 2022, 46(9): 118-126.
[17]	刘自发, 刘云阳, 王新月, 等. 考虑可再生能源的配电网储能和电动汽车运行优化研究[J]. 中国电机工程学报, 2022, 42(5): 1813-1825.
	LIU Zifa, LIU Yunyang, WANG Xinyue, et al. Operation schedule optimization of energy storage and electric vehicles in a distribution network with renewable energy sources[J]. Proceedings of the CSEE, 2022, 42(5): 1813-1825.
[18]	呙金瑞, 张智俊, 窦春霞. 基于信息间隙决策理论与动态分时电价的电动汽车接入虚拟电厂双层经济调度策略[J]. 电力自动化设备, 2022, 42(10): 77-85.
	GUO Jinrui, ZHANG Zhijun, DOU Chunxia. Bi-level economic dispatch strategy for electric vehicles connecting to virtual power plant based on information gap decision theory and dynamic time-of-use price[J]. Electric Power Automation Equipment, 2022, 42(10): 77-85.
[19]	乐健, 郎红科, 谭甜源, 等. 新型配电系统分布式经济调度信息安全问题研究综述[J]. 电力系统自动化, 2024, 48(12): 177-191.
	LE Jian, LANG Hongke, TAN Tianyuan, et al. Review of research on information security problems in distributed economic dispatch for new distribution system[J]. Automation of Electric Power Systems, 2024, 48(12): 177-191.
[20]	潘建辉, 张宁, 雍培, 等. 面向海量灵活性资源的两阶段分布式协同调度方法[J]. 电力系统自动化, 2023, 47(15): 67-79.
	PAN Jianhui, ZHANG Ning, YONG Pei, et al. Two-stage distributed collaborative dispatching method for massive flexible resources[J]. Automation of Electric Power Systems, 2023, 47(15): 67-79.
[21]	范帅, 何光宇, 郑湘明, 等. 基于在线分布式优化的虚拟电厂自趋优运行方法研究[J]. 中国电机工程学报, 2023, 43(13): 4935-4950.
	FAN Shuai, HE Guangyu, ZHENG Xiangming, et al. Research on online distributed optimization-based self-approaching optimization operation method of virtual power plant[J]. Proceedings of the CSEE, 2023, 43(13):4935-4950.
[22]	张涛, 王成, 王凌云, 等. 考虑虚拟电厂参与的售电公司双层优化调度模型[J]. 电网技术, 2019, 43(3): 952-961.
	ZHANG Tao, WANG Cheng, WANG Lingyun, et al. A bi-level optimal dispatching model of electricity retailers integrated with VPPs[J]. Power System Technology, 2019, 43(3): 952-961.
[23]	胡澄, 刘瑜俊, 徐青山, 等. 面向含风电楼宇的电动汽车优化调度策略[J]. 电网技术, 2020, 44(2): 564-572.
	HU Cheng, LIU Yujun, XU Qingshan, et al. Optimal scheduling strategy for electric vehicles in buildings with wind power[J]. Power System Technology, 2020, 44(2): 564-572.
[24]	杨健维, 苟方杰, 黄宇, 等. 基于不确定性测度的居民小区电动汽车充电分时电价制定策略[J]. 电网技术, 2018, 42(1): 96-102.
	YANG Jianwei, GOU Fangjie, HUANG Yu, et al. Residential area electric vehicle charging pricing strategy based on uncertainty measure[J]. Power System Technology, 2018, 42(1): 96-102.
[25]	郝丽丽, 王国栋, 王辉, 等. 考虑电动汽车入网辅助服务的配电网日前调度策略[J]. 电力系统自动化, 2020, 44(14): 35-43.
	HAO Lili, WANG Guodong, WANG Hui, et al. Day-ahead scheduling strategy of distribution network considering electric vehicle-to-grid auxiliary service[J]. Automation of Electric Power Systems, 2020, 44(14): 35-43.
[26]	ZHENG Y C, WANG Y B, YANG Q. Bidding strategy design for electric vehicle aggregators in the day-ahead electricity market considering price volatility: A risk-averse approach[J]. Energy, 2023, 283: 129138.
[27]	李高俊杰, 杨军, 朱旭, 等. 计及电动汽车用户响应特性的充电站实时电能共享机制[J]. 电力系统自动化, 2022, 46(12): 56-66.
	LI Gaojunjie, YANG Jun, ZHU Xu, et al. Real-time energy sharing mechanism for charging stations considering user response characteristics of electric vehicles[J]. Automation of Electric Power Systems, 2022, 46(12): 56-66.
[28]	ZIRAS C, KAZEMPOUR J, KARA E C, et al. A mid-term DSO market for capacity limits: how to estimate opportunity costs of aggregators?[J]. IEEE Transactions on Smart Grid, 2020, 11(1): 334-345.
[29]	王毅, 麻秀, 万毅, 等. 基于分时充放电裕度的电动汽车有序充放电引导策略[J]. 电网技术, 2019, 43(12): 4353-4361.
	WANG Yi, MA Xiu, WAN Yi, et al. Sequential charge-discharge guidance strategy for electric vehicles based on time-sharing charging-discharging margin[J]. Power System Technology, 2019, 43(12): 4353-4361.
[30]	魏韡, 陈玥, 刘锋, 等. 基于主从博弈的智能小区代理商定价策略及电动汽车充电管理[J]. 电网技术, 2015, 39(4): 939-945.
	WEI Wei, CHEN Yue, LIU Feng, et al. Stackelberg game based retailer pricing scheme and EV charging management in smart residential area[J]. Power System Technology, 2015, 39(4): 939-945.

算例	VPP运行收益	EV集群成本
1	13 512	3 909
2	15 052	4 521
3	15 339	4 622
