绿证-碳交易机制下考虑阶梯需求响应的区域综合能源系统优化调度

doi:10.3969/j.issn.2097-0706.2025.05.003

摘要/Abstract

摘要：

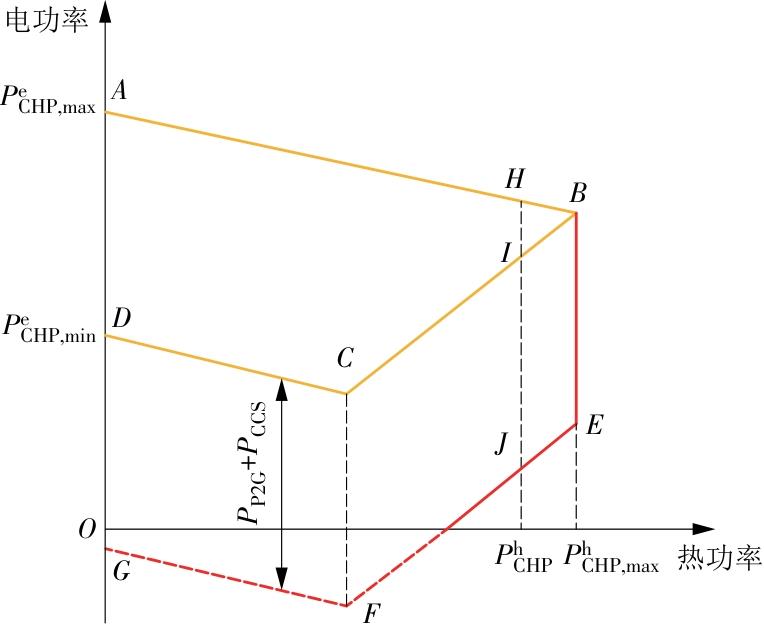

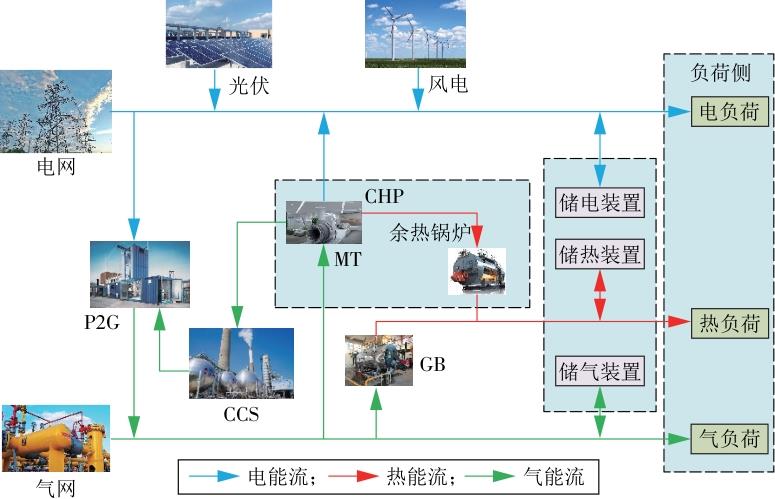

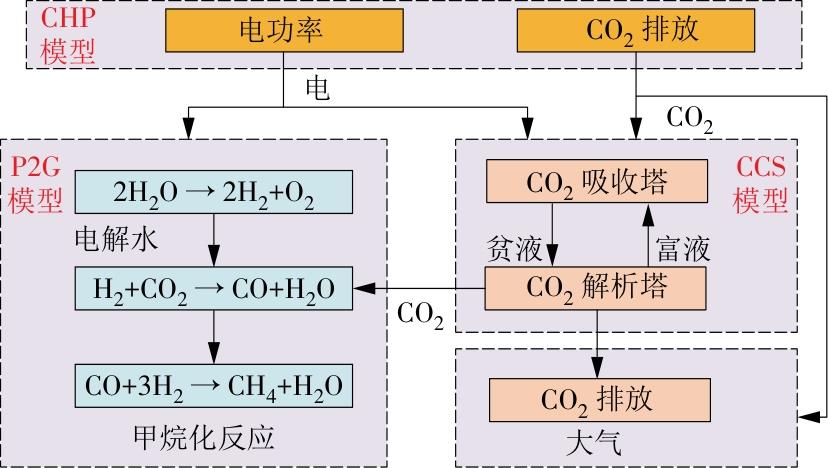

为促进区域综合能源系统低碳、经济运行，提出一种绿证-碳交易机制下考虑阶梯需求响应的综合能源系统低碳经济调度模型。在热电联产机组中引入碳捕集和电转气设备，构建热电联产机组、碳捕集和电转气设备的联合运行模型；分析碳排放权交易机制和绿色电力证书交易机制及两者的交互模型，并在用户负荷侧引入阶梯需求响应实现电、热、气负荷的削峰填谷；以一日内系统运行总成本为目标函数，设置多种算例场景进行分析，采用Gurobi求解器对所构建模型进行求解。算例结果表明，所提模型可以有效提高系统的低碳性和经济性，促进可再生能源机组出力并提高其消纳率，具有优良的调峰效果。

关键词: 区域综合能源系统, 可再生能源, 碳排放权交易, 绿色电力证书交易, 阶梯需求响应, 低碳, 调峰, 热电联产, 碳捕集

Abstract:

To promote low-carbon and cost-effective operations of regional integrated energy systems（RIES）， a low-carbon economic dispatch model under green certificate and carbon trading mechanisms was proposed considering tiered demand response. Carbon capture and power-to-gas technologies were introduced into combined heat and power（CHP） units to establish an integrated operation model for CHP units， carbon capture systems， and power-to-gas equipment. The carbon and green certificate trading mechanisms and their interactive models were analyzed. Additionally， tiered demand response was employed on the user load side to achieve peak load shaving for electricity， heat， and gas loads. The system's total operating cost over a single day was set as the objective function， and various case scenarios were analyzed using the Gurobi solver. The results demonstrate that the proposed model effectively enhances the system's low-carbon performance and economic efficiency， facilitates the output and consumption of renewable energy units， and provides superior peak-shaving effects.

Key words: regional integrated energy system, renewable energy, carbon trading, green certificate trading, tiered demand response, low-carbon, peak-shaving, combined heat and power, carbon capture

中图分类号:

TK01

陈浩, 马刚, 钱达, 马健, 彭乐瑶. 绿证-碳交易机制下考虑阶梯需求响应的区域综合能源系统优化调度[J]. 综合智慧能源, 2025, 47(5): 21-30.

CHEN Hao, MA Gang, QIAN Da, MA Jian, PENG Leyao. Optimization of regional integrated energy systems under green certificate and carbon trading mechanism considering tiered demand response[J]. Integrated Intelligent Energy, 2025, 47(5): 21-30.

图/表 17

图1

图2

图3

图4

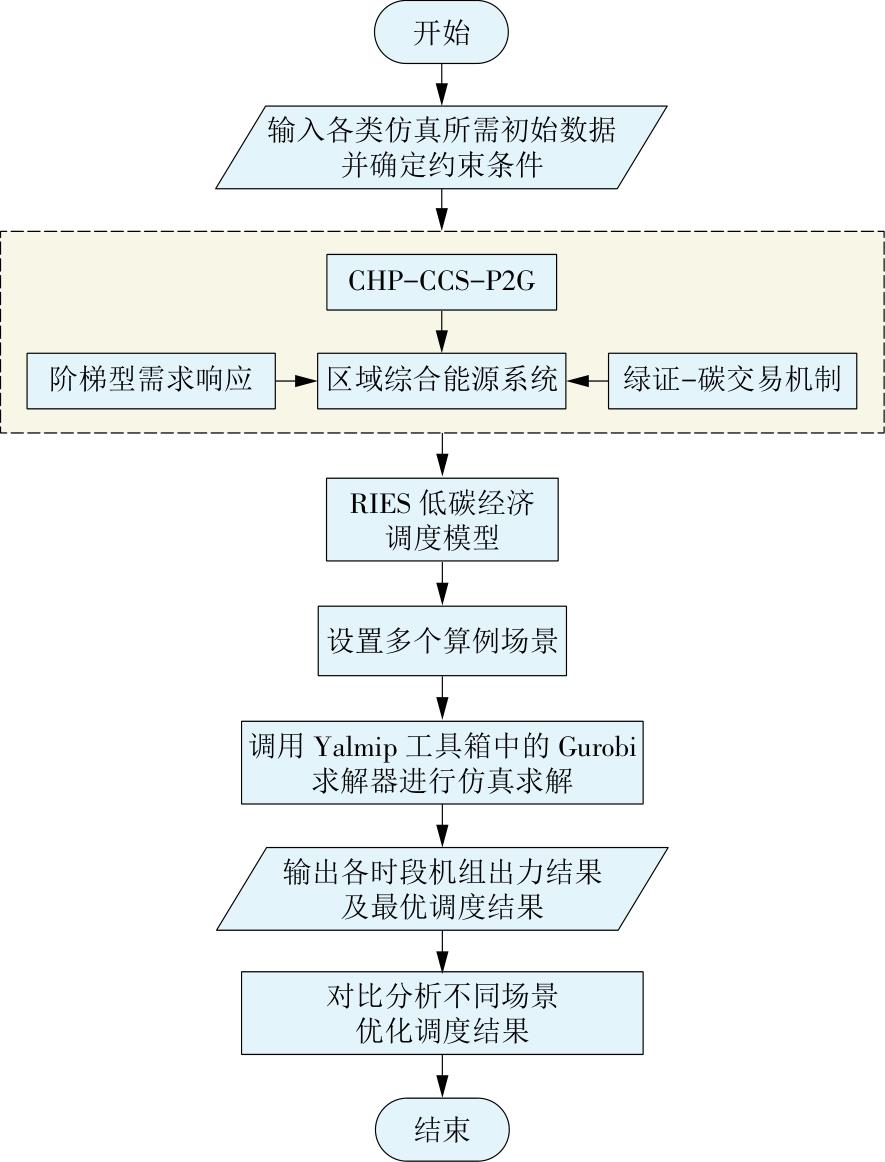

图5

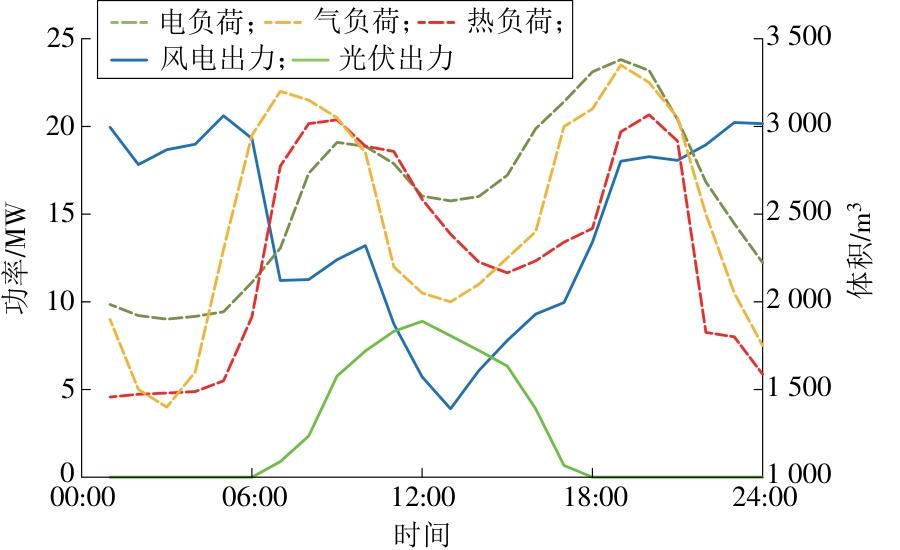

图6

表1

RIES其余参数设置

参数	数值	参数	数值
$ψ G H$	0.75	$β g$ /(本·MW^-1)	1.00
$ψ G E$	2.85	$β g'$ /(t·本^-1)	0.05
$η G B$	0.95	$m 1$ /(元·kW^-1)	0.05
$η M T$	0.58	$m 2$ /(元·kW^-1)	0.50
$p g$ /元	81	$n 1$ /(元·kW^-1)	0.04
$α g$ /(本·kW^-1)	0.65	$n 2$ /(元·kW^-1)	0.30

表1

表2

表3

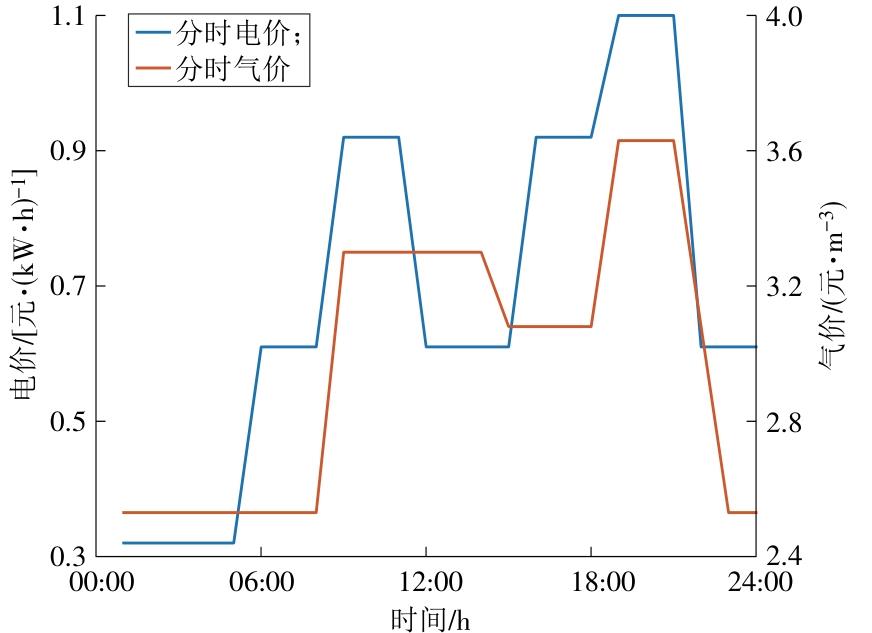

图7

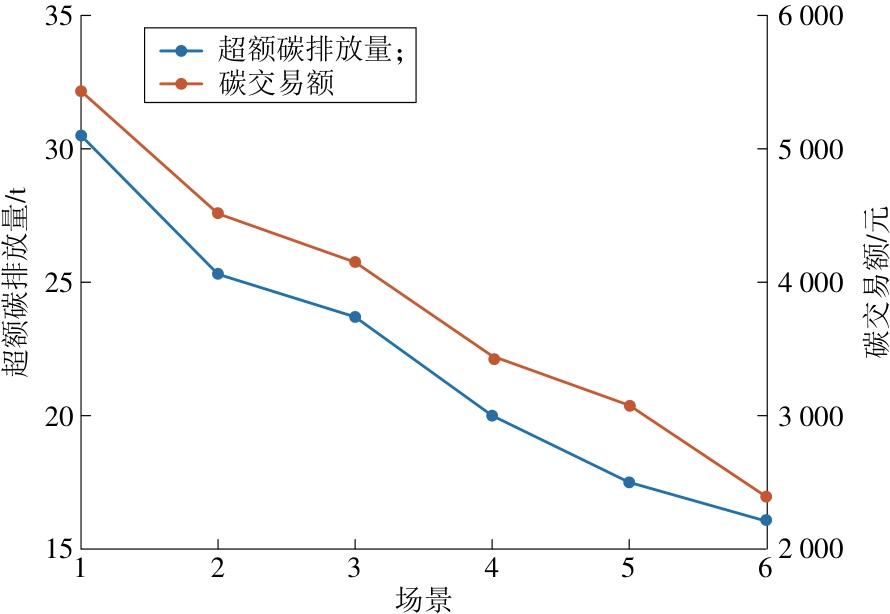

图8

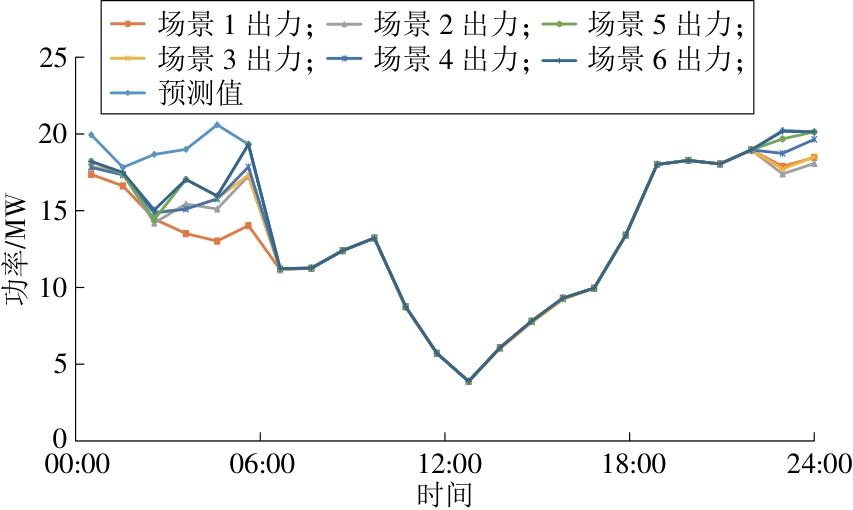

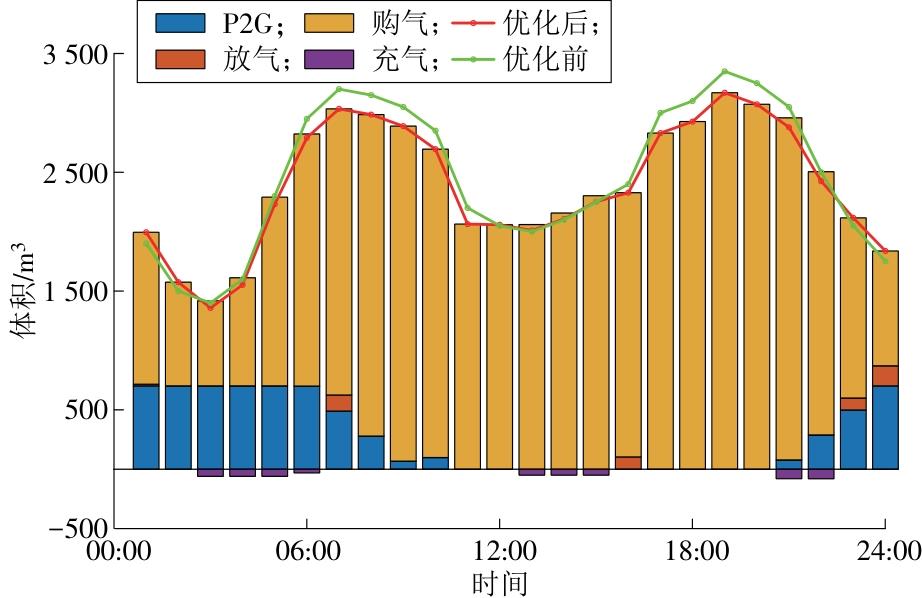

图9

图10

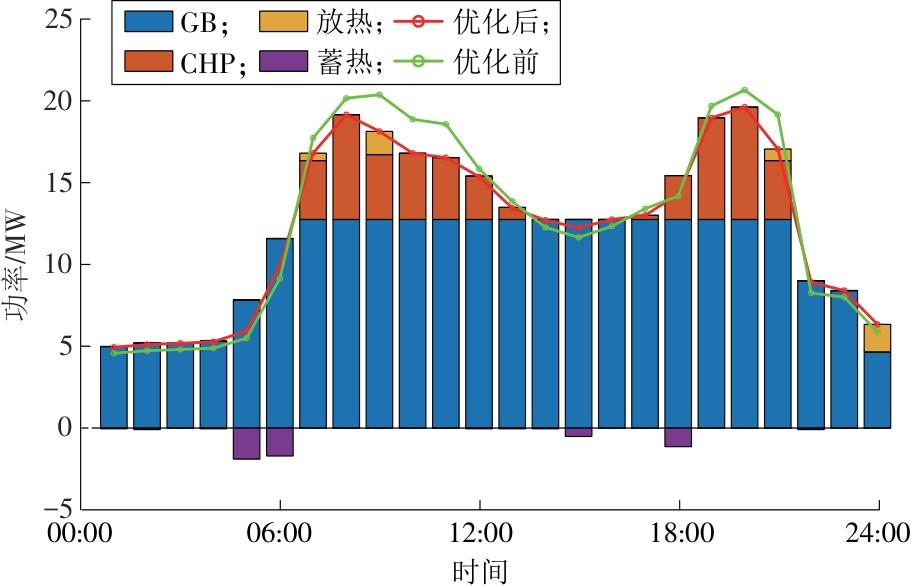

图11

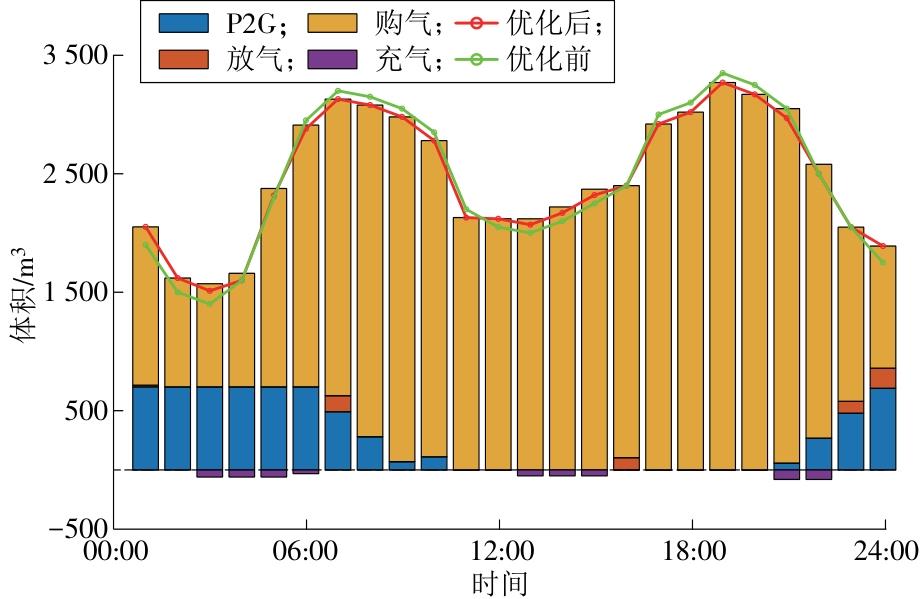

图12

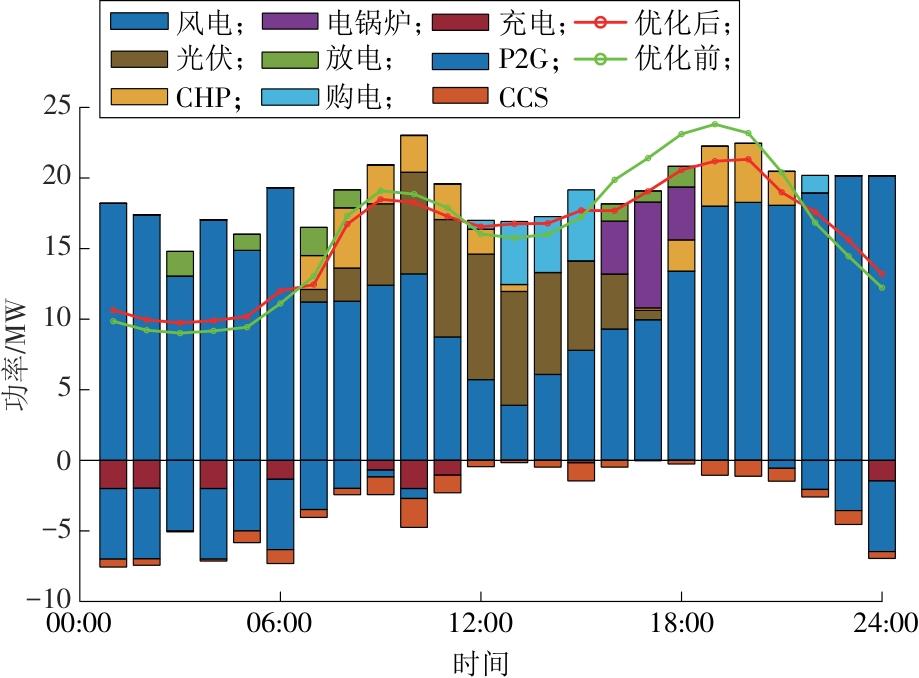

图13

图14

参考文献 28

[1]	REN Y, MA C Y, CHEN H Y, et al. Low-carbon power dispatch model under the carbon peak target[C]// Proceedings of 2021 IEEE Sustainable Power and Energy Conference (iSPEC). IEEE, 2021: 2078-2082.
[2]	冯玉军. 国际能源大变局下的中国能源安全[J]. 国际经济评论, 2023(1): 38-52.
	FENG Yujun. China's energy security under the drastic changes of international energy system[J]. International Economic Review, 2023(1): 38-52.
[3]	LU Y W, CHEN S L. Exploring the realization pathway of carbon peak and carbon neutrality in the provinces around the Yangtze River of China[J]. Journal of Cleaner Production, 2024, 466: 142904.
[4]	ZHANG J L, LIU Z Y. Low carbon economic dispatching model for a virtual power plant connected to carbon capture system considering green certificates-carbon trading mechanism[J]. Sustainable Energy Technologies and Assessments, 2023, 60: 103575.
[5]	芦雯洁. “双碳”目标下我国可再生能源配额分配研究[D]. 北京: 华北电力大学, 2023.
	LU Wenjie. Research on China's renewable energy quota allocation under the goal of "double carbon"[D]. Beijing: North China Electric Power University, 2023.
[6]	幸旭彬, 刘尧, 兰炜, 等. 考虑碳交易-绿证交易的可再生能源优化调度策略[J]. 能源与环保, 2024, 46(3): 184-190, 196.
	XING Xubin, LIU Yao, LAN Wei, et al. Renewable energy optimal dispatch strategy considering carbon trading and green certificate trading[J]. China Energy and Environmental Protection, 2024, 46(3): 184-190, 196.
[7]	曾慧, 杜源, 李涛, 等. 考虑碳交易与绿证交易的电-热耦合园区低碳规划[J]. 综合智慧能源, 2023, 45(2): 22-29. doi: 10.3969/j.issn.2097-0706.2023.02.003
	ZENG Hui, DU Yuan, LI Tao, et al. Low-carbon planning of a park-level integrated electric and heating system considering carbon trading and green certificate trading[J]. Integrated Intelligent Energy, 2023, 45(2): 22-29. doi: 10.3969/j.issn.2097-0706.2023.02.003
[8]	葛磊蛟, 于惟坤, 朱若源, 等. 考虑改进阶梯式碳交易机制与需求响应的综合能源系统优化调度[J]. 综合智慧能源, 2023, 45(7): 97-106. doi: 10.3969/j.issn.2097-0706.2023.07.011
	GE Leijiao, YU Weikun, ZHU Ruoyuan, et al. Integrated energy system optimization scheduling considering improved stepped carbon trading mechanism and demand responses[J]. Integrated Intelligent Energy, 2023, 45(7): 97-106. doi: 10.3969/j.issn.2097-0706.2023.07.011
[9]	REN H B, JIANG Z P, WU Q, et al. Optimal planning of an economic and resilient district integrated energy system considering renewable energy uncertainty and demand response under natural disasters[J]. Energy, 2023, 277: 127644.
[10]	LU W B, XIAO Q, JIAO Z P, et al. Multi-objective optimal operation of district integrated energy system[C]// Proceedings of 2020 IEEE Sustainable Power and Energy Conference (iSPEC). IEEE, 2020: 1505-1510.
[11]	胡枭, 尚策, 陈东文, 等. 考虑能量品质的区域综合能源系统多目标规划方法[J]. 电力系统自动化, 2019, 43(19): 22-31, 139.
	HU Xiao, SHANG Ce, CHEN Dongwen, et al. Multi-objective planning method for regional integrated energy systems considering energy quality[J]. Automation of Electric Power Systems, 2019, 43(19): 22-31, 139.
[12]	黄银恒, 李猛, 庞毅, 等. 区域综合能源系统容量配置和调度策略优化方法研究[J]. 综合智慧能源, 2023, 45(6): 34-41. doi: 10.3969/j.issn.2097-0706.2023.06.005
	HUANG Yinheng, LI Meng, PANG Yi, et al. Research on optimization method for capacity allocation and scheduling strategy of regional integrated energy systems[J]. Integrated Intelligent Energy, 2023, 45(6): 34-41. doi: 10.3969/j.issn.2097-0706.2023.06.005
[13]	鲁玲, 苑涛, 杨波, 等. 计及㶲效率和多重不确定性的区域综合能源系统双层优化[J/OL]. 中国电力: 1-14(2024-05-22) [2024-08-10]. https://kns.cnki.net/kcms/detail/11.3265.tm.20240520.1908.002.html.
	LU Ling, YUAN Tao, YANG Bo, et al. Double-layer optimization of regional integrated energy systems considering exergy efficiency and multiple uncertainties[J/OL]. Electric Power: 1-14(2024-05-22) [2024-08-10]. https://kns.cnki.net/kcms/detail/11.3265.tm.20240520.1908.002.html.
[14]	杨海柱, 李梦龙, 江昭阳, 等. 考虑需求侧电热气负荷响应的区域综合能源系统优化运行[J]. 电力系统保护与控制, 2020, 48(10): 30-37.
	YANG Haizhu, LI Menglong, JIANG Zhaoyang, et al. Optimal operation of regional integrated energy system considering demand side electricity heat and natural-gas loads response[J]. Power System Protection and Control, 2020, 48(10): 30-37.
[15]	张涛, 郭玥彤, 李逸鸿, 等. 计及电气热综合需求响应的区域综合能源系统优化调度[J]. 电力系统保护与控制, 2021, 49(1): 52-61.
	ZHANG Tao, GUO Yuetong, LI Yihong, et al. Optimization scheduling of regional integrated energy systems based on electric-thermal-gas integrated demand response[J]. Power System Protection and Control, 2021, 49(1): 52-61.
[16]	ZHANG L, WANG B, JIA J X, et al. Optimized operation of integrated energy systems considering tradable green certificate and carbon trading mechanism[C]// Proceedings of 2023 IEEE 7th Conference on Energy Internet and Energy System Integration (EI2). IEEE, 2023: 5277-5283.
[17]	RUAN D, YE Y J, HUANG Y, et al. Research on coupling trading mechanism of carbon-green certificate electricity market based on system dynamics[C]// Proceedings of Eighth International Conference on Energy System, Electricity, and Power (ESEP 2023). SPIE, 2024: 131593.
[18]	LI S T, LIU G Q, WANG J C, et al. Multi-timescale scheduling of integrated energy systems containing P2G devices[C]// Proceedings of 2023 IEEE 7th Conference on Energy Internet and Energy System Integration (EI2). IEEE, 2023: 842-848.
[19]	MA Y M, WANG H X, HONG F, et al. Modeling and optimization of combined heat and power with power-to-gas and carbon capture system in integrated energy system[J]. Energy, 2021, 236: 121392.
[20]	杨晓辉, 邓叶恒, 王晓鹏, 等. 基于碳交易-绿色证书联合交易机制的含CHP-CCS-P2G耦合的区域综合能源系统低碳经济调度[J]. 太阳能学报, 2024, 45(6): 244-254.
	YANG Xiaohui, DENG Yeheng, WANG Xiaopeng, et al. Low-carbon economic dispatching of regional integrated energy system with CHP-CCS-P2G coupling based on carbon trade-green certificate joint trading mechanism[J]. Acta Energiae Solaris Sinica, 2024, 45(6): 244-254.
[21]	CHEN Z H, WU H, YANG J Y, et al. Research on optimal scheduling of RIES based on incentive integrated demand response[C]// Proceedings of 2021 IEEE 5th Conference on Energy Internet and Energy System Integration (EI2). IEEE, 2021: 1602-1607.
[22]	伏绍鑫, 万文略, 唐翰峰, 等. 考虑碳-绿证交易及柔性需求响应的含两阶段P2G的综合能源系统优化调度[J/OL]. 现代电力:1-13(2024-08-26) [2024-08-10].https://doi.org/10.19725/j.cnki.1007-2322.2023.0260.
	FU Shaoxin, WAN Wenlue, TANG Hanfeng, et al. Optimal scheduling of integrated energy system with two-stage P2G considering carbon-green certificate trading and flexible demand response[J/OL]. Modern Power:1-13(2024-08-26) [2024-08-10].https://doi.org/10.19725/j.cnki.1007-2322.2023.0260.
[23]	徐光晨, 薛田良, 张磊, 等. 考虑风光不确定和阶梯式需求响应的园区综合能源系统博弈优化运行[J]. 东北电力技术, 2024, 45(3): 16-22.
	XU Guangchen, XUE Tianliang, ZHANG Lei, et al. Game optimization operation of PIES considering landscape uncertainty and stepped demand response[J]. Northeast Electric Power Technology, 2024, 45(3): 16-22.
[24]	QIAN L, LIN S F, LI F X, et al. Low carbon optimization dispatching of energy intensive industrial park based on adaptive stepped demand response incentive mechanism[J]. Electric Power Systems Research, 2024, 233: 110504.
[25]	孟宇翔, 马刚, 李豪, 等. 基于绿证-阶梯式碳交易交互的源荷互补调度优化[J]. 中国电力, 2023, 56(9): 149-156.
	MENG Yuxiang, MA Gang, LI Hao, et al. Optimal scheduling of source-load complementation based on green certificate-step carbon trading interaction[J]. Electric Power, 2023, 56(9): 149-156.
[26]	ZENG Z S, HUANG X N, SHEN Y, et al. Comprehensive energy system optimization strategy based on stepped carbon trading mechanism[C]// Proceedings of 2022 2nd International Conference on Electrical Engineering and Control Science (IC2ECS). IEEE, 2022: 605-610.
[27]	安江涛, 刘卫亮, 林永君, 等. 绿证-碳交易融合机制下含氢综合能源系统优化调度[J]. 太阳能学报, 2024, 45(8): 104-114.
	AN Jiangtao, LIU Weiliang, LIN Yongjun, et al. Optimization scheduling of hydrogen-containing integrated energy system under green certificate-carbon trading integration mechanism[J]. Acta Energiae Solaris Sinica, 2024, 45(8): 104-114.
[28]	曾慧, 杜源, 李涛, 等. 考虑碳交易与绿证交易的电-热耦合园区低碳规划[J]. 综合智慧能源, 2023, 45(2): 22-29. doi: 10.3969/j.issn.2097-0706.2023.02.003
	ZENG Hui, DU Yuan, LI Tao, et al. Low-carbon planning of a park-level integrated electric and heating system considering carbon trading and green certificate trading[J]. Integrated Intelligent Energy, 2023, 45(2): 22-29. doi: 10.3969/j.issn.2097-0706.2023.02.003

场景	阶梯CET	GCT	GCT-CET交互	常规需求响应	阶梯需求响应
1	×	×	×	×	×
2	×	×	×	√	×
3	√	×	×	√	×
4	√	√	×	√	×
5	√	√	√	√	×
6	√	√	√	×	√

场景	总成本	CET成本	GCT成本	需求响应成本	弃风光成本
1	385 463	5 432	0	0	1 360
2	375 995	4 514	0	9 068	864
3	372 413	4 150	0	9 986	699
4	367 799	3 447	-11 097	10 286	661
5	366 843	3 078	-11 340	10 338	544
6	366 855	2 393	-11 259	11 269	532
