前驱体对Ni/ZSM-5催化重整松木屑制氢性能的影响

doi:10.3969/j.issn.2097-0706.2023.05.004

综合智慧能源 ›› 2023, Vol. 45 ›› Issue (5): 32-38.doi: 10.3969/j.issn.2097-0706.2023.05.004

前驱体对Ni/ZSM-5催化重整松木屑制氢性能的影响

苏砚鑫¹(), 王学涛¹^,^*(), 邢利利¹, 李浩杰¹, 张兴宇²

1.河南科技大学能源与动力工程系，河南洛阳 471003
2.齐鲁工业大学能源与动力工程学院，济南 250353

收稿日期:2022-11-26 修回日期:2023-04-20 出版日期:2023-05-25 发布日期:2023-05-27
通讯作者: *王学涛（1976），男，教授，博士生导师，博士，从事清洁高效燃烧、废弃物能源化利用等方面的研究，wxt7682@163.com。
作者简介:苏砚鑫（1996），男，在读硕士研究生，从事清洁高效燃烧、废弃物能源化利用、新能源技术等方面的研究，suyanxin1996@163.com。
基金资助:
国家自然科学基金项目(50806020);河南省科技创新杰出青年基金项目(114100510010);河南省科技攻关计划项目(152102210280)

Effect of precursors on pine sawdust steam reforming over Ni/ZSM-5 catalyst for hydrogen production

SU Yanxin¹(), WANG Xuetao¹^,^*(), XING Lili¹, LI Haojie¹, ZHANG Xingyu²

1. Department of Energy and Power Eengineering， Henan University of Science and Technology， Luoyang 471003，China
2. School of Energy and Power Engineering， Qilu University of Technology， Jinan 250353， China

Received:2022-11-26 Revised:2023-04-20 Online:2023-05-25 Published:2023-05-27
Supported by:
National Natural Science Foundation of China(50806020);Scientific Innovation Funding for Young Researchers of Henan Province(114100510010);Henan Science and Technology Research Project(152102210280)

摘要/Abstract

摘要：

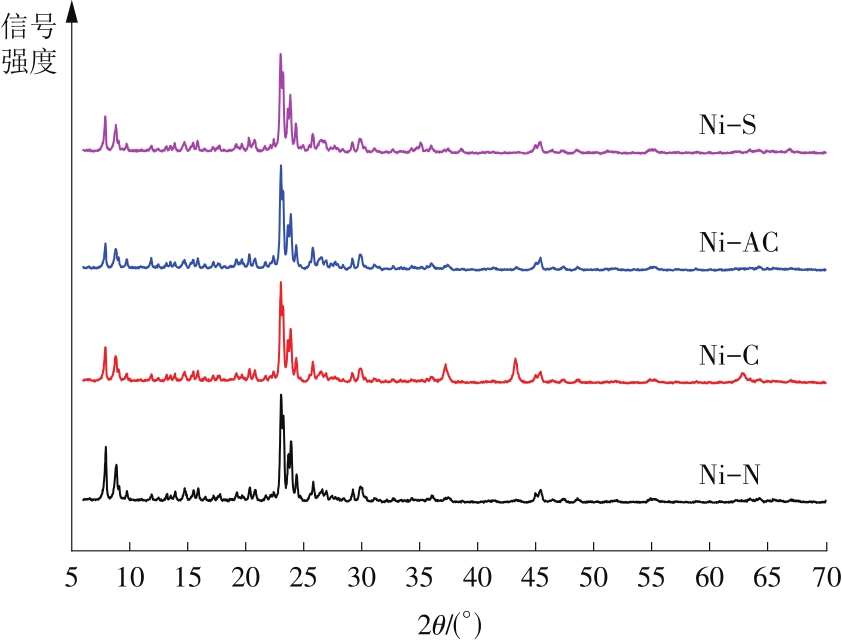

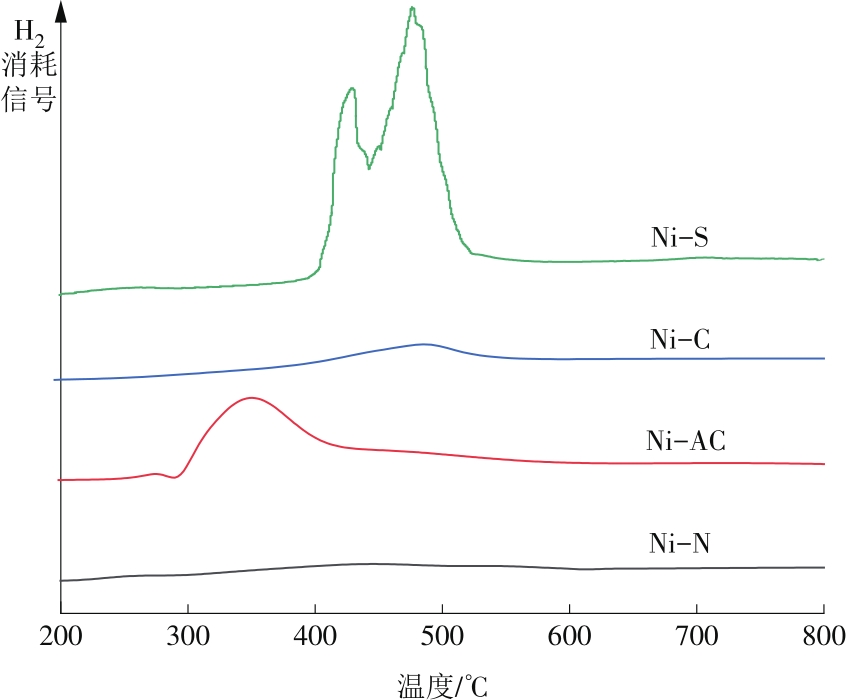

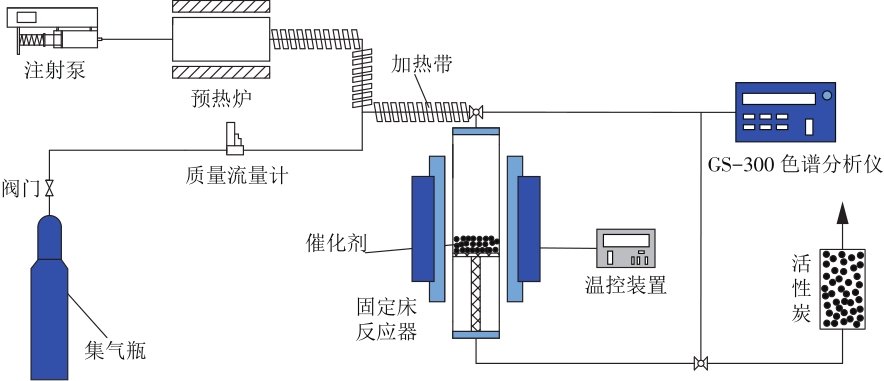

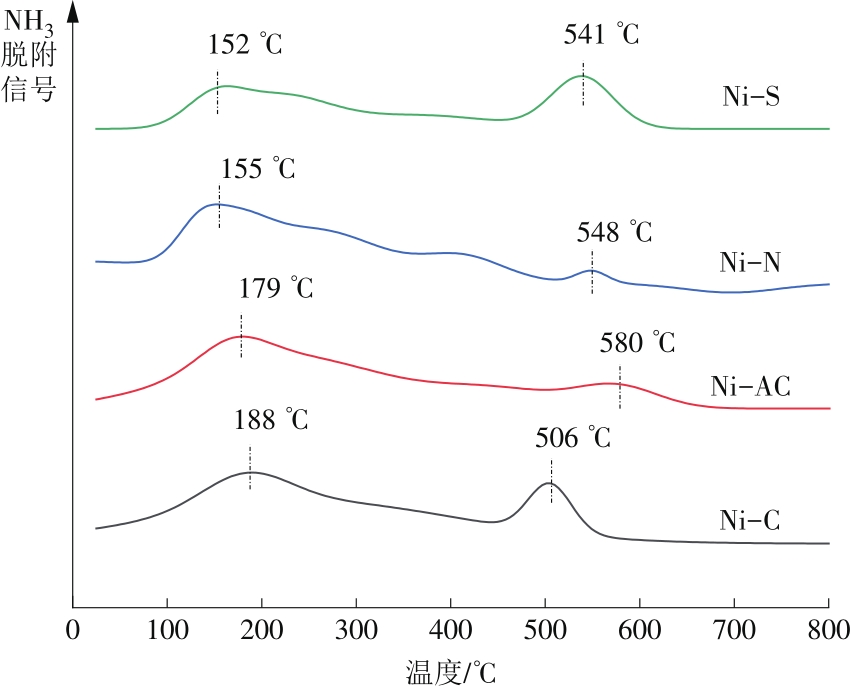

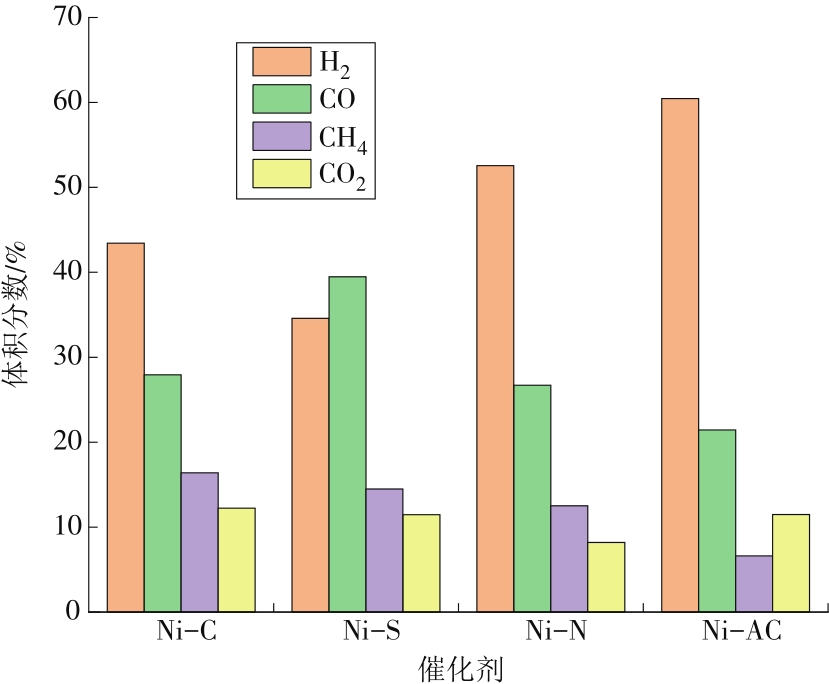

以生物质为原料的可再生资源具有运输便捷、资源丰富、来源广泛、减少薪柴类废弃物焚烧等优点，开发以生物质为原料的高效蒸汽重整制氢对实现绿色清洁燃料的工业应用具有重要意义。采用浸渍法分别以乙酸镍、硝酸镍、氯化镍、硫酸镍为前驱体负载于ZSM-5分子筛载体制备了4种催化剂，用固定床反应器考察4种催化剂对松木屑生物质催化重整的催化活性，分析合成气中氢的体积分数并对催化剂进行X射线衍射、氨程序升温脱附、氢程序升温还原、扫描电子显微镜表征测试。结果表明：乙酸镍与载体之间有较高的相互作用，镍物种在催化剂表面均匀分散，降低了颗粒的聚集、积碳，Ni-AC催化剂对松木屑的催化重整活性最高，合成气中氢气的体积分数达60.47%，Ni-S催化剂对生物质催化重整活性最低。研究结果可为生物质资源高效回收利用提供理论支撑。

关键词: 生物质, 绿色清洁燃料, 高效蒸汽重整制氢, 松木屑, 前驱体, 催化剂, 催化重整

Abstract:

Since the renewable resources made from biomass are convenient in transportation， abundant in reserves， easy to access and able to reduce the consumption of fuel wood， the development of efficient hydrogen production from steam reforming of biomass is important for the industrial application of green and clean fuels. The impregnation method was used to prepare four kinds of catalysts with nickel acetate， nickel nitrate， nickel chloride and nickel sulfate as precursors loaded on ZSM-5 molecular sieve carriers. The catalytic activity of the four catalysts in the catalytic reforming of pine sawdust biomass was investigated on a fixed bed reactor. The volume fraction of hydrogen in the syngas was analyzed， and the catalysts were characterized by XRD， NH₃-TPD，H₂-TPR and SEM. The results showed that nickel acetate demonstrated fairly active interactions with the carrier， and the nickel species uniformly dispersed on the surface of the catalyst， so as to reduce the aggregation and carbon deposition of particles. The Ni-AC catalyst was of the highest activity in the catalytic reforming of pine chips， and the volume fraction of hydrogen in the syngas reached 60.47%， while the Ni-S catalyst was of the lowest activity on the catalytic reforming of biomass. The study results can provide theoretical support for the efficient recycling of biomass resources.

Key words: biomass, green and clean fuel, efficient hydrogen production from steam reforming, pine chips, precursor, catalyst, catalytic performance

中图分类号:

TK6：O643.3

苏砚鑫, 王学涛, 邢利利, 李浩杰, 张兴宇. 前驱体对Ni/ZSM-5催化重整松木屑制氢性能的影响[J]. 综合智慧能源, 2023, 45(5): 32-38.

SU Yanxin, WANG Xuetao, XING Lili, LI Haojie, ZHANG Xingyu. Effect of precursors on pine sawdust steam reforming over Ni/ZSM-5 catalyst for hydrogen production[J]. Integrated Intelligent Energy, 2023, 45(5): 32-38.

图/表 7

表1

图1

图2

图3

图4

图5

图6

参考文献 30

[1]	PARTHASARATHY P, NARAYANAN K S. Hydrogen production from steam gasification of biomass: Influence of process parameters on hydrogen yield—A review[J]. Renewable Energy, 2014, 66:570-579. doi: 10.1016/j.renene.2013.12.025
[2]	张运洲, 鲁刚, 王芃, 等. 能源安全新战略下能源清洁化率和终端电气化率提升路径分析[J]. 中国电力, 2020, 53(2):1-8.
	ZHANG Yunzhou, LU Gang, WANG Peng, et al. Analysis on the improvement path of non-fossil energy consumption proportion and terminal electrification rate under the new energy security strategy[J]. Electric Power, 2020, 53(2):1-8.
[3]	RAHMAN M M, KHAN I, FIELD D L, et al. Powering agriculture: Present status, future potential, and challenges of renewable energy applications[J]. Renewable Energy, 2022, 188:731-749. doi: 10.1016/j.renene.2022.02.065
[4]	胡小夫, 王凯亮, 沈建永, 等. 基于生物固碳技术的CO₂资源化利用研究进展[J]. 华电技术, 2021, 43(6): 79-85.
	HU Xiaofu, WANG Kailiang, SHEN Jianyong, et al. Research progress of CO₂ resource utilization based on biological carbon sequestration technology[J]. Huadian Technology, 2021, 43(6): 79-85.
[5]	KOSTYNIUK A, BAJEC D, LIKOZAR B. Catalytic hydrogenation, hydrocracking and isomerization reactions of biomass tar model compound mixture over Ni-modified zeolite catalysts in packed bed reactor[J]. Renewable Energy, 2021, 167:409-424. doi: 10.1016/j.renene.2020.11.098
[6]	周瑜枫, 王学涛, 梁彦正, 等. Fe基催化剂在生物质催化气化中制富氢气体的应用[J]. 华电技术, 2021, 43(10): 31-42.
	ZHOU Yufeng, WANG Xuetao, LIANG Yanzheng, et al. Research progress of Fe based catalysts for hydrogen-rich gas production from biomass catalytic gasification[J]. Huadian Technology, 2021, 43(10): 31-42.
[7]	WANG Y, HUANG L, ZHANG T, et al. Hydrogen-rich syngas production from biomass pyrolysis and catalytic reforming using biochar-based catalysts[J]. Fuel, 2022, 313:123006. doi: 10.1016/j.fuel.2021.123006
[8]	AKUBO K, NAHIL M A, WILLIAMS P T. Pyrolysis-catalytic steam reforming of agricultural biomass wastes and biomass components for production of hydrogen/syngas[J]. Journal of the Energy Institute, 2019, 92(6):1987-1996. doi: 10.1016/j.joei.2018.10.013
[9]	KUMAR A, PRASAD R, SHARMA Y C. Ethanol steam reforming study over ZSM-5 supported cobalt versus nickel catalyst for renewable hydrogen generation[J]. Chinese Journal of Chemical Engineering, 2019, 27(3):677-684. doi: 10.1016/j.cjche.2018.03.036
[10]	VIZCAINO A J, CARRERO A, CALLES J A. Ethanol steam reforming on Mg- and Ca-modified Cu-Ni/SBA-15 catalysts[J]. Catalysis Today, 2009, 146(1-2):63-70. doi: 10.1016/j.cattod.2008.11.020
[11]	ZHANG J, WANG Y, WU D. Hydrogen production from partial oxidation and steam reforming of n-octane over alumina-supported Ni and Ni-Pd catalysts[J]. The Canadian Journal of Chemical Engineering, 2003, 81(2):307-311. doi: 10.1002/cjce.5450810219
[12]	MIAO Z, HU Z, JIANG E, et al. Hydrogen-rich syngas production by chemical looping reforming on crude wood vinegar using Ni-modified HY zeolite oxygen carrier[J]. Fuel, 2020, 279:118547. doi: 10.1016/j.fuel.2020.118547
[13]	HE S, MEI Z, LIU N, et al. Ni/SBA-15 catalysts for hydrogen production by ethanol steam reforming: Effect of nickel precursor[J]. International Journal of Hydrogen Energy, 2017, 42(21):1-10. doi: 10.1016/j.ijhydene.2016.11.073
[14]	CLAUDIO-PIEDRAS A, RAMIREZ-ZAMORA R M, ALCANTAR-VÁZQUEZ B C, et al. One dimensional Pt/CeO₂-NR catalysts for hydrogen production by steam reforming of methanol: Effect of Pt precursor[J]. Catalysis Today, 2021, 360:55-62. doi: 10.1016/j.cattod.2019.08.013
[15]	YU Z, HU X, JIA P, et al. Steam reforming of acetic acid over nickel-based catalysts: The intrinsic effects of nickel precursors on behaviors of nickel catalysts[J]. Applied Catalysis B: Environmental, 2018, 237:538-553. doi: 10.1016/j.apcatb.2018.06.020
[16]	FU P, ZHANG A, LUO S, et al. Catalytic steam reforming of biomass-derived acetic acid over two supported Ni catalysts for hydrogen-rich syngas production[J]. ACS Omega, 2019, 4(8):13585-13593. doi: 10.1021/acsomega.9b01985 pmid: 31460488
[17]	HU Z, WENG C, CHEN C, et al. Catalytic decomposition of ammonia to CO_x-free hydrogen over Ni/ZSM-5 catalysts: A comparative study of the preparation methods[J]. Applied Catalysis A, General, 2018, 562:49-57. doi: 10.1016/j.apcata.2018.05.038
[18]	钟朋展, 孟凡会, 崔晓曦, 等. 镍盐前体对Ni-Fe/γ-Al₂O₃催化剂甲烷化性能的影响[J]. 化工进展, 2013, 32(8):1845-1848,1875.
	ZHONG Pengzhan, MENG Fanhui, CUI Xiaoxi, et al. Catalytic performance of Ni-Fe/γ-Al₂O₃ catalyst prepared from different nickel precursors for CO methanation[J]. Chemical Industry and Engineering Progress, 2013, 32(8):1845-1848,1875.
[19]	WEN X, XU L, CHEN M, et al. Exploring the influence of nickel precursors on constructing efficient Ni-based CO₂ methanation catalysts assisted with in-situ technologies[J]. Applied Catalysis B: Environmental, 2021, 297:120486. doi: 10.1016/j.apcatb.2021.120486
[20]	WANG X, SU X, ZHANG Q, et al. Effect of additives on Ni-based catalysts for hydrogen-enriched production from steam reforming of biomass[J]. Energy Technology, 2020, 8(9):1-8.
[21]	WEI L, HAIJE W, KUMAR N, et al. Influence of nickel precursors on the properties and performance of Ni impregnated zeolite 5A and 13X catalysts in CO₂ methanation[J]. Catalysis Today, 2021, 362:35-46. doi: 10.1016/j.cattod.2020.05.025
[22]	DONPHAI W, PHICHAIRATANAPHONG O, KLYSUBUM W, et al. Hydrogen and carbon allotrope production through methane cracking over Ni/bimodal porous silica catalyst:Effect of nickel precursor[J]. International Journal of Hydrogen Energy, 2018, 43(48):21798-21809. doi: 10.1016/j.ijhydene.2018.10.049
[23]	RAZALI M H, BUANG N A, BAKAR W. CO₂/H₂ methanation reactivity of nickel oxide based catalyst prepared from different nickel salt precursors[J]. AIP Conference Proceedings, 2010, 1217(1):195-199.
[24]	RENDA S, RICCA A, PALMA V. Precursor salts influence in ruthenium catalysts for CO₂ hydrogenation to methane[J]. Applied Energy, 2020, 279:115767. doi: 10.1016/j.apenergy.2020.115767
[25]	职国娟, 王英勇, 靳国强, 等. 镍盐前躯体对CO₂甲烷化Ni/SiC催化剂性能的影响[J]. 天然气化工(C1化学与化工), 2012, 37(5):10-14,42.
	ZHI Guojuan, WANG Yingyong, JIN Guoqiang, et al. Effect of nickel precursors on catalytic performance of Ni/SiC catalysts for CO₂ methanation[J]. Natural Gas Chemical Industry, 2012, 37(5):10-14,42.
[26]	OSINKIN D A. Precursor of Pr₂NiO₄₊_δ as a highly effective catalyst for the simultaneous promotion of oxygen reduction and hydrogen oxidation reactions in solid oxide electrochemical devices[J]. International Journal of Hydrogen Energy, 2021, 46(48):24546-24554. doi: 10.1016/j.ijhydene.2021.05.022
[27]	SAHELI S, REZVANI A R, MALEKZADEH A. Study of structural and catalytic properties of Ni catalysts prepared from inorganic complex precursor for Fischer-Tropsch synthesis[J]. Journal of Molecular Structure, 2017, 1144:166-172. doi: 10.1016/j.molstruc.2017.05.027
[28]	张微, 葛庆杰, 徐恒泳. 镍前驱体对非负载型镍催化剂上甲烷分解活性的影响[J]. 催化学报, 2010, 31(11):1358-1362.
	ZHANG Wei, GE Qingjie, XU Hengyong. Influence of nickel precursors on catalytic activity of non-supported Ni for methane decomposition[J]. Chinese Journal of Catalysis, 2010, 31(11):1358-1362. doi: 10.3724/SP.J.1088.2010.00430
[29]	李小华, 陈磊, 樊永胜, 等. Zn-P复合改性HZSM-5在线催化热解获取生物油的研究[J]. 燃料化学学报, 2015, 43(5):567-574.
	LI Xiaohua, CHEN Lei, FAN Yongsheng, et al. Study on preparation of re fine d oil by upgrading of pyrolytic vapors using Zn-P/HZSM-5 zeolite[J]. Journal of Fuel Chemistry and Technology, 2015, 43(5):567-574. doi: 10.1016/S1872-5813(15)30015-3
[30]	RAZALI M H, BUANG N A, BAKAR W. CO₂/H₂ methanation reactivity of nickel oxide based catalyst prepared from different nickel salt precursors[C]// AIP Conference. American Institute of Physics, 2010:195-199.
