基于储能的寒冷地区住宅多能源供能多目标优化研究

doi:10.3969/j.issn.2097-0706.2025.12.005

摘要/Abstract

摘要：

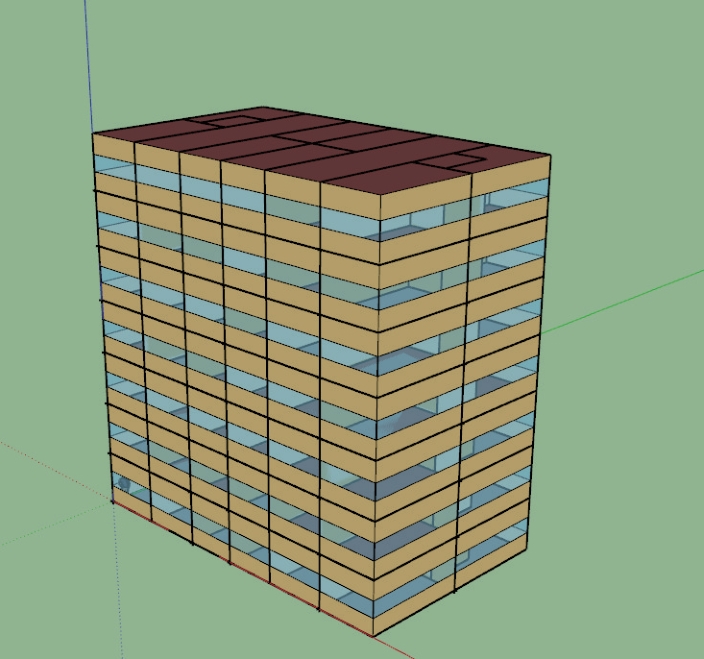

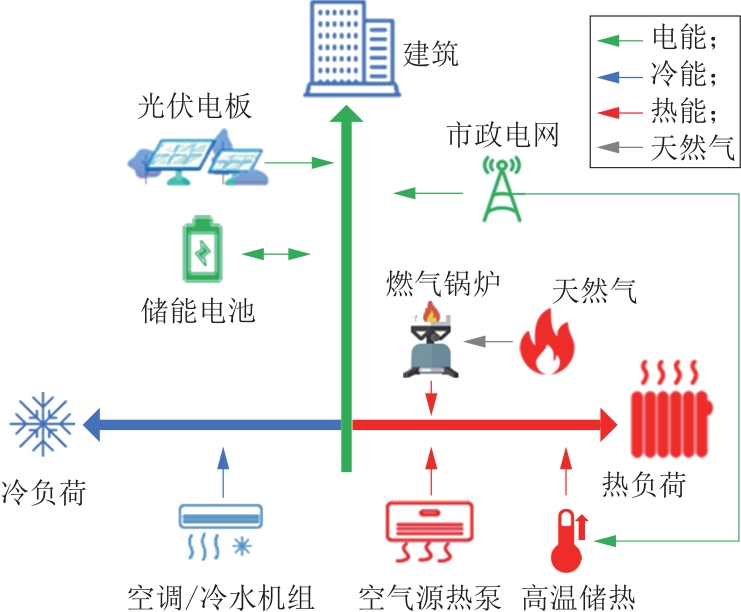

针对寒冷地区住宅建筑冬季供暖需求高、能源消耗大及碳排放压力重的现状，同时考虑电能与热能存储的耦合效应，构建了集成光伏发电、空气源热泵、燃气锅炉、储能电池与高温储热装置的综合能源系统多目标优化模型，对比了3种优化算法在5个异质性气候城市的性能。基于北京、郑州、银川、拉萨和喀什市的气象数据及在EnergyPlus中建立的建筑热模型，确定了基准能源需求。结合Matlab平台分别采用非支配排序遗传算法（NSGA-Ⅱ）、粒子群算法（PSO）和模拟退火算法（SA），进行碳排放最小化与经济成本最小化的多目标优化。结果表明：NSGA-Ⅱ在多数场景下能实现成本与碳排放的最佳权衡，综合性能最优；PSO在供暖期长的地区运行成本优化效果显著；SA则适用于寻求更低运行成本的场景，但通常伴随较高的初始投资。该优化模型能够兼顾寒冷地区住宅建筑的经济性与低碳性，可显著提升可再生能源利用率，并为寒冷气候条件下建筑综合能源系统的规划与运行提供参考。

关键词: 住宅建筑, 综合能源系统, 寒冷地区, 多目标优化, 储能

Abstract:

Aiming at the current situation of high heating demand， large energy consumption， and heavy carbon emission pressure for residential buildings in cold regions during winter， and considering the coupling effect of electrical and thermal energy storage， a multi-objective optimization model of an integrated energy system incorporating photovoltaic power generation， air-source heat pumps， gas boilers， energy storage batteries， and high-temperature thermal storage devices was constructed. The performance of three optimization algorithms was compared across five cities with heterogeneous climates. Based on meteorological data from Beijing， Zhengzhou， Yinchuan， Lhasa， and Kashgar， along with a building thermal model established in EnergyPlus， the baseline energy demand was determined. Utilizing the Matlab platform， the non-dominated sorting genetic algorithm Ⅱ（NSGA-Ⅱ）， particle swarm optimization（PSO）， and simulated annealing（SA） were employed to conduct multi-objective optimization for minimizing carbon emissions and economic cost. The results showed that the NSGA-Ⅱ achieved the best trade-off between cost and carbon emissions in most scenarios， demonstrating the optimal comprehensive performance. The PSO showed significant effectiveness in optimizing operating costs in regions with long heating periods. The SA was suitable for scenarios aiming for lower operating costs， but it was typically accompanied by higher initial investment. This optimization model can balance the economic and low-carbon performance of residential buildings in cold regions， significantly improve the utilization rate of renewable energy， and provide a reference for the planning and operation of building integrated energy systems under cold climate conditions.

Key words: residential buildings, integrated energy system, cold regions, multi-objective optimization, energy storage

中图分类号:

TK01⁺9：TU241

闫京, 李萌, 关宝良, 孟思宇, 樊颜搏, 王凤龙, 杨尚峰, 杨众杨, 熊亚选. 基于储能的寒冷地区住宅多能源供能多目标优化研究[J]. 综合智慧能源, 2025, 47(12): 46-56.

YAN Jing, LI Meng, GUAN Baoliang, MENG Siyu, FAN Yanbo, WANG Fenglong, YANG Shangfeng, YANG Zhongyang, XIONG Yaxuan. Multi-objective optimization of multi-energy supply for residential buildings in cold regions based on energy storage[J]. Integrated Intelligent Energy, 2025, 47(12): 46-56.

图/表 11

图1

图2

表1

图3

图4

表2

表3

图5

图6

图7

表4

参考文献 29

[1]	United Nations Environment Programme. 2024—2025 global status report for buildings and construction[R]. Nairobi: United Nations Environment Programme, 2025.
[2]	OSTERGAARD P A, DUIC N, NOOROLLAHI Y, et al. Sustainable development using renewable energy technology[J]. Renewable Energy, 2020, 146: 2430-2437. doi: 10.1016/j.renene.2019.08.094
[3]	王可睿, 莫馥任, 李怡, 等. 夏热冬暖地区公共建筑围护结构的节能技术分析[J]. 生态城市与绿色建筑, 2015(2): 80-85.
	WANG Kerui, MO Furen, LI Yi, et al. Analysis on green energy technology of public buildings in hot summer and warm winter areas[J]. Eco-City and Green Building, 2015(2): 80-85.
[4]	WANG D, YU W, ZHAO X T, et al. The influence of thermal insulation position in building exterior walls on indoor thermal comfort and energy consumption of residential buildings in Chongqing[C]// International Conference on New Energy and Future Energy System. NEES, 2016: 778-790.
[5]	牛智辉, 陈天丽, 雷艳杰. 豫中地区既有居住建筑外围护结构节能改造[J]. 施工技术, 2010, 39(S2): 438-441.
	NIU Zhihui, CHEN Tianli, LEI Yanjie. Energy-saving transformation of external envelope of existing residential buildings in central Henan Province[J]. Construction Technology, 2010, 39(S2): 438-441.
[6]	黄春华, 叶勇军. 节能建筑外墙保温层厚度的经济性优化[J]. 建筑热能通风空调, 2005, 24(6): 73-76.
	HUANG Chunhua, YE Yongjun. Economical optimum of insulation thickness on external wall of energy saving building[J]. Building Energy & Environment, 2005, 24(6): 73-76.
[7]	蔡悦倩. 基于风环境的建筑布局形态设计策略研究[D]. 北京: 北京交通大学, 2020.
	CAI Yueqian. Research on the design strategy of architectural layout based on wind environment[D]. Beijing: Beijing Jiaotong University, 2020.
[8]	尤欣怡, 石谦飞, 胡钧璞. 以热环境节能为导向的建筑布局优化模拟分析[J]. 建筑节能(中英文), 2025, 53(2): 111-119.
	YOU Xinyi, SHI Qianfei, HU Junpu. Simulation analysis of layout optimization of buildings oriented by thermal environment energy saving[J]. Building Energy Efficiency, 2025, 53(2): 111-119.
[9]	刘慧娟, 宋长衡. 基于BIM技术的绿色建筑节能设计优化研究[J]. 山西建筑, 2025, 51(2): 20-23, 81.
	LIU Huijuan, SONG Changheng. Research on optimization of energy saving design of green building based on BIM technology[J]. Shanxi Architecture, 2025, 51(2): 20-23, 81.
[10]	何蓝玲. 基于改进NSGA-Ⅱ算法的绿色施工项目多目标优化研究[D]. 贵阳: 贵州大学, 2022.
[11]	WANG Y, WANG Z H, RAHMATOLLAHI N, et al. The impact of roof systems on cooling and building energy efficiency[J]. Applied Energy, 2024, 376: 124339. doi: 10.1016/j.apenergy.2024.124339
[12]	MIRRAHIMI S, MOHAMED M F, HAW L C, et al. The effect of building envelope on the thermal comfort and energy saving for high-rise buildings in hot-humid climate[J]. Renewable & Sustainable Energy Reviews, 2016, 53: 1508-1519.
[13]	ATTIA S, HAMDY M, O'BRIEN W. Assessing gaps and needs for integrating building performance optimization tools in net zero energy buildings design[J]. Energy and Buildings, 2013, 60: 110-124. doi: 10.1016/j.enbuild.2013.01.016
[14]	LI K J, PAN L, XUE W P. Multi-objective optimization for energy performance improvement of residential buildings: A comparative study[J]. Energies, 2017, 10(2): 10020245.
[15]	HUSAINY A S N, MANGAVE S S, INGALE A S, et al. Innovation ecosystems and green building techniques for a sustainable future: Leveraging advanced technologies[J]. The Asian Review of Civil Engineering, 2024, 13(2): 1-10.
[16]	刘一宁, 陈柏安, 杜鹏程, 等. 基于MDLOF-iForest和M-KNN-Slope的公共建筑负荷异常数据识别与修复[J]. 综合智慧能源, 2025, 47(3): 62-72. doi: 10.3969/j.issn.2097-0706.2025.03.006
	LIU Yining, CHEN Baian, DU Pengcheng, et al. Detection and repair of abnormal load data of public buildings based on MDLOF-iForest and M-KNN-Slope[J]. Integrated Intelligent Energy, 2025, 47(3): 62-72. doi: 10.3969/j.issn.2097-0706.2025.03.006
[17]	甄箫斐, 李尚娥, 张永恒, 等. 西北地区近零能耗建筑围护结构多目标优化研究[J]. 综合智慧能源, 2024, 46(12): 81-90. doi: 10.3969/j.issn.2097-0706.2024.12.010
	ZHEN Xiaofei, LI Shang'e, ZHANG Yongheng, et al. Research on multi-objective optimization of envelope structures for nearly zero-energy buildings in Northwest China[J]. Integrated Intelligent Energy, 2024, 46(12): 81-90. doi: 10.3969/j.issn.2097-0706.2024.12.010
[18]	樊颜搏, 熊亚选, 李想, 等. 基于遗传算法的建筑用能多目标优化应用进展[J]. 综合智慧能源, 2024, 46(9): 69-85. doi: 10.3969/j.issn.2097-0706.2024.09.009
	FAN Yanbo, XIONG Yaxuan, LI Xiang, et al. Advancement in multi-objective optimization for building energy use based on genetic algorithms[J]. Integrated Intelligent Energy, 2024, 46(9): 69-85. doi: 10.3969/j.issn.2097-0706.2024.09.009
[19]	胡开永, 刘峰, 吴秀杰, 等. 基于Trnsys能耗预测的村镇建筑不同供能方式碳-经济分析[J]. 综合智慧能源, 2023, 45(8): 64-71. doi: 10.3969/j.issn.2097-0706.2023.08.008
	HU Kaiyong, LIU Feng, WU Xiujie, et al. Carbon-economy analysis on energy supply methods for rural buildings based on Trnsys energy consumption prediction[J]. Integrated Intelligent Energy, 2023, 45(8): 64-71. doi: 10.3969/j.issn.2097-0706.2023.08.008
[20]	WANG C S, LV C X, LI P, et al. Modeling and optimal operation of community integrated energy systems: A case study from China[J]. Applied Energy, 2018, 230:1242-1254. doi: 10.1016/j.apenergy.2018.09.042
[21]	BAHMANI R, KARIMI H, JADID S. Cooperative energy management of multi-energy hub systems considering demand response programs and ice storage[J]. International Journal of Electrical Power & Energy Systems, 2021, 130: 106904. doi: 10.1016/j.ijepes.2021.106904
[22]	ZHENG X Y, WU G C, QIU Y W, et al. A MINLP multi-objective optimization model for operational planning of a case study CCHP system in urban China[J]. Applied Energy, 2018, 210: 1126-1140. doi: 10.1016/j.apenergy.2017.06.038
[23]	GUO J C, LIU Z J, WU X, et al. Two-layer co-optimization method for a distributed energy system combining multiple energy storages[J]. Applied Energy, 2022, 322: 119486. doi: 10.1016/j.apenergy.2022.119486
[24]	韩叶霞. 低能耗建筑中含分布式电源的多目标优化研究[D]. 北京: 北京建筑大学, 2018.
	HAN Yexia. Research on distributed power supply in low-energy buildings of multi-objective optimization[D]. Beijing: Beijing University of Civil Engineering and Architecture, 2018.
[25]	JIANG Z, RIVERO M E N, LIU X L, et al. A novel composite phase change material for medium temperature thermal energy storage manufactured with a scalable continuous hot-melt extrusion method[J]. Applied Energy, 2021, 303: 117591. doi: 10.1016/j.apenergy.2021.117591
[26]	DEB K, PRATAP A, AGARWAL S, et al. A fast and elitist multiobjective genetic algorithm: NSGA-Ⅱ[J]. IEEE Transaction on Evolutionary Computation, 2002, 6(2): 182-197. doi: 10.1109/4235.996017
[27]	KOU F C, GONG Q P, ZOU Y, et al. Solar application potential and thermal property optimization of a novel zero-carbon heating building[J]. Energy and Buildings, 2023, 279: 112688. doi: 10.1016/j.enbuild.2022.112688
[28]	JUNGHANS L, DARDE N. Hybrid single objective genetic algorithm coupled with the simulated annealing optimization method for building optimization[J]. Energy and Buildings, 2015, 86: 651-662. doi: 10.1016/j.enbuild.2014.10.039
[29]	EVINS R. A review of computational optimisation methods applied to sustainable building design[J]. Renewable and Sustainable Energy Reviews, 2013, 22: 230-245. doi: 10.1016/j.rser.2013.02.004

围护结构	具体构造	传热系数/[W∙(m²·K)^-1]
屋面	水泥砂浆20 mm+加气混凝土120 mm+水泥砂浆20 mm	0.25
楼板	混凝土120 mm	1.45
底板	水泥砂浆20 mm+加气混凝土150 mm	1.45
外墙	水泥砂浆20 mm+空心砖200 mm+水泥砂浆20 mm	0.45
内墙	水泥砂浆20 mm+空心砖100 mm+水泥砂浆20 mm	1.45
外窗	3 mm双层透明玻璃	1.90

城市	典型日供热天然气消耗量/m³	典型日耗电量/(kW·h)	碳排放量/kg	能耗费用/元
北京	112	396	463.5	548
郑州	94	341	411.0	434
银川	118	346	477.0	420
拉萨	72	310	338.0	260
喀什	93	340	413.0	356

城市	典型日耗电量/(kW·h)	电力二氧化碳排放因子/[kg·(kW·h)^-1]	碳排放量/kg	电价/[元·(kW·h)^-1]	电费/元
北京	495	0.558 0	276	0.558 3	276
郑州	443	0.605 8	268	0.560 0	249
银川	411	0.642 3	264	0.498 6	205
拉萨	360	0.585 6	211	0.490 0	176
喀什	460	0.623 1	286	0.500 0	230

城市	算法	建设成本/万元	冬季		夏季
城市	算法	建设成本/万元	运行成本/元	碳排放/kg	运行成本/元	碳排放/kg
北京	原始状态	0	548	464	276	276
	NSGA-Ⅱ	20.027	118	119	77	109
	PSO	24.660	130	130	55	85
	SA	36.397	187	197	37	58
郑州	原始状态	0	434	411	249	268
	NSGA-Ⅱ	16.494	109	125	79	117
	PSO	18.615	129	172	68	110
	SA	31.258	160	202	63	102
银川	原始状态	0	420	477	205	264
	NSGA-Ⅱ	18.437	80	119	33	81
	PSO	28.171	104	167	19	49
	SA	24.625	127	214	23	58
拉萨	原始状态	0	260	338	176	211
	NSGA-Ⅱ	16.181	70	115	30	70
	PSO	20.075	138	227	29	69
	SA	30.503	91	176	45	105
喀什	原始状态	0	356	413	230	286
	NSGA-Ⅱ	13.200	104	154	82	163
	PSO	27.283	102	159	28	69
	SA	32.553	186	243	38	89
